10ft 16ft 20ft 24ft industrial solid large cooling BLDC ceiling fan china supplier

Supplier: Guangzhou Shuotian Automatic Door Co., Ltd.
Region: Guangdong, China
Contact: Ms Chelsea Yu
Price: $1683.00 /set
Min. Order: 1 set

Click here to contact

Product details

Motor:	German Motor;	Blade Material:	aluminum magnesium;
Mounting:	Ceiling Fan;	Brand Name:	Augfu;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Single gross weight:	68.0 KG;
Fan Blade Qty:	5PCS;	Type:	Other;
Fan diameter(Meter):	7.3m/6.1m/5.5m/4.9m/3.6m/;	Control Panel:	Demark Inverter;
Single package size:	120X30X30 cm;	Packaging Detail:	Plywood case;
Application:	Industry;	Fan Blades:	Extruded magnesium alloy;
Fan diameter(FT):	24ft/20ft/18ft/16ft/12ft;	Certification:	ce;
Place of Origin:	Guangdong China;	After-sales Service Provided:	Engineers available to service machinery overseas,Online support;
Noise:	40dB;	Selling Units:	Single item;
Voltage:	220V/380V;	Power:	1.5KW;
Warranty:	2 Year,2 years;

Product Description

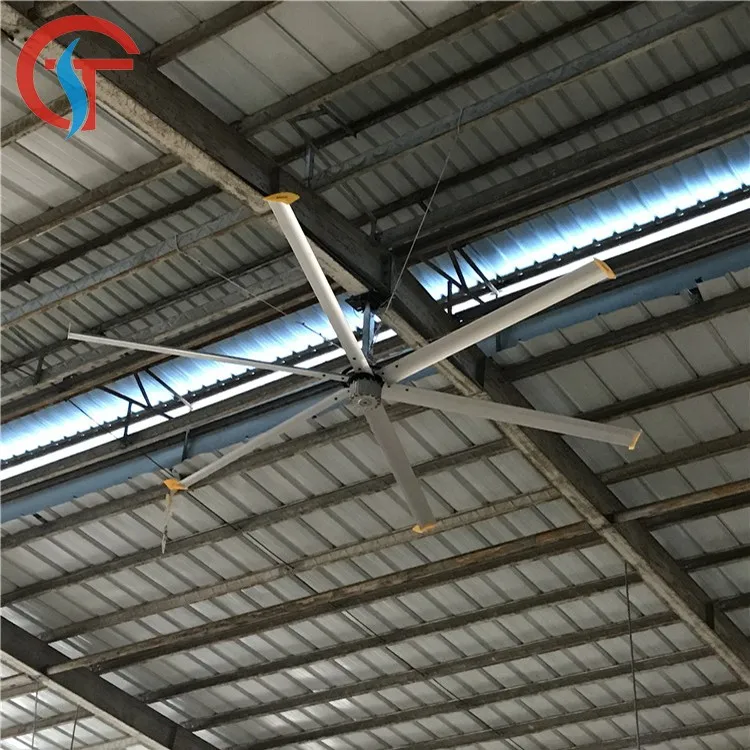

Industrial Ceiling Fan

1). Description:

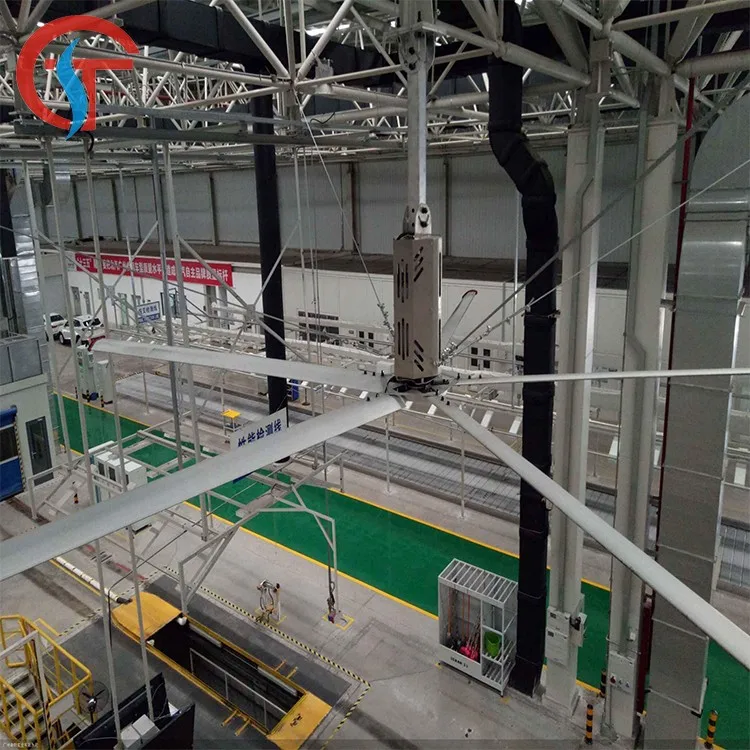

Shuotian HVLS Fnas are designed to be some of the most efficient and durable fans in the industry. High-volume low-speed ceiling fans help reduce energy consumpiton and idea for large commercial buildings, manufacturing facilities, pcoessing and assembly plates, warehouse or any other large indoor or outdoor facility.

Advantage:
- High efficient air folow

- Low cost and free maintenance

- Large application area

- 5-Blade design produce more CFM at a Lower RPM

- Provide a cool breeze in summer and bring down hear in the winter.

2). Date sheet

Diameter (m)Ft	Motor Power (KW)Ph	Speed (rpm)	Air Volumn (m³/Min)	Current(A) 380V	Weight (Kg)	Noise (dBA)
7.3(24')	1.5/2.0	20-53	13200	3.23	128	45
6.1(20')	1.5/2.0	20-53	11200	2.52	125	45
5.5(18')	1.5/2.0	20-64	9200	2.32	116	45
4.9(16')	1.5/2.0	20-64	7600	1.97	111	45
3.7(12')	1.5/2.0	20-75	5800	1.89	102	45

3). Detail Specification

Motor		Special design German NORD mtoror with origional NORD reducer.
Blade		High quality aluminum magnesium alloy 5 pcs blades to ensure Max airflow and efficiency Fluorocarbon coating surface treatment
Blade Clips		High quality aluminum magnesium alloy, Double lenght of Plug-in model, Avoid blade fall of after long time operation

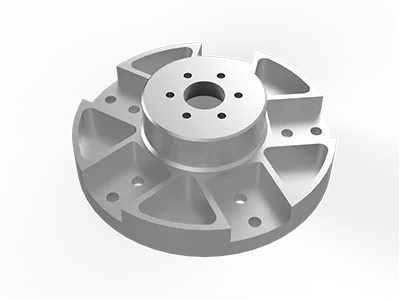

Chassis		7075 Superhard alloy + 1600T High pressure forging +T6 heat treatment.
Control Box		Danfoss Brand bearing high carrier frequency to reduce motor zing,improve the control pulse signal quality. IP55
Safety device		DIN933 Bolat standards, Grade 12.9 DIN125A Locknut 6mm hot-dip galvanized safety rope Anti off shaft & hub locking
