RC: | 89; | Brand Name: | Ruiyu or OEM brand; |
Din Type: | din55; | Place of Origin: | Shandong China; |
Packaging Detail: | seaworthy package each battery in a CARTON box and on wooden pallet or according to customer's request; | JIS & DIN Dry Charged and MF BATTERY: | 12V 32AH to 200AH; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Certificates: | CE,CQC,SONCAP,IQNET,ISO9001,IEC60095-1,ISO14001; |
Car Make: | all; | Port: | QINGDAO; |
CCA: | 440; | Size: | 238*175*190; |
CC: | 400a; | Dimensions: | 305*173*230; |
Voltage: | 12V,12V; | Produce Name: | car batteries; |
OE NO.: | 55; | Type: | Maintenance free rechargeable battery; |
Supply Ability: | 210000 Piece/Pieces per Month; | Weight: | 15kg; |
Model Number: | 55559; | Warranty: | 1; |
Capacity: | 55AH; |
1. Battery Tech Specification
1. Capacity.: 36AH to 220ah
2. Voltage: 12V
3. Applications: starting battery for cars, buses, trucks and other vehicles
4. Certificate: ISO, CE, SASO, SONCAP etc

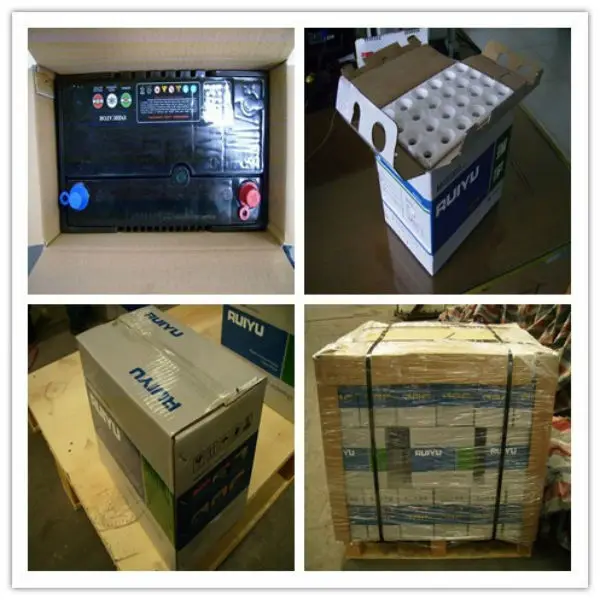

5. Packaging: cartons & pallets
6. Delivery: within 30 days after signing contract and receiving 30% deposit for 1-3 containers.
7. Deliver from qingdao, China.
8. OEM production available (customers provide Brand & Packaging design)
Superior performance
----Composite Separator
Ultra-fine glass fiber composite separator, with light weight, small resistance, high acidity absorption and strong ion migration ability in the sulfuric acid solution, improves its battery voltage and starting current to the maximum, thus keeping the battery capacity in a good state all long.
---Comparison of Service Life between General Separator and Composite Separator
Ultra-fine glass fiber composite separator, with the fiber diameter of 2-3um, is arranged disorderly in a network structure. The strong adsorption and breakover capabilities of the battery electrolyte can effectively condensate active substances and prevent them from dropping off, thus extending the battery life.
---Battery Life
The adoption of Sb-free Pb-Sn-Ca special alloying technology effectively guarantees the contents of lead dioxide and spongy lead in the positive and negative plates. The battery can be put into use directly after adding liquid, no need to be charged. Its super-charged performance distinguishes the product from others.
---Excellent Performance Chart of Pb-Ca Alloy
The accumulate plate made of high-purity Pb-Ca alloy has extraordinary oxidation and corrosion resistance capabilities. The adverse effect brought about by hydrogen evolution of general Sb alloy plate is avoided; the water loss of the accumulator slowed down, and the cycle index improved.
---Comparison of Self-discharge between General
Accumulator and Pb-Sb-Ca Alloy Accumulator
The Pb-Sb-Ca alloy grid offers more excellent characteristics of oxidation resistance, corrosion resistance and less water loss than the general Sb alloy grid, which can minimize the self-discharge and maintain its good starting performance even after long-term storage.
JIS (JAPAN STANDARD)
New Type | Old Type | C20 | Dimentsions | Layout | Plate | Q'ITY PER PALLET | ||
AH | L | W | T.H | |||||
36B20R | NS40R | 32 | 196 | 130 | 220 | 1 | 8 | 116 |
36B20RS | NS40S | 32 | 196 | 130 | 220 | 1 | 8 | 116 |
38B20R | NS40Z | 36 | 196 | 130 | 220 | 1 | 8 | 116 |
38B20RS | NS40ZS | 36 | 196 | 130 | 220 | 1 | 8 | 116 |
40B19R | 35 | 196 | 130 | 220 | 1 | 8 | 116 | |
32C24R | N40 | 40 | 238 | 130 | 220 | 1 | 9 | 92 |
32C24RS | N40S | 40 | 238 | 130 | 220 | 1 | 9 | 92 |
46B24R | NS60 | 45 | 238 | 130 | 220 | 1 | 10 | 92 |
46B24RS | NS60S | 45 | 238 | 130 | 220 | 1 | 10 | 92 |
55B24R | NX100-6 | 50 | 238 | 130 | 220 | 1 | 10 | 92 |
55B24RS | NX100-6S | 50 | 238 | 130 | 220 | 1 | 10 | 92 |
55D23R | 60 | 235 | 173 | 225 | 1 | 11 | 72 | |
65D23R | 65 | 235 | 173 | 225 | 1 | 12 | 72 | |
75D23R | 65 | 235 | 173 | 225 | 1 | 12 | 72 | |
48D26R | N50 | 50 | 260 | 173 | 220 | 1 | 10 | 64 |
55D26R | N50Z | 60 | 260 | 173 | 220 | 1 | 11 | 64 |
65D26R | 65 | 260 | 173 | 220 | 1 | 12 | 64 | |
75D26R | NS70 | 65 | 260 | 173 | 220 | 1 | 12 | 64 |
80D26R | NX110-5 | 70 | 260 | 173 | 220 | 1 | 13 | 64 |
65D31R | N70 | 70 | 305 | 173 | 225 | 1 | 13 | 60 |
75D31R | N70Z | 75 | 305 | 173 | 225 | 1 | 14 | 60 |
95D31R | NX120-7 | 80 | 305 | 173 | 225 | 1 | 15 | 60 |
30H90R | NS100R | 90 | 305 | 173 | 225 | 1 | 16 | 60 |
N90 | 90 | 360 | 173 | 230 | 1 | 16 | 60 | |
N90L | 90 | 360 | 173 | 230 | 0 | 16 | 60 | |
30H102 | 102 | 340 | 173 | 230 | 0 | 18 | 48 | |
30H105R | 105 | 340 | 173 | 230 | 1 | 18 | 48 | |
30H115R | 115 | 340 | 173 | 230 | 1 | 19 | 48 | |
30H125R | 125 | 340 | 173 | 230 | 1 | 21 | 48 | |
95E41R | N100 | 100 | 405 | 173 | 230 | 1 | 18 | 48 |
105E41R | N100Z | 105 | 405 | 173 | 230 | 1 | 18 | 48 |
115E41R | N120A | 110 | 405 | 173 | 230 | 1 | 19 | 48 |
N110 | N110 | 110 | 405 | 173 | 230 | 1 | 19 | 48 |
130E41R | NX200-10 | 115 | 405 | 173 | 230 | 1 | 19 | 48 |
N115 | N115 | 115 | 506 | 181 | 233 | 3 | 19 | 32 |
115F51 | N120 | 120 | 506 | 181 | 233 | 3 | 21 | 32 |
145F51 | NS150 | 135 | 506 | 181 | 233 | 3 | 25 | 32 |
145G51 | N150 | 150 | 506 | 220 | 233 | 3 | 27 | 28 |
165G51 | NS200 | 165 | 506 | 220 | 233 | 3 | 28 | 28 |
N170 | 170 | 506 | 220 | 233 | 3 | 29 | 28 | |
195G51 | N180 | 180 | 506 | 220 | 233 | 3 | 31 | 28 |
N185 | N200A | 185 | 506 | 260 | 233 | 3 | 31 | 24 |
195H52 | N200 | 200 | 506 | 260 | 233 | 3 | 31 | 24 |
245H52 | N220 | 220 | 506 | 260 | 233 | 3 | 33 | 24 |
DIN (GEMAN STANDARD)
EN & DIN Number | C20 | Dimentsions | Layout | Q'TY PER PALLET | ||
AH | L | W | T.H | |||
54465 | 44 | 210 | 175 | 190 | 0 | 72 |
54466 | 44 | 210 | 175 | 190 | 1 | 72 |
54459 | 44 | 210 | 175 | 190 | 0 | 72 |
54464 | 44 | 210 | 175 | 190 | 1 | 72 |
55530 | 55 | 238 | 175 | 190 | 0 | 72 |
55565 | 55 | 238 | 175 | 190 | 1 | 72 |
56638 | 66 | 268 | 175 | 190 | 0 | 64 |
56633 | 66 | 268 | 175 | 190 | 1 | 64 |
60032 | 100 | 305 | 175 | 225 | 0 | 60 |
60033 | 100 | 340 | 175 | 190 | 1 | 48 |
58821 | 88 | 340 | 175 | 190 | 1 | 48 |
58827 | 88 | 340 | 175 | 190 | 0 | 48 |
60038 | 100 | 340 | 175 | 190 | 0 | 48 |
60030 | 100 | 260 | 175 | 225 | 2 | 48 |
62526 | 125 | 340 | 175 | 230 | 0 | 48 |
62527 | 125 | 340 | 175 | 230 | 1 | 48 |
58811 | 88 | 405 | 175 | 225 | 0 | 48 |
60016 | 100 | 405 | 175 | 225 | 0 | 48 |
60035 | 100 | 405 | 175 | 225 | 1 | 48 |
62534 | 125 | 506 | 181 | 220 | 3 | 32 |
65531 | 150 | 506 | 181 | 220 | 4 | 32 |
65044 | 150 | 506 | 181 | 220 | 3 | 32 |
65033 | 150 | 506 | 220 | 220 | 3 | 28 |
65089 | 150 | 506 | 220 | 220 | 4 | 28 |
67018 | 170 | 506 | 220 | 220 | 3 | 28 |
68029 | 180 | 506 | 220 | 220 | 4 | 28 |
68032 | 180 | 506 | 220 | 220 | 3 | 28 |
70027 | 200 | 506 | 260 | 233 | 3 | 24 |
70029 | 200 | 506 | 260 | 233 | 4 | 24 |
71014 | 210 | 506 | 260 | 233 | 3 | 24 |
72026 | 220 | 506 | 260 | 233 | 3 | 24 |

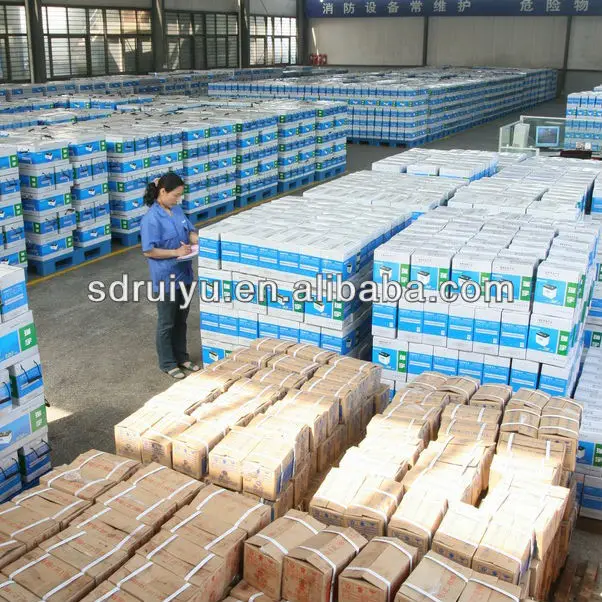

2.Battery Warehouse

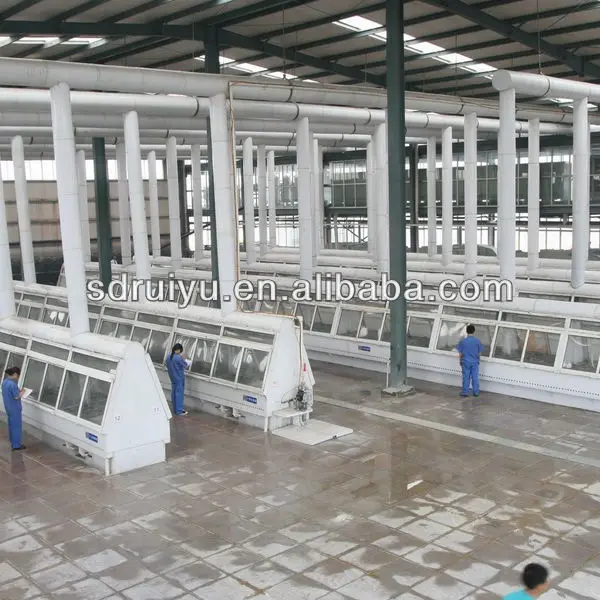

3. Battery Assembly
4. Battery Charging
5.Battery Factory Morning
6.Battery Material Selection
