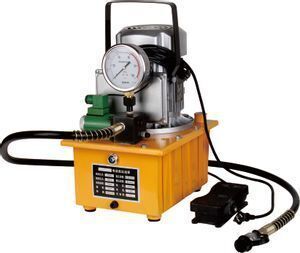

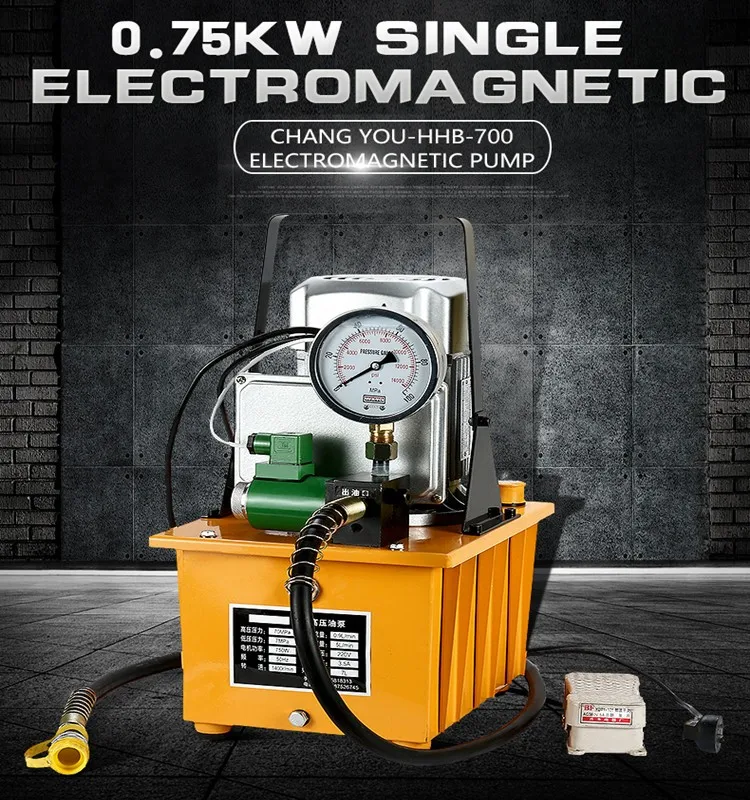

HHB-700A Factory 700 bar hydraulic pump electric oil pump post tension oil pump

Supplier: Yuhuan Changyou Hydraulic Tools Co., Ltd.
Region: Zhejiang, China
Contact: Mr Lin
Price: $170.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Zhejiang China(Mainland);	Oil Reserves:	7L;
Model Number:	HHB-700a;	Supply Ability:	1000 Set/Sets per Month;
Payment Terms:	L/C,T/T;	Motor Power:	750w;
Packaging Detail:	1set/wooden case;	High Pressure:	70Mpa;
Port:	ningbo;	Low Pressure:	7Mpa;
Rotate Speed:	1400 r/min;	Type of Oil:	15#-32#Anti-wear hydraulic oil;
Brand Name:	GHANGYOU;	Type:	Electric Pump;

Our Company

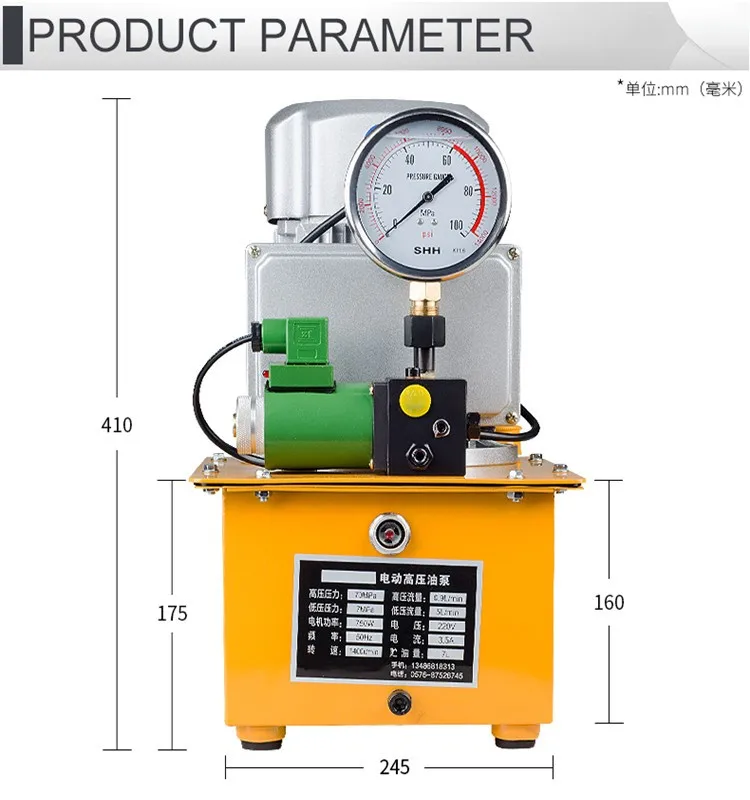

Product Description

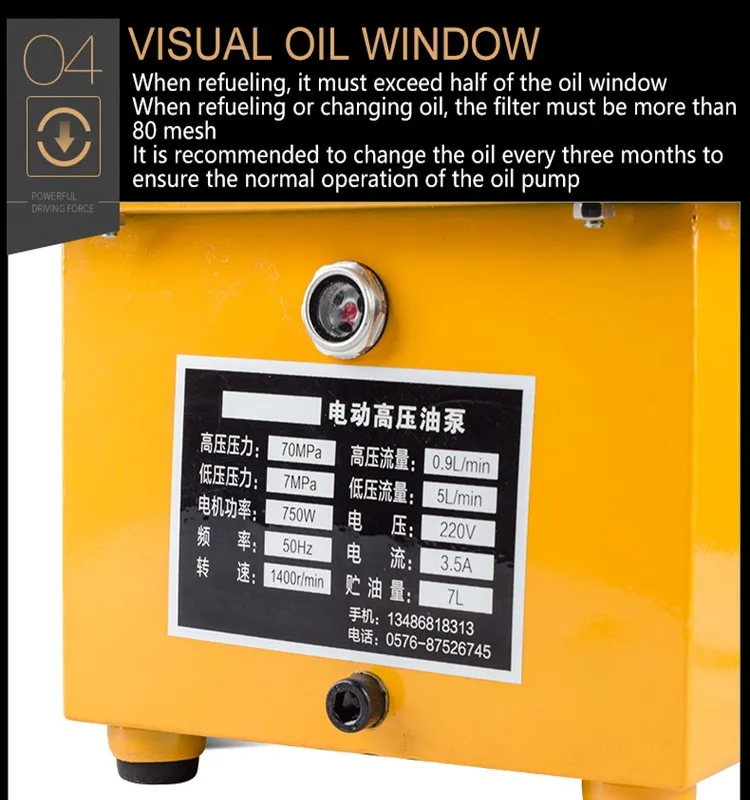

Model Number	HHB-700
High Pressure	70Mpa
High Pressure Flow	0.9L/min
Low Pressure	7MPa
Low Pressure Flow	5L/min
Motor Power	750W
Rotate Speed	1400r/min
Capacity of Oil	7L(Can be customized)

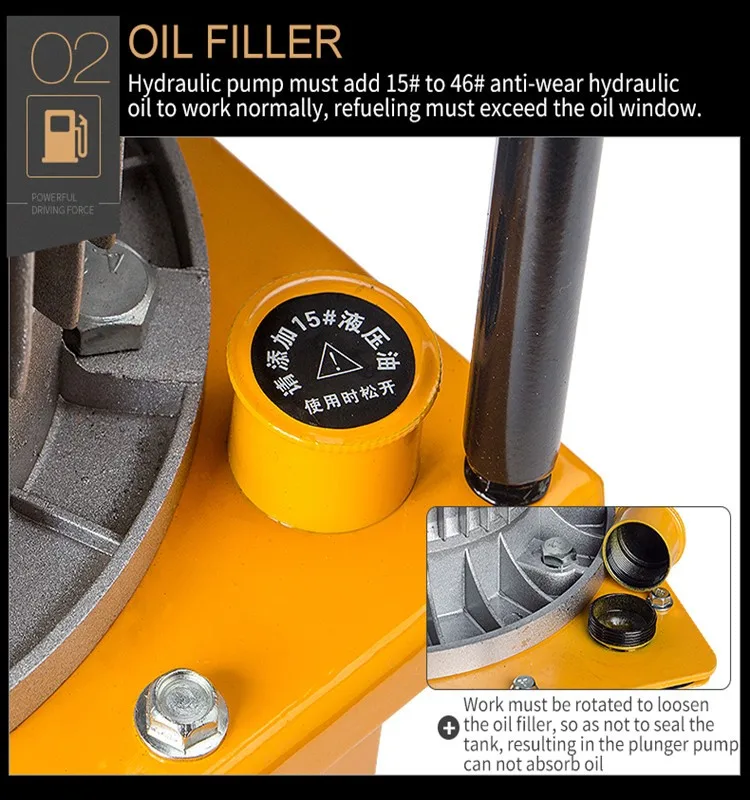

Type of Oil	15#-32#Anti-wear hydraulic oil
Net Weight	25kg
Gross Weigh	30kg
Package	Wooden case

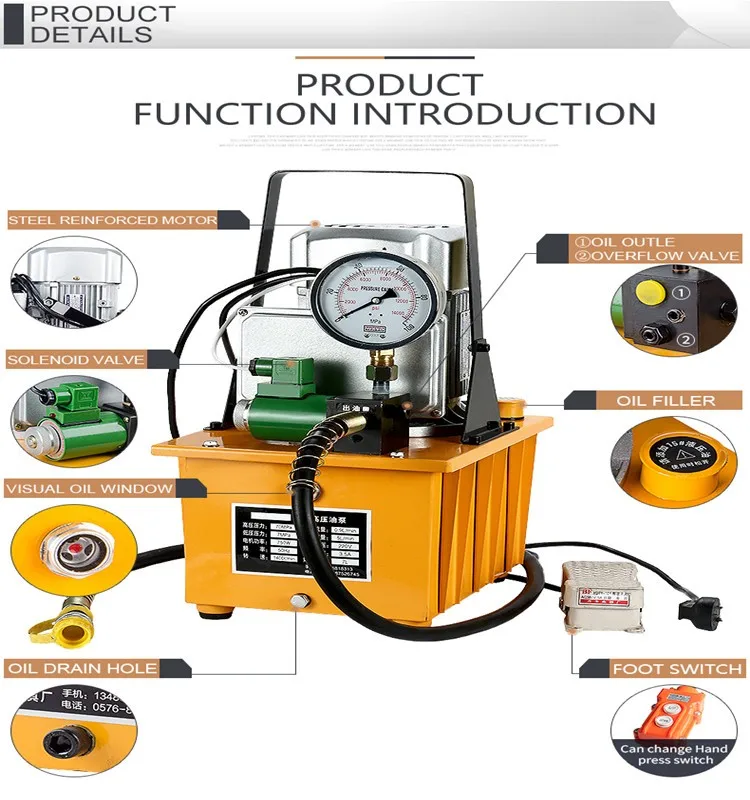

Main Advantage

1.High and low pressure two sections of fast oil output, turbine bland oil absorption can reach the highest effective oil.

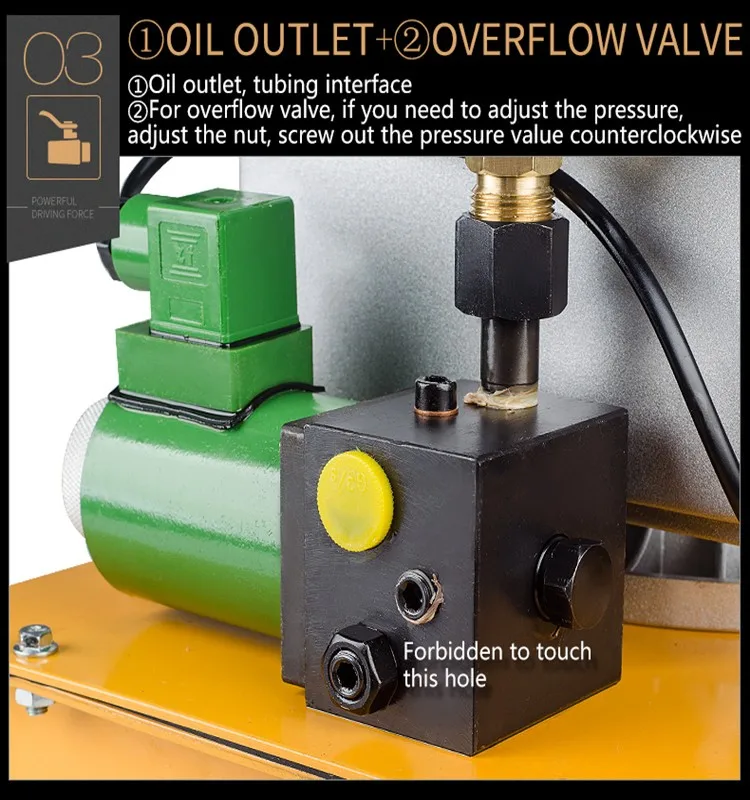

2.Over pressure safety value unit could avoid over pressure damage. At 700kg/cm2, automatically release.
3.Oil pipe fitted with quick coupling could be ordered for any length.

Detailed Images

Our Service

Certifications

Packing & Delivery

FAQ

1.What is your payment terms?
1)T/T 2)L/C

2.What is your shipping way ?
Express (DHL,Fedex,TNT),By air ,Or Sea. We will choose one shipping way to suit customers request .

3.How long is your machine warranty?
Warranty of our product is one year,but artificial damage and incorrect use is not included.

4.What is your delivery time ?
It depends on your order. Normally3- 7days for samples, 30-45days for standard, 30-60 days for customized.

5. How do you guarantee your quality ?
Firstly, we do quality test during every process. We produce most components by ourselves, it is started from cutting raw material ,machining roughly in the first step. casting , forging , punching , heat treatment , finish machining , painting , assembling and finally packing , we will spot check for each steps.
Secondly, we will collect all comments on our products from customers in time. And try our best to improving quality all the time.
