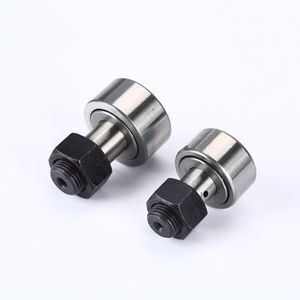

Printing Machine Bearing CF12 KR30 KRV30PP Cam Follower

Product details
Type:Needle;Packaging Detail:According to your requirements;
Product name:Printing Machine Bearing CF12 KR30 KRV30PP Cam Follower;Selling Units:Single item;
Material:Chrome steel, Carbon steel;bearing model number:KRV30PP;
Model Number:KRV30PP;Structure:CURVE ROLLERS;
Noise Level:Z1,Z2,Z3,Z4;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Application:printing machinery,pressing lines, indexing equipment,;Sample:Avaliable;
Number of Row:Single Row;Vibration level:V1 V2 V3 V4;
Series:KR KRV CF;Single gross weight:0.1 KG;
Brand Name:SC OR OEM;Precision Rating:ABEC1 ABEC3 ABEC5 ABEC7 ABEC9;
Place of Origin:Shandong China;Single package size:25X18X15 cm;
Seals Type:OPEN/ZZ/2RS;Bore Size:5 - 30 mm;
Service:OEM Customized Services;

Printing Machine Bearing CF12 KR30 KRV30PP Cam Follower

Product Description

1.KR design cam followers are fitted with a needle roller and cage assembly. They are also available with a full complement needle roller set, which is identified by the letter V at the end of the basic designation. The outer ring is axially guided by the pressed-on flange ring and the head of the stud, which also serves as an integral flange.

Cam follower needle track roller bearing Wheel and pin bearing needle bearing

2. KR design cam followers without a designation suffix or with the designation suffix B have a narrow gap between the outer ring and the two flanges that serves as a gap-type seal.

Cam follower needle track roller bearing Wheel and pin bearing needle bearing

 3. KR design cam followers are also available with an axial sliding ring made of PA66 on both sides, identified by the designation suffix PPA , PPSKA  or PPXA. In the radial direction, the sliding ring forms a narrow labyrinth seal with the outer ring to protect against coarse contaminants. In the axial direction, the sliding ring serves as a contact seal to reliably retain grease in the bearing. This improves the lubrication conditions in the bearing, keeps friction and frictional heat low, and extends grease life.

Cam follower needle track roller bearing Wheel and pin bearing needle bearing

Product feature:
Instead of an inner ring, cam followers have a solid stud (pin) that is threaded so that the cam follower can be quickly and easily attached to appropriate machine components by means of a hexagonal nut.
All three cam follower designs have the same main dimensions. The differences are in their internal design, which make them suitable for various operating conditions. In contrast to ball and roller bearings, where the bearing size refers to the bore diameter d, for cam followers the size refers to their outside diameter D.
All designs are available with a concentric seat (fig. 1) or an eccentric collar (fig. 2) on the stud. An eccentric collar, which has a shrink-fit onto the stud, enables less stringent positioning tolerances to be specified for associated components. The values for the adjustable eccentricity are listed in the product tables. An eccentric collar is identified by the letter E at the end of the basic designation.

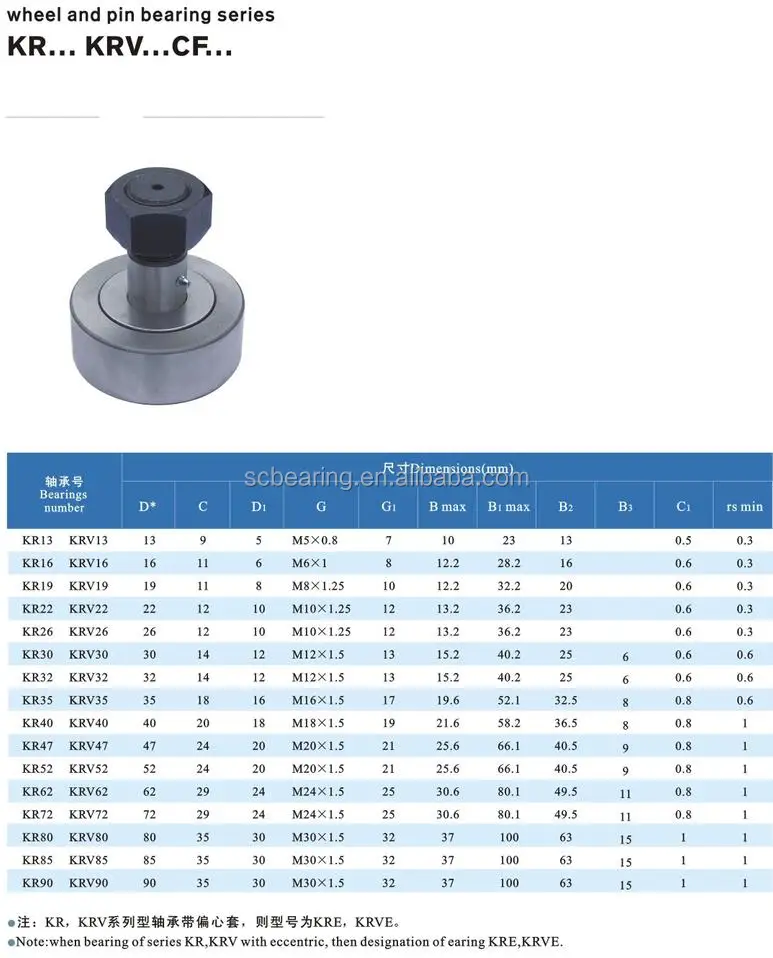

Stud type track roller (cam follower) - KR

- crowned OD

- cylindrical OD is avaible , suffix " X "

- hex wrench socket in stud head

- full needle rollers design is also available ( prefix " KRV " )

- stainless steel 440C is also available ( prefix " SS " )

- two shields is also avaialbe ( suffix " PP " )

 Cam follower needle track roller bearing Wheel and pin bearing needle bearing

Application of cam followers:

Escalator;Moving sidewalk;Elevator;Conveyor system;Lifting machinery;Automotive line machinery;Material handling equipments;Linear motion guidance equipments;Cam drives;Screw drives;

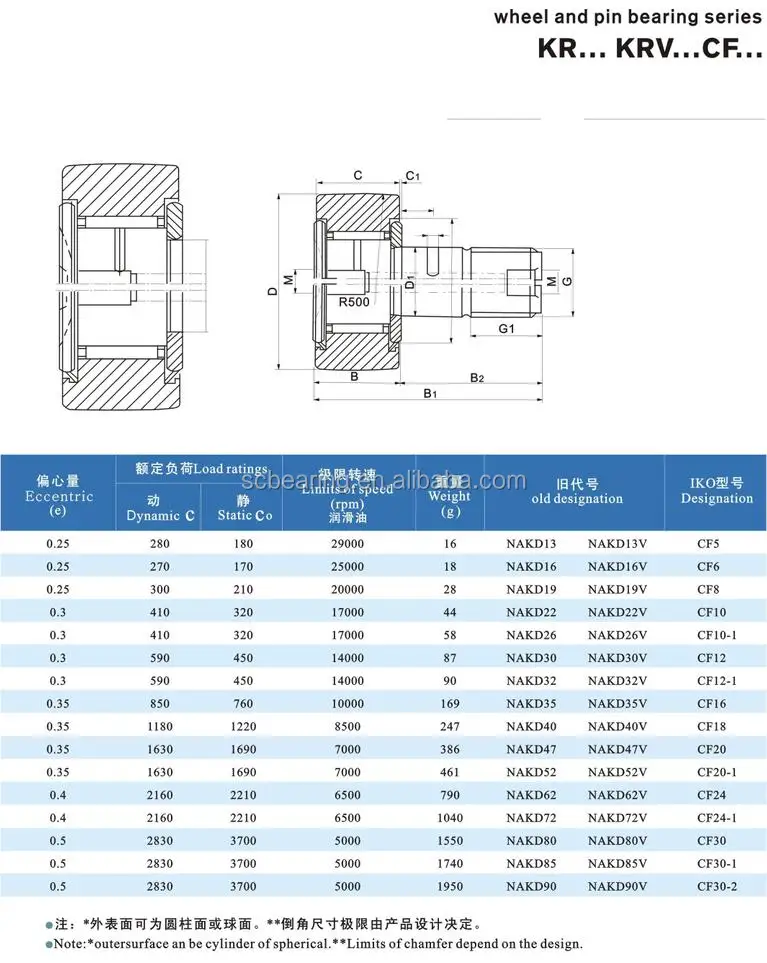

Technology



Crowned OD

Cylindrical OD

Dimensions(mm)

N.W.

without seals

with seals

without seals

with seals

d

D

B

L

I

G

≈g

KR10

KR10 PP

KR10 X

KR10 PPX

3

10

7

17

9

M3x0.5

4.5

KR12

KR12 PP

KR12 X

KR12 PPX

4

12

8

20

11

M3x0.5

7.5

KR13

KR13 PP

KR13 X

KR13 PPX

5

13

9

23

13

M4x0.7

10.5

KR16

KR16 PP

KR16 X

KR16 PPX

6

16

11

28

16

M6x1

18.5

KR19

KR19 PP

KR19 X

KR19 PPX

8

19

11

32

20

M8x1.25

28.5

KR22

KR22 PP

KR22 X

KR22 PPX

10

22

12

36

23

M10x1

45

KR26

KR26 PP

KR26 X

KR26 PPX

10

26

12

36

23

M10x1

60

KR30

KR30 PP

KR30 X

KR30 PPX

12

30

14

40

25

M12x1.5

95

KR32

KR32 PP

KR32 X

KR32 PPX

12

32

14

40

25

M12x1.5

105

KR35

KR35 PP

KR35 X

KR35 PPX

16

35

18

52

32.5

M16x1.5

170

KR40

KR40 PP

KR40 X

KR40 PPX

18

40

20

58

36.5

M18x1.5

249

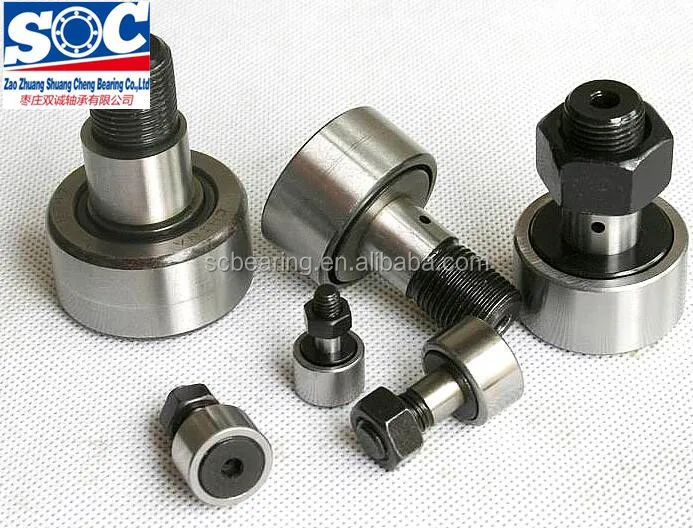

Product Overviews

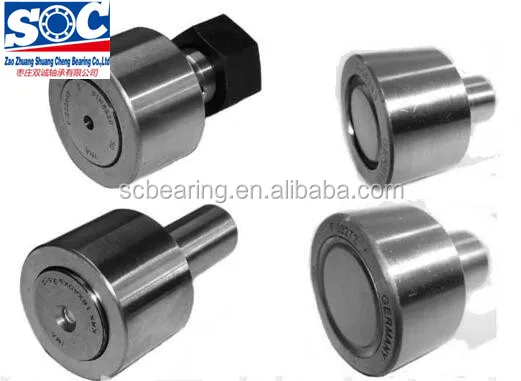

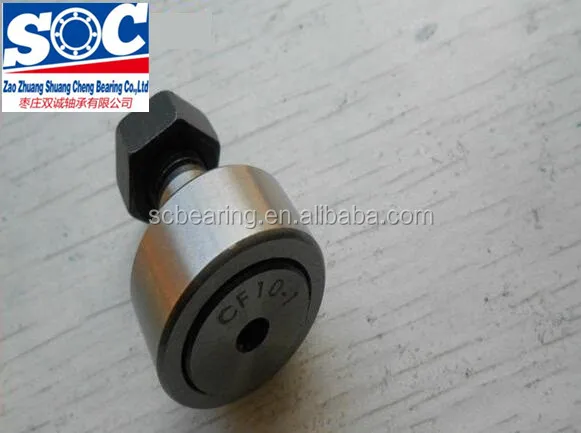

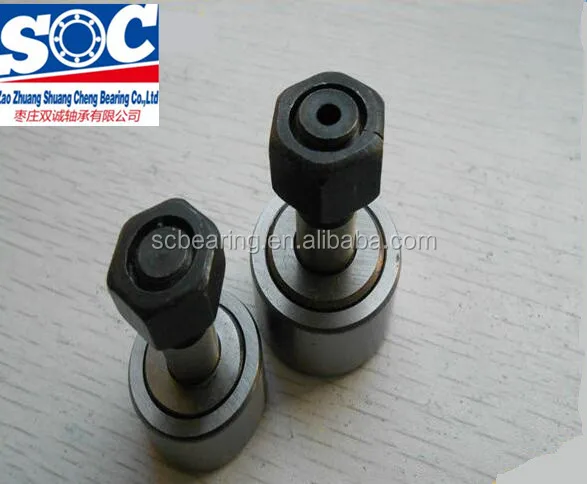

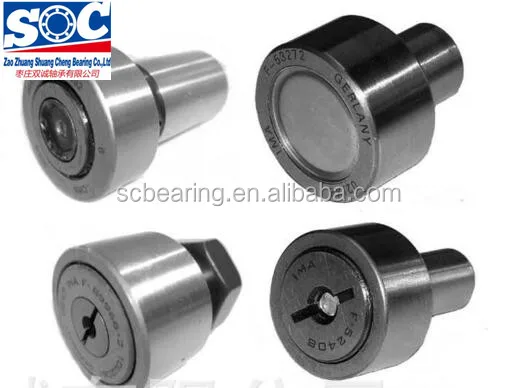

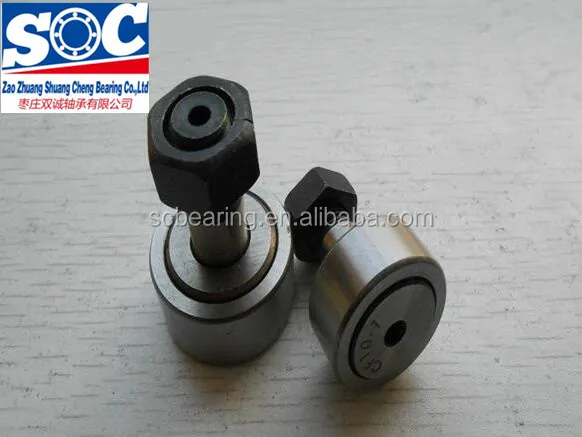

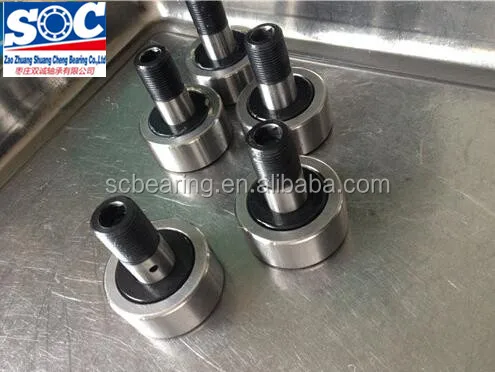

Cam follower needle track roller bearing Wheel and pin bearing needle bearing

Cam follower needle track roller bearing Wheel and pin bearing needle bearing

Cam follower needle track roller bearing Wheel and pin bearing needle bearing

Cam follower needle track roller bearing Wheel and pin bearing needle bearing

Cam follower needle track roller bearing Wheel and pin bearing needle bearing

Cam follower needle track roller bearing Wheel and pin bearing needle bearing

Cam follower needle track roller bearing Wheel and pin bearing needle bearing

Cam follower needle track roller bearing Wheel and pin bearing needle bearing



Contact us



Our Services

OEM and SAMPLE is Possible

Packaging & Shipping

Natural package:

White box,Plastic Tubes,Wooden cartons
Customized Package According to our customer's requirements

Delivery time:3-5 days or according to our customer’s order quantity



Company Information

ShuangCheng Bearing Co., Ltd. Specializing in various types of bearings including Deep Groove Ball Bearing,608 Skate baring,Taper roller bearing,Cylindrical roller bearing,Angular contact ball bearing,Thrust ball bearing,Self-aligning ball bearing,linear bearing,Needle roller bearing,Pillow block bearing,Rod End bearing as well as Ceramic bearing,Plastic Bearing,Brand Bearing.

Brand Bearing like NSK NTN KOYO NMB KG THK TBI PMI ABBA HIWIN et

Our products widely used in Bearing toys(Hand Spinner Fidget Toys),Agricultural,Textile machine,Mining,Printing and packing industries,CNC Router Spindle et

OEM Service is acceptable according to our clients requirements
