Pallet Stretch Wrapping Machine Wrapper

Product details
Product name:Pallet Stretch Wrapping Machine Wrapper;Package Preview:;
Machinery Test Report:Provided;Warranty:1 Year Guaranette,1 Year;
Key Selling Points:Easy to Operate;Certification:CE;
Brand Name:CNMC;Place of Origin:Shandong China;
Video outgoing-inspection:Provided;After Warranty Service:Video technical support,Online support,Spare parts;
Payment Terms:L/C,T/T,Western Union;Condition:New;
Model:HT1650F;Weight:650kg;
Driven Type:Electric;Type:Wrapping Machine;
Packaging Detail:Wooden box;Marketing Type:Hot Product 2019;
Port:Tianjin,Qingdao,Shanghai;Packaging Type:Cartons,Barrel,Bags,Film,Foil,Belt,Pouch;
Showroom Location:none;Local Service Location:none;
Core Components:PLC,Motor;Voltage:220V/50hz;
Application:Food,Beverage,Commodity,Machinery & Hardware,APPAREL,Textiles;Dimension(L*W*H):2650mm*1650mm*2400mm;
Supply Ability:200 Set/Sets per Month;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Packaging Material:plastic;Packing material:Film;
Automatic Grade:Automatic;Warranty of core components:1 Year;
After-sales Service Provided:Online support,Video technical support,Free spare parts;



Related Products

 Pallet stretch wrapping machine/pallet wrapper/stretch machine wrap

Product Description

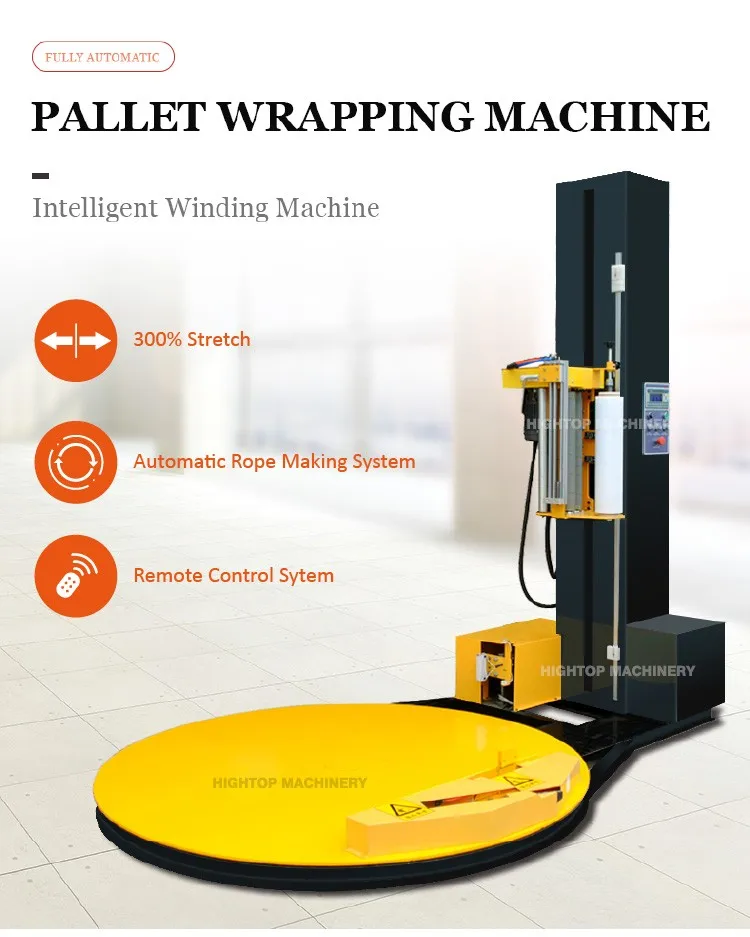

Product Description of Fully Automatic Pallet Stretch Wrapping Machine

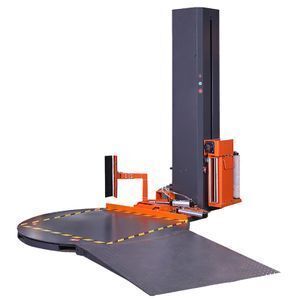

Pallet Stretch Wrapping Machine Wrapper

Automatic stretch pallet wrapping machines work process is using LLDPE stretch film (a plastic film) to wrap goods which load on the pallet, the stretch film provides extra support while the products being transported or stocked so that they do not tip, spill, or otherwise damage.

It is widely used in chemical industry, electronic industry, building materials, home appliances, paper making, foodstuff & drink etc, especially the container goods transportation in foreign trade.

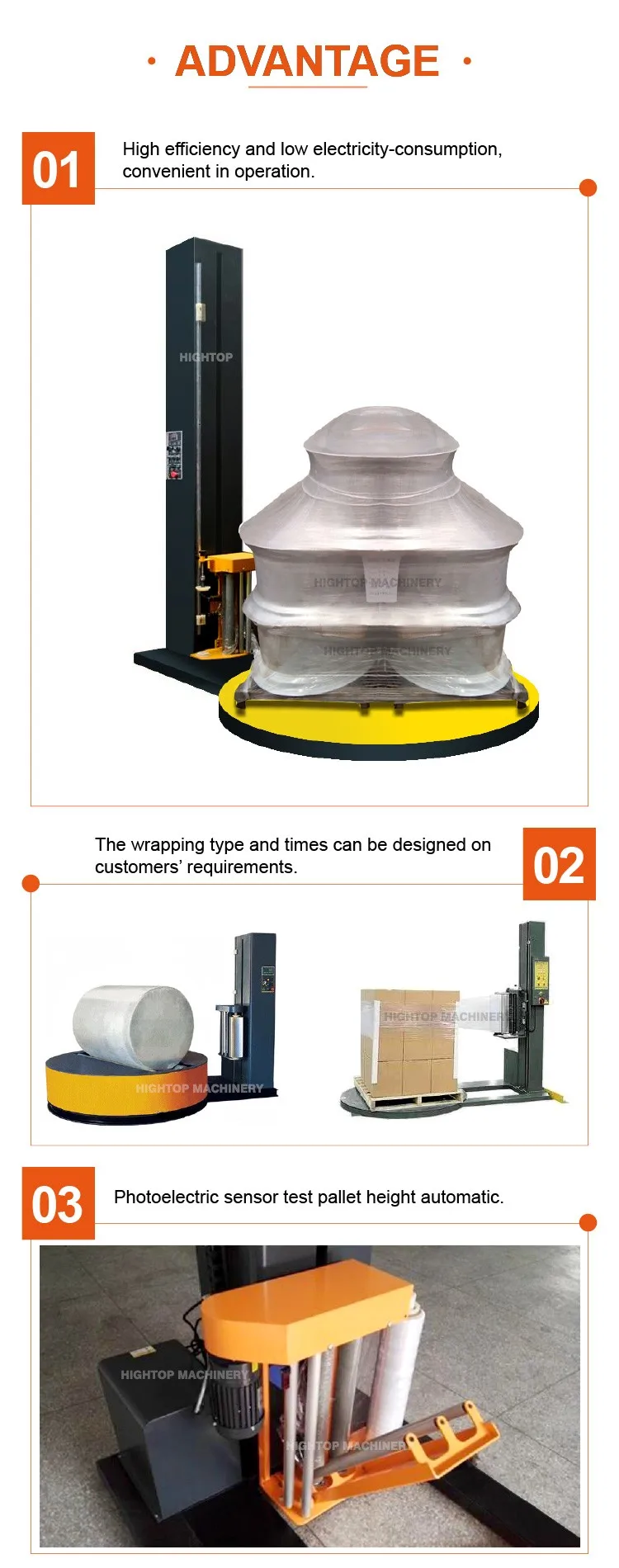

Feature:

1.Heavy load capacity

2.Variable turntable speed and film carriage up down speed

3.Manual/auto exchange

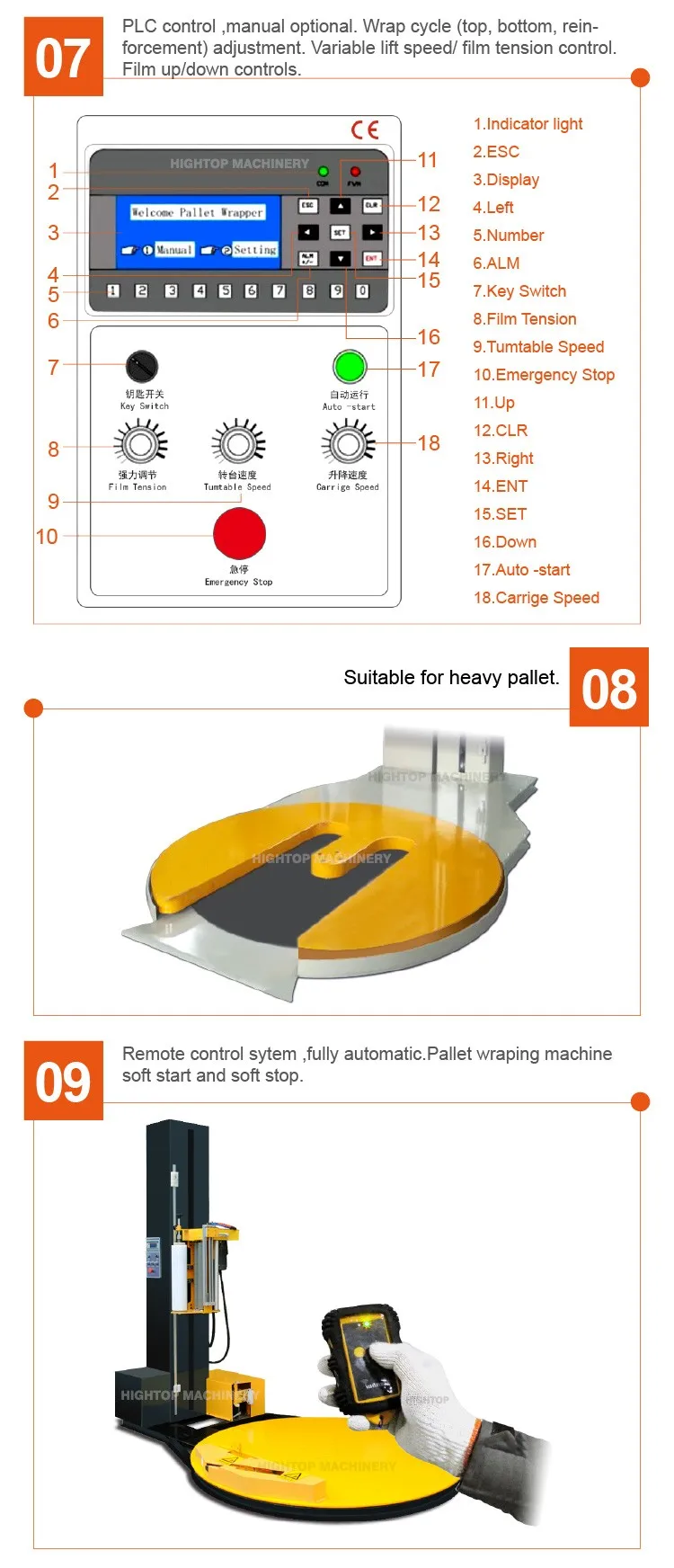

4.PLC control,wrapping cycle can setting,more economic

5.Pre stretch film carriage,save more stretch film

6.Soft start,soft stop

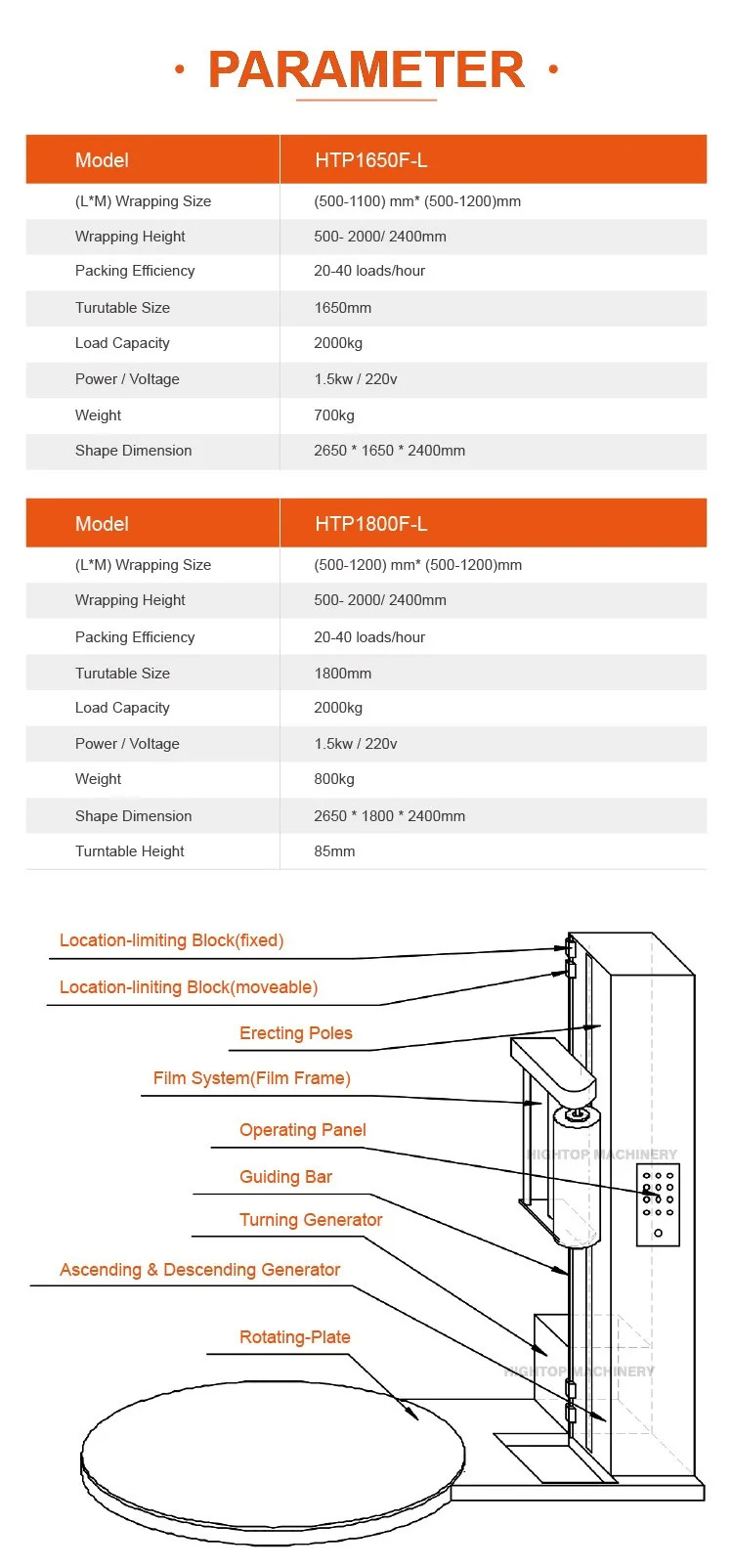

Parameter



Parameter of Fully Automatic Pallet Stretch Wrapping Machine

Pallet Stretch Wrapping Machine Wrapper

Model

HT1650F

Size of goods to be wrapped

Min wrap size(L*W*H)

500mm*500mm*500mm

Max wrap size(L*W)

1200mm*1200mm*2000mm

Max wrap height

2000mm(option: 2400mm, 2600mm,2800mm,3000mm)

Max load weight

2000kg(option: 2500kg, 3000kg)

Machine specification



Turntable rotation speed

3-12 rpm

Turntable diameter

1650mm

Turntable height

85mm

Carriage up/down speed

adjustable

Film carriage

Pre-stretch 300%

Packing efficiency

20-40 loads/hour

Voltage/Power

220V/50HZ 1Phase, 1.5kw

Machine size

2650mm*1650mm*2400mm (LXWXH) Standard

Machine weight

650kg

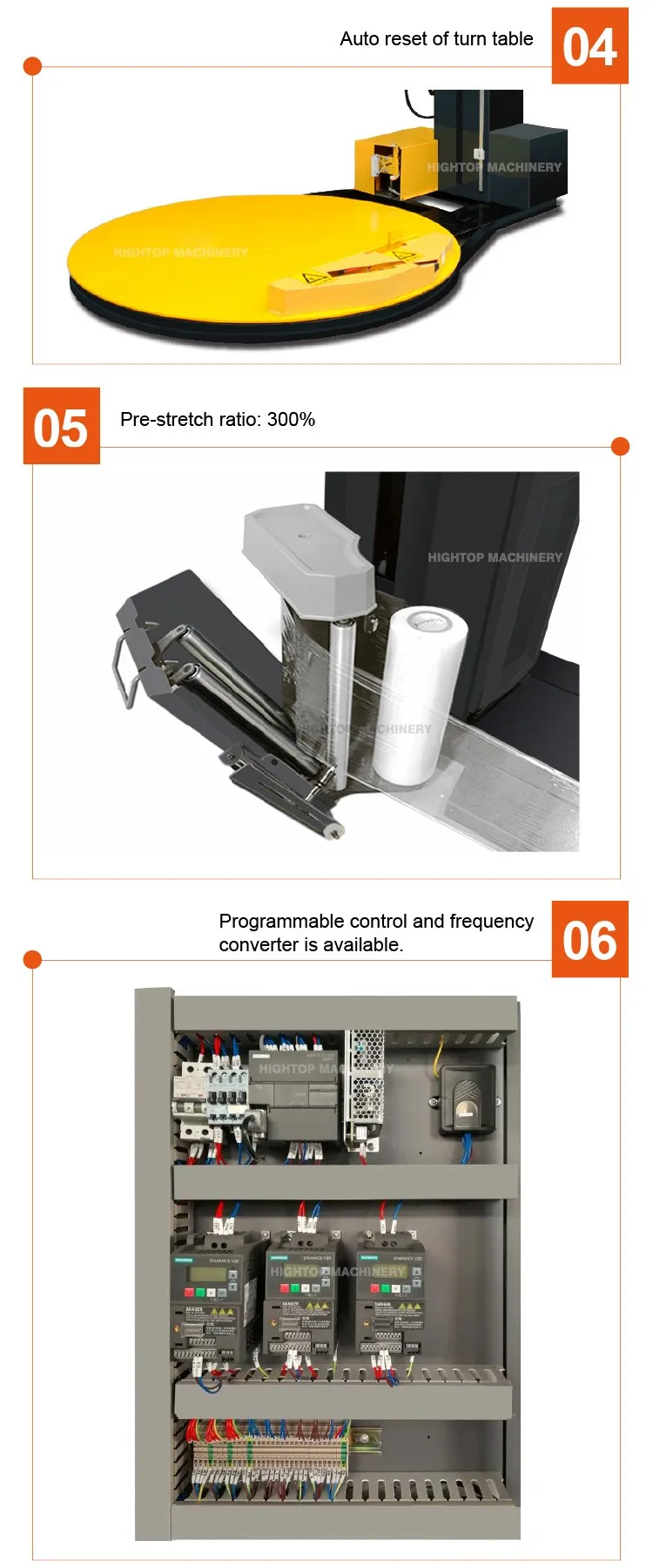

Detailed Images

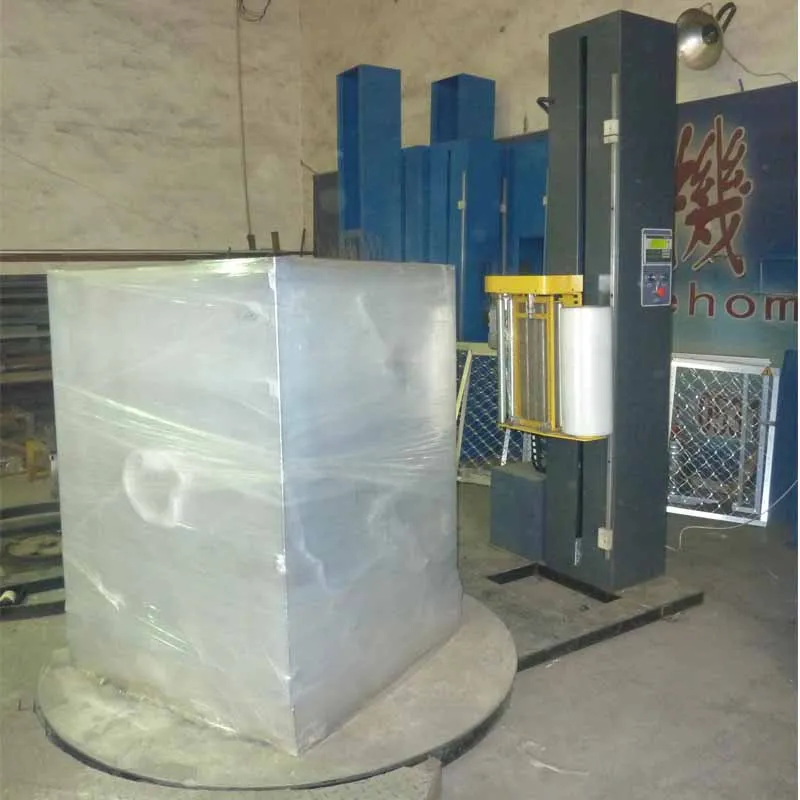

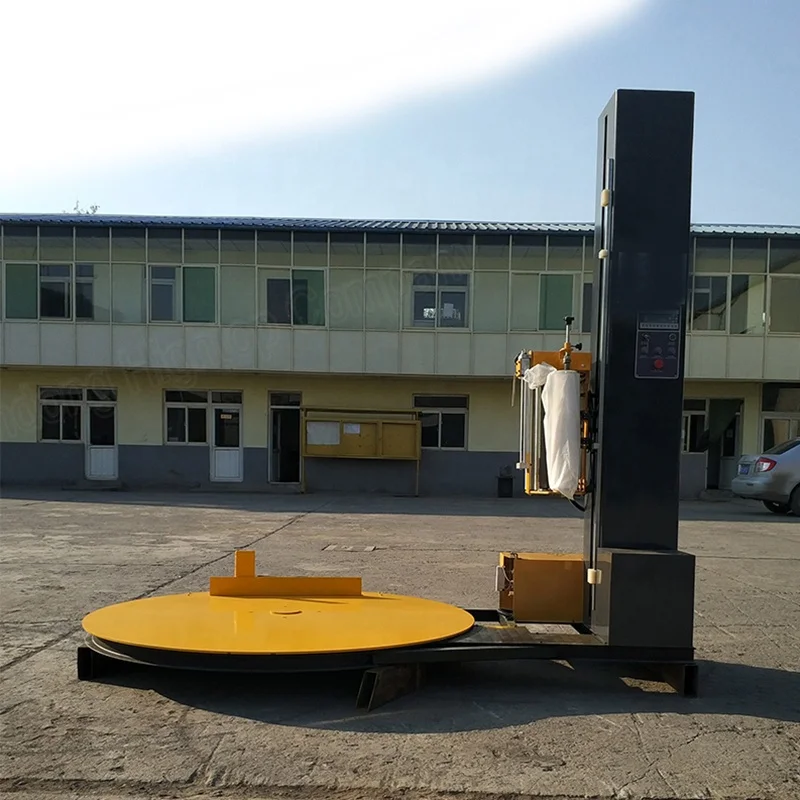

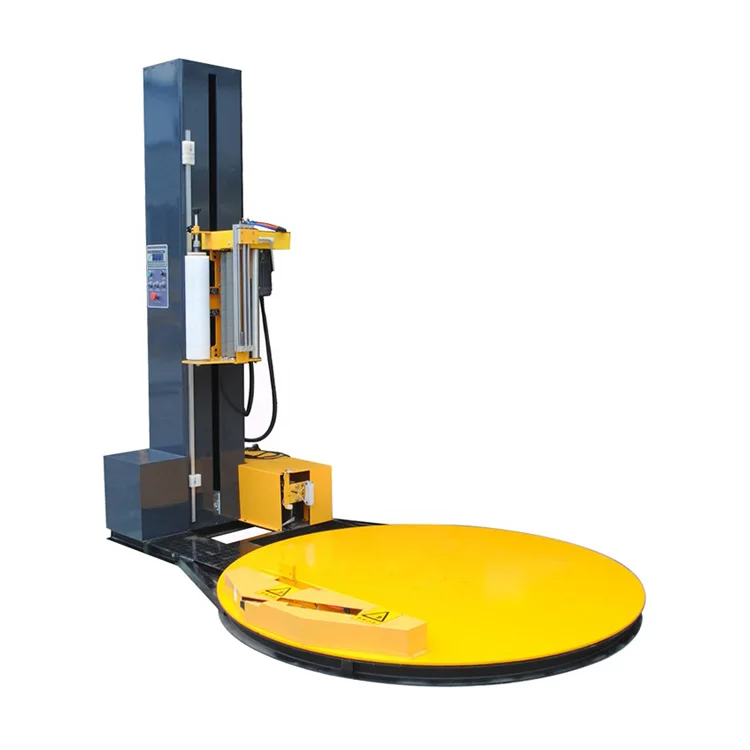

Images of Fully Automatic Pallet Stretch Wrapping Machine

Pallet Stretch Wrapping Machine Wrapper



Company Information



About Us

Shandong China Machinery Co. ,Ltd, established in 1980, is an important and a large construction engineering equipment joint-stock enterprise Group in China, It has several wholly-owned subsidiaries, company headquarters is located at National High-tech Zone, Shandong province.

We have CE Certificate,SGS Product Certificate, ISO9000 Quality Control Certificate and BV Supplier Certificate.Our machine had win much good reputation through its quality and nice performance.

Nowadays Our products have been exported to 127 countries and regions over the world.
