Structure: | Thrust; | Supply Ability: | 100000 Set/Sets per Month; |
WEIGHT: | 0.003kg; | Material: | GCR15 Chrome Steel/stainless Steel Bearing; |
Port: | Tianjin,Shanghai,Guamgzhou,Shenzhen,Ningbo,Qingdao; | Payment Terms: | L/C,T/T,Western Union,Official Bank Account/Paypal; |
Service: | OEM Customized Services; | Vibration: | Z1V1 Z2V2 Z3V3; |
Applications: | Engineering Machinery; | thickness: | 2mm; |
Bore Size: | 10 mm; | Cage: | Steel Cage.copper Cage.nylon Cage; |
Stock: | Large; | Precision Rating: | P0/P6/P5/P4/P2; |
CERTIFICATION: | ISO9001:2008; | Packaging Detail: | A: barreled package+outer carton+pallets B: single box+outer carton+pallets C: tube package+middle; |
Delivery Detail: | Shipped in 2 days after payment; | Model Number: | AXK1024; |
Feature: | Long Life; | Type: | Roller; |
Place of Origin: | Shandong China; | Outside Diameter: | 24 mm; |
Brand Name: | ZYSL; | Number of Row: | Single Row; |
Seals Type: | OPEN ZZ; |
Factory Directly thin flat 10x24x2mm Thrust Needle Roller Bearing AXK1024
A part of our products:

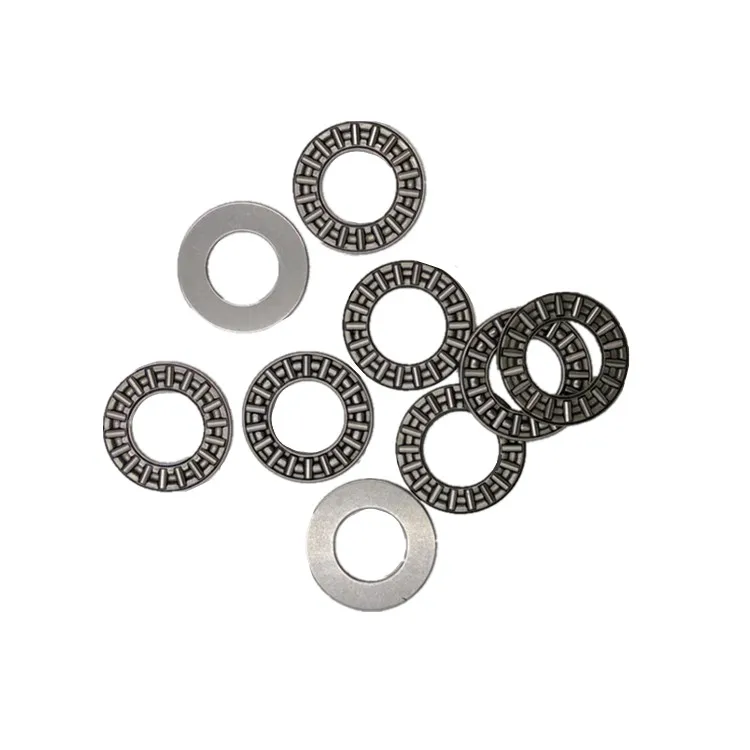

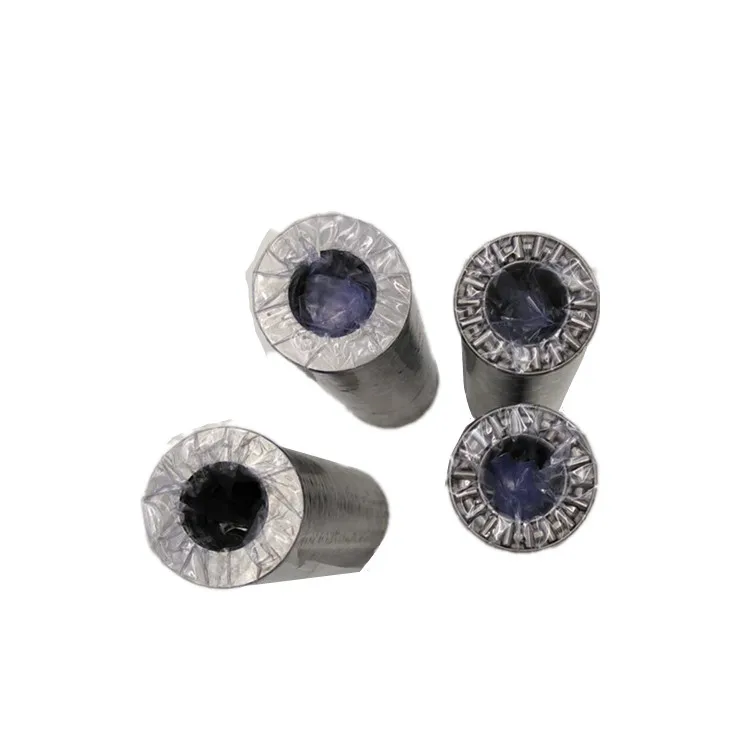

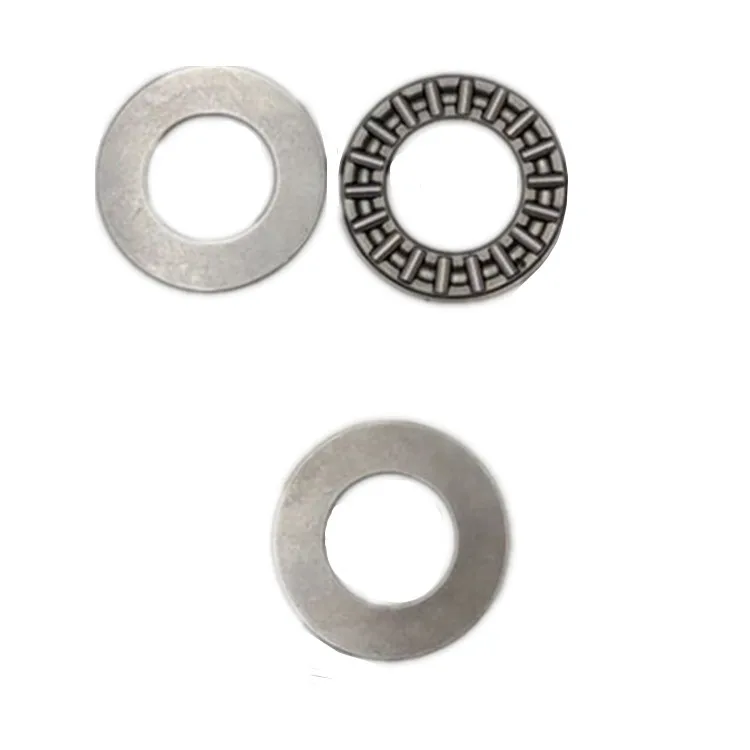

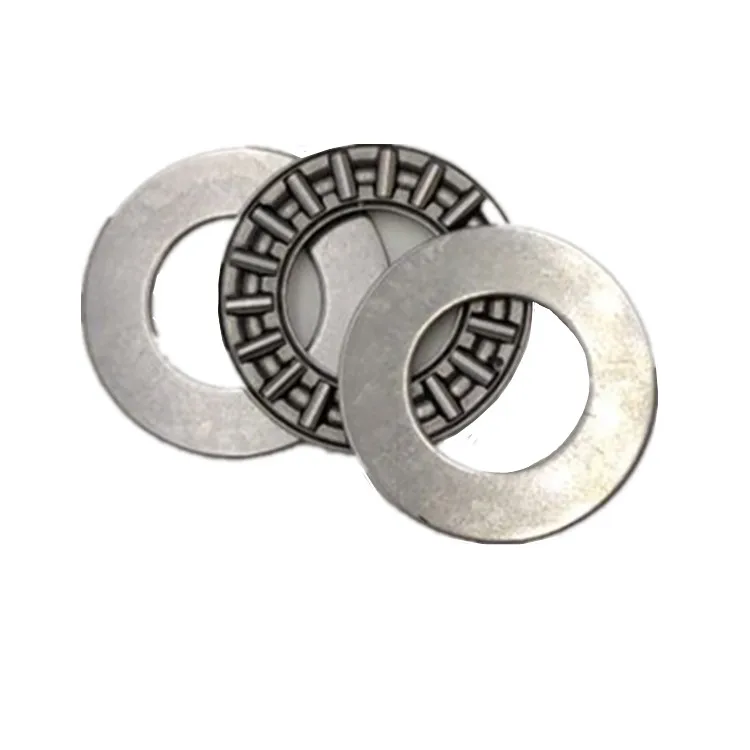

Pictures show:
Drawing
Description
Thrust roller bearing assembly way:
Spherical roller thrust bearings are single row, self-aligning roller bearings. They comprise
solid shaft and housing washers and asymmetrical barrel rollers with cages. The cage holds
the roller and cage assembly together with the shaft locating washer. The bearings can be
dismantled. The parts of the bearings can be fitted separately.
Spherical roller thrust bearings can support very high axial loads and permit relatively high
speeds. Since the raceways are at an angle to the bearing axis, the bearings can also support
radial loads.
Due to thrust roller bearing is high precision product,if improper assembly is easy to harm to
thrust roller bearing structure,lead to thrust roller bearing damage.When assembly thrust
roller bearing must have special mold,can't optional knock.When pressed into the shaft only
small circle stress, Pressure big lap can only big circle stress. When the assembly required
by air pressure or hydraulic pressure.
Feature:
1.it included seat ring,bearing gaskers,steel ball and retainer.
2.high rigidity,resistant to impact
3.low revolutions
4.it can just be subjected by axial load
5.the bearing gaskers and seat ring can't slope
Details:
Thrust roller bearings is a separated-type bearings, shaft ring 'seat ring can be `just the
ball and cage component separation. Axis loop is compatible with the ring axis, sitting circle
is compatible with the bearing hole ring, and the gap between shaft.
Type:
1)One-way thrust ball bearings can withstand axial load in one direction, one-way limit axial
displacement of shaft.
2)Thrust ball bearings can withstand axial load in both directions to limit axial displacement
of the two-way.
Related models and specifications
Hole | OD | width | Item | |
Old code | New code | |||
4 | 14 | 2 | AXK0414TN | |
5 | 15 | 2 | AXK0515TN | |
6 | 14 | 1.5 | AXK0614 | AXK 6X14X1.5 |
6 | 14 | 1.5 | AXK0614TN | AXK 6X14X1.5TN |
6 | 17 | 2 | SZ-906 | AXK 6X17X2 |
6 | 19 | 2 | AXK 0619 | |
6 | 19 | 2 | AXK 0619TN | |
6 | 23 | 2 | SZ-903 | AXK 6X23X2 |
6.35 | 17.45 | 1.984 | NTA-411 | |
7 | 15 | 1.5 | AXK7X15X1.5TN | |
8 | 21 | 2 | AXK 0821TN | |
10 | 22 | 2 | AXK10X22X2 | |
10 | 24 | 2 | AXK 1024 | |
Certafications:
A: 30% T/T in advance .70% against copy of B/L
B.30% T/T in advance .70% against L/C at sight
C.Western union
D.Paypal
E:50% in advance,the balance should be paid after seeing the picture of total goods.
Why us
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
