QZFM-1000-1200 Automatic cold laminating machine

Product details
Local Service Location:none;After Warranty Service:No service;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Brand Name:LIXIN;
Warranty of core components:1 Year;After-sales Service Provided:Engineers available to service machinery overseas,Online support;
Video outgoing-inspection:Provided;Showroom Location:none;
Voltage:380V;Supply Ability:10 Set/Sets per Month;
Core Components:PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;Automatic Grade:Automatic;
Port:SHANGHAI/NINGBO;Cold Laminating Machine:Water Soluble Glue Laminating Machine;
Packaging Detail:1.Oil Cover 2.Stretch film 3.Silver Vacuum packing 3. Strong Wooden Case;Warranty:1 Year;
Packaging Type:Barrel,case;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Key Selling Points:High-accuracy;Driven Type:Electric;
Marketing Type:New Product 2020;Machinery Test Report:Provided;
Packaging Material:plastic,wood;Application:Food,Beverage,Commodity;
Type:Laminating Machine;Weight:3200KG;
Certification:CE;Dimension(L*W*H):L6100*1850*H1900MM;
Place of Origin:Zhejiang China;

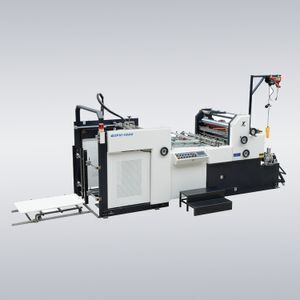

QZFM-1000-1200 High Speed Automatic Water Soluble glue Cold Laminating Laminator Machine

Max Working Speed:100M/MIN





Product Description

It’s newest upgrading model for water base lamination. The machine increases great work speed and precision, and the speed could reach 100M/min for greater efficiency.



Model:

QZFM-1000

QZFM-1200

Max. Laminating Width:

 L1100*W940mm

L1100*W1140mm

Paper Weight

100-400g/m2

100-400g/m2

Laminating Speed

0-100M/MIN

0-100M/MIN

Production Speed

100M/MIN

100M/MIN

Laminating mothed

Cold/Water soluble glue

Cold/Water soluble glue

Voltage

AC380V/3PH/60HZ

AC380V/3PH/60HZ

Gross Power

 6KW

8KW

Total Weight

3000KG

3200KG

Overall Dimensions:

 L6100*W1650*H1900

 L6100*W1850*H1900



Configuration:

1. Adopt high speed special feeder for stable performance.

2. Equipped with Paper overlap position servo control system for high precision.

3. Air shaft with pneumatic brake can adjust easily and quickly.

4. Paper Delivery with magnetic particle clutch tension control system makes paper roller compact and neat.

5. Man-machine interface system.

6.Automatic pre-stack feeder with film lifter.





ZDLS-1200 Paper Separating Machine With Automatic Delivery


It’s auxiliary model of laminating machine and suitable for separating different Paper with stable high speed and easy operation. The machine is equipped with automatic paper delivery.
Configuration:
1. Magnetic particle tension control system

2. Six groups adjustable Pull wheel

3. Rapid running pressure wheels for thin paper

4. Automatic paper delivery with three-sided sorting device.

Model:

ZDLS-1200

Max Paper Size:

L1100*W1140mm

Min Paper Size:

L320*W320MM

Paper Weight:

100-500Gsm

Working:

0-80M/Min

Power:

380V,AC3φ50HZ

Gross Power:

4KW

Overall Demensions

L4200*W1750*H1800

Total Weight:

2000KG

Our Services



Packaging & Shipping

1.Oil Cover 2.Stretch film 3.Silver Vacuum packing 3. Strong Wooden Case
