SA-2502 1.5kgf 14.7N 15mm push pull type ac solenoide electromagnet linear solenoid

Product details
Place of Origin:Zhejiang China ( Mainland );Package Preview:;
Supply Ability:10000 Piece/Pieces per Month;Attractive force:1.5kgf 14.7N;
Port:Ningbo/Shanghai;Model Number:SA-2502;
Packaging Detail:40pcs /carton, 18.5kg 41*34*13cm;Brand Name:CHEN;
Voltage:220, 380,110, 36, 24,VAC;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Visa;
Stroke:15mm;Rated operating frequency:1200 times/hour;
Weight:430g;

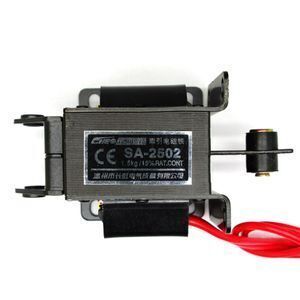

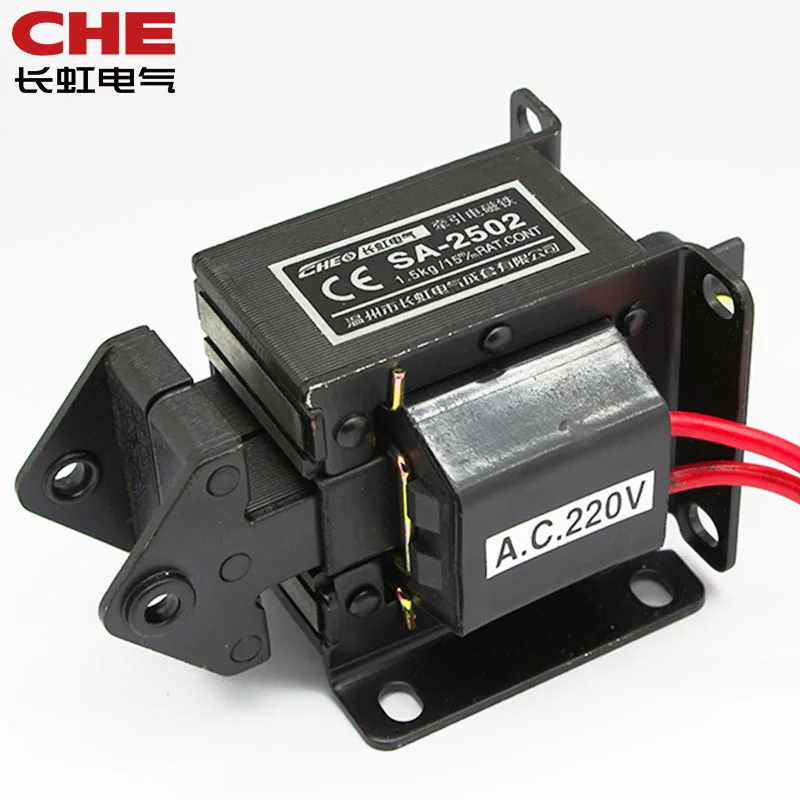

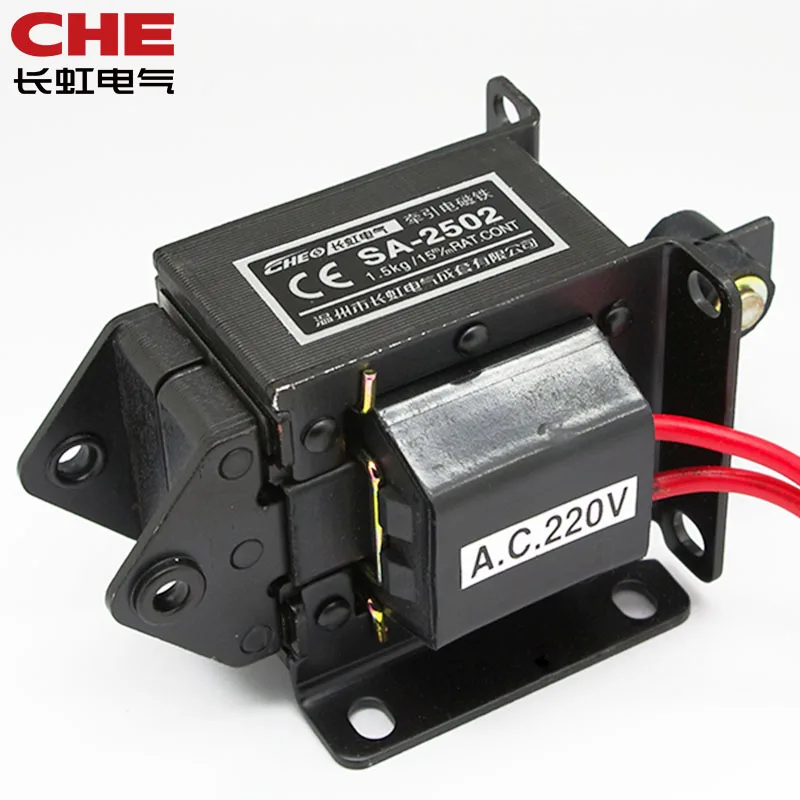

SA-2502 1.5kgf 14.7N 15mm push pull type ac solenoid electromagnet

Product Description

  SA series AC electromagnetic, patent No. ZL00251761.1, which is the latest results of high quality AC electromagnetic. As we use superior silicon steel sheet, and cast sealed coil, we improved the insulation capability, safety and reliable, beautiful shape, small size, light weight, with high speed of adsorb and release, save for electric. It is mainly used for circuit of AC 50Hz or 60Hz, rated voltage up to 415V, for the purpose of long and short distance controlling of mechanical equipment automatic system and all kinds of operation mechanism. This product is in line with GB14048.5 standard. C

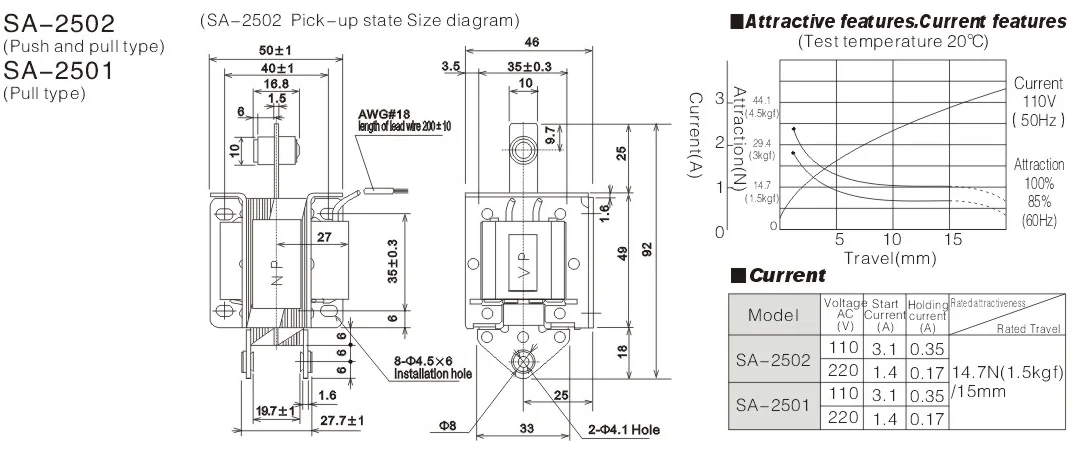

ModelAction formsRated stroke  Rated  forceRated voltage Rated cycle Insulation class
  mmN(kgf)VHZ
SA-2502PUSH-PULL1514.7(1.5)

AC220orAC110

AC380 AC24

AC36



Non-standard voltages can be customized

50/60HZ

Common

(2 leads wire)

 B
ModelInsulation resistance Frequency voltage  Temperature rise  Rated operating frequencyMovable iron core weight Total weight
     60% g
SA-2502

DC500V 50MΩ



above



AC2000V

1 Minute

 Below 85

1200 time / hour

125430
