Lifting height: | 3m-30m(max 100m); | Type: | SL; |
Model Number: | SL; | Supply Ability: | 20000 Set/Sets per Month; |
Control Method: | Hand Operated; | Certification: | GS,CSA; |
Chain: | G80 Load Chain; | MOQ: | 10 Set; |
Packaging Detail: | CARTOON BOX; | Port: | Shanghai/Ningbo; |
Feature: | Small-size; | OEM: | Accept; |
Customized support: | OEM; | Place of Origin: | Jiangsu China; |

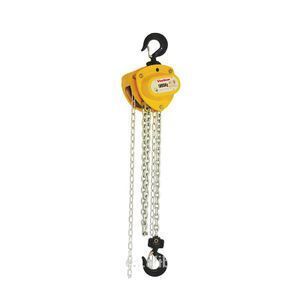

PACKAGE: | Cartons; | Product name: | chain hoist 1ton; |
Package Preview: | ; | Application: | Lifting Goods; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union; |
Type |
WBSL-005 |
WBSL-010 |
WBSL-015 |
WBSL-020 |
WBSL-030 |
WBSL-050 |
Capacity(t) |
0.5 | 1 | 1.5 | 2 | 3 | 5 |
Standard Lifting Height(m) |
2.5 | 2.5 | 2.5 | 3 | 3 | 3 |
Running test load(Kn) |
6.3 | 12.5 | 18.7 | 25 | 37.5 | 63 |
Effort required to lift rated load(n/kg) |
200(20.5) |
304(31) |
343(35) |
410(41.8) |
343(35) |
414(42.2) |
Strands of load chain |
1 | 1 | 1 | 1 | 2 | 2 |
Load chain diameter(mm) |
6 | 6 | 8 | 8 | 8 | 10 |
Net weight(kg) |
8.5 | 11 | 18 | 18.5 | 27 | 42 |
Packing measurement(cm) |
26×19×14 |
26×21×15 |
33×26×16 |
33×26×16 |
36×27×16 |
43×34×19 |
Exira weight per meter of extra lift(kg) |
1.7 | 1.7 | 2.3 | 2.7 | 3.7 | 5.3 |
Shanghai Wanbo Hoisting Machinery Co., Ltd, specializes in manufacturing,suppling and exporting a premium quality range of lifting equipment like electric chain hoist, wire rope hoist, mini electric hoist, manual chain hoist, lever block, lifting motor, European end beam, single & double-track chain hoist, trolley and related accessories. Since quality is our first priority, Vanbon has completely achieved Quality Control System approvals such as ISO900I :2008, European CE and SGS which make the stable quality of products, we have more than 8 years' experience in R&D and production, scientific management system, advanced production technology and strict quality control ensure us to be ahead of the lifting industry. fessional training and be dedicated to the work details, we arededicated to providing reliable solutions and products for our clients.
