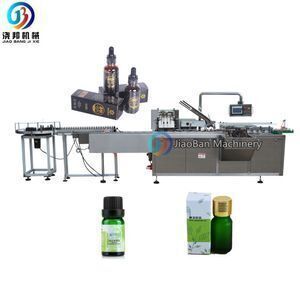

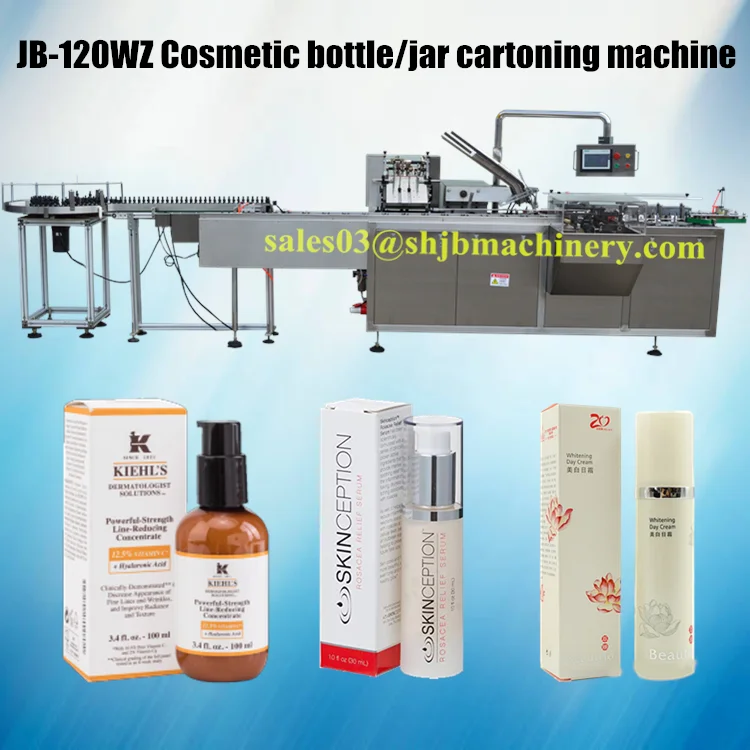

30ml to 60ml bottle cartoning machine,essential,cbd oil carton box packing machine

Product details
Gas consumption:5-20L/min;powder supply:220v;
Model:JB-120WZ;Application:Chemical,Commodity,Food,Machinery & Hardware,MEDICAL,automatic e-liquid bottle cartoning machine;
Condition:New;Voltage:220V;
Single package size:20X30X40 cm;After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Engineers available to service machinery overseas;
Single gross weight:20.0 KG;Overall Dimension:2600*1100*1500;
Place of Origin:Shanghai China;Dimension(L*W*H):2600*1100*1500;
Weight:1000KG;Main motor powder:0.75kw;
Pakcing material:Carton specification;Key Selling Points:High-accuracy;
Selling Units:Single item;Type:Boxing Machine;
After Warranty Service:Online support;Warranty:2 years;
Name:eye drops bottles cartoning machine;Automatic Grade:Automatic;
Packaging Material:Paper,wood,automatic e-liquid bottle cartoning machine;Capacity:100-150boxes/min;
Driven Type:Pneumatic;Brand Name:JB;
Packaging Type:Cartons;Showroom Location:United Kingdom;
Applicable Industries:Building Material Shops;Certification:CE Certificate;
Local Service Location:United Kingdom;Net weight:1000kg;



30ml to 60ml bottle cartoning machine,essential,cbd oil carton box packing machine--Shanghai JB Machinery,+86 13918092303

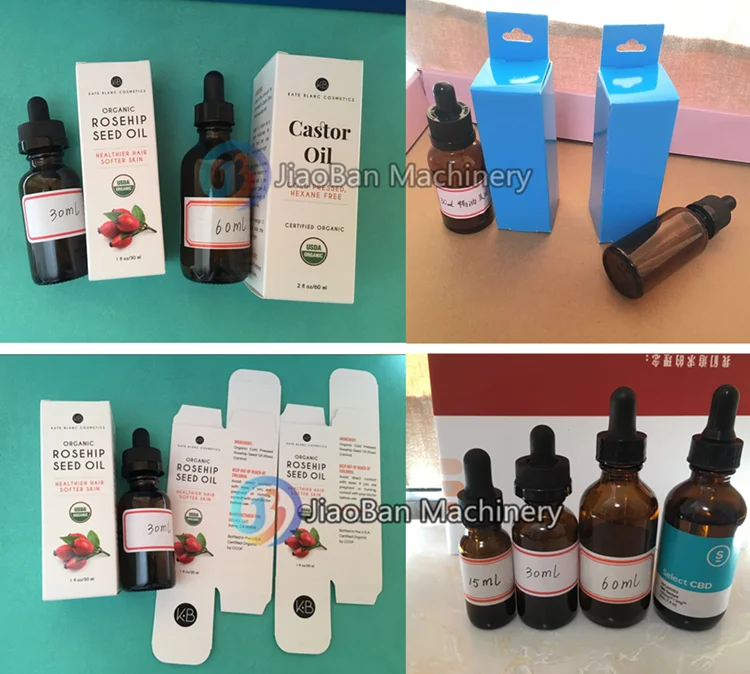

Different samples our machine can pack





Usage:



This machine is suitable for electronic cigarette oil bottles,eye drops bottles,medicine board,tablet/capsule sachet,soap sachet and other similar items of automatic cartoning.





* Performance feature:

1. Automatic horizontal cartoning machine is a high-tech product, which is a integration of light, electricity, gas and machine.



2. It's suitable for blister forming capsule and tablet, aluminum-plastic packed blister board and similar items into cartons automatically.



3. Working process: medicine plate or other items transmission ( adjustable if more than one plate)

-- drugs manual transmission (to automatically finish 1-4 folding) -- carton automatic distraction and delivery--plate joint folded manual into carton - automatic batch number printing, paper tongues sealing on both ends, etc.



4. Machine use high quality stainless steel casing shape, working faces are closed by organic glass door and windows. It's innovatively designed,

strictly in accordance with  requirements of pharmaceutical industry "GMP" standard.



5. Product height is not standard, auto rejecting when no instruction book.



6. Auto stopping machine when product does not enter carton completely.



7. Auto stopping machine when no carton, no continuous instruction book or no product.



8. Convenient to change products with different specification.



9. Main drive is equipped with overload protection device.



10. PLC automatic display failure, box packing speed and finished counting.





* Techinical parameter



Model

JB-120WZ

Capacity

100-150 cartons/min

Power supply

3ph.380V, 50/60Hz

Main motor power

2.5 KW

Gas consumption

5-20L/min (Pressure 0.6Mpa)

Packing material



Carton Specification

L(45-85)mm x W(28-53)mm x H(28-53)mm

Instruction book



Unfolding size

L(80-250)mm x W(90-170)mm

Folding range

Customized

The number of folding

1-4

Net weight

About 1000kg

Overall Dimension

L2600 x W1100 x H1500mm





Open leaflet and carton part







Push bottle into carton box





Fold carton

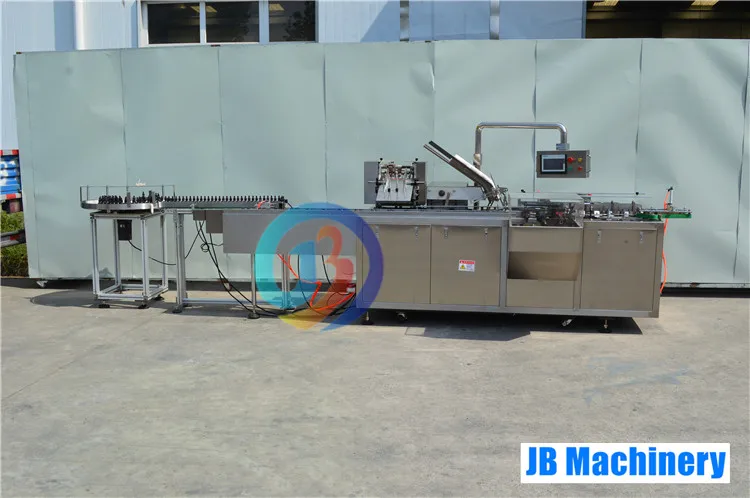

More detailed pictures









We have essential oil bottle filling machine for you











We have other filling machine for you to choose.Click here to view more:Shanghai JiaoBan Machinery

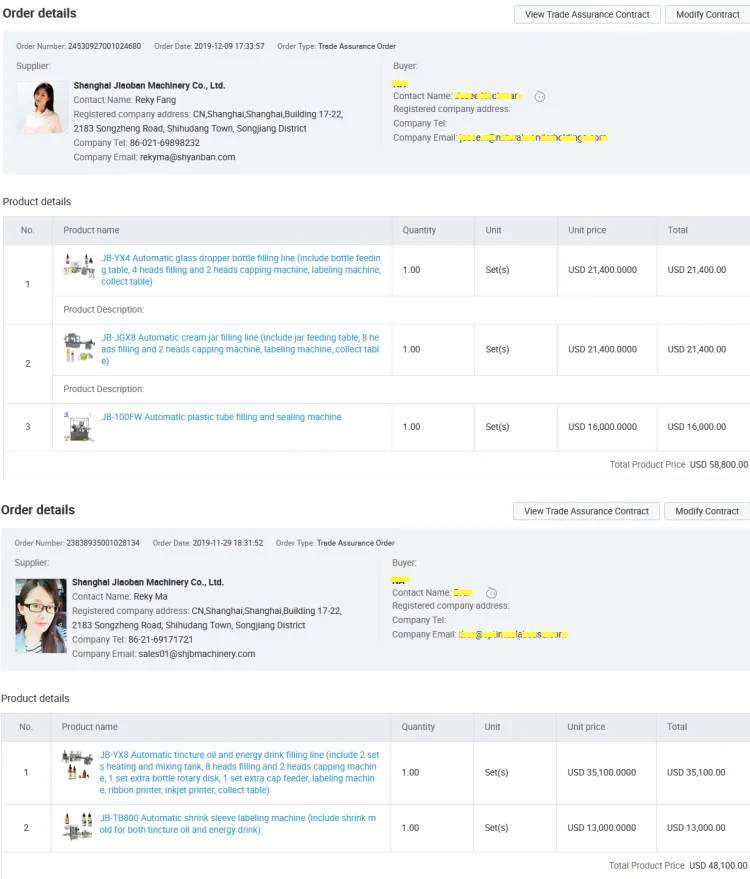

We can make Alibaba Trade Assurance Order for you.









If any need,welcome you contact me
