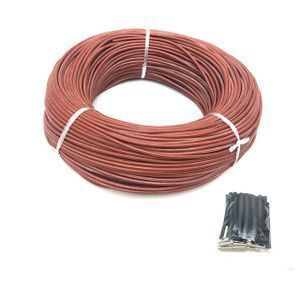

Electric 12K 33ohm/m Infared Carbon Fiber Heating Cable Warm Floor Wire

Product details
Brand Name:MINCO HEAT;Application:home office floor heating,Underfloor heating;
Limited temperature:200 cetigrade;Number of Conductors:12k;
Resistance:33 Ohm/m;Insulation Material:Rubber,Rubber;
Outer jacket:Silicone rubber;Selling Units:Single item;
Jacket:Rubber;Packaging Detail:100 meters heating cable per roll in a carton. or we can package as your option.;
Diameter:3±0.2 mm;Single gross weight:0.01 KG;
Single package size:20X15X10 cm;Place of Origin:Anhui China;
Model Number:CF-12-R;Power calculate:P=U*U/(33*L);
Core size:12K;Conductor Material:Copper,Carbon Fiber;

Product Details:



Product Name:  Carbon fiber heating wire

Insulating materials: Silicone rubber

Temperature: 200 degrees celsius limit

Heating conductor: 12K

High voltage test: 3000V

Leakage current: 0.05mA/m

The product can withstand the power of power: 25W/M

Diameter: 3±0.2 MM

Optional colors: Red/Yellow

Infrared wavelength: 8UM-18UM

Conductor resistance: 33 ±10% Ω / M



Package Includes:



Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves

Buy 50m = 50m cable + 10 pcs copper tube + 10 pcs sleeves

Buy 30m = 30m cable + 6 pcs copper tube + 6 pcs sleeves

Buy 20m = 20m cable + 4 pcs copper tube + 4 pcs sleeves

Buy 15m = 15m cable + 4 pcs copper tube + 4 pcs sleeves

Buy 10 m = 10m cable + 2 pcs copper tube + 2 pcs sleeves





Product Power Calculation:

Voltage * voltage / total resistance = power

For example: 12K carbon fiber, length of 10 meters

220V × 220V / (10 m x 33 Ohm) =150 watts

For example: 12K carbon fiber length of 15 meters

220V × 220V / (15 m x 33 Ohm) =100 watts

The data shows that the longer heating wire you use and the smaller output power. (The min length of 12K carbon fiber heating wire is 10 meters)
