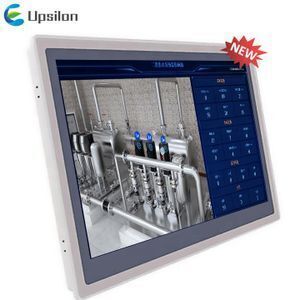

cheap 15" led ethernet rs485 scada industrial hmi touch screen controller

Product details
Brand Name:UPSILON;Package Preview:;
Application:industial IIoT solution;Ethernt Port:2x 10/100M self-adapt;
Model Number:F6156H;Packaging Detail:Upsilon F6156H IIoT scada industrial hmi touch screen controller transparent plastic bag in specially-made mold fixed in four-layers carton;
Place of Origin:Jiangsu China;Size:15.6inch;
Single package size:50X35X15 cm;Selling Units:Single item;
Single gross weight:4.85 KG;Remote Access:VNC/Flink module;
Touch Panel:4-wire industrial resistive;CPU:1Gz ARM Cortex-A8;

cheap 15" led ethernet rs485 scada industrial hmi touch screen controller

F6000 HMI Feature



Product Description
cheap 15" led ethernet rs485 scada industrial hmi touch screen controller
Model F6156H
Panel LED Display  15.6" 16:9 TFT LCD
Visual Angel  85′/85′/85′/85′
Resolution  1024x600
Color  16bit
Brightness  250cd/m²
Touch Panel  4-wire industrial resistive
Memory  CPU  1G ARM  Cortex-A8
 Storage 256M Flash+512M DDR3
RTC  built-in
Port Ethernet  2x10/100M self-adapt
SD Card   TF card
USB Port  1XUSB slave 2.0; 1xUSB Master 2.0
Program Download   USB Slave/U Disk/Ethernet
Serial Port    COM1/COM3: RS232/RS485/RS422

COM2: RS485

Power Rated Power   <18W
Rated Voltage   DC24 (DC18~28V)
Power Supply protection  isolated power supply; lightning and surge protection
Allowed to lose Electric  <5ms
CE&RoHS  applied with EN61000-6-2:2005, EN61000-6-4:2007 standar; applied RoHS lightning and surge±1KV, group pulse ±2KV; static power contact 4KV, air discharge 8KV
Environment Working Temperature    0~50℃
Storage Temperature    -20~60℃
Ultravoilet-Proof  forbidden to work in strong ultravoilet environment (such as directly sunshine)
Humidity   10~90%RH ( no condensation)
Shock Resistence   10~25HZ (X, Y, Z direction 2G/30 minutes)
Protection Level   IP65 front panel; IP 20 back panel
Size Material   full alluminum alloy
Cutting Out   380x245mm
Dimension  394x256x36mm
Net Weight    4.6kg

Application

Company Information

As an IIoT solution provider from eddge hardware to cloud platform, around 5,000 square meter workshop consists of four warehouse seperately for raw materials ( top and important electronic components own the special warehouse that is equiped of full-enclosed cabinet with optimal storage environment) and finished products, the full production line of three-proof auto coating machine, mold assembling, finished product assembling (there are automated dispensing machine, auto-screwing machine, various professional production test plants) high-temperature aging, port and function test and finished packing, etc; 30,000~45,000 pieces annual output for each type industrial hmi touch screen controller, PLC, FBox, IIoT modules for any urgent demand.



The full product traceability system (just as above flow chart)  from feedstock (each material need to pass through QC test, then put into warehouse with generated batch number), production task order (bind batch order to generate product serial number, then each process need to scan code to match the pre-distributed material), sweep code packing (coding generates for packing), OQC, finished prodcut input to warehouse, and sweep code for delivery) .

Factory Vist

FAQ
1. F6000 series can be only used as IoT scada industrial hmi touch screen controller?
A: Nope, the IoT FLink extended module is optional. If the IoT solution is not needed, directly using F6000 HMI as normal scada industrial hmi touch screen controller will be ok.

2. Does the IoT FLink extended module support Cloud platform? Is the Cloud platform free?
A: FLink module supports our FlexCloud platform that is free. There are three apps for different monitor demand: FlexManager PC App, ICloud mobile App, and web SCADA software.

3. How about your warranty and sale service for scada industrial hmi touch screen controller?

All orders are through Alibaba Trade Assurance to guarantee your money and project safe. Replacement for half a year : In the half year after the product is sold, If products have any undersigned trouble that influences the performance of product, clients can suggest replacement of products if they cannot get maintenance service in time. We can replace the products with the same one for you.



Repairing for thirty-six months:In the three years after the product is sold, if products have any undersigned problem, we can provide repairing service for you. You just need to send the broke-down products to our after- sales service center. We will repair the product in specified guarantee period and send it



4. Are you able to convert other brand's original project file in yours?

Yeah, this service is available but with some charges that depends on work amount.



5. How can i fastly focus on the right hmi scada industrial hmi touch screen controller model?

Kindly please send us your detailed requests, such as communication mode, working environment, used brand model number (if you have).
