diesel power tiller

Product details
Brand Name:BOTA;Finishing:Paint;
Payment Terms:L/C,T/T;Material:metal;
Place of Origin:Shandong China;Supply Ability:1000 Piece/Pieces per Day;
Cultivator Type:Rotary land;Work:farm land and garden;
Model Number:HR151/101/121,DF12/15;Delivery Detail:20 days after advance payment.;
Port:Qingdao port;Packaging Detail:wood box;
Feature:MINI;

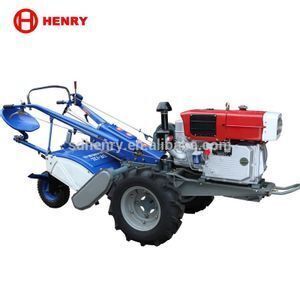

 Diesel power tiller



Easy operate


"HR " series tractor driver for the use of traction-guided tractors. The design novelty and the transmission box is adopted horizontal 8-axle transmission. With characteristics of light turning and great clearance of the clutch, the machine has 3 nation patents. The aircraft widely used in plains, mountains and hilly upland areas of water operations, accompanied by the corresponding agricultural can be ploughing, sowing, harvesting, water pumping, transport, spraying pesticides, and other operations, It is the national advanced lever.





       Item

Unit



Whole Machine

Brand

/

BOTA

Type

/

HR101-2/101-1

Form

/

Drive Traction

Dimension(Length*Width*Heighth)

mm

2180*840*1250

Tread

mm

680-740(adjust)

Min Ground clearance

mm

210

Minimum use quality

kg

359

Counterweight

kg

43

Gears number (forward/reverse)

/

6/2

Each block theory faster

km/h

 2.2  3.42  5.53   8.92  13.87  22.43

reverseⅠ 1.69  reverseⅡ 6.86

Link way both engine and clutch

/

Triangle belt connect

Startup mode

/

Manual  (or electric start add USD123.00)

Engine

Brand

/

BOTA

Type

/

Single horizontal water-cooled four stroke ,

horizomtal ,vortex type

Form

/

R190N

R195N

Number of cylinders

cylinder

1

1

Cylinder size x stroke

mm

90*90

115*95

Displacement

L

0.598

0.815

Compression ratio

/

21:1

21.:1

Rated power

kW

7.35KW

8.82KW

Rated speed

r/min

2300

Fuel injection pump form, type

/

BF1A75Z01

Injection nozzle form, type

/

PB40S

The air filter form, type

/

Steel wire two classes bath oil

Cooling system type

/

Water cool

Headlamps

Type

/

C201-006

Fuel box

Type

/

185-11100

Work pressure

kPa

100-120

Volume

L

9.1

Muffler

Muffler dimension

mm

φ110*193

Muffler weight

kg

1.03

Drivetrain

Clutch type

/

  Single slice, often jointing.friction

Gearbox type

/

Joggle direct tooth column gear and sliding gear

(3+1)*2compent type

Mileage system

Tire model (the drive wheels/tail wheel)

/

6.00-12(GB1192-82)

Tyre pressure (the drive wheels/tail wheel)

kPa

Working farm:80-120KPa

working transport:140-20







Model

HR121-1

HR151-1

Overall dimensions (lxwxh)mm

2260x930x1125

2330x1260x1250

Wheel track  (mm)

680-850

680-1000MM

Ground clearance (mm)

215

250

Tyres

6.00-12/600-14/600-16

6.00-16

Construction weight (kgs)

300

390

Speed (km/h)

(3+1)*2

Forward

2.21/4.28/6.64/8.22/14.63/24.5/

2.55/4.94/7.68/9.5/16.9/28.3

Reverse

1.75/4.11

2.03/4.5

Rotary Tillerspeed (rpm)

High

275

275

Low

219

219

   Diesel engine

Model

195/196/1100/1105

1100/1105/1115

 Type

Singlecylinder,horizontal,4 stroke Water cooling Diesel

Singlecylinder,horizontal,4 stroke Water cooling Diesel

Rated power kw(hp)

12hp/15hp/18hp

15hp/18hp/20hp

Rated speed  (rpm)

2000

2300

main features

     1)small garden tractor is small and light with low oil consumption, high efficiency and good stability.



     2)Easy to operate and suitable for working in the narrow acrid land, paddy field, orchard and vegetable greenhouse.



     3)According to different demands of the users, also can used for rotary planting, shallow & deep plowing, transplanting in the  paddy field, loosening the soil, atomization, watering & dewatering, sowing and exploring more lands when corresponding equipments or tool are assembled

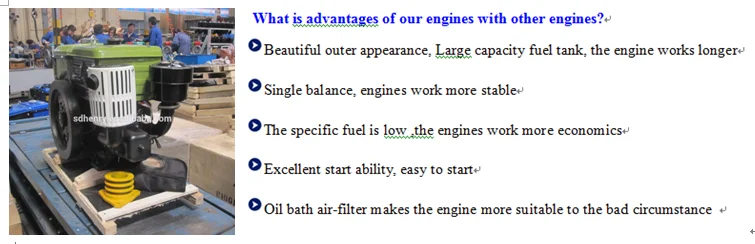

Strong power from the diesel engine

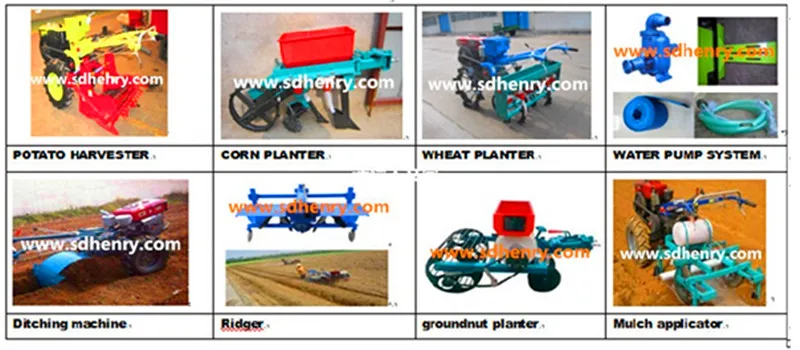

Available accessories

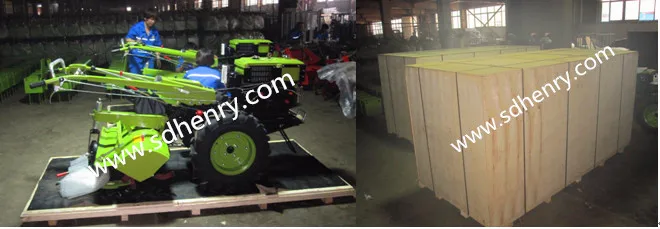

packing&shipping

Packaging Detail:A wooden box or as your requires

 shipping:within 20 days

 Sample package by plywood box.

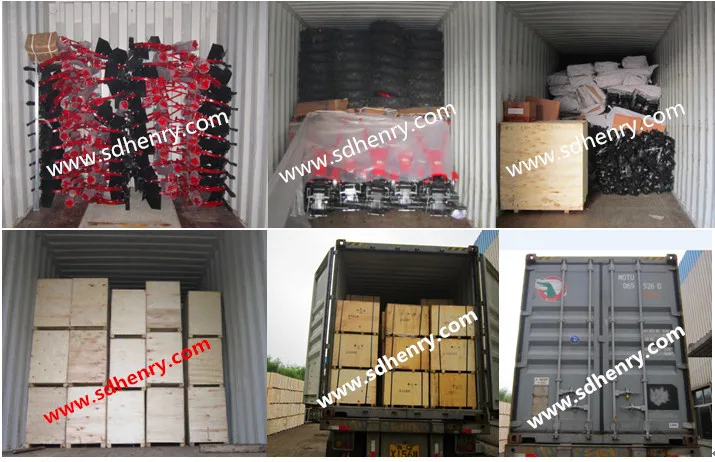

FULL CONTAINER PACKAGE AS FOLLOWS:


 product range

  we have five ranges of related product,including tider,water pump,generator,power sprayer and engines,

  you  never worry to gather different model for same container,we can provide satisfying product instead.

  The product warmly welcomed in the abroad market for more than 60 counties, and the product of walking   tractor is around 300000sets per year.The largest market Include :EU,North America,South America.

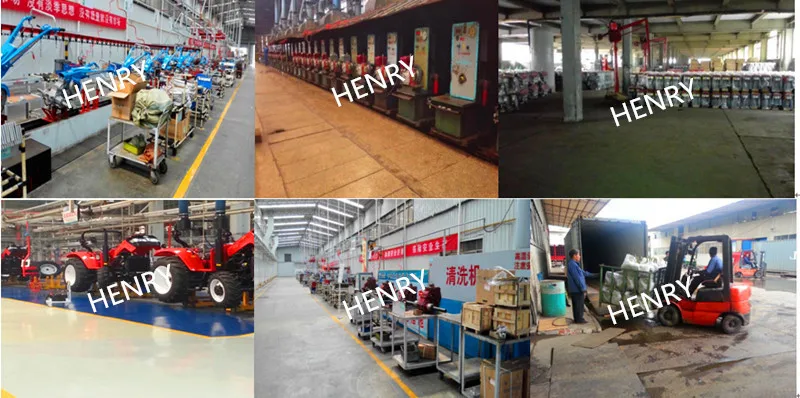

Ourfactory

We are  professional manufacturer of agricultural machinery in china. About 1000 employees



 Based on the strength of our production the  special orders we can meet you ,



why choice us

1)Professional supply with certification:CCC  ISO  CE  DOP

2)Perfact quality program,100% test before delivery

3)One year guarantee

4)OEM cervice

5)Price is our big advantage, because we have a very strong production capacity



Shopping guide recommended

1)      HR81(7-12hp,hand start)



2)      HR101-1(7-12hp, hand cranking or electric start)



3)      HR121(12-15hp, hand cranking or electric start )



4)      HR151-1(15-20hp,hand cranking or electric start)



5)      DF12 (12hp, hand cranking or electric start)



6)      DF15(15HP,16HP,18HP,20HP,22HP hand cranking or electric start)



7)      Mini four wheel tractor



8)      Implements
