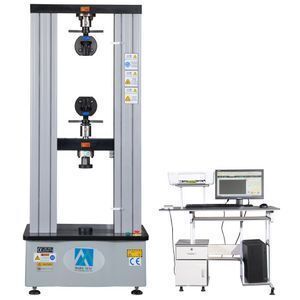

30/50/100KN Computer Control Electromechanical UTM Universal Tensile Testing Machine Price Testing Equipment

Supplier: Jinan Marxtest Technology Co., Ltd.
Region: Shandong, China
Contact: Ms Amy Marxtest
Price: $6000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Shandong China;	Effective tensile space (mm):	700;
Max. load force:	100KN;	Package Preview:	;
Crossbeam travel speed(mm/min):	0.001-500;	Single gross weight:	50.0 KG;
Load accuracy:	Class 1 (class 0.5 optional);	Model Number:	ETM-D;
Brand Name:	Marxtest;	Power:	Electronic;
Selling Units:	Single item;	Crosshead Travel(mm):	1000;
Application:	Metal & Non-metal;	Warranty:	12 Months;
Load range:	1%-100%FS (0.4%-100%FS optional);	Single package size:	50X50X50 cm;

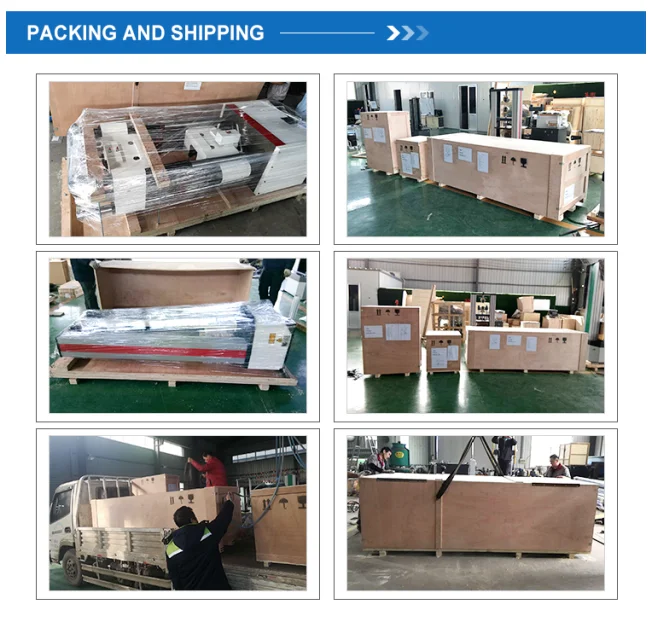

Certificate:	CE ISO SGS;	Packaging Detail:	Inner: Water-proof plastic film packaging Outer: Plywood box for overseas transportation;
Product name:	Universal testing machine;

Product Description

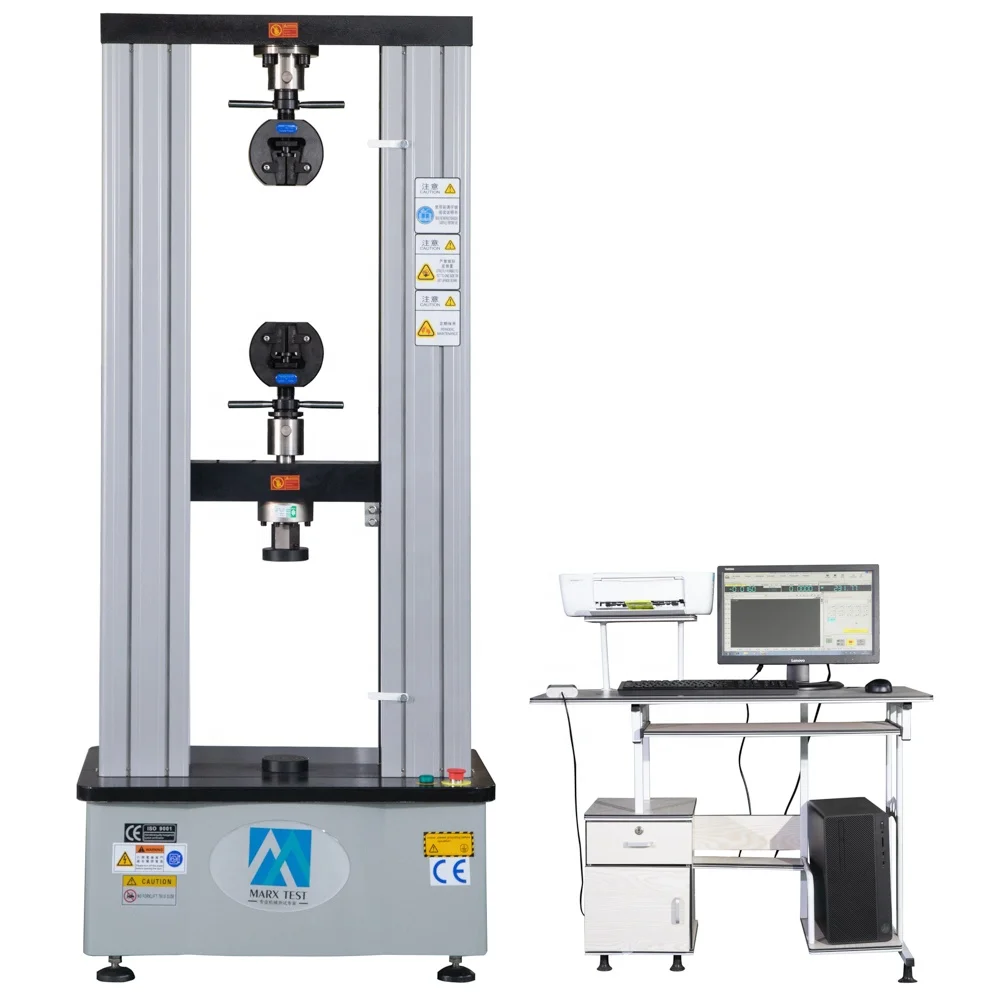

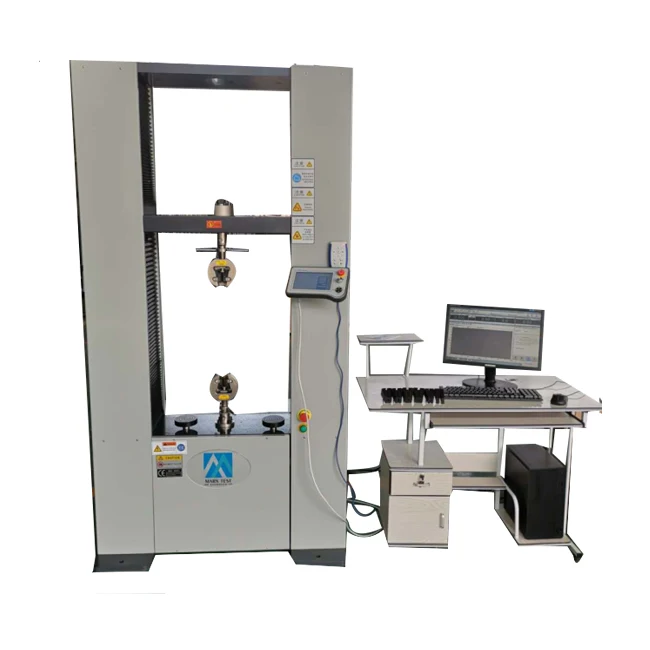

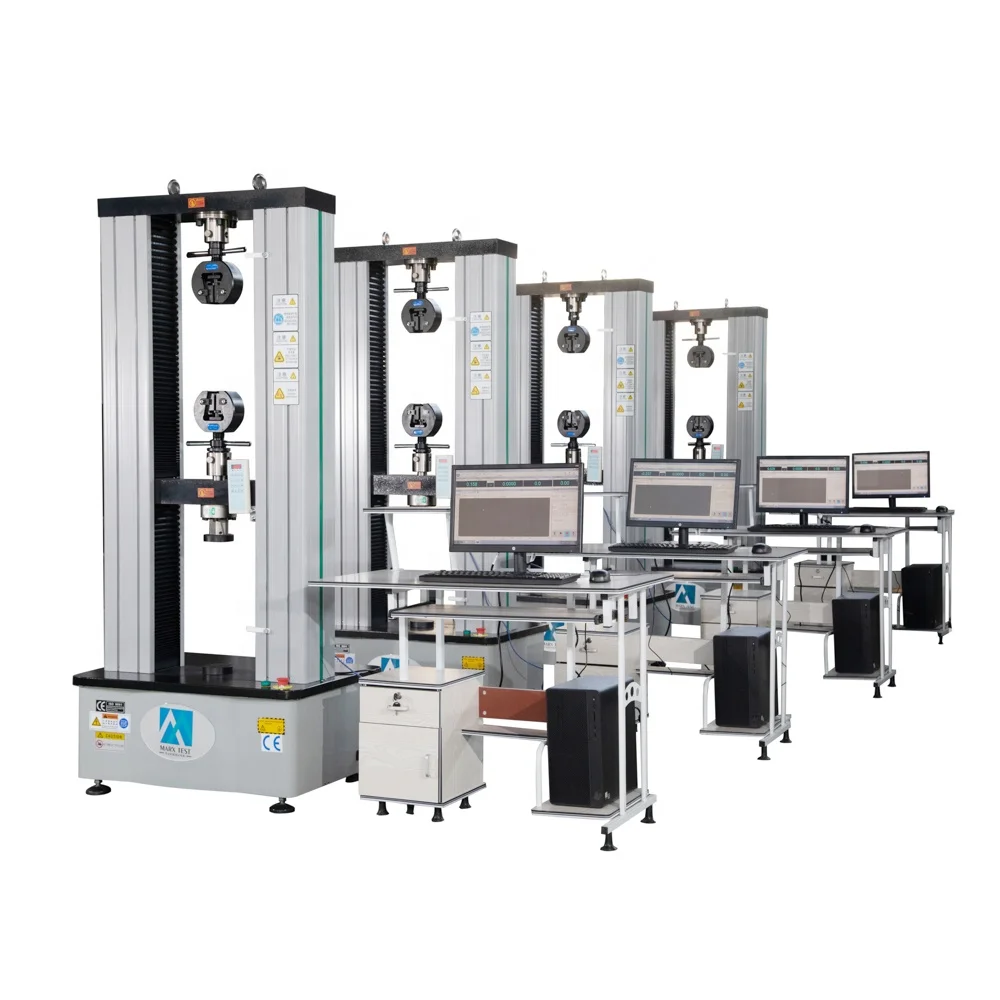

30/50/100KN Computer Control Electromechanical

UTM Universal Tensile Testing Machine Price Testing Equipment

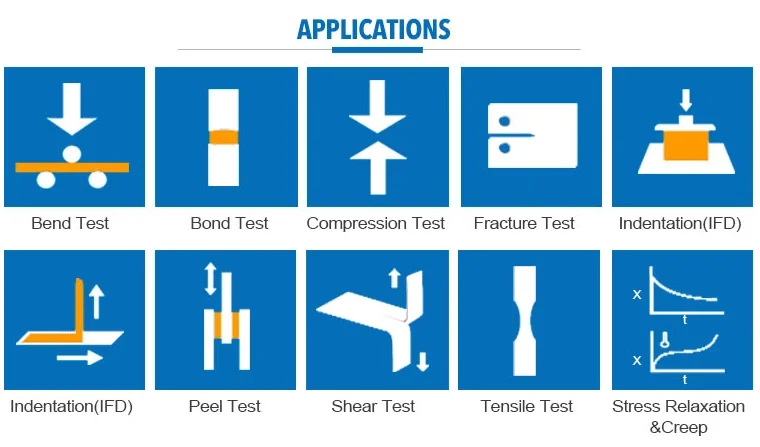

1.Application

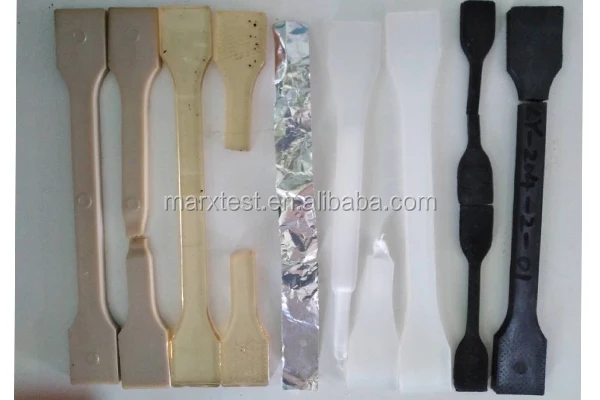

Microcomputer-controlled electronic universal testing machine is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling , tearing and other mechanical properties.

2.Features

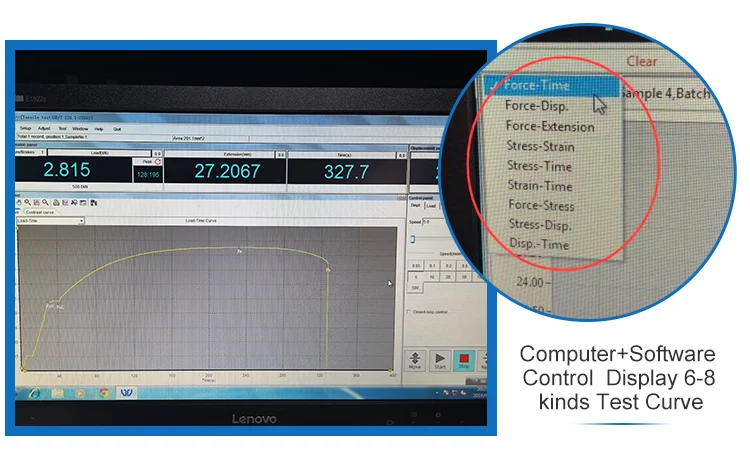

1) Computer + Software control and display 6 kinds test curves:
Force-displacement, force-deformation, stress-displacement,
stress-deformation,force-time,displacement-time
2) Can be installed extensometer to test deformation of rubber or metal material
3) Can do high temperature test by high temperature oven and furnace

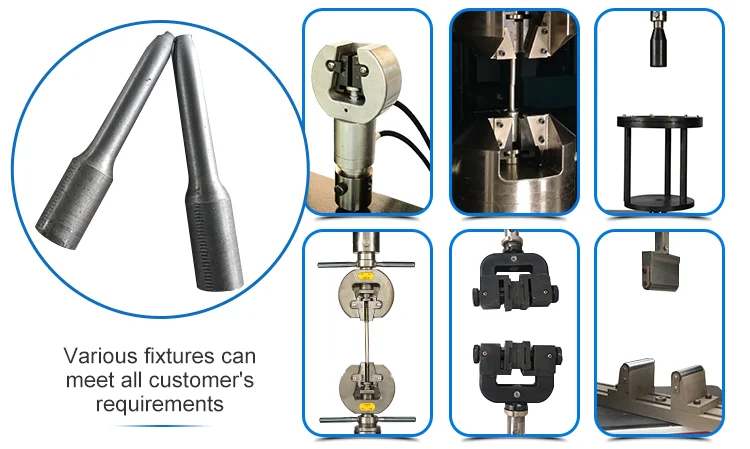

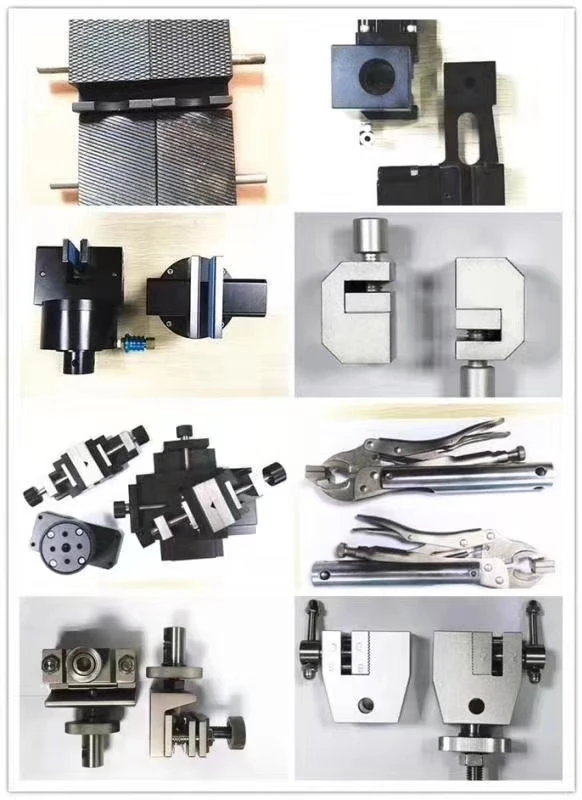

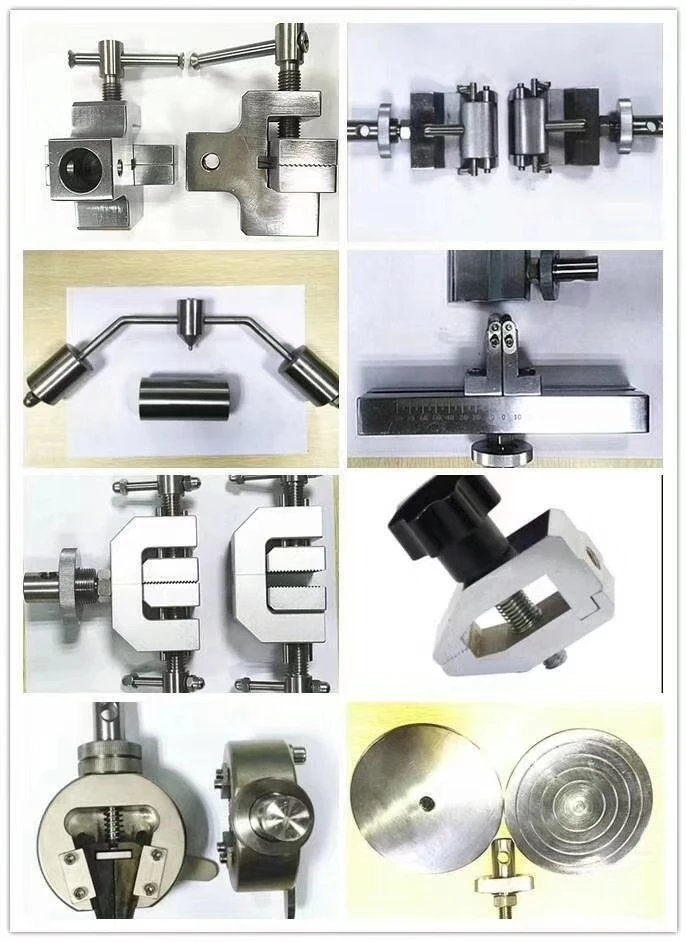

4) Can be installed all kinds of test fixtures, manual / hydraulic / pneumatic fixtures
5) Can be customized height, width, and follow any test standard or customer request
6) Also have ETM Digital Display Type.

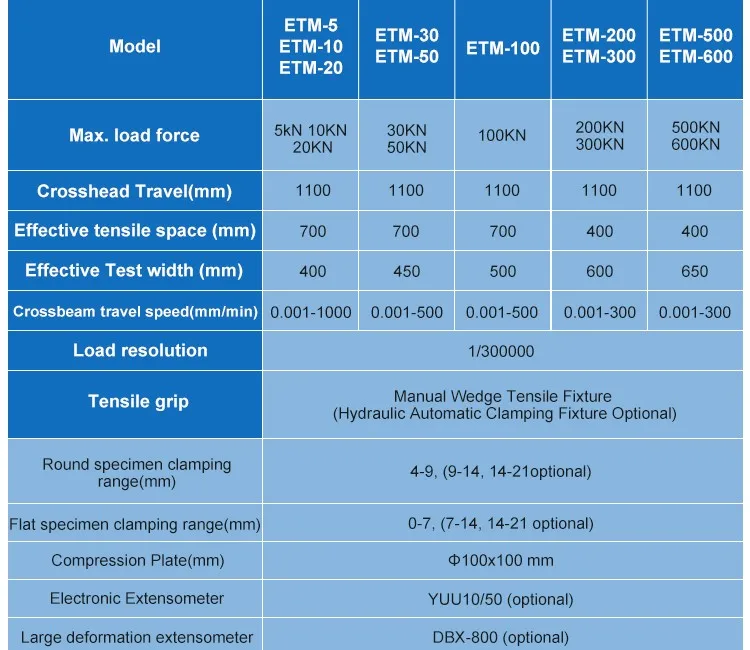

3.Technical Parameters
