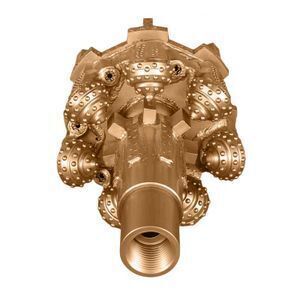

Brand new TCI tricone/tri-cone HDD hole opener/ reamer for Trechless ops

Supplier: Hebei Ranking Bit Manufacture Co., Ltd.
Region: Hebei, China
Contact: Ms Amanda Chen
Price: $3200.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Type:	Reamer;	Packaging Detail:	Brand new TCI tricone/tri-cone HDD hole opener/ reamer for Trechless ops Selling Units: Single item Single package size: conventional Single gross weight:309KG Package Type: tricone bit packing: wooden box;
Place of Origin:	China;	Color:	Customer's Requirement;
Heat treatment:	Heat Treated;	Processing Type:	Forging;
Application:	TCI HDD reamer;	Use:	Well Drilling;
Usage:	Hole Drilling;	Payment Terms:	L/C,T/T,Western Union;
Package Preview:	;	Packing:	Wooden Case;
Machine Type:	Drilling Equipment;	Thread:	4 1/2'' IF box&pulling eye;
Material:	Carbon Steel;	Applicable Industries:	Construction works ,Energy & Mining;
Brand Name:	Ranking;	Formation:	Medium Hard Formation;
Advantage:	High Performance Cost Ratio;	Certification:	ISO9001;
Size:	20'';	Product name:	HDD hole opener/ reamer for Trechless ops;

Product Description

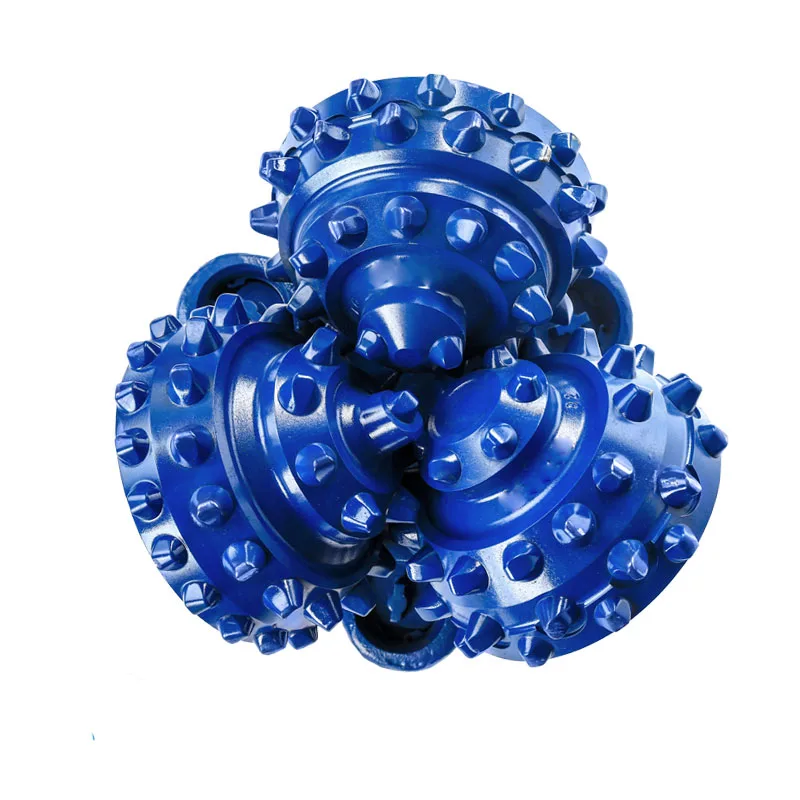

The roller cone bit is the most widely used tool in petroleum drilling and geological drilling. Tricone bit has the function of impacting, crushing and shearing rock in formation, so it can adapt to soft, medium and hard formation. The cone bit can be divided into milling (steel teeth) cone bit and TCI cone bit according to the type of teeth.

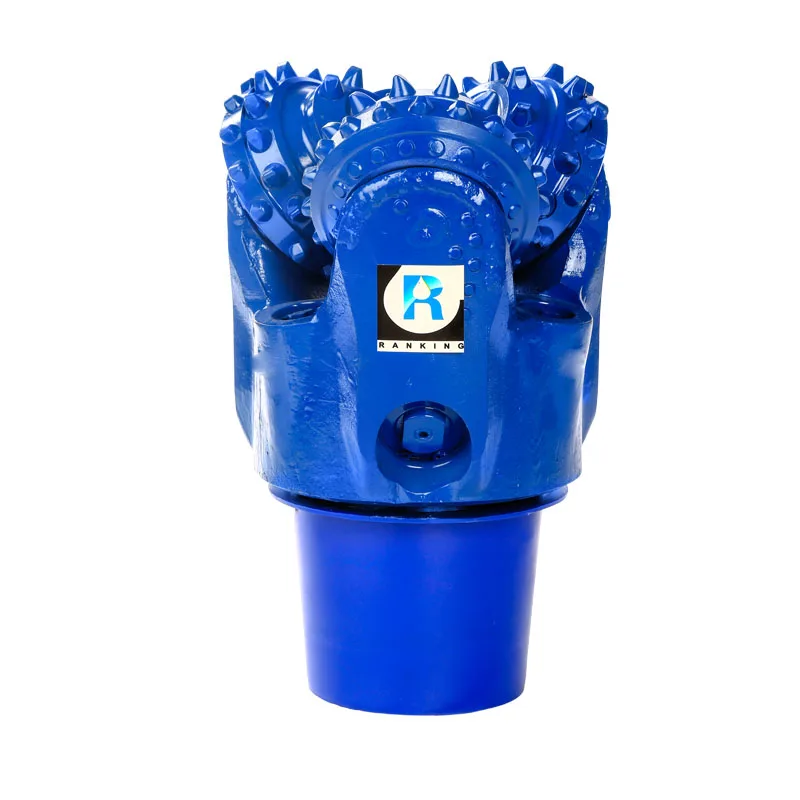

All Tri-cone Bit From Ranking Bit.
Drill Connection Thread And Recommended PULL-UP Torque
Bit Size		Connection	Making Up Torque	Weight	Bit Size		Connection	Making Up Torque	Weight
Inch	mm	Inch	KN.m	Kg	Inch	mm	Inch	KN.m	Kg
3 1/2	95.3	2 3/8	4.1~4.7	5	11	279.4	6 5/8	38~43.4	85
4 5/8	117.5	2 7/8	6.1~7.5	6.5	11 5/8	295.3			89
4 3/4	120.7	2 7/8	6.1~7.5	7	12 1/8	304.8			94
5 1/2	139 2/3	3 1/2	9.5~12.2	17	12 1/4	311.2			95
5 7/8	142.9			18	12 15/32	315.9			97
6	152.4			19.5	13 1/8	333.4			120
6 1/4	158.8			19.5	13 5/8	346.1			120
6 1/2	165.1			19.5	13 3/4	349.3			120
6 3/4	171.5			21	14 5/8	368.3	7 5/8	46.1~54.2	160
7 1/2	190.5	4 1/2	16.3~21.7	28	14 3/4	374.7			160
7 7/8	200			29.5	15	381			185
8 1/4	209.6			38	15 1/2	393.7			189
8 3/8	212.7			38	16	406.4			205
8 1/2	215.9			38	17 1/2	444.5			255
8 3/4	222.3			40	20	508.0			443
9 1/2	241.3	6 5/8	38~43.4	57.5	22	558.8			580
9 7/8	250.8			60	24	609.6			650
10 5/8	269.9			74	26	660.4			810
