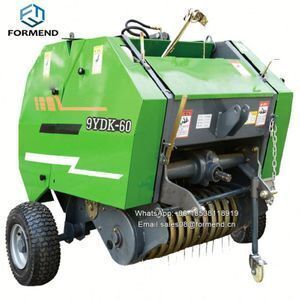

Hay and Straw Baling Machine/ Grass Baler/Mini Round Hay Bal

The hay baler machine application

The hay baler machine/straw bundling machine is widely used in agriculture and animal husbandry. It can collect and bundle dry and green grass, straw, wheat stalk, corn stalk, wheat/ rice straw, grass, corn straw, pasture straw bale, etc. After baled by the machine, the bundle is very convenient for transportation, reserve and deep processing, and it matches with envelop machine to achieve the enveloping of ensile. So, the hay straw baler machine is very welcomed by domestic and overseas farmers.

Working principle of hay baler machine:

This hay baler machine is suitable for the tractor with more than 18-45 horse power. This machine is composed of the picking system, rolling pressing system, threading system and bale locating system which bales the soft culm and grasses (rice straw,wheat straw, grass etc) fully automatically. The finished density of the bale is 90 kg/m?.

Main parts of the hay baler machine:

The hay baler machine consists of main machine, pick-up part, compress rolls, automatic binding hay bales, hydraulic pressure ejection system, three point linkage etc. It can move and work with a 15-90 HP tractor by PTO shaft. Automatic operate: led rope, pick up wheat straw hood, bundle , cut twine automatically, can cut through the tank round the size of the adjustment, to come loose, not messy.

Working process of hay baler machine:

1). The power conveyor driven shaft release the power to bundling machine's power-input shaft through universal drive shaft when drive the chain, chain sprocket, and rotary platen system and picking system.

2). The hydraulic power out driving joint control the cylinder piston to enable the bale putting. The baling machine is already adjusted into the suitable height.

3). When the machine is going along with the tractor, the hay is picked into rotary platening chamber and rotating bigger and bigger, then get into very tight round bale.When the density of the bale is Ok , the alarming system will start to sound, driver should stop forwarding, push the threading clutch.

4). When find the speed of threading is faster, loose clutch, keep the Power conveyor driven shaft working to start thread. Driver should pull the hydraulic controlling stick to change the direction of the hydraulic valve, then the cylinder will work and throw the bale out.

5). After throwing the bale out,correct the hydraulic valve, open rear rack to forwarding again for the second cycle.

Main Features of hay baler machine:

1). This hay baler machine with advanced design and structure, processing high quality round bales. CE certificate was passed in 2011.
2). It is consist of main machine, pickup part, compress rolls, automatic binding hay bales, hydraulic pressure ejection system, three point linkage etc. It can move and work with a 15-90 HP tractor by PTO shaft.
3). The whole working program is successive, accurate and reliable, the bundled round grass bales compact outside and loose inside and has good air permeability.-
4). The machine is suitable for baling of hay, grass, wheat, silage, alfalfa and other materials such as straw etc.
5). It can resist wind, rain and snow under open storage and is convenient for long-term storage and long distance transportation. this is a great significance to the prompt harvest of pasture in agricultural and pastoral areas, the effective use of crop stalks as well as the disaster countering and livestock protection.
