Measuring range: | 0.5... 500 metre; | key words: | 4-20ma water tank level sensor; |
Power supply: | 3-5VDC,12-36VDC(standard); | Overload: | 200%F.S; |
Single package size: | 35X35X20 cm; | Product Name: | 4-20ma level transmitter; |
Packaging Detail: | standard export package for ip68 submersible water depth level sensors 30m stainless steel 4-20ma level transmitter; | Selling Units: | Single item; |
Brand Name: | Huadian; | Zero tempe drift: | ±0.03%F.S/℃; |
Single gross weight: | 2.0 KG; | Long-term stability: | ≤0.2%F.S/year; |
Output single: | 4~20mA,1~5V,0~10V,RS485; | Place of Origin: | Anhui China; |
Package Preview: | ; | Model Number: | HDL300; |
Environment temperature: | -40~85℃; | Measuring media: | Liquid,Water,Oil,Gas; |

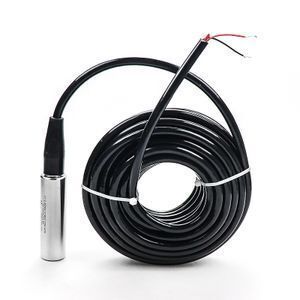

ip68 submersible water depth level sensors 30m stainless steel 4-20ma level transmitter
HDL300 series water level transmitter pressure sensitive core adopts high performance silicon piezoresistive pressure filling core. The internal ASIC converts the sensor millivolt signal into standard voltage, current or frequency signal, which can be directly connected with computer interface card, control instrument, intelligent instrument or PLC. Current output mode can be used for distance transmission. It has small volume, light weight, all stainless steel sealing structure and can work in corrosive environment. The product is easy to install and has high anti-vibration and anti-impact performance. It is widely used in process control, aviation, aerospace, automobile, medical equipment, HVAC and other fields.
Mainly technical parameters |
|
Model |
HDL300 |
Power supply |
12-28VDC |
Output signal |
4~20mA,1~5V,0~10V,RS485 |
Measuring range |
0. 500 metre |
Compensation temperature |
-10~70℃ |
Medium temperature |
-40~80℃ |
Environment temperature |
-40~85℃ |
Measuring media |
Liquid,Water,Oil |
Accuracy |
0.1%F.S,0.25%F.S(standard) |
Zero tempe drift |
±0.03%F.S/℃ |
Sensitivity temperature drift |
±0.03%F.S/℃ |
material |
316L core&Rubber breathable cable |
Overload |
200%F.S |
Long-term stability |
≤0.2%F.S/year |
Inherent frequency |
5kHz~650kHz |
Protection grade |
IP68 |
1.We guarantee you the lower pricing from us compared with your any competitive prices from others in volume.
2.We can guarantee you any quality issue from us will be refund you immediately or replace with new & qualified products.
3.OEM, Accept lower quantity trial order
4.Fast delivery. 24 hours With Discount Courier, Air shipment
5.Contains a variety of industrial control products such as signal isolators, pressure and liquid level sensors, temperature, current, voltage, frequency and other transmitters.
All products are in stock (except for special customization).
6.We can support you 24Hours online service via Alibaba, email, skype, what’sapp, facebook etc.
7.Long term warranty. Pressure and level transmitters are 2 years. The others in our shop are with 5 years warranty!!
