Push-in Wire Connector Economy Type

Supplier: Suzhou Huihua Electronic Tech. Co., Ltd.
Region: Jiangsu, China
Contact: Mr Allen Zhai
Price: $0.01 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Place of Origin:	Jiangsu China;
Model Number:	PC35;	Packing:	50-500EA/Bag;
Port:	Shanghai Port. Ningbo Port;	Application:	Power;
Brand Name:	Heavy Power/Hiwa;	Packaging Detail:	PE bag, OPP bag, Blister, Carton, Color Box or Customized.;
Type:	Femal;	Certification:	ISO9001/CE/ROHS/REACH;
Color:	Red, Orange, Yellow, Grey, Black, Purple, Clear;	Supply Ability:	100000000 Piece/Pieces per Month;

Product Categories

Push-In Wire Connectors	Unik Push in connector PC35 Series
	Push in connector PC15 Series Economy Type
	Push in connector PC225 Series Compact Type
	Push in connector PC25 Series Standard Type
	Push in connector - Releasable Type

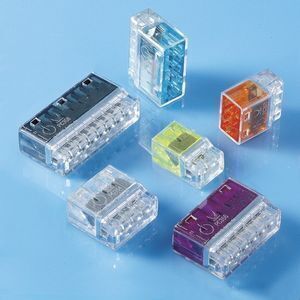

Unik Push-in Wire Connectors PC35 Series

Characters

For use with rigid/solid and flexible/stranded conductors.

Polycarbonate, UL 94V-0 flame-retardant shell.

Spring force connector constructed from tinned copper plate, spring steel and steel frame

Rated to 600V max. for building wiring and 1000V max.lighting fixtures and signs.

Color-coded for quick and easy identification.

Hardened stainless steel insert restrict pull-out, requires a very low insertion force.

Model No.	Color	Poles	Electrical Ratings	Clamping Area Wire Range	Packing
PC352	Yellow	2	24 A, 450 V, T110	0,5-2,5 mm², Rigid	500 Pcs/Bag
			600 V, 105°C (221°F)	22-12 AWG, Sol/Str Cu	5,000 Pcs/Ctn
PC353	Orange	3	24 A, 450 V, T110	0,5-2,5 mm², Rigid	400 Pcs/Bag
			600 V, 105°C (221°F)	22-12 AWG, Sol/Str Cu	4,000 Pcs/Ctn
PC354	Clear	4	24 A, 450 V, T110	0,5-2,5 mm², Rigid	300 Pcs/Bag
			600 V, 105°C (221°F)	22-12 AWG, Sol/Str Cu	3,000 Pcs/Ctn
PC355	Blue	5	24 A, 450 V, T110	0,5-2,5 mm², Rigid	300 Pcs/Bag
			600 V, 105°C (221°F)	22-12 AWG, Sol/Str Cu	3,000 Pcs/Ctn
PC356	Purple	6	24 A, 450 V, T110	0,5-2,5 mm², Rigid	250 Pcs/Bag
			600 V, 105°C (221°F)	22-12 AWG, Sol/Str Cu	2,500 Pcs/Ctn
PC358	Black	8	24 A, 450 V, T110	0,5-2,5 mm², Rigid	200 Pcs/Bag
			600 V, 105°C (221°F)	22-12 AWG, Sol/Str Cu	2,000 Pcs/Ctn

Push in connector PC15 Series Economy Type

Characters(For use with rigid/solid conductors)

Accpet conductors 0.5 - 1.5 Square MM

For use with rigid / solid conductors.

Polyamide 66, UL 94V-2 flame-retardant shell.

Spring force connector constructed from tinned steel with copper plates.

Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.

Compact size design perfect for tight spaces.

Model No.	Color	Poles	Electrical Ratings	Clamping Area Wire Range	Packing
PC153	Grey	3	17.5 A, 450 V, T110	0,5-1,5 mm², Rigid	500 Pcs/Bag
PC153	Grey	3	600 V, 105°C (221°F)	20-16 AWG, Sol Cu	5,000 Pcs/Ctn
PC155	Grey	5	17.5 A, 450 V, T110	0,5-1,5 mm², Rigid	500 Pcs/Bag
PC155	Grey	5	600 V, 105°C (221°F)	20-16 AWG, Sol Cu	5,000 Pcs/Ctn
PC158	Grey	8	17.5 A, 450 V, T110	0,5-1,5 mm², Rigid	500 Pcs/Bag
PC158	Grey	8	600 V, 105°C (221°F)	20-16 AWG, Sol Cu	2,500 Pcs/Ctn

Push in connector PC225 Series Compact Type

Characters-PC225 Series

25% more compact in size than original types with cost-saving effectiveness.

For use with rigid / solid conductors.

Polycarbonate and Polyamide 66, UL 94V-0 flame-retardant shell.

Spring force connector constructed from tinned steel plate with copper strip and spring steel.

Color-coded for quick and easy identification.

Model No.	Color	Poles	Electrical Ratings	Clamping Area Wire Range	Packing
PC2252	Red	2	24 A, 450 V, T110	1 - 2,5 mm²	1,000 Pcs/Bag
				Ridid Single-core	10,000 Pcs/Ctn
				Rigid Multi-core
PC2253	Orange	3	24 A, 450 V, T110	1 - 2,5 mm²	1,000 Pcs/Bag
				Ridid Single-core	8,000 Pcs/Ctn
				Rigid Multi-core
PC2254	Yellow	4	24 A, 450 V, T110	1 - 2,5 mm²	500 Pcs/Bag
				Ridid Single-core	5,000 Pcs/Ctn
				Rigid Multi-core
PC2255	Grey	5	24 A, 450 V, T110	1 - 2,5 mm²	500 Pcs/Bag
				Ridid Single-core	5,000 Pcs/Ctn
				Rigid Multi-core
PC2258	Black	8	24 A, 450 V, T110	1 - 2,5 mm²	400 Pcs/Bag
				Ridid Single-core	4,000 Pcs/Ctn
				Rigid Multi-core

Push in connector PC25 Series Standard Type

Characters-PC25 Series

For use with 1 - 2,5 square mm solid conductors.

Polycarbonate and/or Polyamide 66, UL 94V-2 or 94V-0 flame-retardant shell.

Spring force connector constructed from tinned copper or steel plate with copper strip and spring steel.

Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.

Color-coded for quick and easy identification.

Model No.	Color	Poles	Electrical Ratings	Clamping Area Wire Range	Packing
PC252	Red	2	24 A, 450 V, T110	1-2,5 mm², Sol	500Pcs/Bag
PC252X	Red	2	600 V, 105°C	22-12 AWG, Sol Cu	5,000 Pcs/Ctn
PC253	Orange	3	24 A, 450 V, T110	1-2,5 mm², Sol	500Pcs/Bag
PC253X	Orange	3	600 V, 105°C	22-12 AWG, Sol Cu	5,000 Pcs/Ctn
PC254	Yellow	4	24 A, 450 V, T110	1-2,5 mm², Sol	500Pcs/Bag
PC254X	Yellow	4	600 V, 105°C	22-12 AWG, Sol Cu	5,000 Pcs/Ctn
PC255	Grey	5	24 A, 450 V, T110	1-2,5 mm², Sol	500Pcs/Bag
PC255X	Grey	5	600 V, 105°C	22-12 AWG, Sol Cu	5,000 Pcs/Ctn
PC2258	Black	8	24 A, 450 V, T110	1-2,5 mm², Sol	400Pcs/Bag
PC2258	Black	8	600 V, 105°C	22-12 AWG, Sol Cu	4,000 Pcs/Ctn
PC252-CL	Clear	2	24 A, 450 V, T110	1-2,5 mm², Sol	500Pcs/Bag
PC252X-CL	Clear	2	600 V, 105°C	22-12 AWG, Sol Cu	5,000 Pcs/Ctn
PC253-CL	Clear	3	24 A, 450 V, T110	1-2,5 mm², Sol	500Pcs/Bag
PC253X-CL	Clear	3	600 V, 105°C	22-12 AWG, Sol Cu	5,000 Pcs/Ctn
PC254-CL	Clear	4	24 A, 450 V, T110	1-2,5 mm², Sol	500Pcs/Bag
PC254X-CL	Clear	4	600 V, 105°C	22-12 AWG, Sol Cu	5,000 Pcs/Ctn
PC255-CL	Clear	5	24 A, 450 V, T110	1-2,5 mm², Sol	500Pcs/Bag
PC255X-CL	Clear	5	600 V, 105°C	22-12 AWG, Sol Cu	5,000 Pcs/Ctn

Push in connector - Releasable Type

Characters-Releasable type

Accept conductors up to 4 square mm / 12 AWG.

For use with rigid/solid and flexible/stranded conductors.

Polycarbonate and Polyamide 66, UL 94V-0 flame-retardant shell.

Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.

0.5 square mm/ 18AWG and larger solid conductors are not required the operating tool.

Can be reused.

Model No.	Color	Poles	Electrical Ratings	Clamping Area / Wire Range	Packing
PC883	Orange	3	32 A, 450 V, T110	0,5-4,0 mm²,	400 Pcs/Bag
			600 V, 105°C (221°F)	Rigid/Flexible	4,000 Pcs/Ctn
				22-12 AWG, Sol Cu
				22-16 AWG, Str Cu

Installation:
