Warranty of core components: | 1 Year; | Local Service Location: | Egypt,Canada,Turkey,United States,Italy,France,Philippines,Brazil,Peru,Pakistan,India,Mexico,Thailand,Japan,Malaysia,Kenya,Argentina,South Korea,Colombia,Algeria,Sri Lanka,South Africa,Kazakhstan,Ukraine,Uzbekistan,Tajikistan; |
Showroom Location: | Egypt,Canada,Turkey,United States,Italy,France,Philippines,Brazil,Peru,Pakistan,India,Mexico,Thailand,Morocco,Kenya,Chile,UAE,Colombia,Romania,Bangladesh,South Africa,Kyrgyzstan,Nigeria,Uzbekistan,Malaysia,Australia; | Place of Origin: | Jiangsu China; |
Lifting Height: | 3500mm; | Material: | Iron; |
Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Power System: | Battery electric; |
Dimension(L*W*H): | 2760*840*1800mm; | Single package size: | 1X1X1 cm; |
Marketing Type: | Hot Product 2019; | Warranty: | 1 Year; |
Product Name: | 500kg electrical glass vacuum lifter glass lifting equipment; | Load capacity: | 300kg; |
Brand Name: | CNRUYI; | MOQ: | 1pc; |
Packaging Detail: | Standard export packing; | After Warranty Service: | Video technical support,Online support,Spare parts; |
Certification: | CE; | Application: | Glass, Slate, sheets, ceramic tile; |
Core Components: | Pump; | Selling Units: | Single item; |
Condition: | New; | Machinery Test Report: | Provided; |
Sucker numbers: | 2/4/6/8; | After-sales Service Provided: | Video technical support; |
Video outgoing-inspection: | Provided; | Color: | Yellow+blue; |
Single gross weight: | 1.0 KG; | Keyword: | glass lifter; |
Whether you need to tackle a floor to ceiling installation or wall to wall, RuyiLift has the glass lifting machine to perfectly match your job requirements. Choose from a variety of indoor and heavy-duty outdoor machines that allow you the flexibility and precision to conquer even the toughest job.

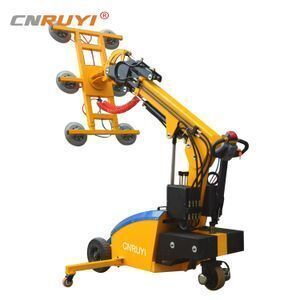

CE approved Glass transporter building glass vacuum lifter
Suitable for smooth surfaces such as glass, ceramics, stone, and sheet. Imported suction cup, three-layer sealing ring, good sealing, soft and environmentally friendly material. Double system control, Japan imported air pressure gauge, European imported air pressure pump, stable quality and high safety performance. Easily handle lifting, moving and spinning with vacuum chucks and powerful drive systems.
500kg glass lifter, glass robot vacuum lifters for your individual application
Electric Glass Lifter | Unit | CDD-L | |||
Rated load capacity | kg | 300 | 350 | 400 | 500 |
Manual rotating | deg | 270 | 270 | 270 | 270 |
lifting height | mm | 3500 | 3500 | 3500 | 3500 |
Manipulation | / | Walkie Type | Walkie Type | Walkie Type | Walkie Type |
Battery | V/A | 2x12/40 | 2x12/40 | 2x12/45 | 2x12/60 |
Charger | V/A | 24/12 | 24/12 | 24/12 | 24/15 |
Drive motor | V/W | 24/750 | 24/750 | 24/750 | 24/1200 |
Lift motor | V/W | 24/2000 | 24/2000 | 24/2000 | 24/2200 |
Overall Width | mm | 840 | 840 | 840 | 840 |
Overall Length | mm | 2760 | 2760 | 2760 | 2760 |
Overall Height | 1800 | ||||
Driving wheel dimension | mm | 250*80 | 250*80 | 250*80 | 250*80 |
Suckers diameter | mm | 300 | 300 | 300 | 300 |
The glass size | mm | 3660*2440 | 3660*2440 | 3660*2440 | 3660*2440 |
Acition:
1.Electric lifting and electric walking.
2.Manual 270 degree rotation.
3.Electric positioning.
4.Glass sucker cup for lifting glass.
How to place an order?
A:Tell us your detailed requirements of CE approved Glass transporter building glass vacuum lifter (material, dimension,weight and function you need),we will send you offer soon. If OK, send us PO,or we send you the PI
What’s your price term?
A: FOB,FCA,CIF,CFR,EXW and DDU price terms.
How could I pay them?
A:We accept Western Union; T/T; L/C;Alibaba trade assurance
How long could I get my order?
(1) Standard metal vacuum lifter, usually in stock, deliver within 24 hours.
(2) Customized order, don’t have items in stock, then need to check.
About warranty:
A:Our machines carry a full 1 year warranty.
Mode of transport:
A:Sea, air, railway and express transport
About package:
Standard exported packing(plywood case)
