3.5" SFR1M44-U100K Floppy Disk Drive To USB Emulator Simulation For Musical,Knitting, CNC and injection mould machine

Supplier: Chengdu HTLL Technology Co., Ltd.
Region: Sichuan, China
Contact: Ms vivi yu
Price: $13.68 /set
Min. Order: 1 set

Click here to contact

Product details

used:	For Musical Keyboad Floppy Disk;	Model Number:	Emulator;
Encoding method:	MFM;	Selling Units:	Single item;
Place of Origin:	no;	Packaging Detail:	1x USB Emulator;
Certification:	FCC;	Network system:	under WINDOWS XP/2000/7;
Brand Name:	no;	Single package size:	6X8X10 cm;
Name:	Floppy Drive Panel;	Application:	Desktop;
Color:	Black;	USB port:	connect usb flash drive;
Product name:	USB Emulator;	Interface Type:	usb;
Package Preview:	;	Housing Material:	ABS;
Single gross weight:	0.5 KG;	Products Status:	Stock;
Delivery Time:	7-15Days;	Type:	External;
Transfer rate:	500 kbps;

Product Description

3.5" SFR1M44-U100K Floppy Disk Drive To USB Emulator Simulation For Musical

Item's color might be different from the picture because of the aberration.
This floppy drive emulator is great for electronic organ
Housing Material:ABS
Color:Black
Floppy driver with below function needed:
Floppy driver with 34pin interface,and 5V DC power plug
Use 2HD flpppy disk with 1.44MB capacity
Format of disk:Cylinders:80
Tracks:160 Sectors/Track
18 Bytes/Sector:512 Data
Transfer rate:500 kbps
Encoding method:MFM

Features:
Use normal usb flash drive as the medium for transfer design.

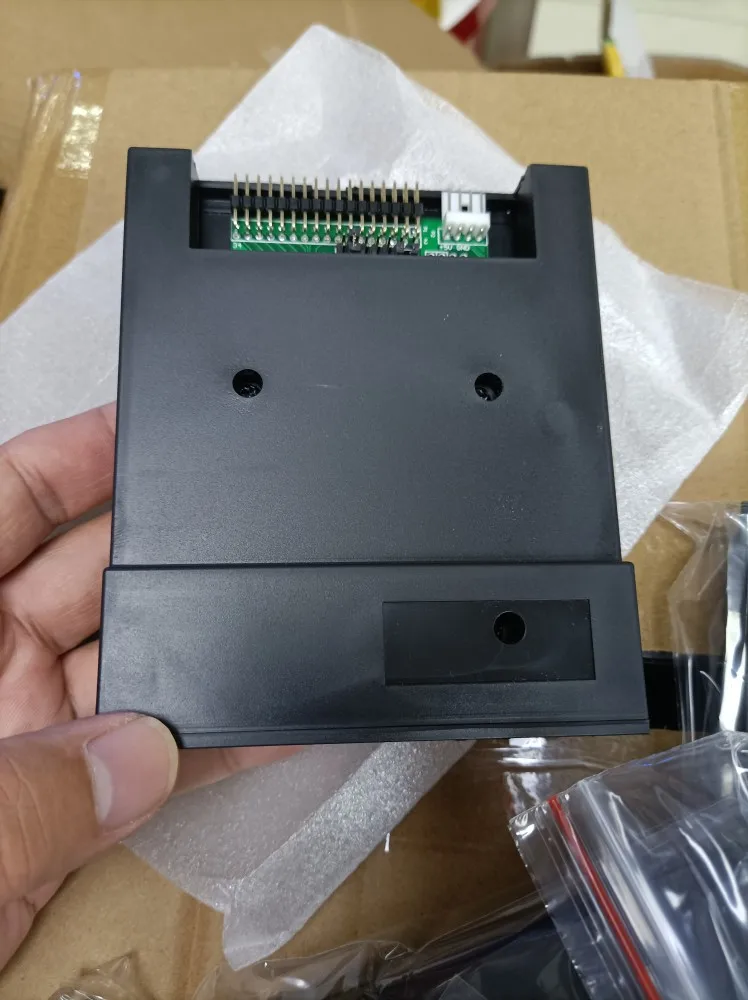

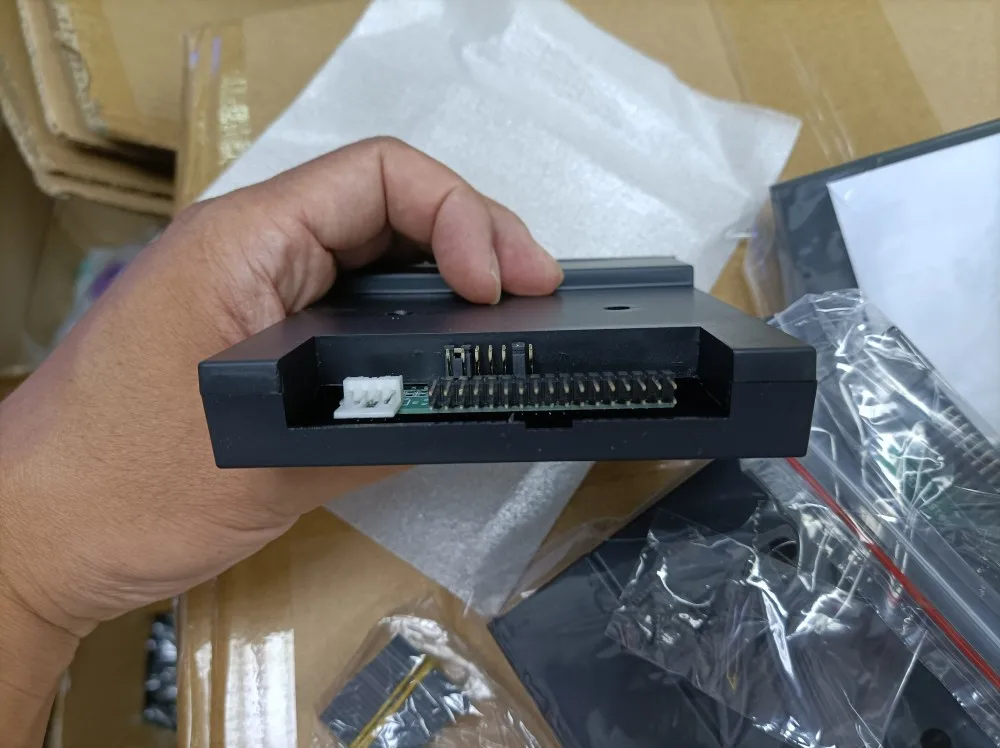

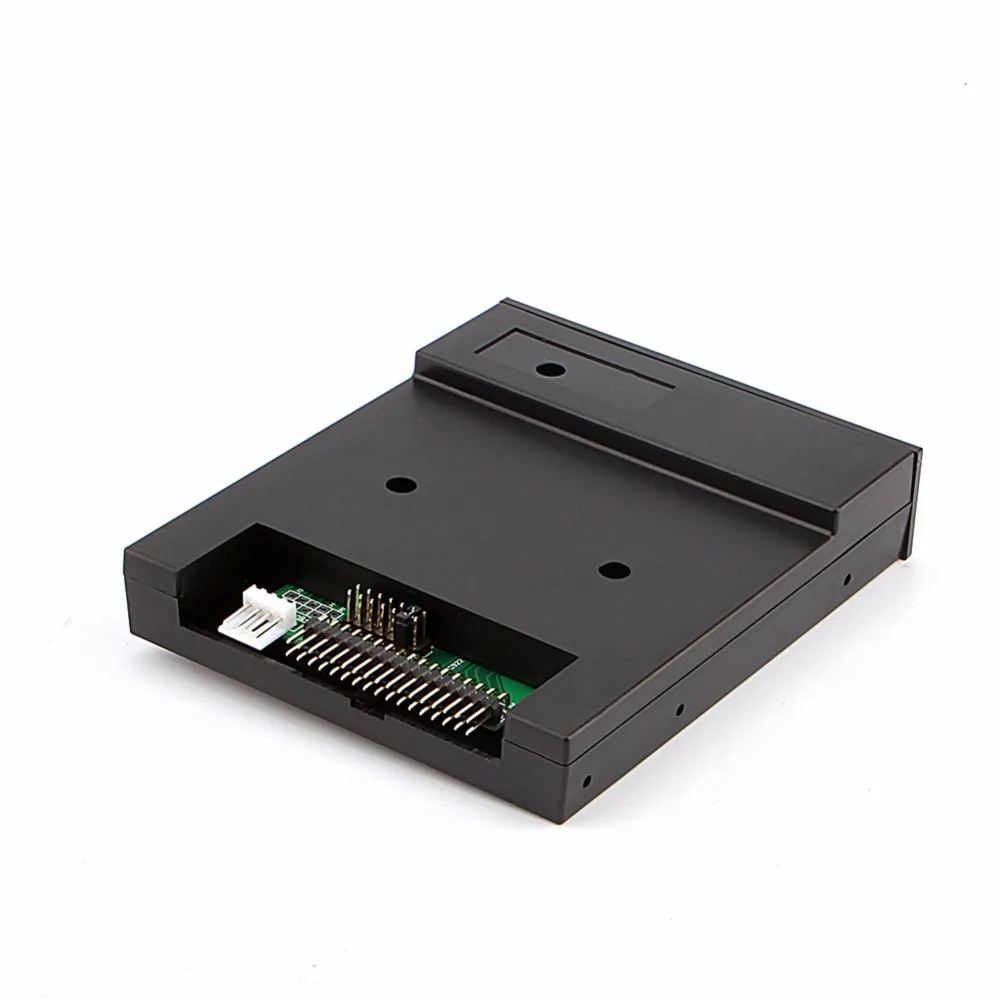

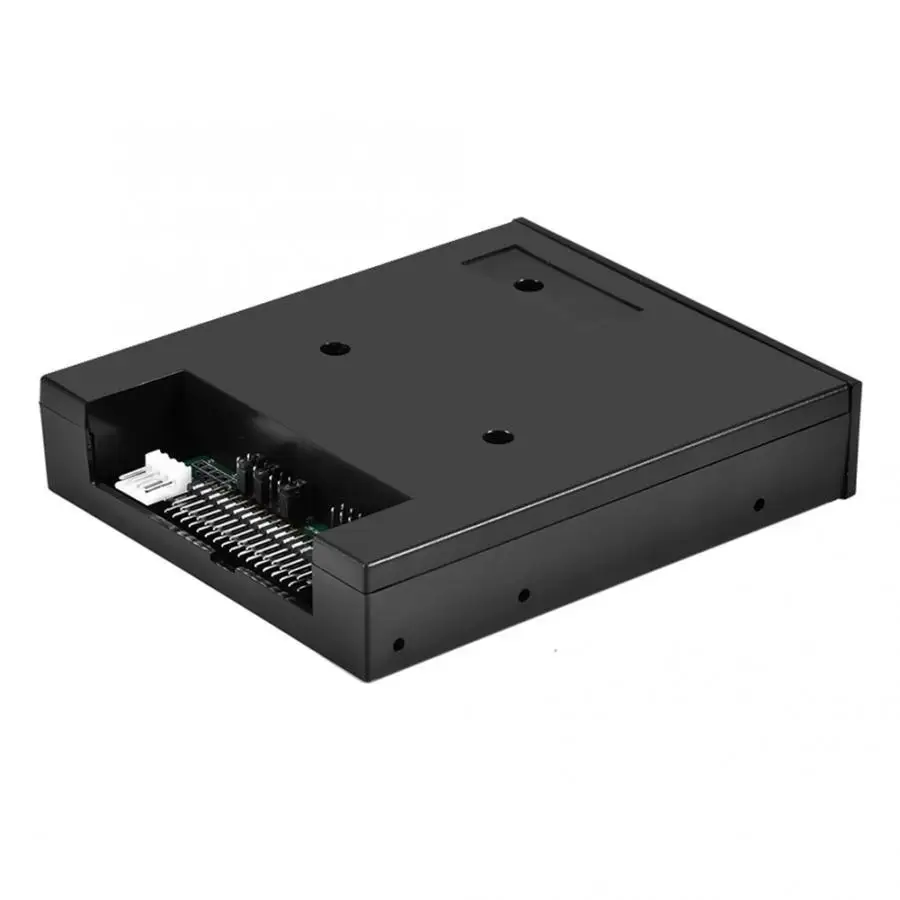

34pin floppy driver interface,5V DC power supply,easy to install.
Capacity:1.44MB 2HD Cylinders:80 Tracks:160 Sectors/Track: 18 Bytes/Sector:512 Data
Transfer rate:500 kbps
Encoding method:MFM.
1000pcs partitions in usb flash drive can be used.
Built-in self-format function.(read relevant documents to use this function)
Jumpers with function for different machines(SFR1M44-U100K not support jumpers).

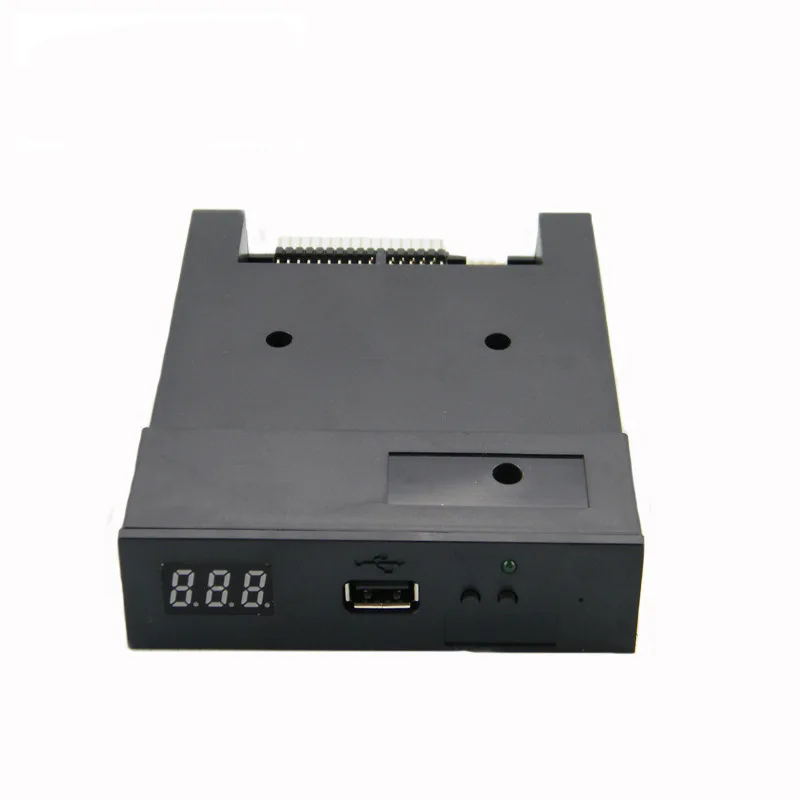

Panel:
8segment numbers:represent partitions number
Green led:status of read and write operation
USB port:connect usb flash drive

Button:
Left button used to rise ten-digit,right botton used to rise single-digit,press 2 button together to
rise hundred-digit

Operation :
Format usb flash drive.
1.use built-in self-format function to format usb flash drive into 1000pcs partitions
2.install an emulator on computer,and format every partitions by operate driver A.
3.use emulator UFA1M44-100,plug usb flash drive on it,
connect to computer,it will recognized as removabe driver A or B under WINDOWS XP/2000/7,format every partitions.
UFA1M44-100 also built in self-format function.
Read and write data.
1.install emulator on machine
2.install emulator on computer
3.connect usb flash drive on computer,read and write data directory by software, under WINDOWS XP/2000
4.use emulator UFA1M44-100,plug usb flash drive on it, connect to computer,read and write data under WINDOWS XP/2000/7.

Package Include:
1x USB Emulator

Product Overviews
