Trailer Axles and Parts Trailer Idler Hub Axle 7000 lbs

Product details
Application:Trailer;Use:Trailer Parts;
Size:12 inch;Port:Shenzhen, Qingdao, Wuzhou;
Material:Cast Iron;Color:Black;
Place of Origin:China;Capacity:7000 lbs;
Payment Terms:L/C,T/T;OE NO.:customized;
Packaging Detail:Trailer Axles and Parts Trailer Idler Hub Axle 7000 lbs Packed in wooden or steel pallets.;Supply Ability:20000 Set/Sets per Quarter;
Brand Name:No brand;Package Preview:;
Parts:Trailer Axles;Max Payload:7000 lbs;
Product Name:Trailer Axles and Parts Trailer Idler Hub Axle 7000 lbs;

 Trailer Axles and Parts Trailer Idler Hub Axle 7000 lbs

       Welcome to  Guilin Pengyuan



Product Description

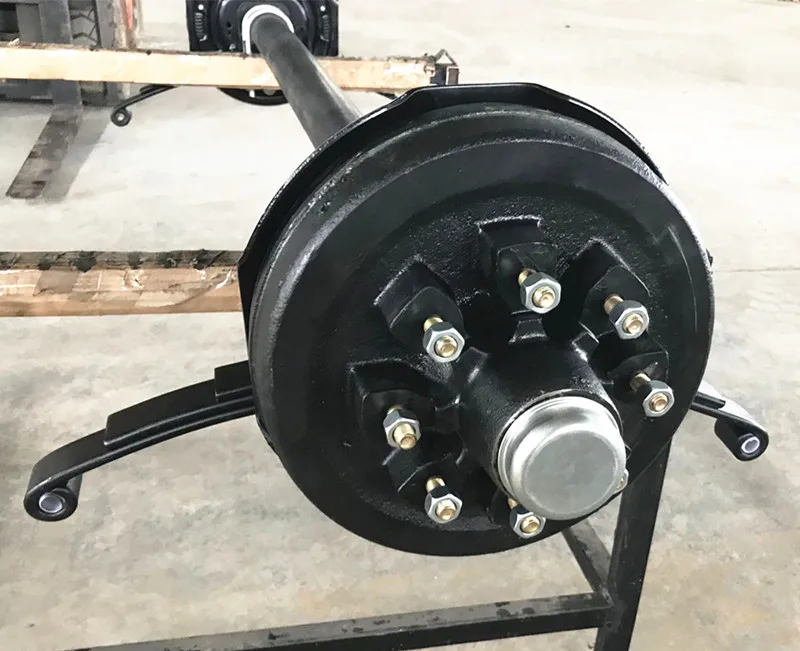

                                    Trailer Axles and Parts Trailer Idler Hub Axle 7000 lbs



Trailer Axles BDA7000

Trailer axle measures from hub face to hub face and from spring center to spring center is customized. Includes leaf spring, hubs, drums, bearings, races, seals, and mounting hardware. E-Z Lube spindles for simple lubrication.

Features:

1. Axle beam acts as part of your trailer's suspension system

1)Replace an axle on your trailer

2) Fabricate a suspension to fit your application

2. High-strength steel construction

3. Bend in axle creates zero camber angle for even road-to-tread contact across the width of your trailer's tires

1) Best for straight-line acceleration and steady, controlled towing

4. Underslung design - spring seats welded to underside of axle for mounting leaf springs

1) Low ride height makes it easier to load and unload your trailer

5. Straight, E-Z Lube spindles - no drop

1) Built-in grease zerks for simple lubrication

6. Spring seats and spindles are welded on

7. Electric brakes are easy to install - no actuator or hydraulic lines necessary

1) Adjuster plugs, mounting bolts, and hardware included

8. Cast iron hubs and drums are sturdy and durable

1) Bearings, races, seals, grease caps, wheel studs, lug nuts, and marine-grade wheel bearing grease included

Specs:

1. Weight capacity: 7,000 lbs

2. Hub-face-to-hub-face length: Customized

3. Spring-center-to-spring-center length: Customized

4. Hub dimensions: 12" diameter x 2" wide

1) Bolt pattern: 8 on 6-1/2"

5. Axle tubing outer diameter: 3"

6. Grease cap outer diameter: 2.72"

7. Wheel stud diameter: 1/2"

8. Wheel size: 16"

9. Limited 5-year warranty

Bearing, Race, and Seal Information

1. Bearings (included)

Inner bearing: 25580 (1.75" inner diameter)

Outer bearing: 14125A (1.25" inner diameter)

2. Races (included)

Inner race: 25520

Outer race: 14276

3. Grease seal (included): GS-2250DL

Inner diameter: 2.25"

Outer diameter: 3.376"

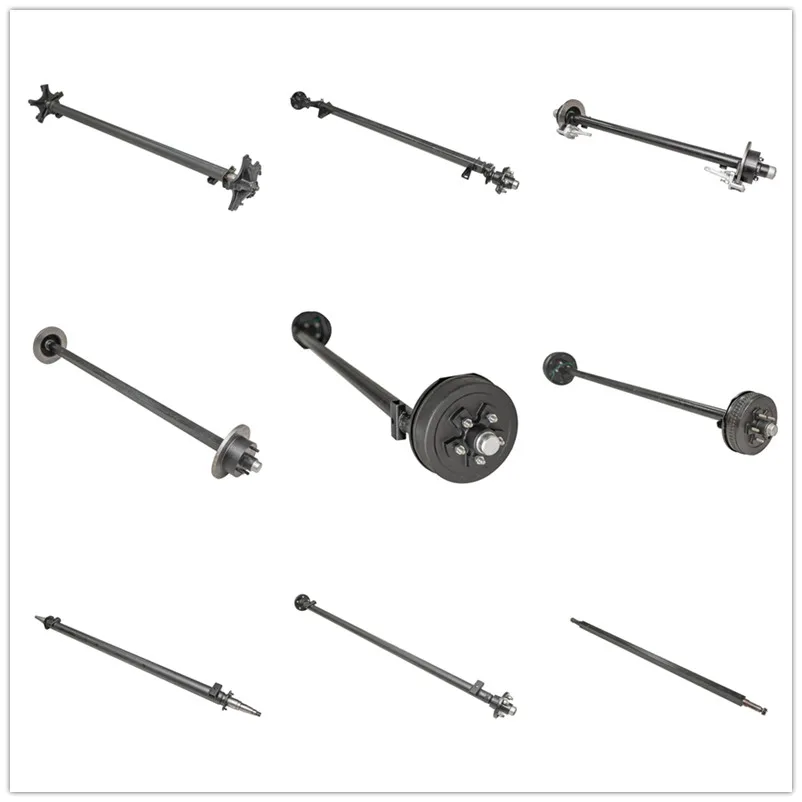

More size of Guilin Pengyuan Axle:



Item

Part NO.

(Black Painted Finished)

Part NO.

 (Hot galvanized Finished)

Specification
Straight Axle
 (39mm round)
39R65"P 39R65"G

Straight axle 39mm round

L=1651mm

  39R67"P 39R67"G

Straight axle 39mm round

L=1701mm

  39R76"P 39R76"G

Straight axle 39mm round

L=1930mm

  39R77"P 39R77"G

Straight axle 39mm round

L=1955mm

  39R78"P 39R78"G

Straight axle 39mm round

L=1981mm

Straight Axle
(40mm square)
40S65"P 40S65"G

Straight axle 40mm square

L=1651mm

  40S67"P 40S67"G

Straight axle 40mm square

L=1701mm

  40S77"P 40S77"G

Straight axle 40mm square

L=1955mm

  40S84"P 40S84"G

Straight axle 40mm square

L=2133mm

Straight Axle
 (45mm square)
45S65"P 45S65"G

Straight axle 45mm square

 L=1651mm

  45S66"P 45S66"G

Straight axle 45mm square

L=1676mm

  45S67"P 45S67"G

Straight axle 45mm square

L=1701mm

  45S77"P 45S77"G

Straight axle 45mm square

L=1955mm

  45S84"P 45S84"G

Straight axle 45mm square

 L=2133mm

Straight Axle
(50mm square)
50S76"P 50S76"G

Straight axle 50mm square

L=1930mm

  45S84"P 45S84"G

Straight axle 45mm square

L=2133mm

Overlay Axle
(40mm square)
  W-40S2180G

Overlay axle 40mm square

L =2180mm

Overlay Axle
(45mm square)
  W-45S2180G

Overlay axle 45mm square

L =2180mm

Overlay Axle
(45mm square)
  W-45S2235G

Overlay axle 45mm square

L =2235mm

Overlay Axle
(45mm square)
  W-45S2320G

Overlay axle 45mm square

L =2320mm



Related Products

Company Information

Establishing in 1995, Guilin Pengyuan Trading Co., Ltd. is a manufacturer and trader combined company. We have enough tests on the products to ensure the quality of the products and their goods will be delivered after strict quality inspection. We had associated and independent factory named "Guilin Pengda Automobile Parts Manufactory Co., Ltd." which located in Guilin, occupying an area of 23,067 square meters. We have successful foreign trading experience in Europe, North America, South America etc..,



As a member of GM Automobile Group and Association of Quality Management of Mechanics Industry of China. In March 2005, Pengyuan passed TS16949 Quality System Certification. Our products turned out by our enterprise have been selling well in markets at home and abroad, and got high appreciation from overseas buyers.

Factory:



We are capable of producing iron casting, steel casting, nonferrous metal casting, forging, punching and riveting, welding, heat treatment, mechanical processing, etc.



Production workshop and equipment:

Pengyuan is well-equipped with all kinds of trailer parts.

We has 487 sets of physical performance, chemical analysis,

metallographic inspection and other testing equipment.



Productive process:

Our products include:
1. Spindle
2. Hub and drum assembly
3. Brake assembly
4. Leaf spring
5. Square axle beam and axle
6. Other axle part
1) Couple
2) U-bolt kit

Exhibitions

Welcome to visit us in exhibition!

Packaging & Shipping

As for the transportation of products, our company supports various sea, land and air international transportation. Please confirm the specific transportation plan during the negotiation.

Choose to contact us>>

FAQ

1: Could you please make us an offer as soon as possible?

In order to get the price quickly and accurately, please provide the technical drawing or OE number, we will be very grateful.



2: Could you please provide us with the specifications of the products?

Sure, please confirm the product code you need before that.



3: How can you guarantee the quality of your products?

Our products have passed ISO9001 international quality standard certification. Our company has a very strict quality control system.



4: How to solve the problems in the later stage?

We are confident in our products. We pack them well to make sure they are well protected.
