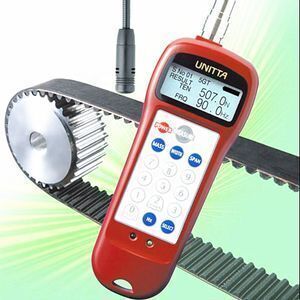

U-508 Gates Unitta , belt tension meter

Supplier: Shenzhen Pantai Precision Instruments Co., Ltd.
Region: Guangdong, China
Contact: Ms Tina Li
Price: $530.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

color:	red;	Model Number:	U-508;
Packaging Detail:	packaged by free;	Place of Origin:	Japan;
Selling Units:	Single item;	Max. load:	99900N;
Single package size:	10X10X10 cm;	Package Preview:	;
Useful:	measuring;	Brand Name:	UNITTA;
Single gross weight:	1.0 KG;

Specification:

Tension value: 0.01-99900N

Frequency range: 10-5000hz

1. The vibration waveform under different conditions can be measured by analog signal processing, and the period of the waveform can be read, and the tension value can be calculated by the processing of the frequency of the weekly wave number

2. Automatic noise removal and noise interference

3, large screen LCD display, can display tension value and frequency value at the same time, the unit tension of measured values and standard values, the display unit mass, the conveyor belt width and length of the conveyor belt, three kinds of display mode you can choose any one of them

4. With background lighting design, it can be used to determine whether the background light is used

5. The microphone is more sensitive to low frequency, which can be used for the measurement of large conveyor belts

It's small, light and human

Features:

1. The units measured output are Hertz, pound, kg and Newton

2. Frequency measurement ranges from 10 to 5 kilohertz

3. Frequency conversion filtration

4. Automatic adjustment of instrument sensitivity

5. Storage of 40 sets of belt data

6. LCD screen, with background light

7. 120 g in weight

Technical parameters:
