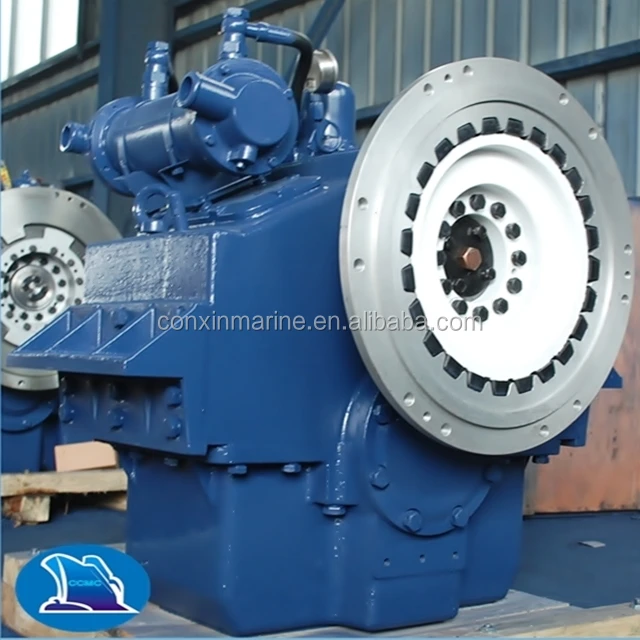

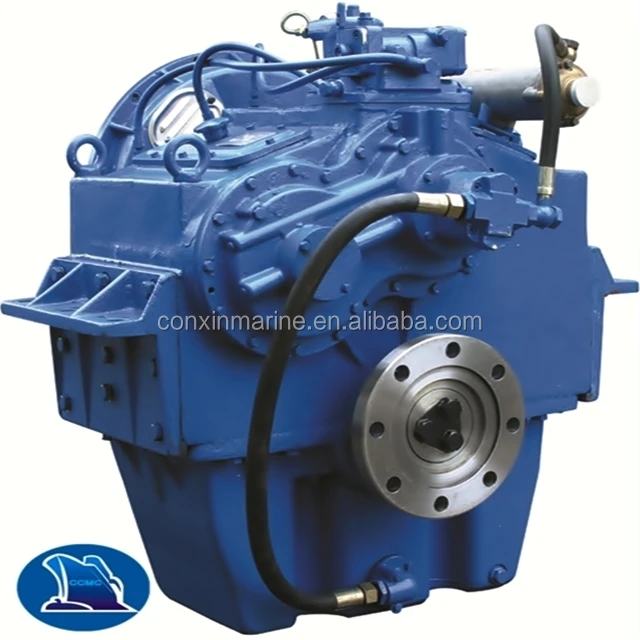

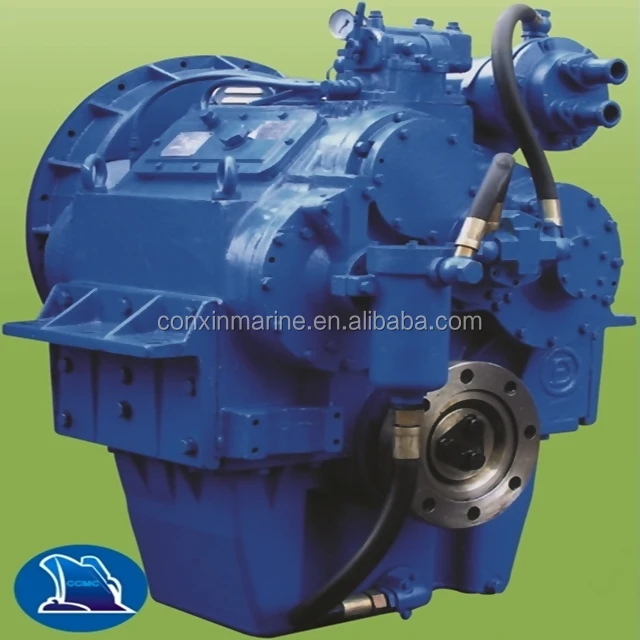

FADA /Advance 300 D300 T300 marine gearbox
-
Supplier: Changsha Conxin Machinery & Electric Imp & Exp Co.,ltd -
Region: Hunan, China -
Contact: Mr Fannie -
Price: $2100.00 /unit -
Min. Order: 1 unit
| Packaging Detail: | Package :Plywood case; | Brand Name: | FADA; |
| Gearing Arrangement: | Harmonic; | Output Speed: | 100-270rpm; |
| Supply Ability: | 30 Unit/Units per Month; | Payment Terms: | L/C,D/A,D/P,T/T; |
| Applicable Industries: | Ship; | Output Torque: | 50-70KN; |
| Place of Origin: | China; | Port: | Shanghai port of China; |
| Input Speed: | 750-2500rpm; | Thrust: | 50-70KN; |
FADA /Advance 300 D300 T300 marine gearbox
300 Model
|
Feature |
Oil pump rotating 180 degree can change the input direction |
|||
|
Housing:SAE 0.1 |
Flange::14",16",18" |
|||
|
L×W×H: |
|
|
N.W. |
|
|
|
300 |
910×800×1080mm |
700kg |
|
|
|
D300A |
910×855×1225mm |
940kg |
|
|
|
T300 |
770×980×1105mm |
1120kg |
|
|
|
Nominal coefficient |
Accurate coefficient |
Ratio (horsepower/r/m)(300) |
Ratio (horsepower/r/m)(J300) |
|
300 |
2:1 |
2.04:1 |
0.35 |
0.42 |
|
|
2.5:1 |
2.54:1 |
0.35 |
0.42 |
|
|
3:1 |
3.0:1 |
0.33 |
0.396 |
|
|
3.5:1 |
3.53:1 |
0.30 |
0.36 |
|
|
4:1 |
4.10:1 |
0.25 |
0.3 |
|
D300A |
4:1 |
4.00:1 |
0.35 |
|
|
|
4.5:1 |
4.48:1 |
0.33 |
|
|
|
5:1 |
5.05:1 |
0.30 |
|
|
|
5.5:1 |
5.52:1 |
0.25 |
|
|
|
6:1 |
5.90:1 |
0.25 |
|
|
|
6.5:1 |
6.56:1 |
0.20 |
|
|
|
7:1 |
7.06:1 |
0.20 |
|
|
|
7.5:1 |
7.63:1 |
0.17 |
|
|
T300 |
4.0:1 |
4.02:1 |
0.33 |
|
| 4.8:1 | 4.78:1 | 0.33 | ||
| 5.0:1 | 5.01:1 | 0.33 | ||
| 5.5:1 | 5.52:1 | 0.33 | ||
| 6.0:1 | 6.03:1 | 0.33 | ||
| 6.5:1 | 6.65:1 | 0.33 | ||
| 7.0:1 | 7.04:1 | 0.33 | ||
| 7.5:1 | 7.54:1 | 0.301 | ||
| 8.0:1 | 8.02:1 | 0.301 | ||
| 8.5:1 | 8.47:1 | 0.269 | ||
1. Ensure good quality, good package for transporation and deliver on time during the production phase;
2. Manging sea freight to customer's port of destination;
3. Be responsible for the after-sales service.
Quality assurance:
1, Engine assembly assure 3 years.
2, Marine class certificate and VCA iternational approve is available.
3, Three party inspection can be arranged.
Q When can I get the price?
A:We will reply you within 24 hours after we get your inguiry. Or you can directly call us if you are very urgent.
Q. How to do the problems of product in the printing process?
A: We have a professional technical team, will be online to solve the use of the process encountered various problems. If can not be resolved online, technical staff will arrange timely home visits
-
