Free API enabled Highlight HPC005 wireless People counting system for retail

Supplier: Highlight Manufacturing Corp., Ltd.
Region: Shanghai, China
Contact: Mr Hongzhi Zhang
Price: $188.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certificate:	CE/ISO approved people counting system;	Model Number:	HPC005;
Standalone software:	Free, for single store;	Packaging Detail:	People counting system: 1 set/carton;
Port:	Shanghai China;	Supply Ability:	100 Piece/Pieces per Day People counting system;
Place of Origin:	Shanghai China;	Experience:	Alibaba 16-year golden supplier, EAS/ ESL/ People Counter Manufacturer;
LCD display:	In-out data on RX, available;	System support:	WinXP/ 2000/ 7/ 8 system;
Dimension:	656025mm;	Function:	Very detailed & summarized analysis chart;
Network software:	Not free, for chain stores;	Battery:	1.5 years, General 3.6V AA (replaceable battery);
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;	Range:	1-20 meter's distance;
Brand Name:	HIGHLIGHT;

Chain store electronic people counter/ electronic people counting system/ Person counter machine

Product Description

HPC005 infrared people counter is accurate, reliable, easy to install, low maintenance, and very affordable. Many retailers, libraries, museums, and other businesses are taking advantage of the many benefits these systems provide. Virtually any type of business can benefit from the data HPC005 provides.

HPC005 Infrared People Counter is a powerful tool for keeping costs down and clients coming back while

reducing losses at the same time. With HPC005 people counter, you will get:

• Identify Your Store's Peak Hours

• Manage Your Staff Efficiently

• Increase the Dwell Time in Your Store

• Measure the Effectiveness of Your Marketing Campaigns

Specification

Features

1. Battery operated for truly wireless installation

2. Side and Dual IR Beam (user selectable)

3. Integrated 6-digit LCD display

4. Directional data

5. 92-96% accuracy rate

6. Up to 20 meters entrance

7. Peel-stick-count, easy installation

8. 2.5 x 2.3 x 0.98" ABS enclosures

9. Customized hardware and software

10. Data centralized for chain stores.

11. Working in dark environment

12. API available. It can be integrated into POS/ERP system to meet different requirement.

13. Battery capacity. The batteries which we provide can work up to 1-1.5 year. Customers can buy the batteries locally, or buy from us. General 1.5V-3.6V AA batteries are workable.

14. Strong anti-light ability. Greatly decrease the counting error affected by light, so higher accuracy rate.

15. Strong glass (door) penetrating ability. It can work well behind an open glass door.

16. More confidential data transfer. TX-RX transfer data to Data Receiver is strongly encrypted, so more safer.

17. Obstacle indication. If the infrared ray is blocked, there will be a indication on the LED screen and the red light on the RX will keep flashing.

18. LED Display is possible. You could show the data on a outside LED display. A protocol will be sent for this.

19. OEM/ ODM is available. Your logo can be sticked on the devices.

20. Suitable for chain stores (unlimited number).

Product Show

Data Receiver (DC)	1 pc
Transmitter (TX)	1 pc
Receiver (RX)	1 pc
Disc (Stand alone software)	1 pc
Antenna	1 pc
Adaptor	1 pc
USB cable	1 pc
Battery	2 pcs
Screw	4 pcs
Sticker	2 pcs

Softwares

There are two softwares for HPC005.

1. Stand alone software

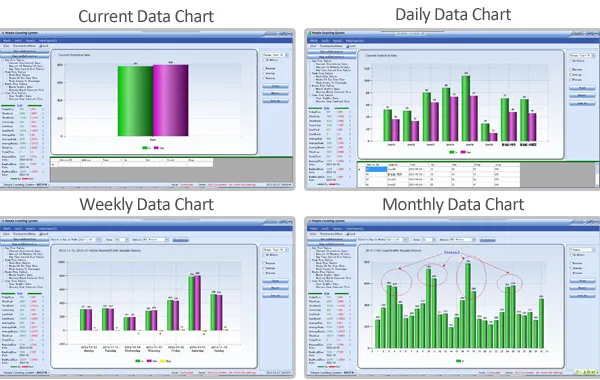

This is free and used in single store. The report chart as below:

2. Network software

To centralize the data to head office.

Not free, cost $1100. One-time purchase, free use for life and for hundreds of stores. More than 100 sets, this charge will be refunded.

With a network software, you can check all the data collected from different chain stores and compare them.

Below is the analysis chart from one of our customer’s Chain stores, the customer can visit all store’s data at anywhere. (the English version software will be all in English)

With a network software, you can also check the data by your phone. Kindly remind that it is not a APP, you need to input the website and login with account and password.

Installation

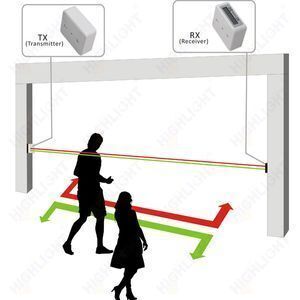

The infrared counter works by IR (infrared rays) beam, it will count if any opaque or non-transparent objects cut the beam. The installation is "Plug and Play".

In order to improve the counting accuracy, the installation height of the counter is important. The below two positions height recomended:

Position 1: 120cm-140cm (Recommended Position)

This position height means from shoulder to head to a person, the counter will not be affected by arms swing. But Children will not be counted.

Position 2: 60cm

This position hegiht means the pocket of trousers or thighs. The counter will not be affected by both legs and arms. And Children will also be counted.

Peel-stick-count, easy installation.

1. For a single store with one entrance

2. For a single store with several entrances

8 sensors at most can be connected into one DC, just make sure the distance between each entrance and DC is less than 40 meters. The software can distinguish every entrances. Details as below:
