27T small Hydraulic swing arm leather die cutting press machine

Supplier: Jiangsu Atong Machinery Manufacturing Co., Ltd.
Region: Jiangsu, China
Contact: Ms Demi Chen
Price: $2200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Key word:	swing arm cutting machine;	Supply Ability:	300 Set/Sets per Month;
Warranty:	1 year;	Model Number:	JSAT-S;
Payment Terms:	L/C,T/T,Western Union;	Port:	shanghai port;
weight:	1200kg;	Delivery Detail:	5-10 working days after receive payment;
Package:	wooden case;	color:	red;
power:	1.5kw;	Brand Name:	JSATON;
Useful:	leather,faric,colth,foam all nonmetal;	Automatic Grade:	Manual;
Packaging Detail:	Die cutting press export standard wooden cases, which is suitable for long-distance sea transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.;	model number:	JSAT-S;
condition:	new;	Place of Origin:	Jiangsu China (Mainland);

Product Description

USE AND CHARACTER

1.It is used for forming cutter dies to do punching and cutting work on non-metal materials.

2.Automatic cutting travel adjustment :just change the height of cutting die without other adjustments needed.

3.High speed and low energy cost.

4.Casted machine body leading to longer service life and low nosie.

TECHNICAL SPECIFICATION
model number	JSAT-22	JSAT-27	JSAT-27K	JSAT-27L
Maximum cutting force	22T	27T	27T	27T
Table area	900*430mm	1000*500mm	1000*500mm	1000*500mm
Swing arm width	370mm	400mm	500mm	610mm
Cutting stroke	5-75mm	90mm	90mm	90mm
Motor power	1.1kw	1.5kw	1.5kw	1.5kw
Electric supply voltage	Single phase 240V/220V,50/60HZ 3*440/415/400/380/220/200V,50/60HZ
Packing size(mm)	105010001500	115012001500	115012001500	115012001500
N.W(oil) kg	650	960	1050	1200
G.W ( kg)	900	1120	1210	1360

Detailed Images

Product Application

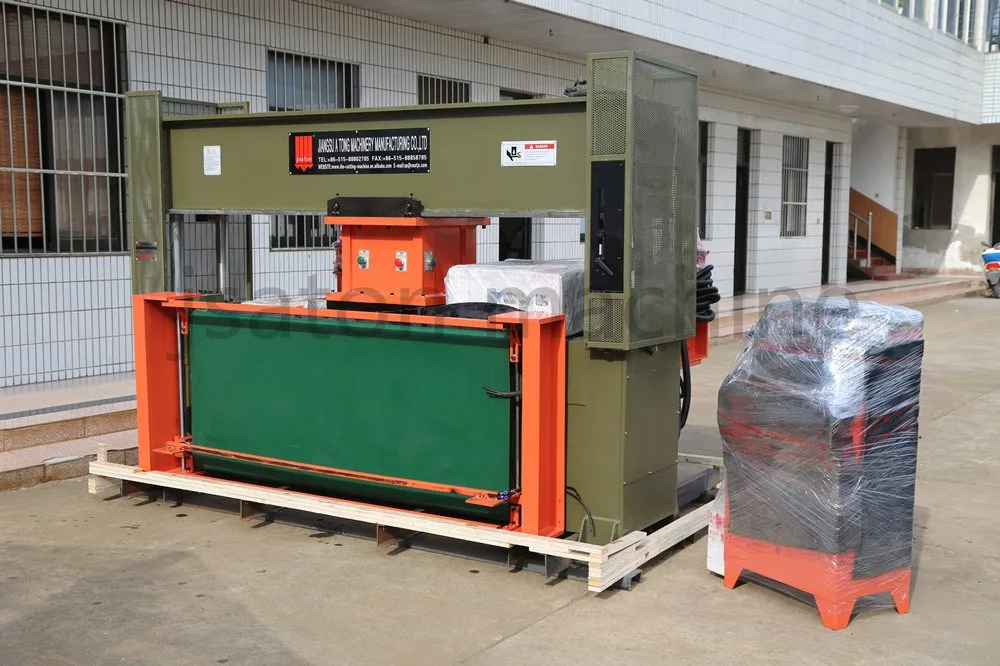

Packing & Delivery

ackage Detail: Wooden case

hipping Details:Usually by sea

Delivery Time:5-10working days after order confirmed

FAQ

1.Q:Are you a factory or trading company?
A: we are a factory. welcomed to visit us .
2.Q:Where is your company?How I can visit it?
A:Our company is located in dagang Town,Yandu District,Yancheng city,Jiangsu Province.
It just needs 4 hours from Shanghai.
3.Q: Where is your Loading Port ?
A: Shanghai. port,China.
4.Q:What is your delivery time?
A:It depends on your order quantity,if just few sets,it needs 5-20 days.
5.Q:Could we use our own brand name?
A:Yes.
6.Q:What is the material of your products?
A:Steel,cast iron and so on.
We can also choose the materials as customers’needs.
7.Q:What are your payment terms?
A:T/T 30% deposit to start the production and the balance paid before shipment

Our Company

Jiangsu A Tong Machinery Manufacturing Co.,Ltd.is our country engaged in shoe-making machinery, leather machinery, bags and other precision machinery and general machinery series product research and development production scale of the enterprise. The company is located in the famous "China shoes city" state-level spark technology concentration areas, Yan cheng city ,Jiangsu province, industrial park. Company technical force is abundant, the production testing facilities, beautiful environment, convenient traffic. The company has been rated as "private technology enterprises in Jiangsu province", "shoes machine chamber of commerce member enterprise in Jiangsu province", "heavy contract, keep promise" enterprise.
