Applicable Industries: | Hotels,Building Material Shops,Manufacturing Plant,Farms,Food Shop,Construction works ,Advertising Company; | Machinery Test Report: | Provided; |
Production Capacity: | 100; | Model: | stone cnc router; |
Key Selling Points: | High-accuracy; | Working area: | 2500*1300mm; |
Marketing Type: | New Product 2020; | Power: | 7.5 KW; |
Type: | Stone Engraving Machine; | Warranty: | 2 years; |
Core Components: | Pressure vessel,Motor,Bearing,Gear,Pump,Gearbox,Engine,PLC; | Power(W): | 11kw; |
Guide rail: | Taiwan; | After-sales Service Provided: | Online support,Field maintenance and repair service; |
Video outgoing-inspection: | Provided; | Spindle power: | 4.5/5.5/7.5kw; |
Warranty of core components: | 2 years; | Showroom Location: | Egypt,Canada,Turkey,United Kingdom; |
Control system: | Nc studio; | Port: | Qingdao or others; |
Place of Origin: | Shandong China; | Packaging Detail: | Wooden box for stone cnc machine; |
Dimension(L*W*H): | 1325 cnc router stone; | Inverter: | Detla; |
Payment Terms: | L/C,T/T,Western Union; | Driving Motor: | Servor motor; |
After Warranty Service: | Video technical support,Spare parts,Field maintenance and repair service; | Local Service Location: | Egypt,Canada,Turkey,United Kingdom; |
Use: | Marble; | Supply Ability: | 100 Set/Sets per Month; |
Software: | Artcam; | Brand Name: | igoldencnc; |
Condition: | New; | Cutting thickness (max): | 100mm; |
XY Transmission: | Gear Rack; |

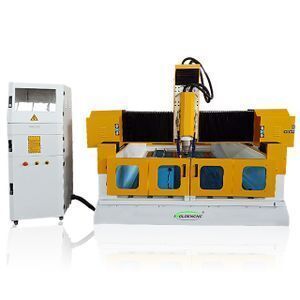

heavy type 1325 marble carving cnc router stone granite engraving for stone
1. Steel tube lathe bed,low center of gravity,strong bearing capacity,not easy to deformation,stable and reliable operation.
2. Adopt Ncstudio control system ,through computer operation,easy and simple to operate.DSP handle offline control is optional.
3. Adopt Taiwan linear guide rail. the bearing of the lead guide rail is face to face, the long time use precision is high.
4.German double nut automatically disappear gap ball screw.
5.Break point and break knife continue engraving function, can engrave at any place as you like.
6.Strong compatibility: compatible various CAD/CAM software like Type3/artcam/castmate/proe/Corelerow/Wentai.
7.Adopt High power frequency changing water cooled spindle,providing excellent cooling effect when carving flinty materials,effectively protect spindle when continuous working for a long time.
8.Axis Y with two spindles,guarantee the cutting strength and engraving precision.
Parameter
NO. |
Model |
IGS-1325 |
1 |
Working area |
1300x2500x500mm |
2 |
Working table |
Aluminum T-slot table with PVC plate |
3 |
spindle |
customized |
4 |
Cooling system |
Water-cooling |
5 |
Control system |
Nc-studio control system |
6 |
inverter |
Fuling inverter |
7 |
transmission |
X,Y-rack pinion,Z-ball screw |
8 |
Guide rail |
Hiwin guide rail from Taiwan |
9 |
Ball screw |
TBI ball screw from Taiwan |
10 |
Drive system |
Stepper motors and drivers |
11 |
Rotary axis |
Optional |
12 |
Lubrication |
Automatic lubrication |
13 |
X,Y,Z repositioning Positioning |
±0.02mm |
14 |
Spindle speed |
0-24000rpm/min |
15 |
Traveling speed |
0-40000mm/min |
16 |
Working speed |
0-30000mm/min |
17 |
Command code |
G Code, *uoo, *mmg, *plt |
18 |
software |
Artcam/Type3,other CAD/CAM |
19 |
Diameter of toolholder |
3.175-12.7mm |
These machines are all popular among different customers. Why not to take one minutes for clicking to get more details. All the specification of machine can be customized according to your own requirements, and there will be one machine suit for you.
ATC CNC Wood Machine |
Pneumatic Multi Spindles |
CNC Plasma Cutting |
Jinan iGolden CNC Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc.
And welcome to visit https://igoldencncrouter.en.alibaba.com/ for more choices and info.
