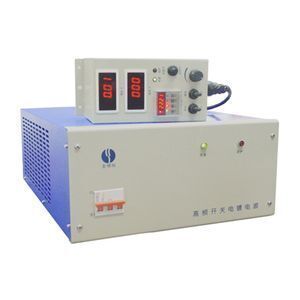

IGBT plating rectifier for chrome,copper,zinc,nickel,gold,silver anti-corrosion
-
Supplier: Guangdong Shunde Samyang Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Qina yuan -
Price: $200.00 /set -
Min. Order: 1 set
| Dimensions: | 560*460*225mm; | Brand Name: | Samyang; |
| Packaging Detail: | Standard export package. If you have any special demand, please contact with us, we could make according to your demand for bulk order.; | Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal; |
| plating process: | chrome,copper,zinc,nickel,gold,silver; | Type: | IGBT; |
| Peak Repetitive Reverse Voltage: | 12V; | Model Number: | STP1000A/12V.S; |
| Place of Origin: | Guangdong China; | item: | STP1000A/12V.S; |
| Mean On-State Current: | 1000amp; | Cooling Mode: | air cooling; |
| type: | plating rectifier 1000A; | control type: | panel control; |
| Supply Ability: | 1000 Set/Sets per Month; | Package Type: | wooden case; |
| Feature: | anti-corrosion; | Peak Non-Repetitive Reverse Voltage: | 12V; |
| mode: | switching mode; | Port: | Guangzhou ,Shenzhen, Foshan, Shunde; |
| Color: | Gray; | Application: | plating rectifier; |
Why choose us?
High frequency IGBT plating rectifier 1000A for chrome,copper,zinc,nickel,gold,silver anti-corrosion
Product Description:
Index parameters:
|
Input voltage |
|
|
380VAC 350VAC-450VAC (three phase) 50Hz |
|
|
Output Voltage |
0-12V adjustable |
|
Output Current |
0-1000A adjustable |
|
Output current stability |
≤2% |
|
Output voltage stability |
≤1% |
|
Efficiency |
≥85% |
|
Power factor |
≥0.9 |
|
Start-up postponing time |
≤10s |
|
Inverting frequency |
18kHz ± 2kHz |
|
8kHz ± 2kHz |
|
|

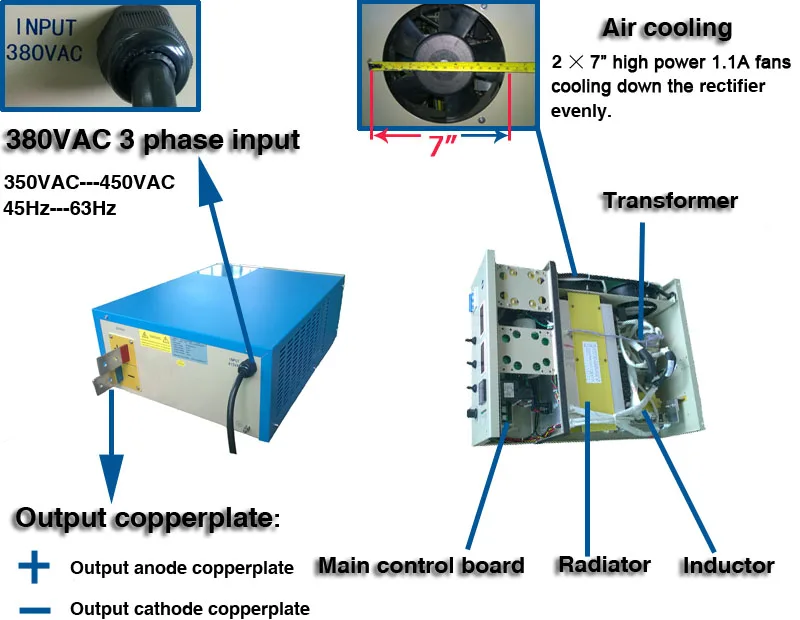

Cooling mode |
air cooling |
|

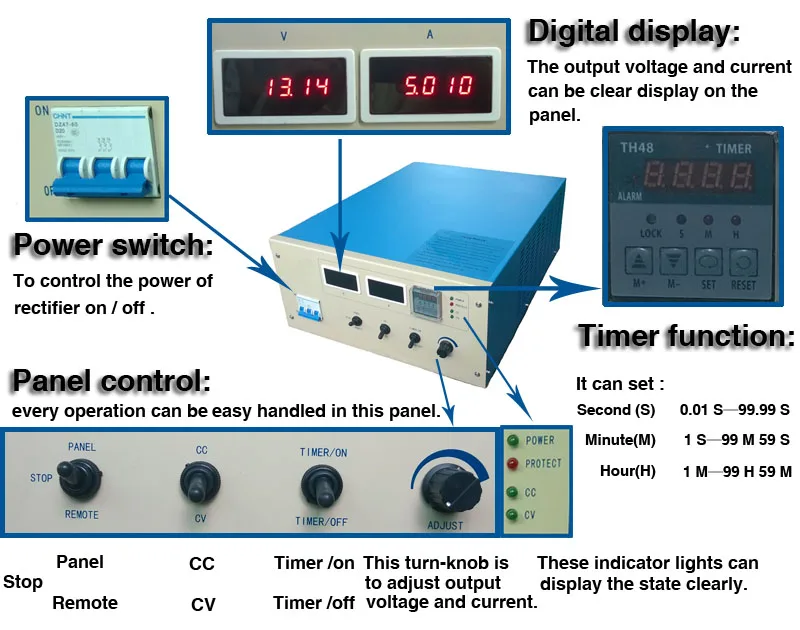

Panel control |
Voltage and current display, start/stop,indicator light of protect and power , adjustment of output value, CC/CV,timer. |
|
|
|
|
Display |
Digital meters or touch screen , Ampere hour meter ,timer alarm ,etc
|
|
Signal interface |
PLC 0~10V , RS485 |
|
Modulation mode |
PWM control |
|
Complete protection functions |
over current,over voltage,over heat , short circuit,phase lack ,input undercurrent protection,over temperature,diode defect.
|
|
Product features: |
1. Small size, light weight, high efficiency, high control precision.
|
|
2. High –frequency pulse current output, Suitable for plating small sized no-ferrous metal and alloy work pieces, it has high enetration ability, strong adhesive force, and can effectively enhance the brightness of the plated surface.
|
|
|
3. Output voltage and current can be adjusted, limiting voltage and current can be adjusted, greatly enhance application flexibility of the product for users.
|
|
|
4. With complete protection functions, over current, over heat rotection functions. High power factor, less pollution to the electric network, no interference |
|
|
Scope of application |
It is suitable for acidic copper, alkaline copper, multi-layer nickel, Chrome ,zinc , gold ,silver , indium,rhodium, electrolysis degreasing ,and single or double-clad plated printing process. |
Product details:
Six Advantages :
1.5 sole agents good reputation.
2. The appearance design of Our plating rectifier 1000A is attactive and graceful.
3. Air cooling professional design.
4.IGBT is inport from Japan Fuji.
5. The transformer,main transformer,circuit board,and radiator are made by ourself.
6.Our plating rectifier 1000A is anticorrosive and waterproof .
Additional function :
Every plating rectifier can add the functions as below: (timer is our general function so that is for free)
Product making process:
Packaging and Shipping:
After sell service:
1.1 years warranty,by replace/repair/free spare parts for bulk order.
Within the first year, if you need any spare parts for replacement, we can provide to you without paid. And we will offer lifelong technical support and service.
2. Considering the expensive shipping cost for you,broken rectifier is no need to send back to China,
just let us know the problem through a video or a picture, then,we will send the replacement to you immediately.
Company information:
FAQ:
1.Q:Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Foshan Shunde City, Guangdong Province, China, about half an hour
bus ride from Guangzhou Baiyun Airport. All our clients, from home or abroad, are warmly welcome
to visit us.
3. Q:When can I get the price?
A:Usually we quote within 24 hours after we get your inquiry.
4. Q:How can I get a sample to check your quality?
A:After price confirmation, you can require for samples to check our quality. Maybe the price of
sample is higher than the mass production.
-
