Max capacity: | 0.132L; | Place of Origin: | Hunan China; |
Machinery Test Report: | Provided; | Certification: | ISO CE; |
Weight (KG): | 32 KG; | Video outgoing-inspection: | Provided; |
Power: | 0.25KW; | Product Type: | planetary ball mill; |
Port: | China; | Warranty of core components: | 6 months; |
Function: | Liquid-Powder Wet Grinding; | Voltage: | 220V/110V,220V; |
Output (kg/h): | 0.1 - 0.13 kg/h; | Condition: | New; |
Type: | Ball Mill; | Range of Spindle Speed(r.p.m): | 90 - 870 r.p.m; |
Payment Terms: | L/C,T/T,Western Union; | Dimension(L*W*H): | 500*300*340mm; |
Power (kW): | 0.25; | Feeding size: | less than 10mm; |
Feature: | High Efficency Powder Grinding Machine; | After Warranty Service: | Online support,Spare parts; |
Supply Ability: | 500 Set/Sets per Month planetary ball mill; | Discharge Fineness: | 0.1 micron; |
Applicable Industries: | Energy & Mining; | Model: | XQM-0.4A; |
Packaging Detail: | Carton with foam for planetary ball mill; | Output Size (mesh): | 400 - 12500 mesh; |
Local Service Location: | None; | Brand Name: | TENCAN; |
Product name: | 0.4L planetary ball mill; | Marketing Type: | Hot Product 2020; |
Showroom Location: | None; | Warranty: | Ome year,One Year; |
Application: | Medicine Processing,Chemicals Processing,Food Processing; | Key Selling Points: | Competitive price; |
Feeding Size (mm): | 3 - 7 mm; | Core Components: | Gear,Motor,PLC; |
1. Fast grinding with variable speeds up to 900 rpm
2. Minimum granularity can be reached to 0.1 micron meter
3. Convenient to operate,safe and reliable
4. Grinding jars and balls in different materials to suit the property of your material
5. Ultrafine grinding
6. Mixing
7. Small sample preparing
8. New product development
9. Small volume high-tech material production
Drive Mode |
Gear drive and belt drive |
Operation Mode |
Two or four grinding tanks working together |
Maximum Loading Capacity |
2/3 of the capacity of milling tank |
Feeding Size |
Soil material≤10mm, other materials≤3mm |
Output Granularity |
Minimum 0.1 μm |
Rotational Speed Ratio |
1/2 |
Max. Continuous Operating Time |
72hours |
Materials of Jar |
Stainless steel, agate, nylon, corundum, zirconia, etc. |
Application of Planetary Ball Mill
1.Geology and Mineralogy: rock, gravel, sand, minerals
2.Ceramics: porcelain, sintered ceramics, clay, fireclay
3.Chemistry: pesticides, fertilisers, salts, inorganic and organic materials
4.Biology: plants, leaves, freeze-dried samples
5.Pharmaceuticals: ophthalmological agents, gels, creams, extracts, drugs, pastes, dragees, tablets
6.Metallurgy: ores, sinters
7.Material technology: pigments, precious materials, new materials, alloys, mechanical alloying and activating
8.Analysis preparation: spectroscopy, X-ray fluorescence, X-ray structure analysis, chromatography
Product working principle
Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually grinding into powder. Various kinds of different materials can be grinding by the mill with dry or wet method. Minimum granularity of grinder powder can be as small as 0.1 micron meter.

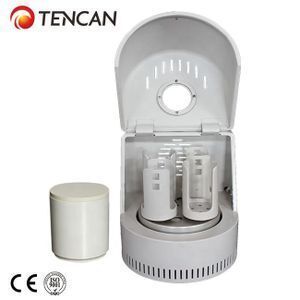

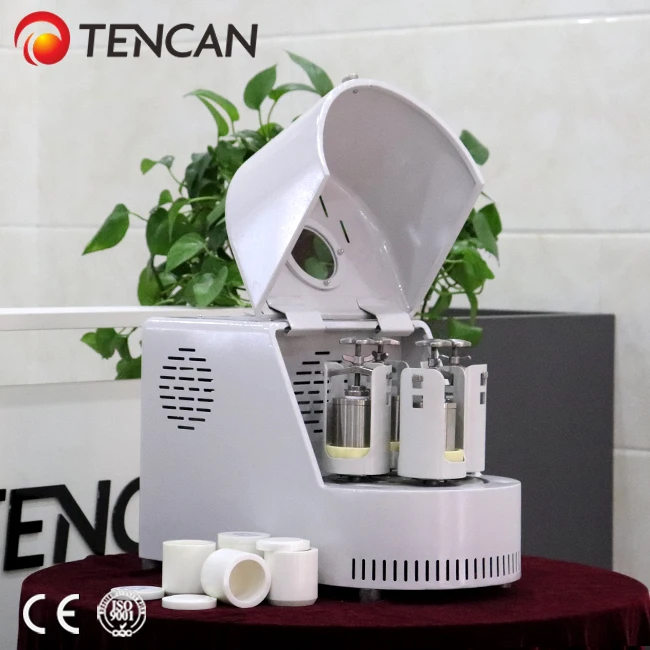

Product photo
Product features
· Elegant design, easy to operate
· Ideal for wet or dry grinding application
· Multiple grinding modes to choose
· High Uniformity and excellent repeatability
· Fast rotational speed, high efficiency and fine granularity
· Digital display of the actual rotational speed of the grinding jar
· Four samples with different sizes and materials in one experiment
· Programmable interval and pause times
· Stepless speed regulation, reversing function
· Large range of materials available for grinding tools
· Smaller grinding jars also possible with an adapter
· Gear-drive offers an effective solution to problems caused by belt driving
· Grinding chamber with forced air ventilation

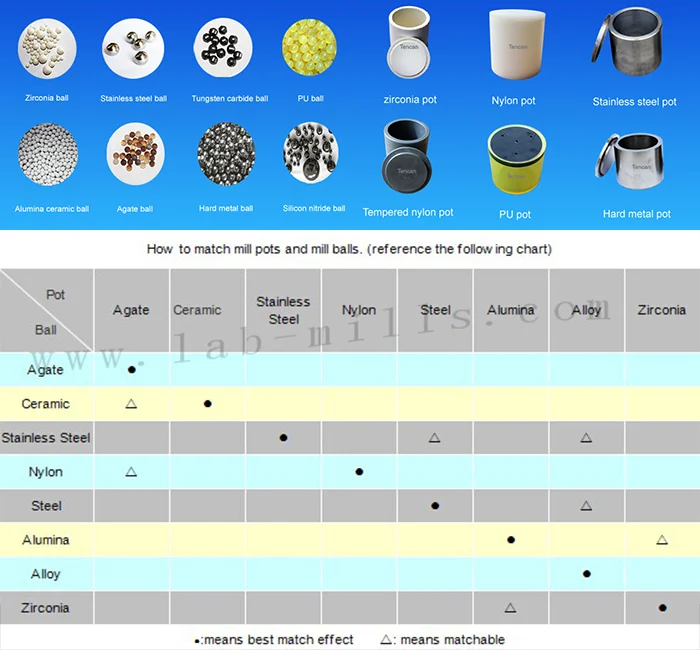

Mill Jars and Mill Balls
We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.
Shippment & Payment
Typical Clients
As one of the most professional powder equipment manufacturers in China, TENCAN have won a
high reputation and good recognition both in domestic and abroad. The following are our cooperate
clients.
After Sales Service for planetary ball mill/ ball milling machine
1)One year guarantee for whole machine except of ball mill jars and
balls.Some accessories we have 18-36 months warranty.
2) We shall make prompt response to any problem about the machine within 24 hours if you have.
3) We shall provide 6-day 8-hour services for all our clients and subscribers, and shall provide
trouble-shooting solutions until the fault is completely eliminated.
4) If the machine is found any fault or problem, please do not hesitate to notify us the details about
faults, caused reasons and status. We shall do our great efforts to solve according to following
terms:
a. Common faults:
Common faults refer to failure of non critical parts or improper configuration that effects partial
operation or leads to Inconvenience of machine operation. We shall solve such problems by email
or posting parts by courier.
b. Serious faults:
Serious faults refer to failure of key parts or improper configuration that influence running or
operating of machine widely. We shall firstly diagnose reasons of faults by email or phone, then,
shall send replacement of parts by courier, until solve the problems. Courier freight shall be for
our account within quality warranty period.
FAQ
Before ordering,could you kindly share with us:
1.What material do you want to grind?
2.What’s the purpose of your grinding?For laboratory research or industry?
3.How about the input size(mm or mesh) of your grinding materials?
4.How about the output granularity(um or mesh) you expect?
5.How about the capacity(litres) for each time?
After your confirmation,we shall send you suggestions "e for you immediately.If any other doubts,please contact us directly,we’ll be gladly to answer your questions as soon as possible.
