Automatic Wall Cement Plastering Machine Render

Supplier: Guangdong Tupo Robot Engineering Co., Ltd.
Region: Guangdong, China
Contact: Ms Alice Deng
Price: $9500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Automatic Grade:	Automatic;	Power(W):	0.75kw 380v/220v;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;	Weight:	140kg;
After-sales Service Provided:	Engineers available to service machinery overseas;	Warranty:	2 Years;
Dimension(LWH):	1000650550mm;	Electricity Phase:	Single/Three;
Brand Name:	TUPO;	Packaging Detail:	wooden case suitable for long way transporation;
Rendering Speed:	200m^2/hour;	Port:	Guangzhou, China;
Rendering Thickness:	30 mm;	Rendering Height:	3.5 m;
Payment Terms:	L/C,D/A,D/P,T/T;	Supply Ability:	600 Piece/Pieces per Month;
Place of Origin:	Guangdong China (Mainland);	Certification:	CE;
Production Capacity:	96%;	Length of Plastering Trowel:	1000mm;
Condition:	New;

Product Description

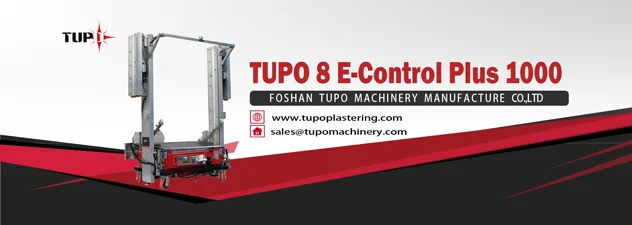

Details of TUPO 8 e-Control PLUS 1000
Power	Gear Motor :380V 0.75KW Stepping motor : 220V 50N.M
Weight	Approx. 140KG
Voltage	380V/220V (optional)
Productivity	Approx. 500m2 / day
Coating Thickness	5mm-30mm
Coating Height	Standard 3.5m, Special up to 5m.

Product Description

Automatic Wall Cement Plastering Machine Render

Auto-Positioning System: The all new TUPO 8 E-CONTROL PLUS series is equipped with a state of art, computerized device that can automatically detect the wall plumb, and immediately define the exact adjustments, in order to correct any unevenness. Other advantages include:

In certain circumstances a day can reach 800 square meters, 1000 square meters, 500 square meters for the actual site measurement results / day (10 hours), the one-time plastering width 1000mm, high speed and high precision, more time-saving and convenient.

Advantage

1. New Aluminum Magnesium Alloy main unit and directional pipes, supplied by China famous aluminum supplier Feng LV, lighter weight and higher strength.
2. Original gear rack driving system enable output of main power more peaceful and stable, 25% faster lifting speed than old generation, improve the plastering efficiency.
3. Plaster as much as 2.5m2 in about 45 seconds. More efficiently.
4. Auto Positioning System device (APS) which guarantees a perfect and fully automatic alignment, even coating thickness, and wall flatness, more precisely.
5. Remote Control available, easily and safely operate the machine from distance if desired.
6. The directional poles are foldable so you can move the machine easily through any door passage and around the construction site.
7. Feed cement mortar by dumper directly, which can save 2/3 of the time, improve the work efficiency.
8. Enlarged mortar tank capacity to 100 liters, and enable to plaster wall surface of 4M without adding mortar anymore.
9. Bigger accessible plastering wall surface, decrease the plastering surface to be with rectification by manual labor.
10. Specially designed Plastering Height Control mechanism enables to plaster wall surface under beam, below and above window, corner.

Company Information

Why Choose TUPO ?

1.Professional

Automatic plastering machine is the chairman of the company Mr. Wang Jianhu led the researchers after 11 years, million, after repeated tests, developed a new construction machinery products; use automatic plastering machine is widely applicable to commercial housing, office buildings, factories, schools, rural self built houses such as wall plastering work; breakthrough brand positioning with plastering machine, fast plastering speed, high quality, smooth plastering and other characteristics; breakthrough brand plastering machine available, greatly reduce the labor intensity of plastering workers, greatly improves the rendering efficiency, shorten the construction period, the development of the construction industry to compose a beautiful chapter.

2.Influence

The company has a professional R & D team, CNC processing equipment, testing process of a complete, high-quality customer service service to ensure the quality of products, improve market share and consolidate our leading position in the industry, to enhance the visibility of the brand breakthrough, since the advent of plastering machine, although we have been imitated, but never beyond. The spirit of "breakthrough, innovation, responsibility, win-win" spirit of enterprise, warmly welcome domestic and foreign partners, to create a better tomorrow.

3.Quality

More than13 national patents for invention and design, and CE certification. Master the core technology of the machine.

4.Service:

After sales engineers have about 10 years experience, to provide you with the perfect after-sales service, providing 24 hours engineering online services.

Packaging & Shipping

Package detail: Wooden case suitable to long way transporation
Delivery detail: in 3 days after get your payment
