TPMS Tiremagic Automatic positioning car tpms internal wireless tire pressure monitoring system

Supplier: Dongguan Tiremagic Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Jot Qiao
Price: $26.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package Type:	box;	OE NO.:	t61;
Selling Units:	Single item;	Usage:	car;
Single gross weight:	0.35 KG;	Certification-1:	CE;
Car Make:	all car;	Certification-3:	RoHS;
Single package size:	21.5X18.5X5.5 cm;	Warranty:	24 Months;
Brand Name:	tiremagic;	Certification-2:	FCC;
Function:	solar power tire pressure monitoring system;	Model Number:	T614;
Size:	SMALL;	Place of Origin:	Guangdong China (Mainland);
Delivery Detail:	0 days after payment;

Product Description

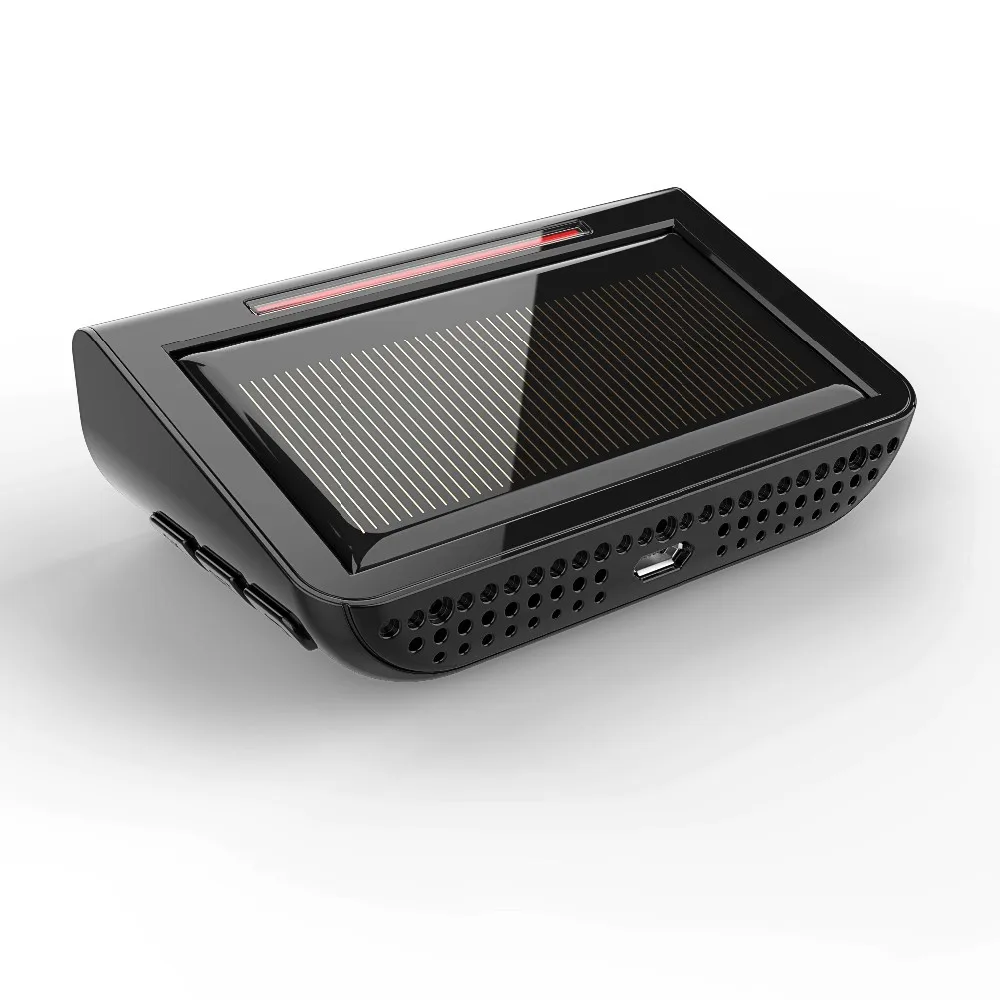

solar TPMS Display

TPMS Tiremagic Automatic positioning car tpms internal wireless tire pressure monitoring system

• Maximum display pressure:99psi

• High-definition colorful LCD display, simultaneously show 4 tires pressure and temperature
• Display can be charged by solar energy or mini USB charging slot
• Intelligent design for power saving of display
• Self-testing for each power on
• High-capacity battery, can be used normally two months
• End users can set the threshold of tire pressure
• Convertible pressure unit (PSI / Bar)
• Sleeping mode available, Built-in G-sensor, can be wake up immediately when the car is moving
• Display with visual and audible warning for tire pressure and temperature
• Low display battery warning
•From the car stop to start, Sensor can be wake up in 5s , Automatic positioning in 2mins

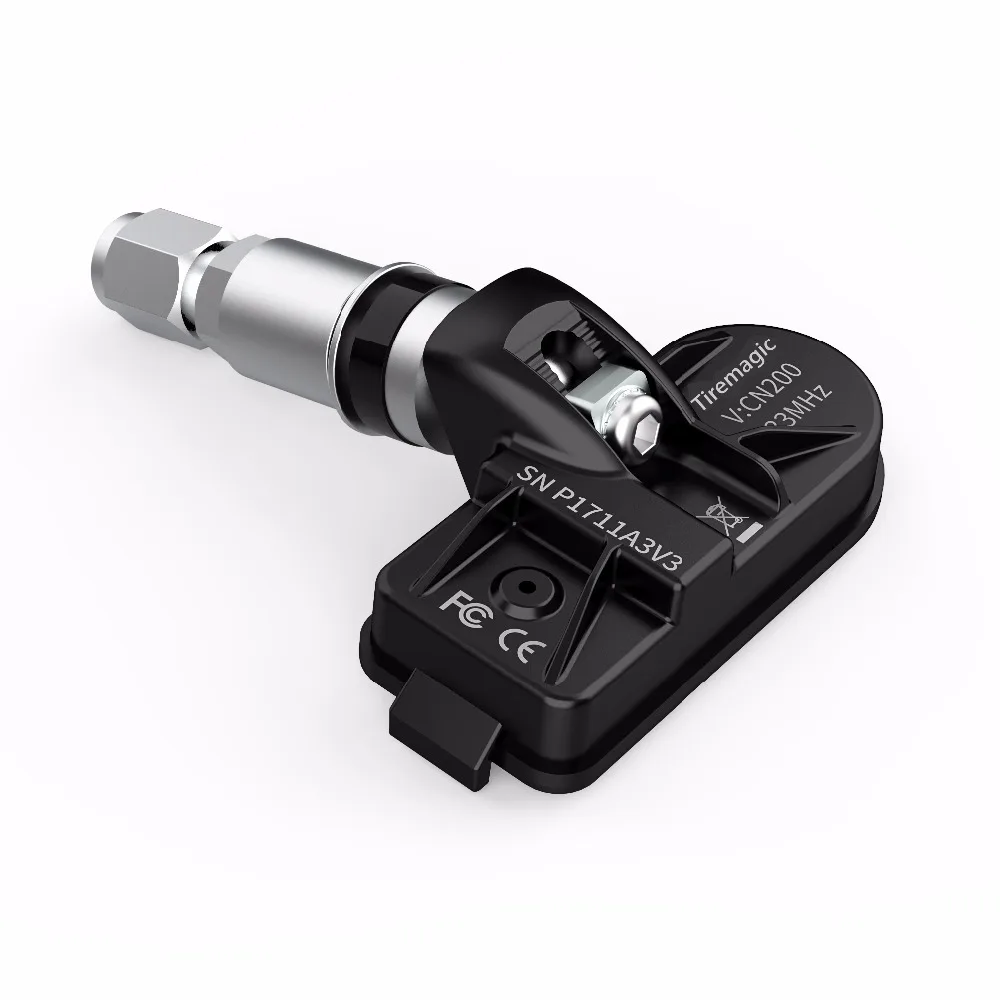

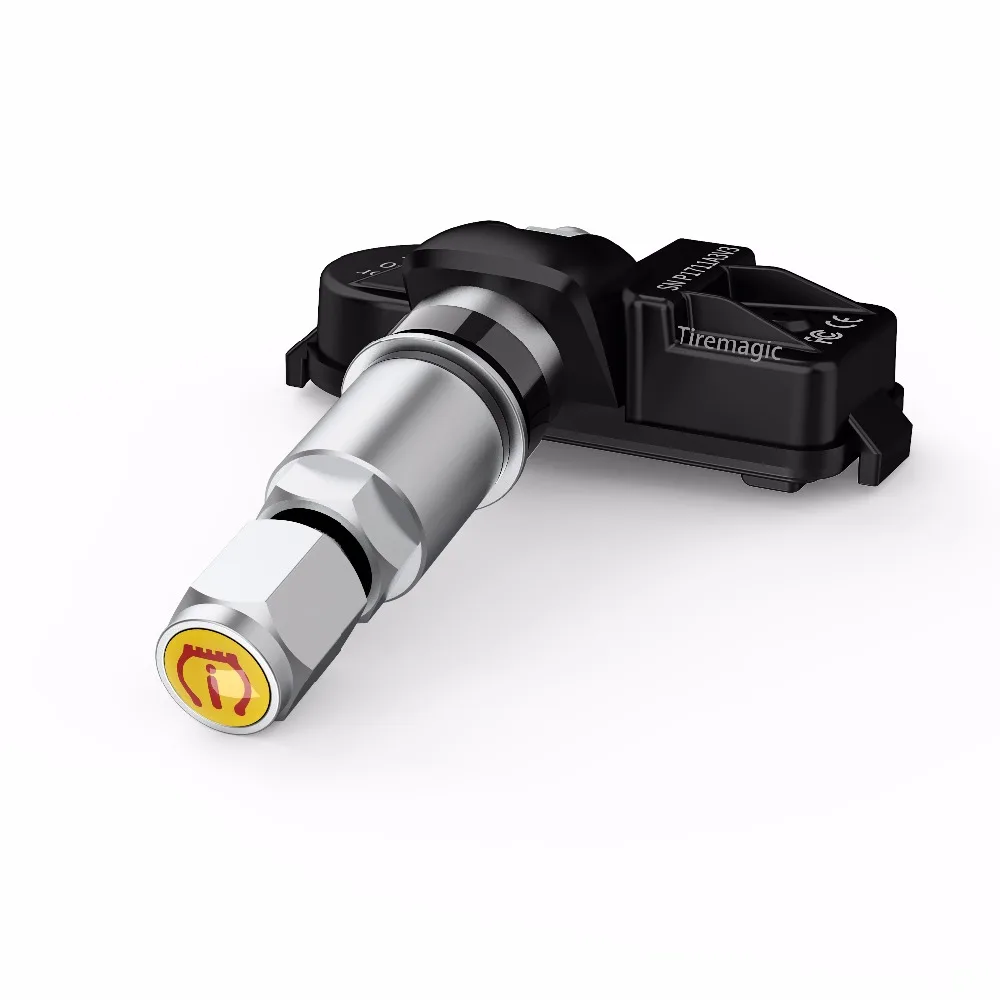

wireless tire pressure monitoring system Internal sensor

• The 5th tpms sensor in the tpms industry

• 380mAh battery, can be used more than 6 years

• From the car stop to start, Sensor can be wake up in 5s

• Pressure range: 0 to 800Kpa(116psi)

• Pressure error: ±1.45psi

• Freescale solution, Refuse to use garbage materials.

• The Angle of valve can be adjusted,Applicable to all wheel.

• Operating frequency: 433.92MHz ± 28KHz
• Operating voltage: 2.0~3.3V
• Operating current: ≤10mA
• Static current: ≤1uA
• Operating temperature: -40~+125°C
• Storage temperature: -40°C~+125°C
• Battery model: CR2050
• Battery lifespan: ≥5years
• Weight: 28g ± 0.5g
