Kalefans America hvls ceiling fan

HVLS 24FT orient Stainless Steel Blades roof air Ventilation mountain air price ceiling fan national

Brief Introduction of EURUSIII Series Fan

1. Large size of 4.9m-7.3m

2. Branded KALE gearless motor & DANFOSS VFD

3. High effient & energy saving of max 1.5KW power
4. Area coverage up to 1400m2 per fan

We specializes in producing Large Industrial Energy-saving Ceiling fan with diameter up to 7.3M.The fan can cover an area up to 2000 square meters just with a power of 1.5 KW or less. They are mainly used in large and high places like workshop,warehouses,distribution centre, gymnasium,station,farm and so on.There are many top 500 companies in the world such as Wal-Mart,HONDA, NISSAN, FORD, MAGNA, IAC, Amazon,ABB,Schneider etc are our loyal customers.

We have many clients all over the world because of our products' good performance. Our company has steadily occupied the first place in domestic industrial ceiling fan market share in China now.

Technical Parameters

 Note:
1. Weight: the weight doesn't contain control box, top connection parts etc.
2. Size: the above-mentioned product size is standard, other sizes can be customized.
3. Noise: sound level measured in a distance of 1m from the motor, electromagnetic noise is less than 40DBA.
4. Packing: export standard crates.
5. Area cover: effective area with average wind speed at 0.5m/s above, actually measured in open area.

Main Components

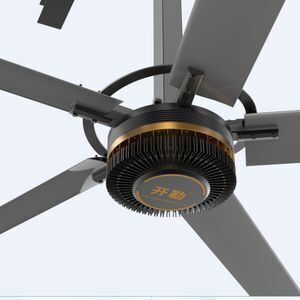

	Motor System KALE specially researched and developed PMSM(Permanent Magnet Synchronous Motor) motor for its SHVLS product. Compared with the traditional brush motor, induction motor, it has a better dynamic performance, higher efficiency, longer life, lower noise, etc. Energy conversion rate can be 84%, the most advanced motor technology in the world. Compared with ordinary BLDC motor on the market, KALE's independent research and development motor adopt unique rare earth NdFeB magnets, rotor and stator, and with its unique design, the overall dynamic performance improved significantly, the torque is bigger, higher efficiency and better stability.
	Control Sytem (VFD Controller) Top-grade electrical configuration:Schneider unit,DANFOSS intelligent variable frequency control module,RITTAL control box. Built-in protective module can cut off output automatically for accident; EMC-approved and anticreep test by SGS; Protection level: IP55; Pass the UL,EMC,LVD,RoHs certification.
	Highest strength criterium(10.9 degree),adopt USA LOCTITE®648 screw glue reinforcement measure,actual stress can be more than 10 times, guarantee the safety and reliability effectively.
	Jacketed Connector                                                                                          Aircraft grade 7050 hard aluminum material which is handled with heat to guarantee strength and toughness.It stood millions fatigue tests to avoid the problems of fan blade dropping due to long-time running.

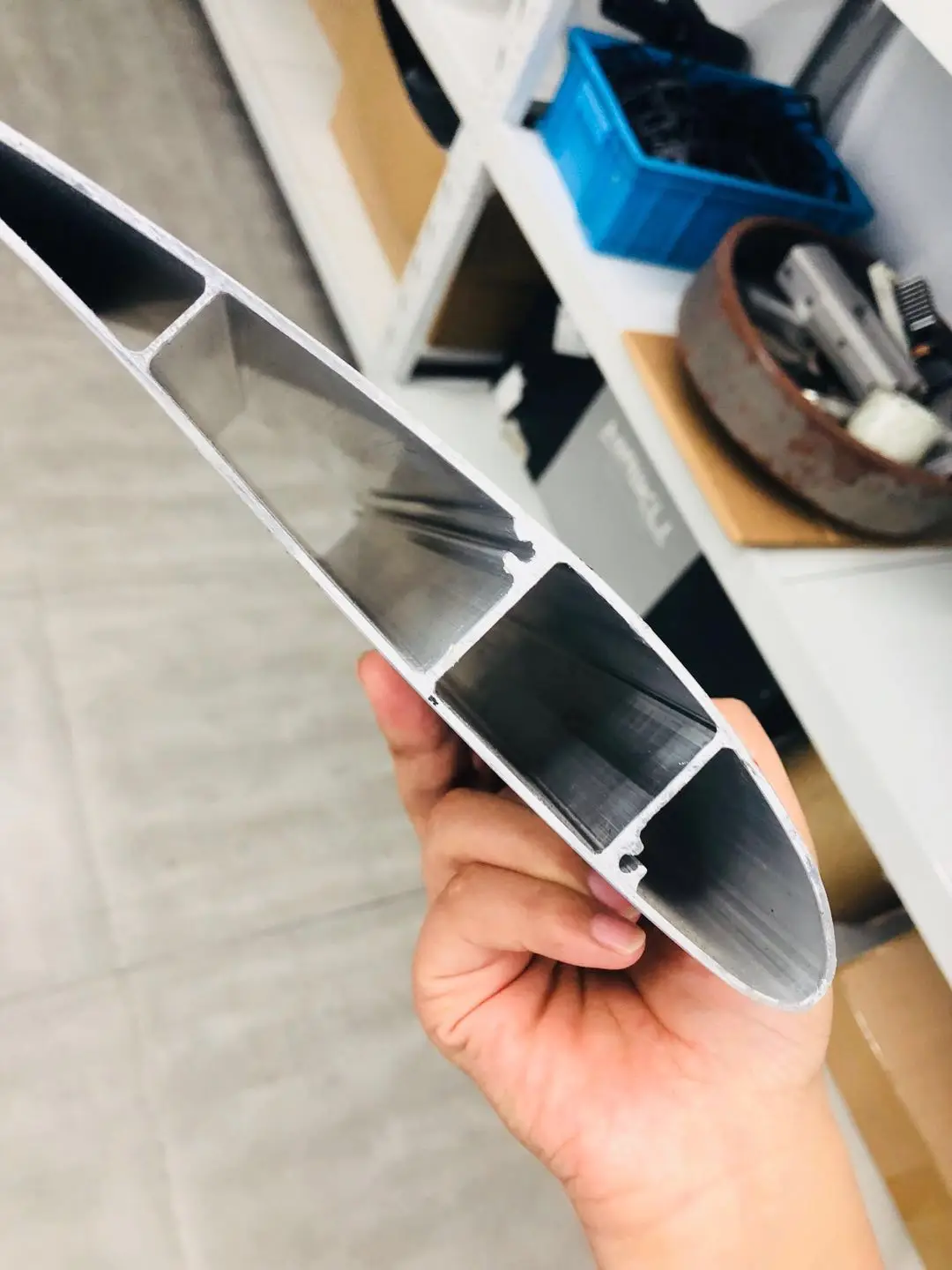

	Patented Kale Airfoil Blades™ Fan Blade High strength aircraft grade magnalium, fluorocarbon paiting on surface, aerodynamic fan blade design. Patented Fan blade design: 3 sets reinforcing rib supports system inside, enhance the strength of fan blades and avoid sagging of fan tail and fatigue loss of connecting components.

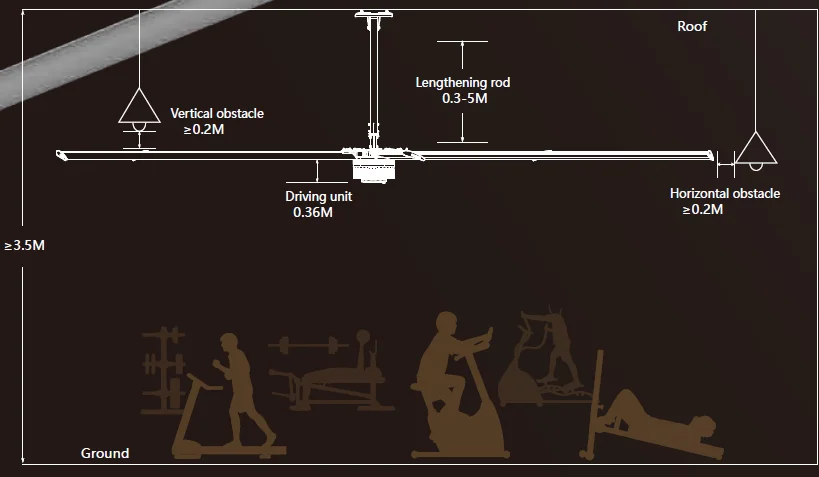

Installation Conditions

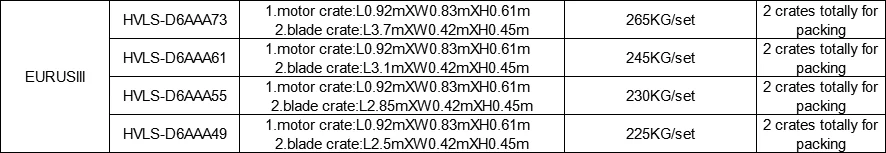

Package Details for Industrial Ceiling Fan

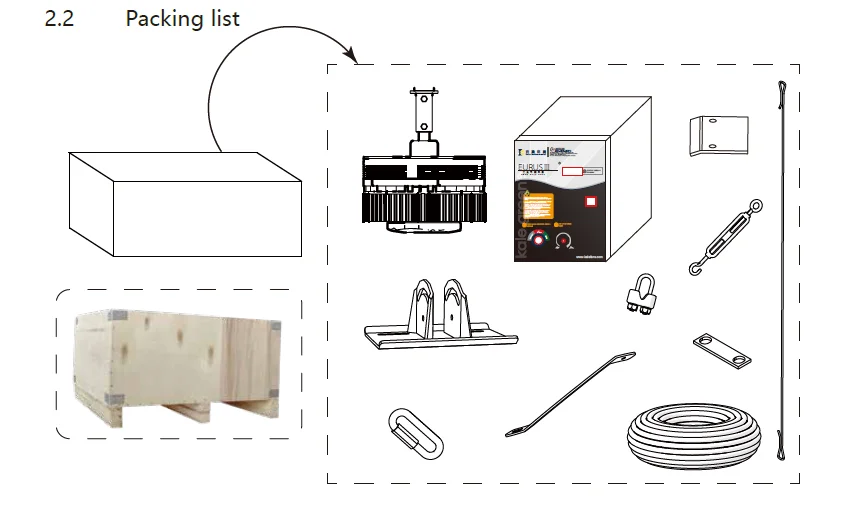

1) Main Machine Packing for Industrial Ceiling Fan

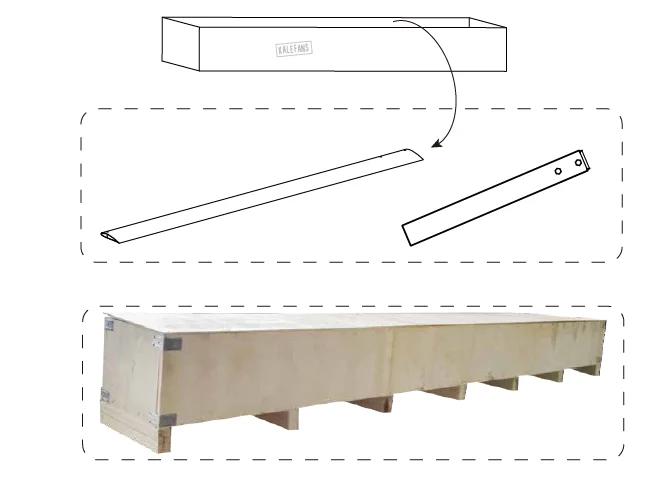

2) Fan Blades Packing for Industrial Ceiling Fan

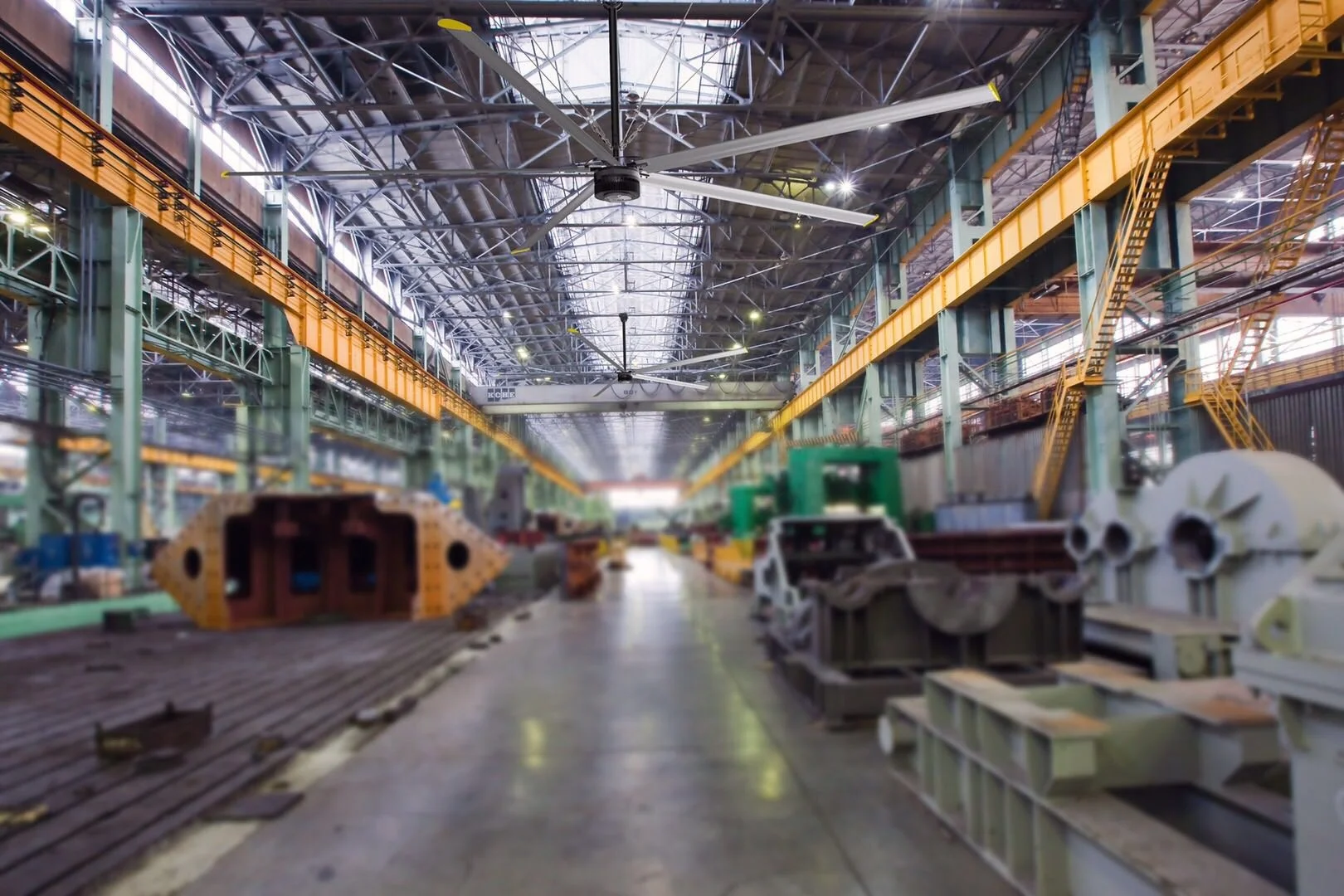

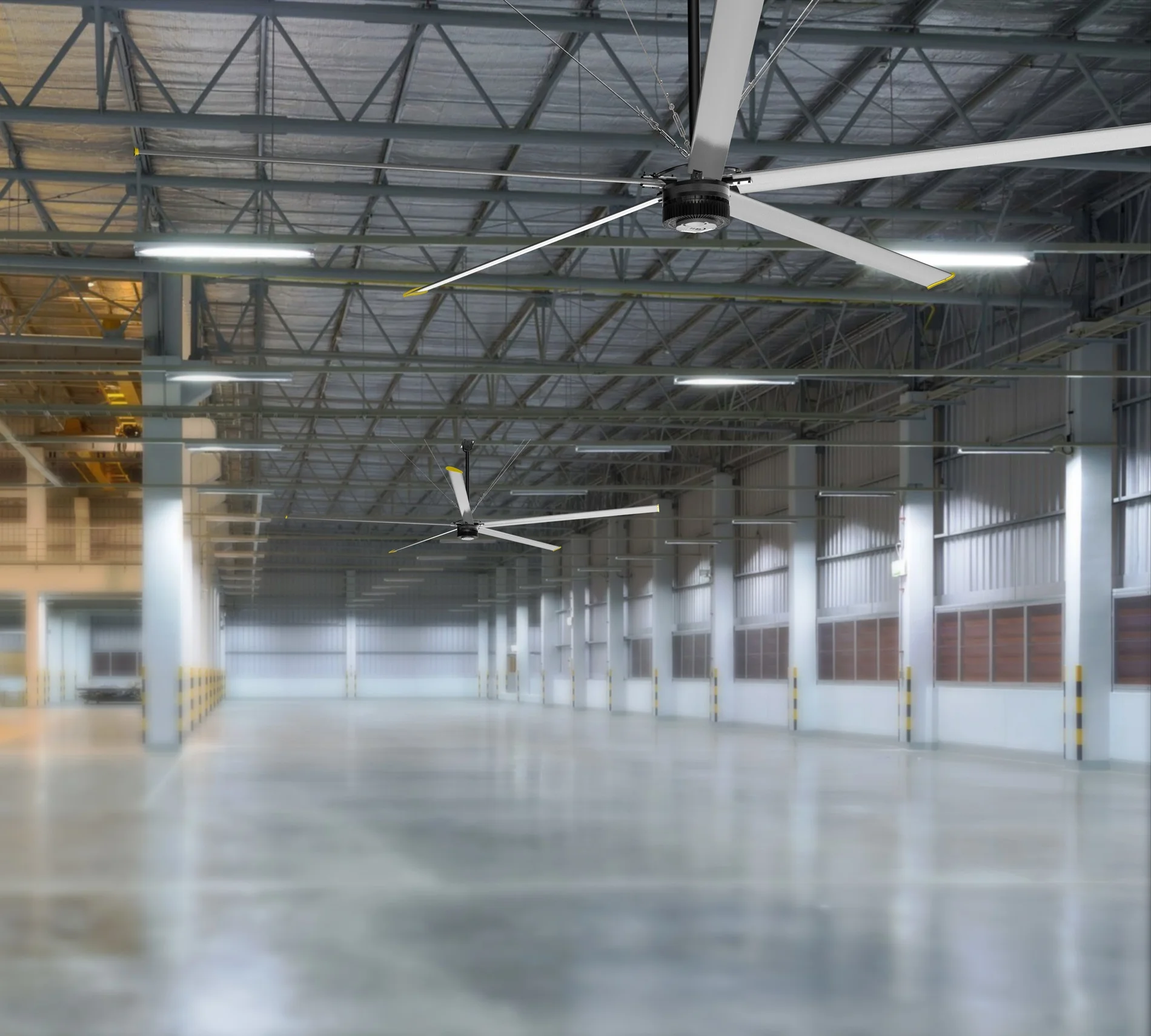

Cases

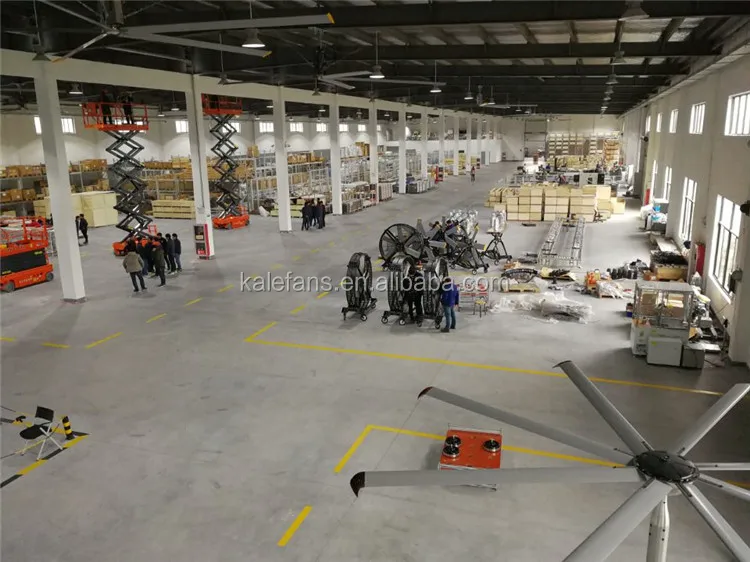

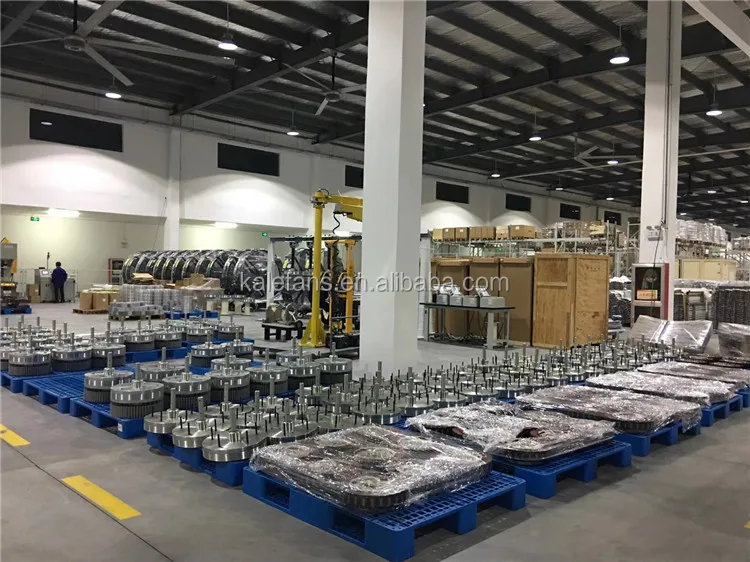

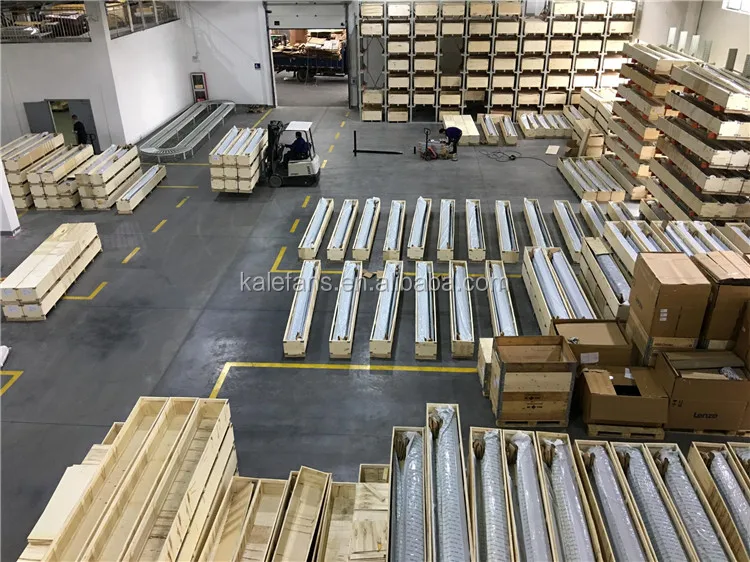

Factory View

1. Every details we can concern: place order, manufacture, delivery, you just accept them.

2. 3-year warranty for each fan to guarantee

3. Can customize as your reqiurements

4. Free maintenance for the fan

5. 24-hour per day service

Q: Are you the factory?

A: Of course, we are a factory focusing on large ceiling fans based in Shanghai, China, be your direct fan supplier.

Q Where does your fan use in?

A: Ths fan is widely used in factory, logistics & warehouse, supermarket,  halls etc.

Q: Is it used in electrcity?

A: Yes, it's power supply is electricity, but only 1.5KW or less, very energy-saving.

Q: What the price per fan?

A: We will offer you the best price according to the qty and the model.

Q: How long is the delivery time?

A: Normally 3-5 working days.

Q: How long is the warranty?

A: We offer 2-year warranty to guarantee the quality. Most importantly, its service life is 12-15 years.
