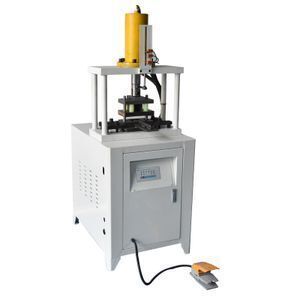

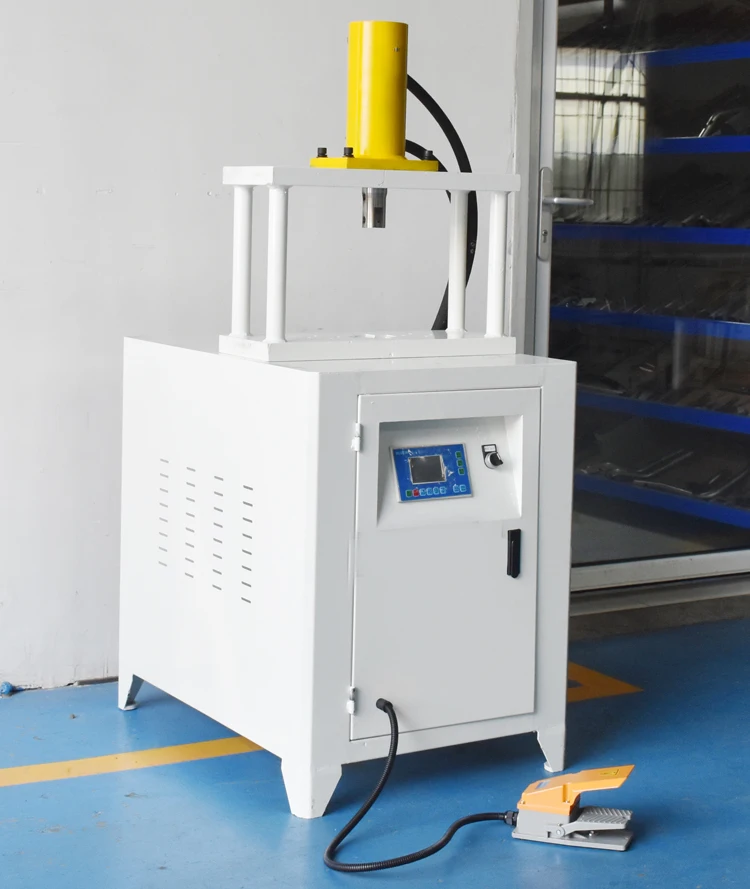

Single Hydraulic pipe punching hole tube end cutting notch forming machine

Product details
Machine Type:Punching Machine;Video outgoing-inspection:Provided;
Machinery Test Report:Provided;Supply Ability:10 Set/Sets per Month;
Marketing Type:New Product 2020;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
After-sales Service Provided:Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;Nominal Force (kN):250 kN;
Port:shanghai qingdao guangzhou;Slide Stroke (mm):150;
Packaging Detail:wooden case;Warranty:1 Year;
Model Number:20A;Power Source:Hydraulic;
Key Selling Points:Easy to operate;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Certification:CE,CE;Capacity:Carbon steel 5mm;
Local Service Location:None;Warranty of core components:1 Year;
CNC or Not:semi automatic,Normal;Showroom Location:None;
Color:Customizable;Voltage:110/220/380/415V, customized;
Applicable Industries:Building Material Shops,Manufacturing Plant;Motor Power (kW):5.5;
Weight (T):450;Dimension(L*W*H):750*770*1500;
Core Components:Pump;Place of Origin:China;
Condition:New;
Product Description

1 feed pipe by manual,there is scaleplate to help Make sure the hole distance is the same

2 fit to carbon steel, stainless steel , copper, aluminum,glass fiber steel and so on

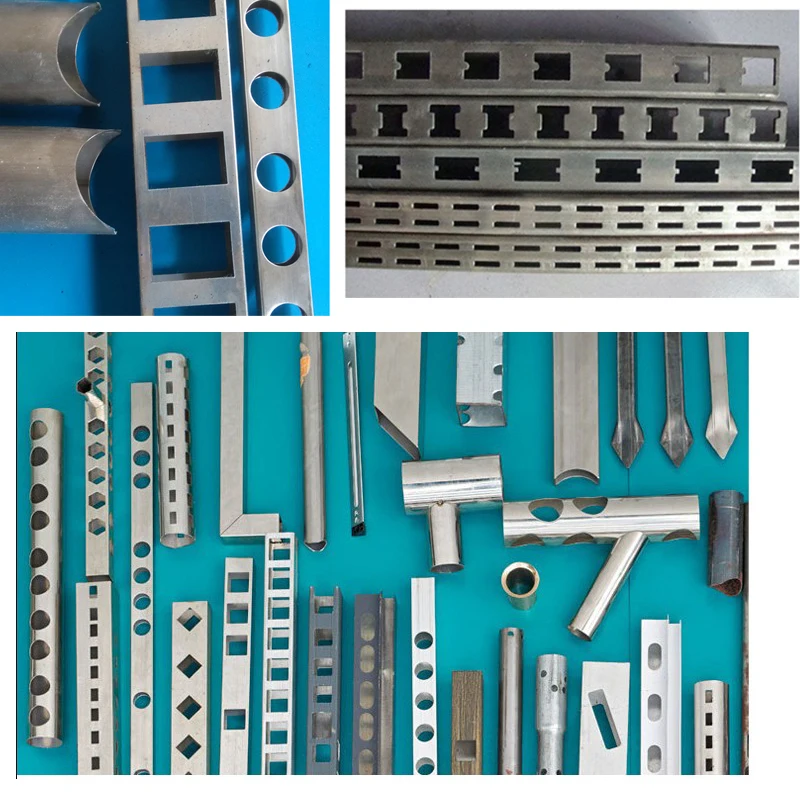

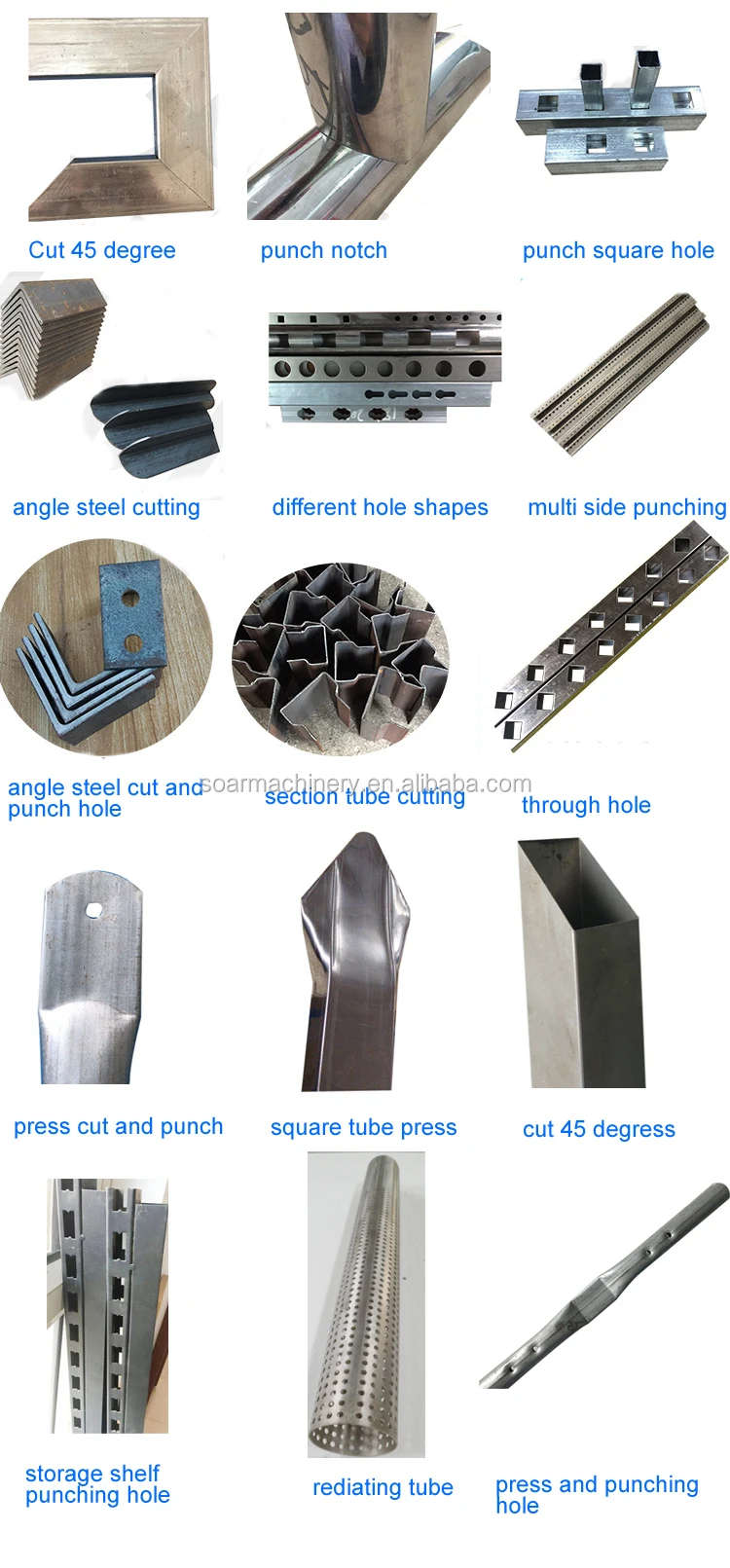

3 hole shape: round, square, rectangle, ellipse, and notch

4 punching type. half(one wall/side), through(two side/wall)

Pressure (ton)

Max Punching thickness

Nominal force(Kn)

Power

(KW)

Stroke(mm)

Model

SS(mm)

MS(mm)

5

1

1.2

50

3

70

H5A, H5B, H5C,

8

1.6

2

80

4

100

H8A, H8B, H8C,

15

2.4

3

150

4

120

H15A, H15B, H15C,H15D

20

4

5

200

5.5

150

H20A, H20B, H20C,H20D, H20E

25

5

6

250

5.5

150

 H20A, H20B, H20C,H20D, H20E and so on

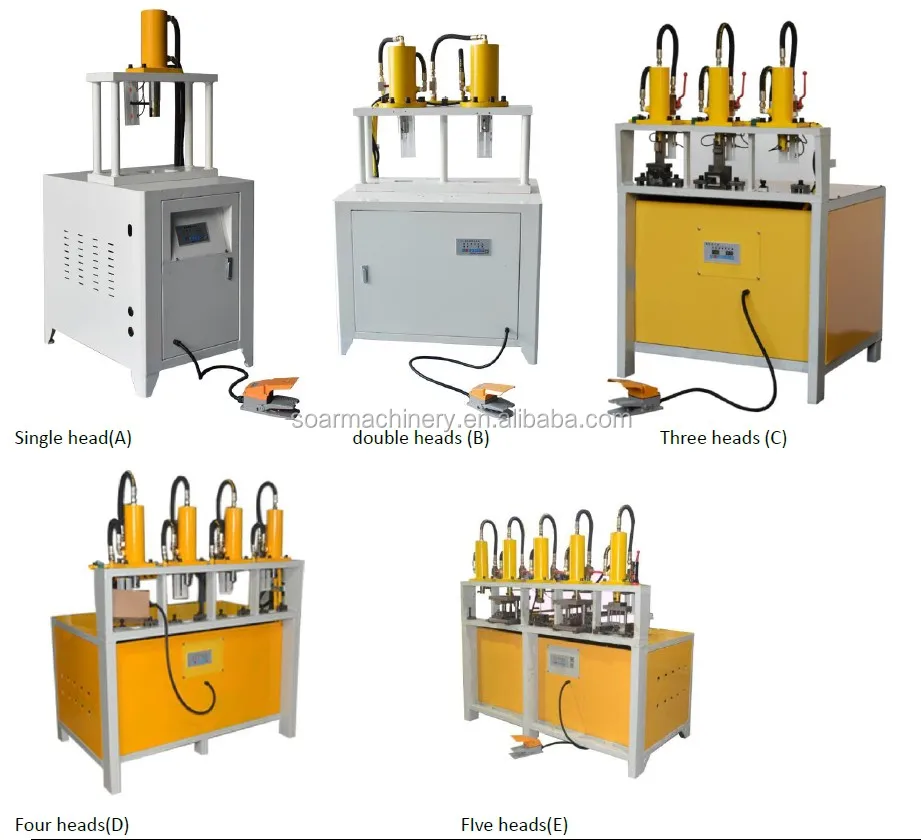

 A= single punchin stations, B= double punching stations, C,DE... and so on

3 mean 3 ton, 5 mean 5ton, ........

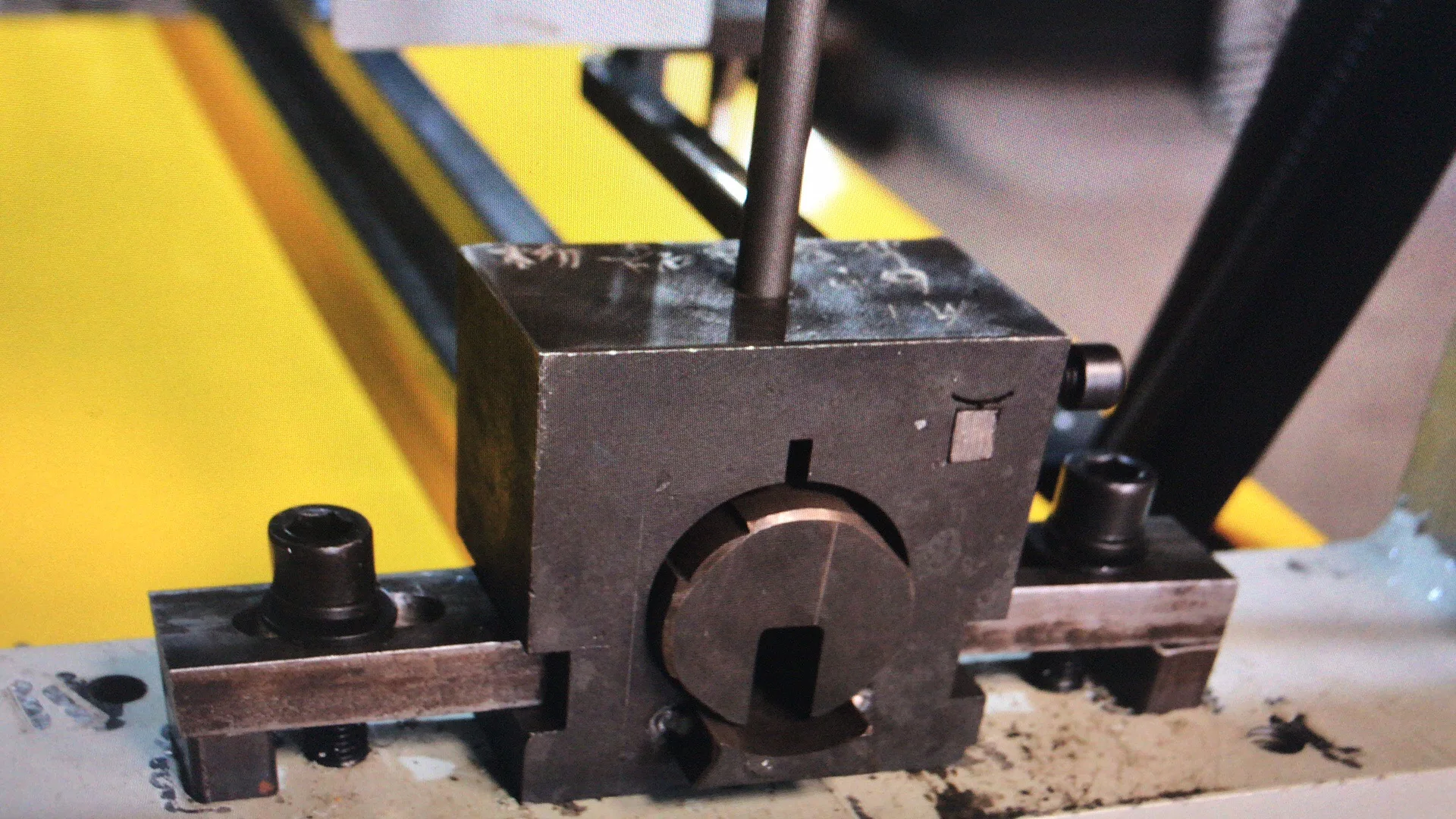

for example. if you need two different moulds, change one single head machine with tow mould, change them when do different job

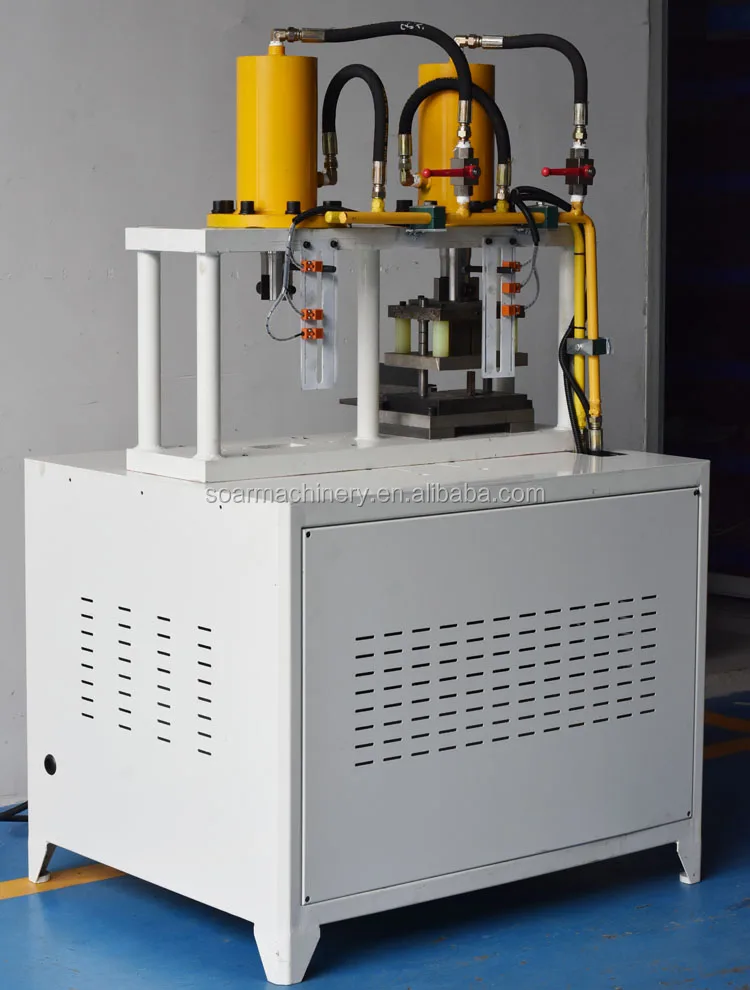

the second option  is  one double heads machine install tow moulds, no need change and install moulds again



Packaging & Shipping

 Wrapped in plastic wrap inside, wooden box outside



Our Services

Oprate  Video supply , parts are free in Guarantee



FAQ

1 Q:How can i know which model reach our requarment

A: let us know detail, the more the better. pipe material, thickness,hole size, half or through punching

2 Q: how can i operate machine?

A:Select the function to be implemented on the panel,Adjust the position of the induction switch according to the need of punching,

Step on the foot switch to control the machine,Manually move the position of the tube

3Q:can we change color and voltage ?

A:Yes, just let us know what color , and what is voltage in workshop
