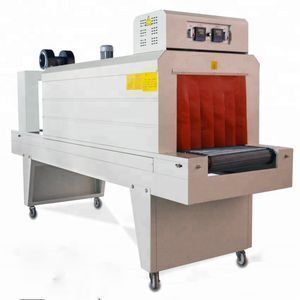

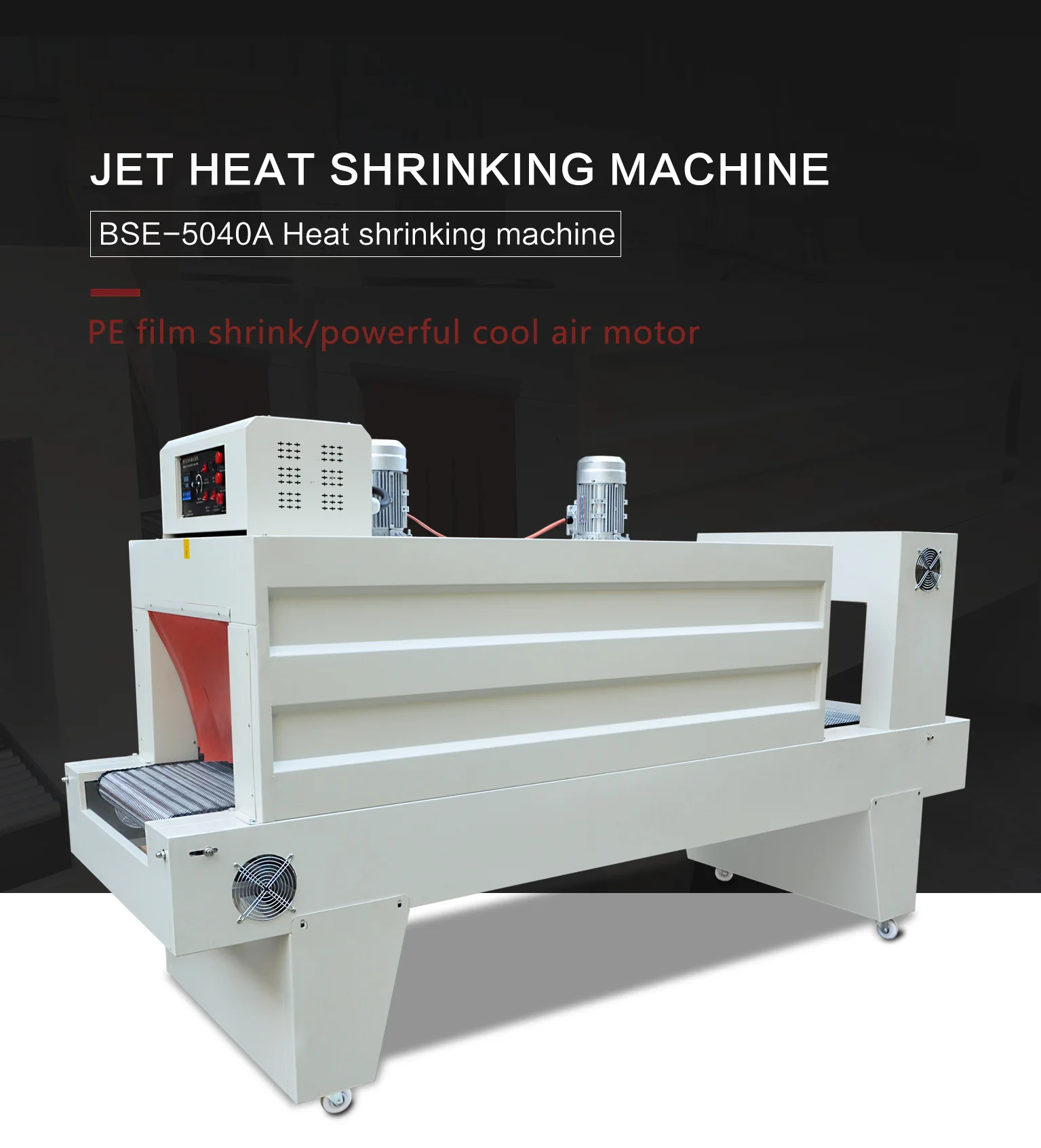

BSE-5040A PE film shrink tunnel packaging machine for skateboard

Product details
Application:Beverage,Commodity,Food,Machinery & Hardware;Brand Name:Huili;
Local Service Location:South Africa;Condition:New;
Packaging Detail:Wooden Cases;Showroom Location:South Africa;
Certification:CE/ISO;Applicable Industries:Manufacturing Plant,Food & Beverage Factory,Retail,Food Shop;
Selling Units:Single item;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Core Components:Motor;After-sales Service Provided:Engineers available to service machinery overseas,Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Single gross weight:300.0 KG;Video outgoing-inspection:Provided;
Automatic Grade:Automatic;Warranty:1 Year;
Single package size:260X80X170 cm;Marketing Type:Hot Product 2019;
Packaging Material:plastic,wood;Place of Origin:Zhejiang China;
Dimension(L*W*H):2500*740*1550mm;Type:Wrapping Machine;
Machinery Test Report:Not Available;Packaging Type:Cartons,Bottles;
Driven Type:Electric;Warranty of core components:1 Year;
Voltage:220/380V;Weight:300KGS;
Key Selling Points:Multifunctional;



Product Description:

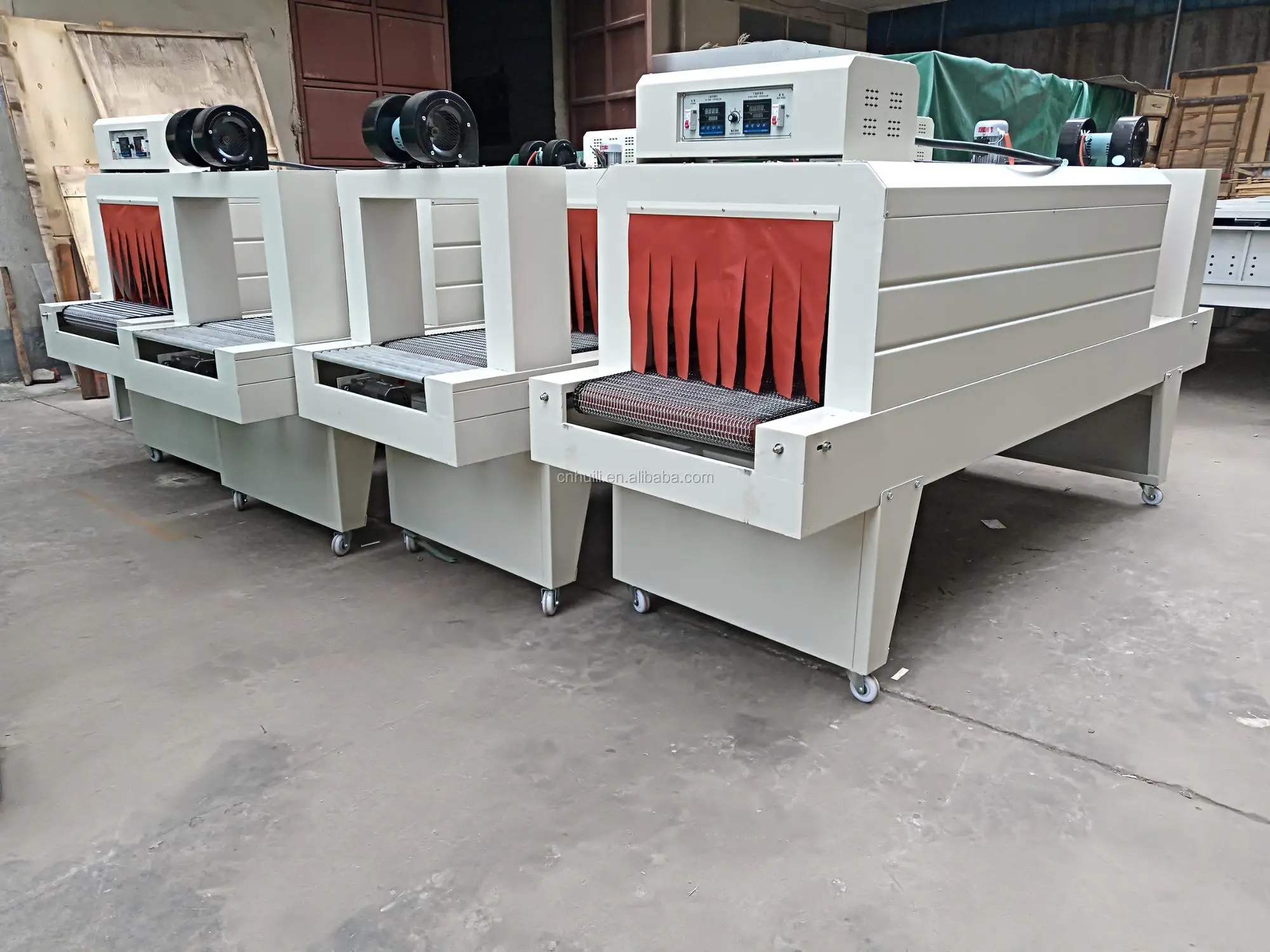

BSE series shrink tunnel adopts PE shrink film packaging design for large and heavy objects. Even the large packing object can be shrunk in a short time. The products after packing will be guaranteed in quality with clean appearance and compact in structure, which will be much easier for stacking and long-distance transportation variety of shrinking films, including PE, PVC, POF etc are applicable.


A model use High velocity-turbo tunel design;
Works with all kinds of shrink film;

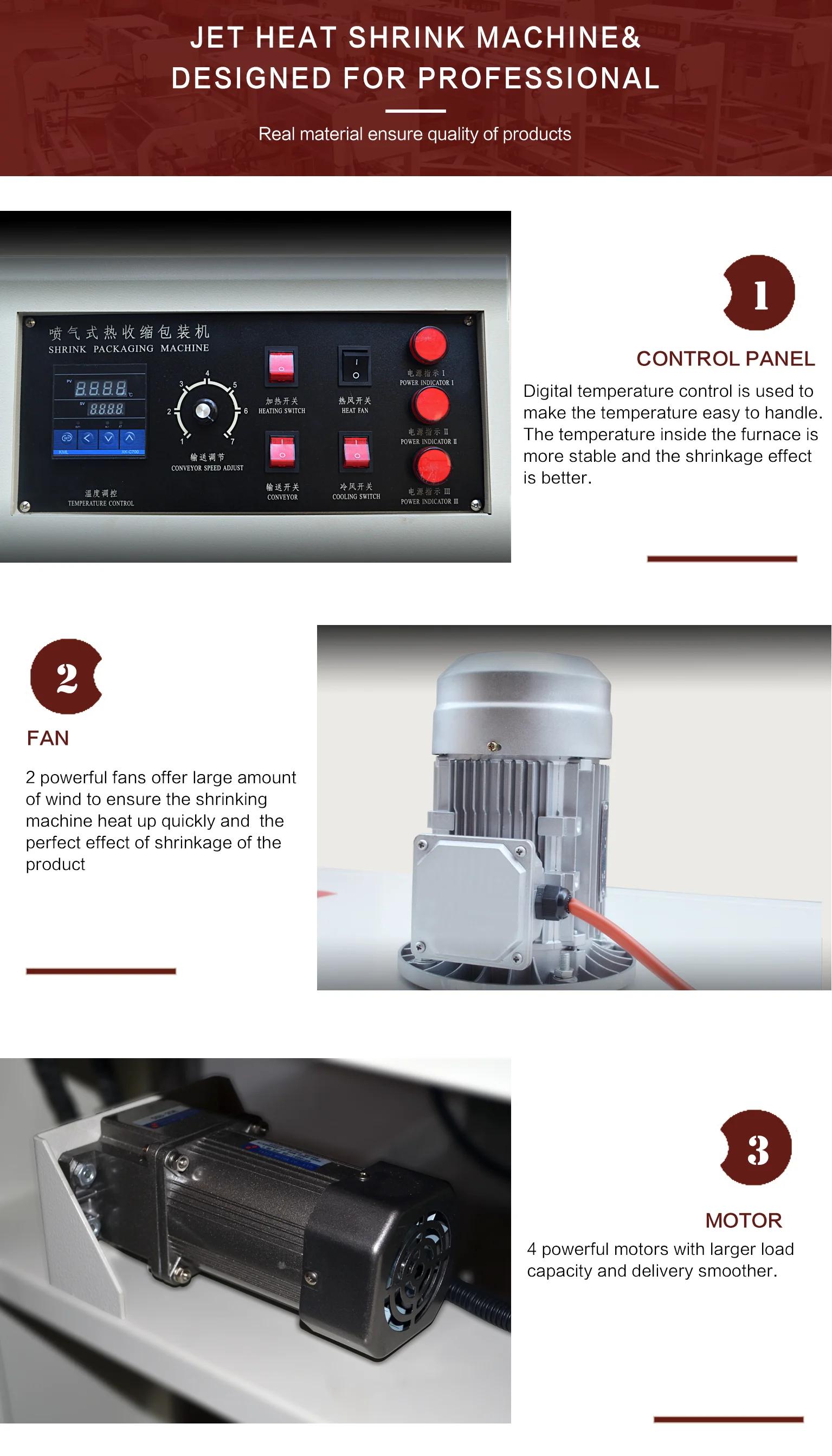

Digital temperature controlers;

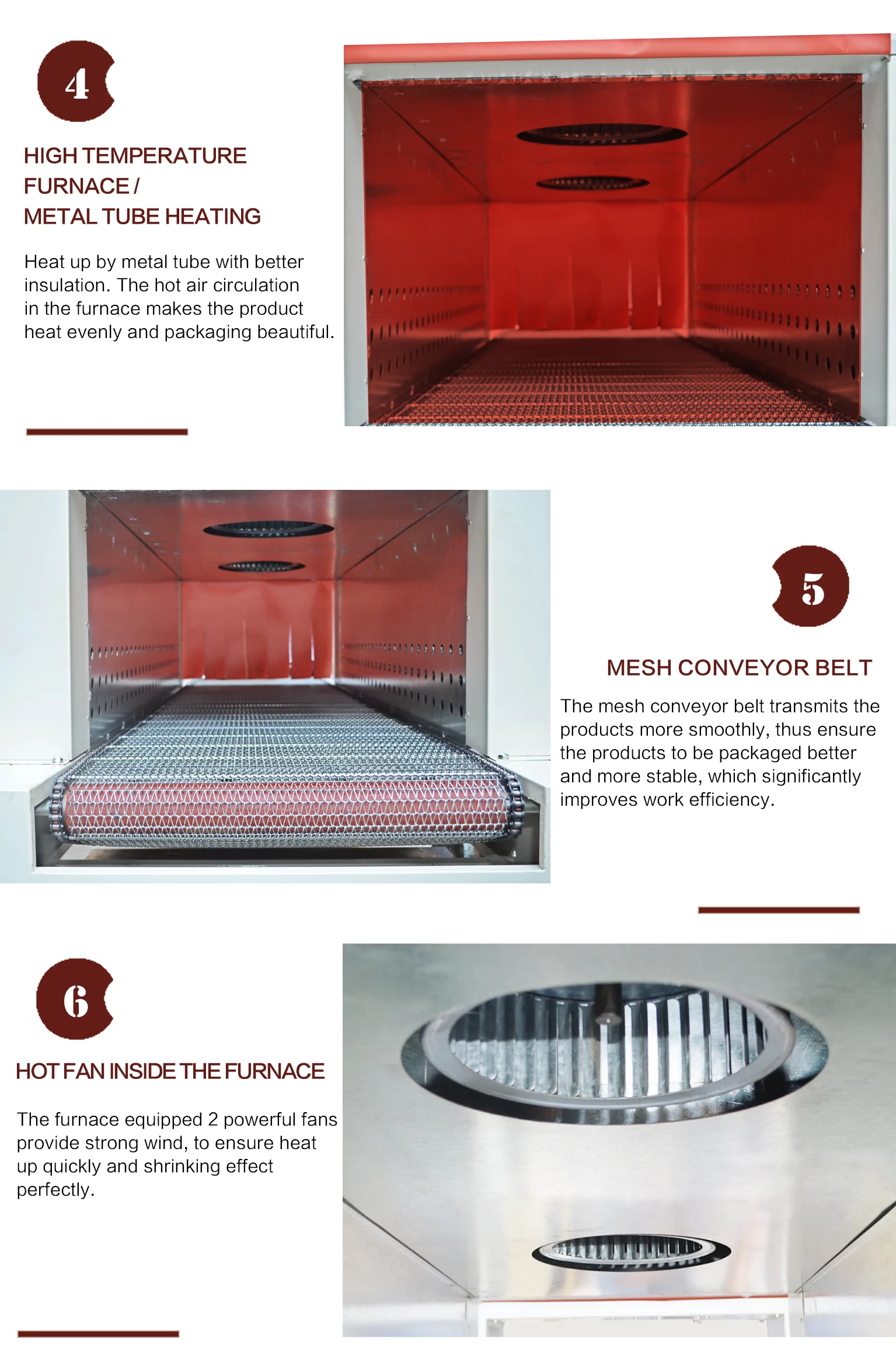

Stainless steel heater;
Top & bottom & side heating;
Variable speed belt conveyor;
Automatic cool down tiner;(increases life span)

Roller,wire mesh,options;
Safeguard cover of heat insulation

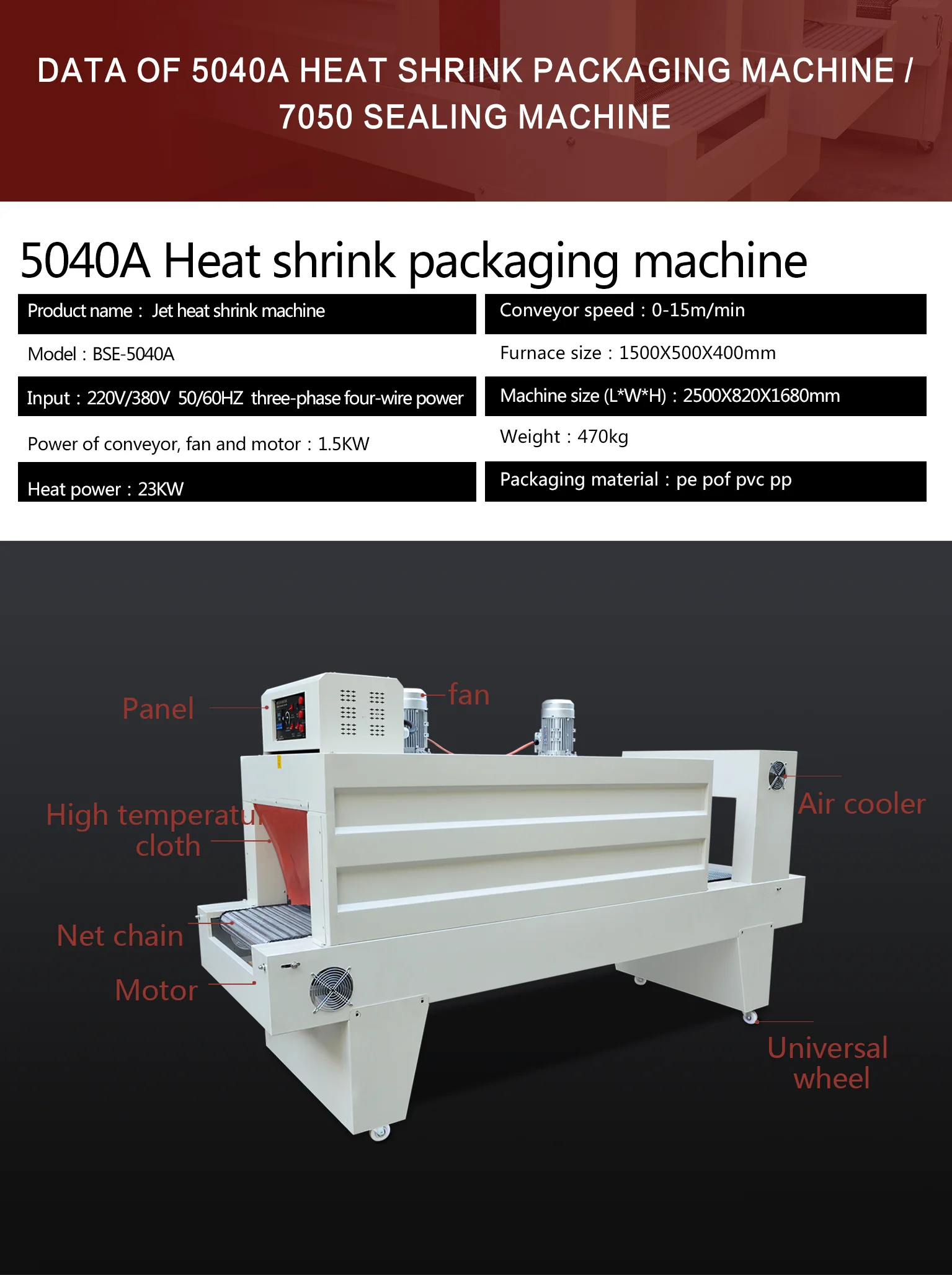

Specification:

Model
BSE4535A
  BSE5040A
  BSE6040A
Power supply
 3 Phase 220V,380-460V/50-60HZ
Heater power
 20KW Adjuster
 23KW Adjuster
 27KW Adjuster
Conveyor speed
0-15m/min
0-15m/min
0-15m/min
Tunnel size
1300×450×350mm
1500×500×400mm
1800×600×400mm
Product size
350×250mm
450×400mm
550×450mm
Conveyor loading
25kg Max
35kg Max
35kg Max
Machine size
2300×690×1400mm
2500×740×1550mm
2800×840×1600mm
Machine weight
App.230kgs
App.290kgs
App.340kgs
Shrink film
PE,POF,PVC,PP
