Color & Page: | Multicolor; | Voltage: | 220V; |
Min. Paper Size: | 180x150mm; | Certification: | CE; |
Gross Power: | 1.85KW; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Supply Ability: | 210 Set/Sets per Month rotary numbering machine is available; | Max. Paper Size: | 560x400mm; |
Usage: | Bill Printer,Paper Printer,numbering system; | Power for main motor: | 1.1KW; |
Packaging Detail: | rotary numbering machine is packed in wooden carton; | Type: | Other; |
Brand Name: | XSHEEN; | Automatic Grade: | Automatic; |
Power Supply: | 220V 50HZ; | Dimensions(L*W*H): | 1780x1050x1100mm; |
Place of Origin: | Shanghai China; | Printing Speed: | 2000-8000 sheet/hour; |
Plate Type: | rotary numbering machine; | Weight: | 550kg; |
Ink Roller: | 6 rollers(ink form rollers: 2pcs); | Power for pump motor: | 0.75KW; |
After-sales Service Provided: | Overseas third-party support available; | Port: | Shanghai; |
Condition: | New; | Paper Weight: | 28-250g; |

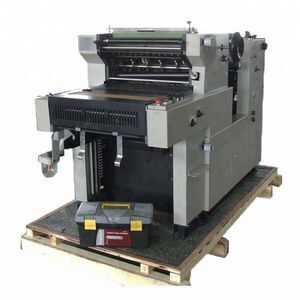

paper numbering and perforating machine, automatic rotary numbering machine
Features
1. Lateral and Vertical Perforation can be done at the same time;
2. Perfect Numbering Position & Legible Print with resin plate printing;
3. Numbering Speed up to 8,000 sheets per hour;
4. LCD computer controlling system is optional
5. Brand Parts: France Components (Schneider) & Japanese Bearings (NHK);
6. Oil Free Vacuum Pump adopts Japanese Technology;
7. Positive Limitation Protection is adopted to make sure safe operation;
8. Automatic Powdering & Blower system;
9. High quality Feeding Rubber-tired & Double Sheets Detection Device;
10. Chrome plated Technology and Stainless Steel Material are used to protect the roller
Technical data
Model | XHDM480 | XHDM570 | XHDM630 | |
Max. Paper Size | 470x360mm | 560x400mm | 620x440mm | |
Min. Paper Size | 180x150mm | |||
Paper Weight | 28-250gsm | |||
Printing Speed | 2000-8000 sheets/hour | |||
Ink Roller | 6 rollers(ink form rollers: 2pcs) | |||
Number capacity: | Lateral: 7 row x 7 column=49 Vertical: 5 row x 8 column=40 | Lateral: 7 row x 8 column=56 Vertical: 5 row x 10 column=50 | Lateral: 7 row x 9 column=63 Vertical: 5 row x 11 column=55 | |
Perforation | Min. space between lateral perforating knives: 10mm Min. space between vertical perforating knives: 30mm | |||
Power for main motor | 0.75KW | 0.75KW | 1.5KW | |
pump motor power | 0.75KW | |||
Power Supply | 220V/50HZ | |||
Dimensions | 1780x935x1120mm | 1900x1020x1120mm | 2060x1150x1120mm | |
Net Weight | 280kg | 320kg | 370kg |
Model | XHDM720 |
Max. Paper Size | 720x440mm |
Min. Paper Size | 180x150mm |
Paper Weight | 28-250g |
Printing Speed | 2000-8000 sheet/hour |
Ink Roller | 6 rollers(ink form rollers: 2pcs) |
Number capacity: | Lateral: 7 row x 10 column=70 Vertical: 5 row x 12 column=60 |
Perforation | Min. space between Lateral Perforating knives: 30mm Min. space between Vertical Perforating knives: 25mm |
Power for main motor | 1.5KW |
Power for pump motor | 1.5KW |
Power Supply | 220V 50HZ |
Dimensions | 2060x1170x1120mm |
Weight | 800kg |
Operation video link :
http://www.youtube.com/watch?v=hEMNE5yjAZk
Machine details
