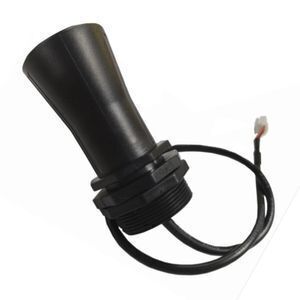

Waterproof Ultrasonic Distance Measuring Controller ultrasonic sensor for bin level measuring Ultrasonic liquid level sensor

Product details
Brand Name:HTD;Port:Shenzhen;
Usage:Level Sensor;Supply Ability:2000 Piece/Pieces per Week;
Theory:Ultrasonic Sensor;Blind distance:0cm to 28cm;
The measuring range (with horn mouth):28cm to 750cm;Place of Origin:Guangdong China;
Packaging Detail:Each pc into an electrostatic bag, 200pcs/carton;Working voltage:DC3.3V to 5V;
Output:Digital Sensor;Payment Terms:T/T,Western Union,Paypal;
Model Number:A01;

Applications:

1.     Level distance measurement;

2.     Liquid level measurement;

3.     Parking management system;

4.     Intelligent bin management system;

5.     Robot obstacle avoidance,automatic control;

6.     Detect the objects close to and the existence of external objects;



Basic Parameters:

Items

(A01A serial)

For plane distance measurement

(A01B serial)

For human body measurement

(A01C serial)

For rubbish measurement

Working voltage

DC3.3V- DC5.0V

DC3.3V- DC5.0V

DC3.3V- DC5.0V

Average working current

<10mA

<10mA

<10mA

Blind distance

≤28

≤28

≤28

The measuring range

(without horn mouth)

28cm-450cm

28cm-450cm

28cm-450cm

The measuring range

(with horn mouth)

28cm-750cm

28cm-750cm

28cm-750cm

Detection Angle

(without horn mouth)

-

≈75 Degree

-

Detection Angle

(with horn mouth)

≈40 Degree

≈65 Degree

-

Output modes

UART auto output

UART controlled output

PWM auto output

PWM controlled output

Digital Output

UART auto output

UART controlled output

PWM auto output

PWM controlled output

Digital Output

UART auto output

PWM auto output





Mechanical Features:
