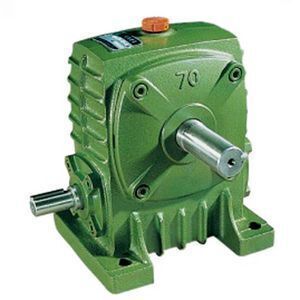

wpa gear box 20hp 3000 rpm high torque 3 phase motor gearbox with worm gear motor speed reducer small engine gear box

Product details
Brand Name:QILIAN;Output Torque:up to 5000Nm;
Output Speed:10-500rpm;Gearing Arrangement:Worm;
Shaft:Inline;Color:Customer Request;
output shaft dia:12mm;Place of Origin:Zhejiang China;
ratio:10,15,30;weight:7kg;
Single package size:15X14X18 cm;Housing Material:Cast Iron;
Bearing material:SKF,ZWZ;Input Speed:750rpm -2000rpm;
Single gross weight:7.0 KG;Heat treatment:Quenching;
Packaging Detail:Standard export Packing(Carton Blanket+ wooden box);Selling Units:Single item;
Specification

WP stepper motor worm gear/worm gear speed reducer/AC worm gearbox
1.Widely used in light industry, good resistance to wearing, with high precision in dimensions, lower noise, advanced centric

running castings
2. The housing is of strong hardness, compact structure
3. Stable transmission, low vibration, large ratio, canbe matched with various machines

1.Housing:iron cast

2. low noise(<50DB)
3.Model:WPA 40-250,Ratio:10 to 60
4.Efficient and safe operating
5.ISO9001,Factory price,OEM



6.Technology Data:
Type:gearbox WPA
Model:WPA 40-250
Ratio:1:10,15,20,25,30,40,50,60
Color:Blue/Silver Or On Customer Request
Material:Housing: Die-Cast Iron cast
Worm Gear-Copper-10-3#
Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC
Shaft-chromium steel-45#
Packing:Carton and Wooden Case
Bearing:C&U Bearing
Seal:                      NAK SKF
Warranty:1 Year
Input Power:

0.06KW,0.09KW

Usages:Industrial Machine: Food Stuff, Ceramics,CHEMICAL,Packing,Dyeing,
Woodworking,Glass.





IEC Flange:

56B14, 63B14, 63B5, 63B5, 71B14,80B14 AND SO ON

Lubricant:Synthetic&Mineral

Certifications







Trade Shows







Packaging & Shipping

Packing Details  : Standard carton/Pallet/Standard wooden case

Delivery Details : 15-30 working days upon payment
