Thickness: | 9mm; | Bore size: | 10mm; |
Number of Row: | DOUBLE ROW; | Type: | BALL; |
Model Number: | 1200; | Seals Type: | open bearing, sealed bearing 2RS; |
Precision Rating: | P0 P6 P5 P4 precision bearing; | Place of Origin: | Shandong, China; |
Cage Material: | steel cage bearing; | Bearing Material: | steel bearing, chrome steel bearing; |
Bearing size: | 10x30x9mm bearing; | Hardness: | 58-63HRC high hardness bearing; |
Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ; | Clearance: | C0 C3 C4 bearing; |
Brand Name: | BHR, OEM; | OD.: | 30mm; |
Port: | Guangdong, Qingdao; | Structure: | Self aligning ball bearing,Self-Aligning; |
Bearing bore type: | cylindrical bore; | Supply Ability: | 500 Piece/Pieces per Day; |

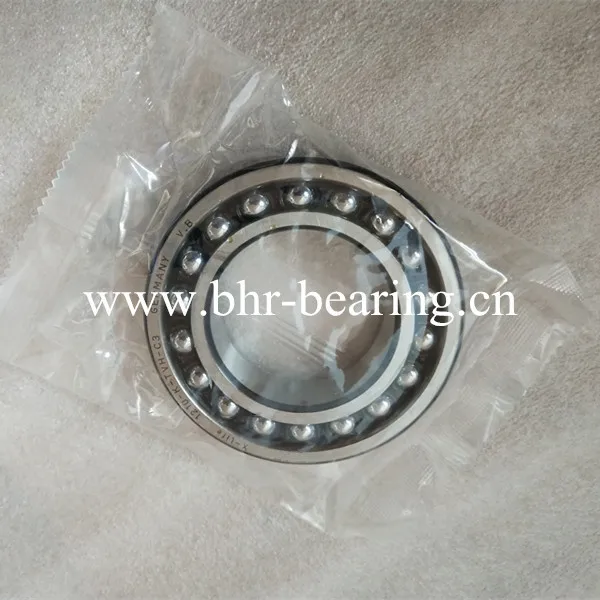

Packaging Detail: | 1. Brand box packing 2. Neutral box packing 3. OEM brand box packing 4. Economic industrial packing; | Payment Terms: | T/T,Western Union,MoneyGram; |
nsk bearings 1200 ETN9 self aligning ball bearing 1200 size 10x30x9mm for gearbox high precision

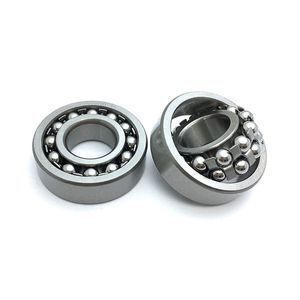

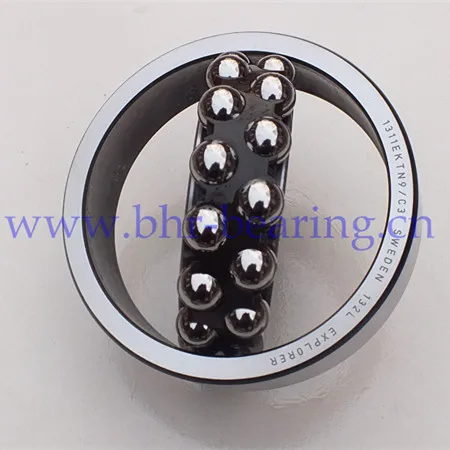

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are available open or sealed.
This type of ball bearing is recommended when alignment of the shaft and housing is difficult and the shaft may flex. The outer ring has a spherical raceway and its center of curvature coincides with that of the bearing; therefore, the axis of the inner ring, balls and cage can deflect to some extent around the bearing center. Pressed steel cages are usually used. Since the contact angle is small, the axial load capacity is low. The permissible dynamic misalignment is approximately 0.07 to 0.12 radian (4 to 7 degrees) under normal loads.
Principal Dimensions: self aligning ball bearing |
|
Bearing bore size |
10mm |
Bearing outer diameter |
30mm |
Bearing thickness |
9mm |
Bearing features: |
|
Bearing number of row |
double row self aligning ball bearing |
Bearing material |
steel bearing, chrome steel bearing |
Bearing cage type |
steel cage bearing |
Bearing bore type |
cylindrical bore |
Double row self aligning ball bearings size catalogue list:
Cylindrical bore | Tapered bore | d (mm) | D (MM) | B(mm) | Mass(kg) |
2207 ETN9 | 2207 EKTN9 | 35 | 72 | 23 | 0,4 |
1307 ETN9 | 1307 EKTN9 | 35 | 80 | 21 | 0,51 |
2307 ETN9 | 2307 EKTN9 | 35 | 80 | 31 | 0,68 |
1208 ETN9 | 1208 EKTN9 | 40 | 80 | 18 | 0,42 |
2208 ETN9 | 2208 EKTN9 | 40 | 80 | 23 | 0,51 |
1308 ETN9 | 1308 EKTN9 | 40 | 90 | 23 | 0,68 |
2308 ETN9 | 2308 EKTN9 | 40 | 90 | 33 | 0,93 |
1209 ETN9 | 1209 EKTN9 | 45 | 85 | 19 | 0,47 |
2209 ETN9 | 2209 EKTN9 | 45 | 85 | 23 | 0,55 |
1309 ETN9 | 1309 EKTN9 | 45 | 100 | 25 | 0,96 |
2309 ETN9 | 2309 EKTN9 | 45 | 100 | 36 | 1,25 |
1210 ETN9 | 1210 EKTN9 | 50 | 90 | 20 | 0,53 |
2210 ETN9 | 2210 EKTN9 | 50 | 90 | 23 | 0,6 |
1310 ETN9 | 1310 EKTN9 | 50 | 110 | 27 | 1,2 |
2310 | 2310K | 50 | 110 | 40 | 1,65 |
1211 ETN9 | 1211 EKTN9 | 55 | 100 | 21 | 0,71 |
2211 ETN9 | 2211 EKTN9 | 55 | 100 | 25 | 0,81 |
1311 ETN9 | 1311 EKTN9 | 55 | 120 | 29 | 1,6 |
2311 | 2311K | 55 | 120 | 43 | 2,1 |
