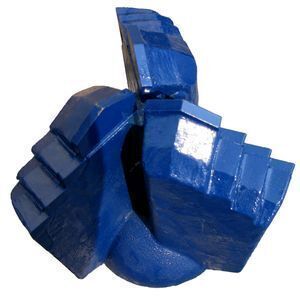

6 inch 3 Wings Step Water Well Drilling Drag Bit with Tungsten Carbide API 3 1/2" REG Pin Thread

Supplier: Guiyang Acedrills Rock Tools Co., Ltd.
Region: Guizhou, China
Contact: Mr Travis Xiang
Price: $77.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Video outgoing-inspection:	Provided;	Thread Connection:	3 1/2" API REG;
Quality:	High level, welding copper brazing tungsten carbide;	Single package size:	50X30X30 cm;
Local Service Location:	Russia;	Marketing Type:	Hot Product 2019;
Condition:	New;	Use:	Water Well Drilling, Ore Mining, Coal Mining, Rock Drilling;
Applicable Industries:	Construction works ,Energy & Mining,Water Well Drilling;	Brand Name:	Acedrills;
Experience in Rock Tools Industry:	Over 30 Years;	Net Weight:	6 kg;
Machine Type:	Drilling Tool;	Type:	Drag Drill Bits;
Application:	Grouting Drilling, Water Well Drilling, Construction;	Processing Type:	Casting;
The Other Name:	Tungsten Carbide Blade Drag Drill Bit;	Single gross weight:	10.0 KG;
Place of Origin:	Guizhou China;	Warranty:	3 months;
Material:	High Manganese Steel, Tungstern Carbide, Carbon Steel;	Packaging Detail:	Packed in Seaworthy Carton for Export;
Color:	Blue or customized;	Rock Formation:	Soft to Medium hard;
Selling Units:	Single item;	Special Size:	Available;
Dimeter:	6 inch;	Machinery Test Report:	Not Available;
Certification:	ISO9001:2015, SGS;	Showroom Location:	Russia;

6 inch 3 Wings Step Water Well Drilling Drag Bit with Tungsten Carbide API 3 1/2" REG Pin Thread

Drag Bits: Acedrills supplies a variety of drag bits for many types of projects drilling needs, including 3-wing type bits for soft and medium formations, 4-wing, especially 4-wing chevron type for harder formations. Each of our bits is machined from a forging to exacting standards and then tipped with tungsten carbide. Mining grade tungsten carbide tips are brazed to the bit wing face for heavy duty bits. The pin threads are CNC manufactured and wings surfaces hardening subsequently.

	Bits Type
	3-wing Step/ Chevron
	4-wing Step/ Chevron
	Drag Bit Blades
Dimension
51~445mm
67~445mm
140~4445mm
	Thread Connection
	N Rod, 2 3/8” ~ 6 5/8” API REG/IF
	3 1/2” ~ 6 5/8” API REG/IF

PRODUCT SPECIFICATION

Type	Dimension		Thread Connection
Type	inch	mm	Thread Connection
3-wing Step Type	2 ~ 17 1/2	51~445	N Rod, 2 3/8” ~ 6 5/8” API REG/IF
3-wing Chevron Type	2 1/2 ~ 8	64~203	N Rod, 2 3/8” ~ 4 1/2” API REG/IF
4-wing Step Type	7 7/8 ~ 17 1/2	200~445	3 1/2” ~ 6 5/8” API REG/IF
4-wing Chevron Type	2 5/8 ~ 6 1/2	67~165	N Rod, 2 3/8” ~ 3 1/2” API REG/IF
Drag Bit Blades	5 1/2 ~ 17 1/2	140~4445

Specification Notice

Notes:

1. Special size is available by given sample or drawings.

How to order?

Drag Bits: Diameter + Type(s) + Connection Thread

Drag Bit Blades: Bit Size + Pin Connection Thread

For brochure and more product information, please click here

to tell us the detail.

Drag Bits are the perfect solutions for soil, sand, sticky clay, and grouting drilling. They are designed for higher penetration rates in softer unconsolidated formations, provide lower costs per foot. Drag Bits are more aggressive than tricone bits, and have higher speed while lower cutting action.

Drag Bit Blades

Drag Bit Blades are replacement blades for replaceable step type drag bits.
