UV ink hardening drying tunnel with 600mm width TM-600UVF

Product details
After Warranty Service:Video technical support,Online support;Payment Terms:L/C,D/P,T/T,Western Union,MoneyGram;
Lead Time:7 DAYS AFTER PAYMENT;Key Selling Points:Easy to Operate;
Packaging Detail:wooden case;Free Fitting:one pcs UV lamp (3000W);
Showroom Location:None;Type:UV drying machine;
Automatic Grade:Semi-automatic;Core Components:PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;
Certification:CE;Price term:FOB Shenzhen China;
Brand Name:LC;Condition:New;
Local Service Location:None;Video outgoing-inspection:Provided;
Main Parts:UV lamp made by England;Dimension(L*W*H):2020*650*1200mm;
Warranty:1 Year;Funtion:use for drying UV ink;
Machinery Test Report:Provided;After-sales Service Provided:Engineers available to service machinery overseas,Online support,Video technical support;
Standards Certificate:CE;Warranty of core components:1 Year;
Application area:UV PRINTER ,UV GLUE, UV DRYING ,UV CURING;product name:flat UV curing Machine for UV drying for sale;
Packing:wooden crate;Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Printing Shops,Construction works ,Food & Beverage Shops,Advertising Company;
Voltage:380v;Supply Ability:100 Set/Sets per Month;
Marketing Type:New Product 2020;Port:Shenzhen port;
Place of Origin:Guangdong China;Weight:220KG;



Product Information

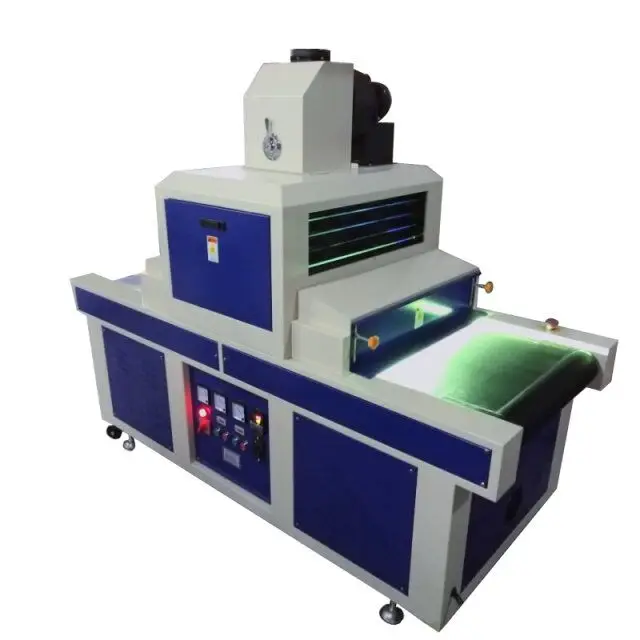

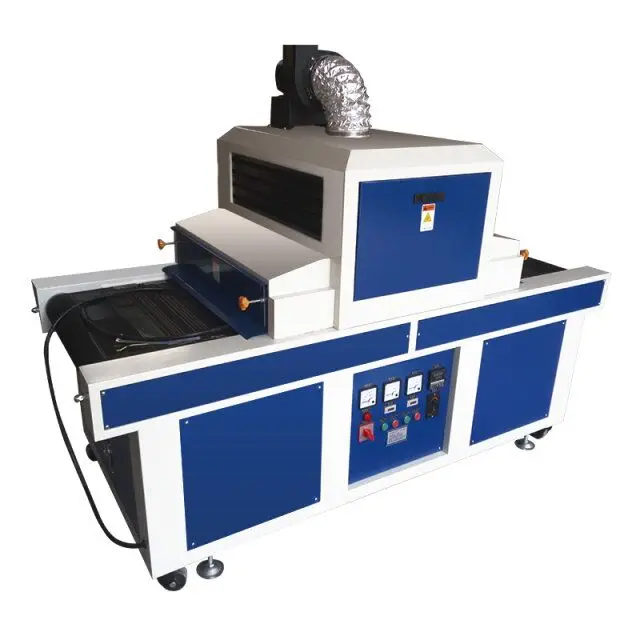

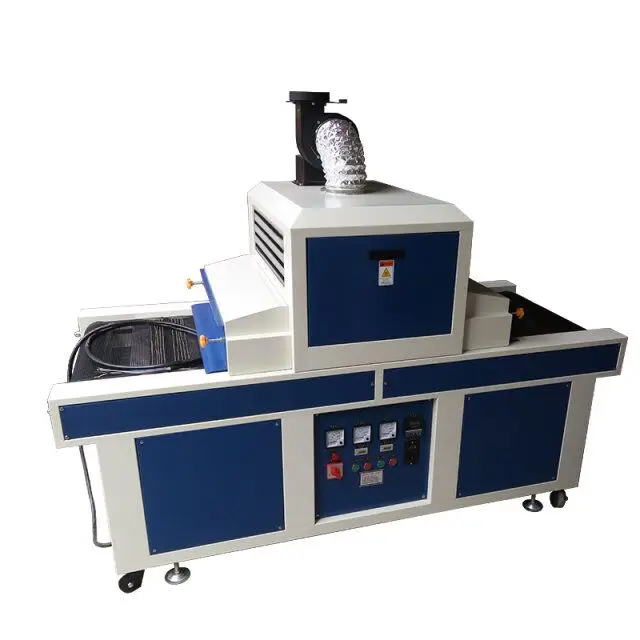

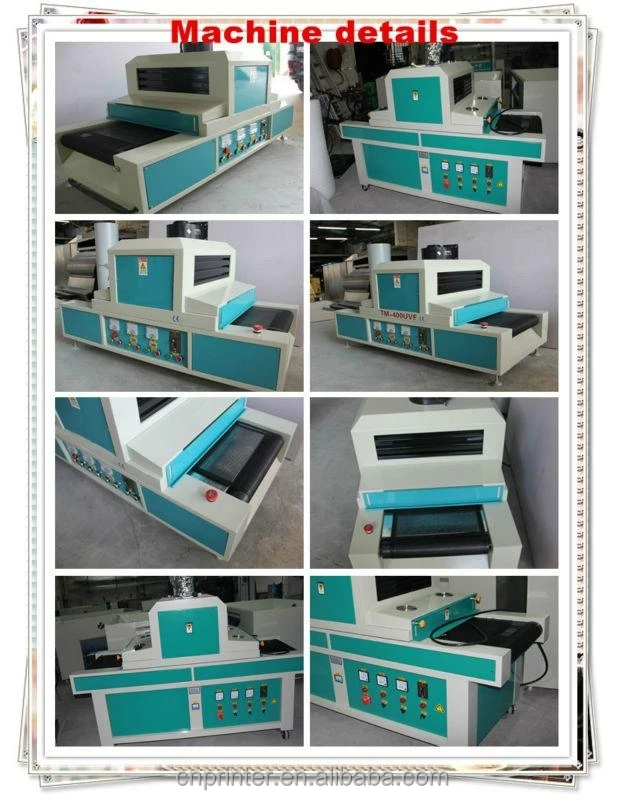

UV ink hardening drying tunnel with 600mm width TM-600UVF



Features and Advantages

    Durable modeling flat UV led curing Machine for UV drying for sale TM-600UVF is fit to UV drying , Paper UV PRITNING ,UV POLISHING , PVC,PET , PCB after printing UV printing, electronic product UV sparying , paper UV pritning, packing products UV drying
    UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics

Tech parameter

1. Model NO. TM-600UVF
2. UV Drying products:600*100*2000mm
3.Conveyor belt size:L2000* W600MM
4.UV Lamp power:2PCS*3KW /380V
5.Total wattage:7.5KW
6. Wind fan wattage: 500W/380V
7.motor wattage:1000W/1P/380V
8. Conveyor speed:0~10m/min
9. Speed change ways:Continue
10. UV Machine Dimension:L*W*H2020*800*1350
11. Weight:220kg

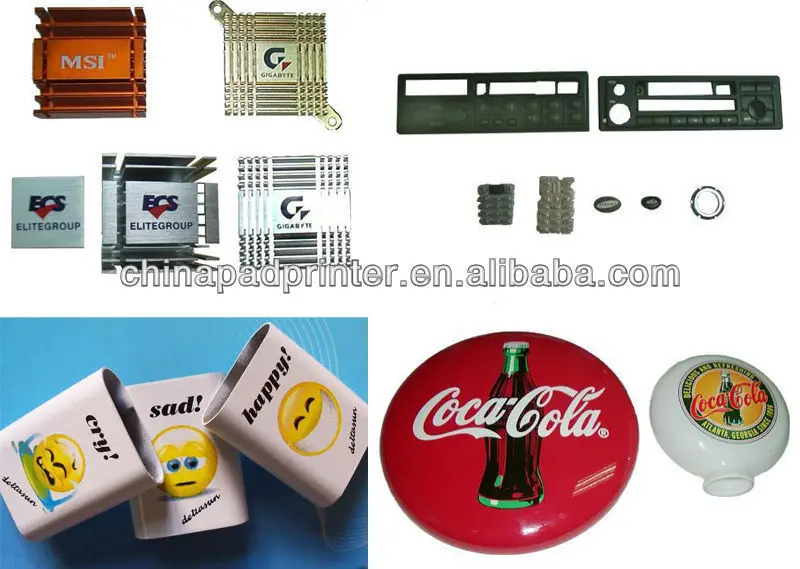

Product Effects





Company Information

    Luen Cheong Printing Equipment Limited is specializing in manufacturing LC brands.including various pad printer, silk screen printer, hot foil stamping machine, UV Curing machines & cliche making machine for 25 years.

    We passed ISO-9001-2000 certification in 2001 and we are a member of SGIA and all of our industrial printers had passed EURO'S CE standard.

    We are the gold membership of alibaba and got a huge credit all the world .

There are customers from 98 countries to visit our factory and we had a good cooperation.

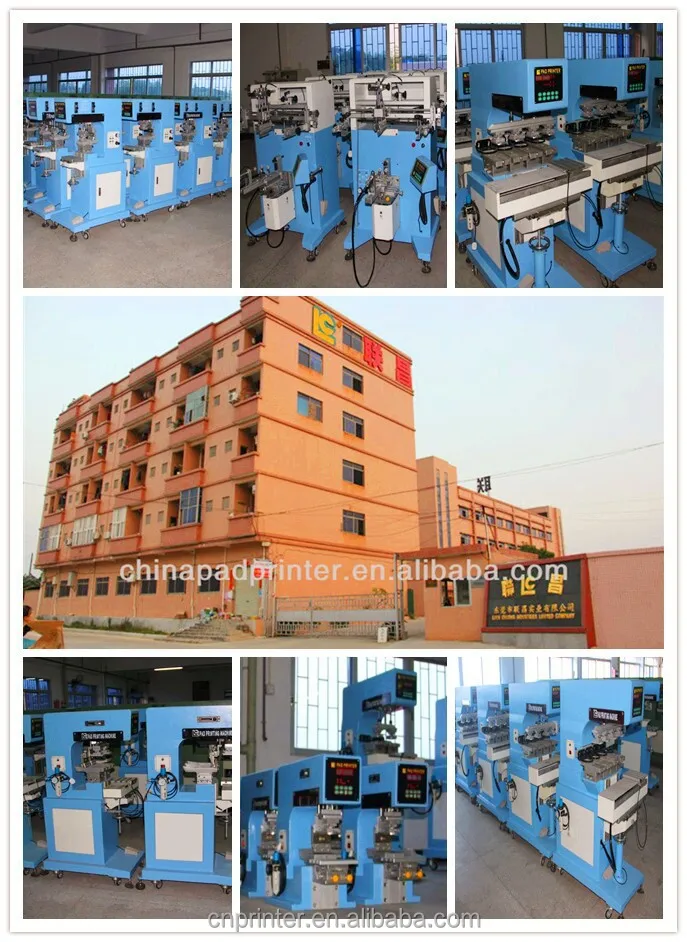

                             Our factory and showroom





Cooperative partners

    We do business with customers from 98 countries and we had a good cooperation.







Packaging & Shipping

Delivery Detail: Within 7 days from the receipt of payment

Packaging Detail:Wooden case





How to order?

How to order?

Inquiry→Quotation→Invoice→Payment→Production→Functional Test→Package→Delivery→Customs→Received→Aftersale Services



FAQ

Why you choose us?—Our advantages

1,We take leading position inprinting equipment industry and enjoy a good brand reputation both at home and abroad for our high quality products with reasonable price and first-class presale and after-sale service.

2,CE certificate,safe and reliable.

3,Use imported materials for operative parts- Primary UV lamps made by England ,stable and durable.

4,The application of machine is applicable in many fields.

Please feel free to contact us.
