Aluminum Angled Needle Roller Flat Cages 1000mm HW15/Needle Cage

Supplier: Changsha Terry Machinery Co., Ltd.
Region: Hunan, China
Contact: Ms Mery Zhou
Price: $155.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Port:	shanghai;	length:	base on your request;
sample order:	accpet;	Packaging Detail:	1. For small ones:anti-rust oil+vacuum plastic bag+paper box+wooden box 2. For big ones:anti-rust oil+waterproof belt+professional belt+wooden box;
Place of Origin:	Zhejiang China;	cross roller guide model:	used for MV4020;
Model Number:	HW15;	Material:	aluminum or plastic;
Product name:	Aluminum Angled Needle Roller Flat Cages HW15 FF2025ZW;	Bore Size:	10 - 25 mm;
Type:	Needle;	single roller load:	750N;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Retail,Printing Shops,cnc machine;	Number of Row:	Single Row;
Supply Ability:	100000 Piece/Pieces per Month;	Brand Name:	NTL;
Seals Type:	Open;	width:	6.8mm;
MOQ:	10PCS;	Precision Rating:	P0 P6;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;	Application:	CNC machine, Cross roller guide;
pitch:	4.5mm;

Product Description

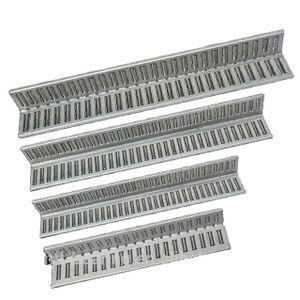

Aluminum Angled Needle Roller Flat Cages HW15 FF2025ZW

For Type FF, the polyamide resin cage has a dovetail joint groove on its both ends so that several cages can be jointed together into one unit.

For Type F..ZW, two rows of needle rollers are configured in the cage and the cage has an elastic joint on its center so as to enable to bend two rows of flat rollers to any optional angle at the elastic joint by heating them in oil of 70 to 90°C. The two roller rows bent to any optional angle can hold the bent shape unchanged, even under normal operating temperature, by being cooled down for several seconds, with the bending angle held unchanged.

Drawing and Size
