PET PP AIR TEXTURING YARN TWISTING MACHINE, POLYESTER POLYPROPYLENE ATY YARN TWISTING MACHINE

Supplier: Cissco Machinery Co., Ltd.
Region: Shanghai, China
Contact: Mr Louies Liu
Price: $3000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Place of Origin:	Shanghai China;	Warranty:	1 Year;
Spinning Method:	Rotor Spinning;	Condition:	New;
Supply Ability:	50 Set/Sets per Year Air texturing yarn twisting machine;	Packaging Detail:	Standard shipping package for air texturing yarn twisting machine;
Payment Terms:	L/C,T/T;	Production Capacity:	480m/min;
Certification:	CE;	Package Preview:	;
Power:	40Kw;	Dimension(LWH):	11080mm850mm1780mm;
Application:	Air textured yarn drawing machine;	After-sales Service Provided:	Field installation, commissioning and training,Engineers available to service machinery overseas;
Weight:	10Tons;	Port:	Shanghai;
Automatic:	yes;	Type:	Twisting Machine;
Brand Name:	Air texturing yarn twisting machine;

AIR TEXTURING YARN TWISTING MACHINE

Product Description

1. Brief introduction of ATY machine

The machine is characterized with novel design, high coiling speed, large capacity, simple operation, convenient roller change, less wear parts and low energy consumption with high level of electrome chanicai integration, this winder adopts single spindle motor drive frequency converting control and low power consumption.

The machine has high automatic degree each operator can look after many machines and product profile is flat thus the production and the management cost can be greatly reduced.

2. Specifications of ATY machine

Spindle gauge	440mm
Number of spindles	5 spindles/section
Thread speed	1000m/min(Max.)
Thread guiding distance	254mm, 300mm
Size: longwideheight	2256mm1200mm3866mm
Power of motor	3.5kw/spindle
Self-stop end down	Apply electronic sensor
Formation method	Apply cylindrical
Yarn rack feeding	Optional
With interlacing system

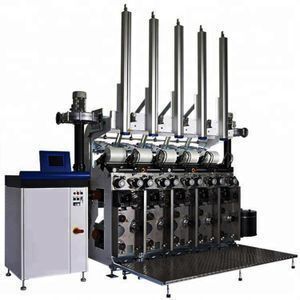

3. Pictures of ATY machine

Company Information

CissCo Machinery is the leading supplier for fiber/yarn twisting machinery in China. More then 95% twisting factories in China are using our twisting machinery.

CissCo Machinery has been persisting in making itself a modernized enterprise based on customers, featuring as " a great erudition, innovativeness, soundiness and cooperatives", following the philosophy of "endless operation in the service of the society" and under the guidance of the policy of the Chinese nation's 5 thousand year-old tradition of "morality-observation, trustworthiness, self-improvement and progress".

CissCo Machinery mainly manufactures TZ serial short-staple, polyester and natural silk two-for-one twisting machine, TZ serial doubling winder. The large roll two-for-one twisting machine and doubling winder series with TZ315 as their repersentatives(10kg content, for 12000D high-denier industrial-purpose silk) are widely used in China for cloth, polyester, cotton textile and natural silk industries. The spindles and textile machinery spare parts developed by our company enjoy a high appreciation of the broad masses of the users for their superior quality and extensive variety.
