vent hole: | 2-108X76; | p.c.d: | 285.75; |
Packaging Detail: | pallet or box; | Model Number: | 22.5X8.5; |
Port: | Qingdao; | outset: | 168; |
Place of Origin: | China; | Payment Terms: | L/C,T/T; |
certer hole: | 220; | bolt hole: | 10-26; |
Truck Model: | Dongfeng; | rim&disc (mm): | 6x11; |
Supply Ability: | 50000 Set/Sets per Month; | Finishing: | ZINC PLATED; |
Brand Name: | TIMAX/BETTER; | Material: | ALLOY; |
surface: | white; |

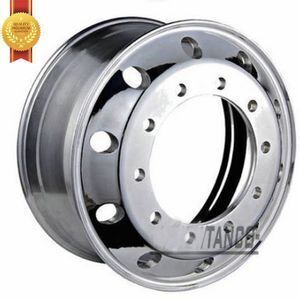

Truck Wheels 22.5X8.5
SIZE inch | INOFFSET mm | OUTOFFSET mm | max load kg | Thickness mm | bolt hole | center hole mm | PCD mm | dia for bolt hole mm | VALVE |
22.5*8.25 | 145 | 168 | 3650 | 23 | 10 | ø281.2 | ø335 | ø26 | 70MS-07 |
ø26.75 | |||||||||
ø32 | |||||||||
ø32.5 | |||||||||
145 | 168 | 3650 | 23 | 10 | ø220 | ø285.75 | ø26 | ||
ø26.75 | |||||||||
ø32 | |||||||||
ø32.5 | |||||||||
144.5 | 169 | 3650 | 24.5 | 10 | ø220 | ø285.75 | ø26 | ||
145 | 168 | 3650 | 23 | 10 | ø221 | ø285.75 | ø26 | ||
ø26.75 | |||||||||
ø32 | |||||||||
ø32.5 | |||||||||
145 | 168 | 3356 | 23 | 8 | ø221 | ø275 | ø26 | ||
ø26.75 | |||||||||
ø32 | |||||||||
ø32.5 | |||||||||
145 | 168 | 3356 | 23 | 8 | ø221 | ø285 | ø26 | ||
ø26.75 | |||||||||
ø32 | |||||||||
ø32.5 | |||||||||
ø32R22 | |||||||||
ø32.5R22 | |||||||||
144 | 167.5 | 3650 | 23.5 | 10 | ø281.2 | ø335 | ø26 | TR554D/ TR544D | |
ø26.75 | |||||||||
ø32 | |||||||||
ø32.5 | |||||||||
144 | 167.5 | 3650 | 23.5 | 10 | ø220 | ø285.75 | ø26 | ||
ø26.75 | |||||||||
ø32 | |||||||||
ø32.5 | |||||||||
144 | 168 | 3650 | 23.5 | 10 | ø221 | ø285.75 | ø26 | ||
ø281.2 | ø335 | ø26 | |||||||
144 | 167.5 | 3356 | 23.5 | 8 | ø221 | ø275 | ø26 | ||
ø26.75 | |||||||||
ø32 | |||||||||
ø32.5 | |||||||||
144 | 167.5 | 3356 | 23.5 | 8 | ø221 | ø285 | ø26 | ||
ø26.75 | |||||||||
ø32 | |||||||||
ø32.5 | |||||||||
ø32R22 | |||||||||
ø32.5R22 |
Other hot sizes TRUCK Wheels,
17.5*6 17.5*6.75 19.5*7.5 19.5*8.25 22.5*7.5 22.5*9 22.5*11.75 22.5*13 22.5*14 24.5*8.25
The advantage of our products
1, Have lighter weight about 1/2 as much as steel wheels
2, Fuel economy , Forged aluminum wheels are lighter in weight , which , easily increase accelerating performance and decrease braking energy demand , and correspondingly save fuel .
3, Quicker heat dissipation , reduce tire wear . increase longevity and reduce the possibility of tyre burst .
4, Higher loading capacity , compare with steel wheel , forging aluminum wheels have higher loading capacity five times as much .
5, Higher resistance to corrosion
6, 95 percent of the aluminum used in a vehicle is recycled
7, Using aluminum to replace steel saves 22.9kg of Co2 per kg of aluminum .
8, help increase the price of second-hand trucks and buses .
Products pictures
1. Machined finished
2.Outside Polished
3.Double Polished
1. Certificate
US SMITH
US DOT
EU TUV
Brazil INMETRO
IATF
2.Most professional team
1).Every inquiry and cooperation are in highly attention and valued.
2).most professional team:24 hours online service, 2 hours inquiry reply ,12 hours complain deal.
3).5 years wheel warranty.
4).Every customer's choice,requirements and feedback are highly respected.
packing
Single Packing with Pallets
Double Packing with pallets
Main Products | Tyre, Wheel |
Location | Shandong,China(Mainland) |
Year Sart exporting | 1999 |
Number of Employees | 11-50 people |
Total Annual Sales Volume | 20,445,000.00 |
Main Market | Africa,North America,Mid East,South Africa, Southeast Asia |
Certifications | ISO9001,ISO/TS 16949 |
Product Certificates | ECE, DOT,GCC,Inmetro,Smith, TUV,IATF |
Average Lead Time | 15 days |
Brands offer | TIMAX,Aeolus,Triangle,Taishan,Annite,Superhawk,Farroad,Comferser,Double King,Better Wheel |
Why choose TANCO TIRE?--------Quality & Technology
1.HIGH STRENGTH ,SAFE AND RELIABLE a)High loading Loading capacity of forged alloy wheel is 5 times than common iron wheel.forged wheels has a deformation of 5cm when carrying 71200kg while comon iron wheel just carrying 13600kg .In other words ,strength of forged alumium wheel is 5 times than iron wheel b)Impact test we simulated a lorry crashed into a curb stone at over 50km/h,equivalent to a weight of 910kg falling from a height crashing into the tire and wheel.Jananese VIA certificated the analog test result of test equipment :Forged alloy wheels just got minor damage ,but the iron wheel is very serious . |
2.LIGHT IN WEIGHT,EASY IN OPERATION a)LIGHT IN WEIGHT Forged alumum wheels for truck /coach weight less than 23kg,while steel wheels weight about 46kg ,so that each coach will be 161kg ligther itself.According to the statistics by international Alumium institute ,every 10% lighter itself ,an automobile will save 6%-8% fule generally b)Easy in Operation Because forged alumium wheels is light ,drivers in the autos which use such wheels feel easier in driving and specially stable when running fast ,meanwhile ,faster starting ,easier braking and excellent immoilization makes driving and excellet immobilization makes driving more enoyable |
3.FAST IN HEAT DISSIPATION, REDUCING TIRE BURST a) Excellent in safty To autos running in high speed ,tire burst and braking failure often happen becasuse of friction between tires and ground and frequent braking.For the heat conduction factor of alumium alloy wheels unique structure,the heat produced by autos will be let off easily .So it helpfs to keep the tire's temperature stable and reduce tire burst b)For the better heat dissipation ,forged alumium wheel will extend tire's life 26% Reducing tires' fraying by 26% for alumium alloy's unique feature ,combined with alumium alloy wheels' unique structure,forge alumium wheels' temperature in running is 20-30 degrees lower than steels ones.So tires' fraying is greatly reduced ,which makes each tires could run 30,000~50,000km more. c)Fast in heat dissiption ,reducing the maintaining cost of braking systerm Because forged alumium wheels' fast in heat dissipation and low temperature in running,the braking systerm is excellently protected,so as to reduce the maintaining cost greatly |
4.HIGH ROUDNESS ,EXCELLENT DYNAMIC EQUILIBRIUM Forged alumium wheels brief producing process:after forging to be the blank ,and then machine in CNC,the roundness error is less than 0.1mm .The steel wheel is welded by bending steel plate,roundness error is more than 1mm .Forged alumium wheel is homogeneous and the dynamic balance is less than 50g. While the dynamic balance of steel is greatly exceed this figure .Therefore,forged alumium wheel makes truck and bus better driver comfort and stable | ||||||||||||||
5.SHAPE UP BY FORGING IN ONE PIECE,ARTISTIC AND BEAUTIFUL Shape up by forging in one piece,the wheel surface is smooth and treated easily .After Mirror -surface turning ,the wheel have the unique metallic feeling .If coated.polished or chromed,the wheels will have noble apperance. |
We sincerely hope to cooperate with you and support you do better in your market!
Any interest in our wheels, please be free to contact us!
