Bus side windows: | Sliding/pushing; | Seats: | 16 - 30; |
Place of Origin: | China (Mainland); | ABS: | Yes; |
Heater: | Yes; | Supply Ability: | 1000 Unit/Units per Month mini bus price Coaster bus; |
Brand Name: | JAC; | Mini Bus dimension (LxWxH)(mm): | 7030x2050x2650(2730,2790); |
Fuel Type: | Diesel; | Packaging Detail: | Nude Packed for 7m 20 - 30 seats JAC mini bus Toyato type Coaster bus for sale; |
Engine Capacity: | < 4L; | Bus driving model: | Left or right hand drive; |
Air conditioner: | Yes; | Model Number: | (New Coaster bus); |
Transmission Type: | Manual; | Delivery Detail: | 30 days after payment for Coaster bus; |
Payment Terms: | L/C,T/T,Western Union; | Condition: | New; |
Port: | Shanghai, China for Coaster bus/mini bus; | Emission Standard: | Euro 3; |

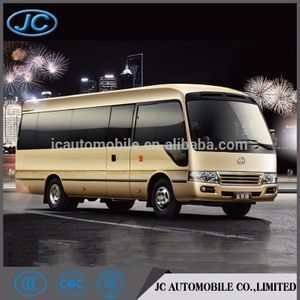

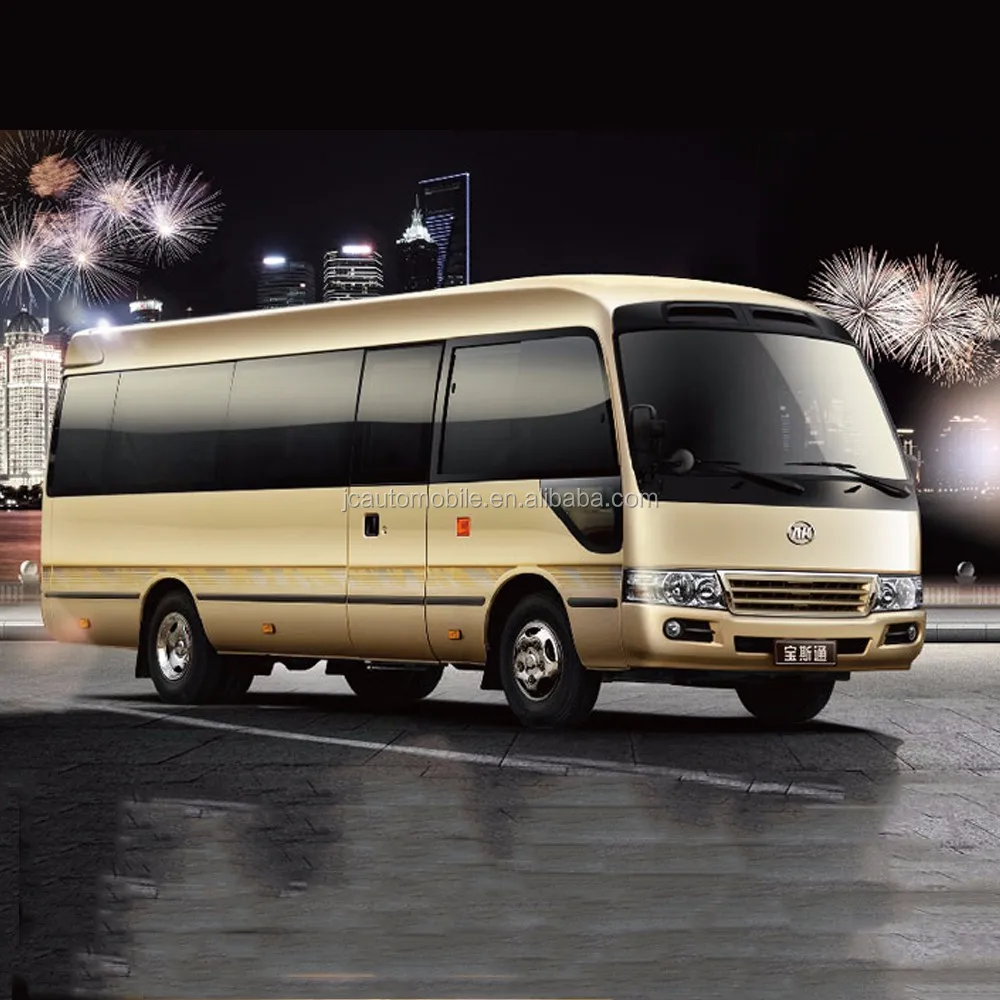

7m 20 - 30 seats JAC mini bus Toyota type Coaster bus for sale
7m 20 - 30 seats JAC mini bus Toyota type Coaster bus for sale configurations:
7m 20 - 30 seats JAC mini bus Toyota type Coaster bus for sale specification and configuration | ||
Performance | ||
1.1 | standard number of seats | 21+1 |
1.2 | dimmensions | 7030×2050×2650(2730,2790) |
1.3 | approach/departure angle(°) | 18°/7° |
1.4 | one stage height/interior height(mm) | ≤420 / 1800 |
1.5 | wheel base(mm) | 3935 |
1.6 | track(mm)(Front/Rear) | 1665/1525 |
1.7 | F/R overhang | 1180/1915 |
1.8 | Empty Vehicle Weight | 4080 |
1.9 | G.V.W. | 6500 |
1.10. | Max. Speed | 100 |
1.11 | luggage rack capacity | 0.33 |
Engine | ||
2.1 | chassis model | HFC6700KYD3 |
2.2 | engine model | YC4FA130-30 |
2.3 | engine position,fuel,type | Front, diesel, straight, vertical, turbocharged and intercooled |
2.4 | emission standard | Euro III |
2.5 | capacity | 2.982 |
2.6 | rated power[kw/rpm] | 95/3200 |
2.7 | Max.torque | 345/1600-2400 |
Chassis | ||
3.1 | clutch | Dry single diaphragm spring (φ325) |
3.2 | transmission | LC5T40 |
3.3 | front axle | forged pieces,H-shape cross section,both ends boxing axle,2500KG |
3.4 | Rear axle | single reduction, hyperbolic gear axle,5000KG |
3.5 | suspension | Leaf spring 3/4 |
3.6 | steering | Power steering |
3.7 | final ratio | 5.375 |
3.8 | service brake | air brake |
3.9 | parking brake | central drum |
3.10 | oil tank capacity | 90L |
3.11 | Battery / generator | 120A.hX2 / 100A |
3.12 | tyre | 7.00R16 |
Body&trim | ||
4.1 | air conditioner | inner built, 14000W, JIEXING brand |
4.2 | defroster | yes |
4.3 | video | radio, with USB function |
4.4 | seats | adjustable,non-movable |
4.5 | Front grille | golden colour |
4.6 | tachograph | with function of GPS &print |
4.7 | rear view mirror | standard rod type |
4.8 | wheel cover | stainless steel |
4.9 | passenger door | electrical folding door |
4.10 | inner lamp/loud speaker/ sunvisor | 3pcs/4 pcs/1pc |
4.11 | side windows | sliding/pushing |
4.12 | paint | common |
4.13 | rear upgrade sets | rear mirror, rear wipers, rear wiper cleaner, brake light |
4.14 | roof hatch | yes,without ventilator. |
4.15 | others | digital clock, electric horn, anti-friction trim, curtain |
JC AUTOMOBILE grants our clients a twelve-month-period or 2000 hours warranty for any vehicles purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective parts will be repaired or replaced free of charge at our discretion.
JC AUTOMOBILE is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness, and appropriate function. With our global distribution network, you are guaranteed with fast delivery and services, wherever you are. Please submit your spare parts requests to us and list product name, model No, Chassis VIN NO, description of the parts, etc. We guarantee that your request will be handled as soon as possible.
JC AUTOMOBILE provides perfect facilities,comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws, regulations etc, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factor field or at clients’ site.
Normally we can work on T/T term, Western Union or L/C term:
1. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for old clients.
2. On L/C term, a 100% irrevocable L/C without “soft clauses” can be acceptable. Please seek the advice from the individual sales manager whom you work with.
We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year. We only adjust our price based on two situations:
1. The rate of USD:RMB varies significantly according to the internally currency exchange rates.
2. The increasing labor cost and raw material cost.
We can ship truck/bus by various transportation tools:
1. For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe etc, either by container or Ro-Ro/Bulk shipment.
2. For neighborhood countries of China, such as Russia, Mongolia, Kazahkstan, Uzbekistan ets …, we can ship it by road or railway.
3. For light spare parts in urgent demand, we can ship it by internally courier service, such as DHL, TNT, UPS, or Fedex.
