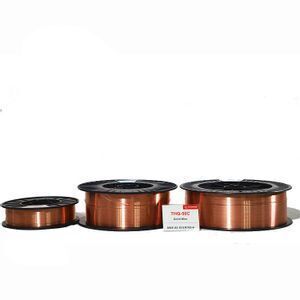

BRIDGE brand high quality(iso) copper wire ER70S-6 welding mig

Supplier: Tianjin Bridge Welding Materials Group Co., Ltd.
Region: Tianjin, China
Contact: Mr Luca Sun
Price: $0.96 / >=3 kilograms
Min. Order: 3 kilograms

Click here to contact

Product details

Diameter:	0.8-1.6mm;	Packaging Detail:	5KG/15KG/20KG/SPOOL;250kg/350kg/drum;
Single package size:	27.5X27.5X10 cm;	Application:	mild steel structure;
Brand Name:	BRIDGE;	Material:	copper coated;
Standard:	AWS A.5.18 ER70S-6;	Place of Origin:	Tianjin China;
Weight:	15KG/20KG/SPOOL;	Model Number:	ER70S-6(THQ-50CG3Si1);
Single gross weight:	3.5 KG;	AWS:	A5.18 ER70S-6;
Advantage:	Excellent Ductility;	Market:	Global;
Flux Content:	0;	Packing:	5Kg//15Kg/20Kg/250kg;
Package Preview:	;	Melting Point:	1000;
Working tools:	Soldering Stations;	Spool Size:	D270mm/D300mm;
Spool materials:	Plastic Spoo L(Black);	Certificate:	ABS CCS ISO BV RINA;
Package:	15kg/spool;	Selling Units:	Single item;

BRIDGE brand high quality(iso) copper wire ER70S-6 welding mig

PRODUCT DISPLAY

THQ-50C
(ER70S-6)

GMAW Solid Wire

AWS A5.18 ER70S-6

ISO 14341-A-G42 3C1 Z3Si1

GB/T 8110 ER50-6

APPLICATIONS:

It is suitable for the welding of carbon steel and low alloy steel, such as Gr.50, and so on.

CHARACTERISTICS:

This GMAW wire is for Rm 500MPa level carbon steel with shield gas of CO2 or M21. Small spatter, beautiful appearance, high deposition efficiency and small weld metal porosity sensibility. All positions is suitable.

ATTENTION:

1. The rust, oil, water and other impurities of the weld area must be removed before welding.

2. The mechanical properties of all weld metal be decided by heat input, normally the small heat input will better than larger one.

WELDING POSITIONS:

PA, PB, PC, PD, PE, PF

PRODUCT APPLICATION

Some of our products have been applied to overseas key projects.

Electrode, SAW wire and flux of 600MPa Grade & 800MPa Grade

applied to hydro steel at Laos pumped storage power station

E6010 cellulose electrode Applied to the Ghana TEMA pipeline project in Africa successfully. It breaks the monopoly of Bohler cellulose electrode and won the bidding of oil pipeline Ghana tank project
