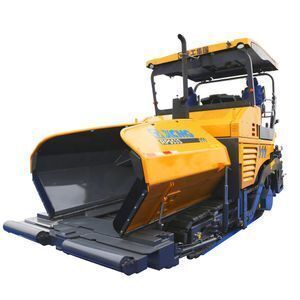

Road building machinery RP953 asphalt paver level sensor cheap price

Product details
Max. Paving Thickness:350/400/500mm;Hopper Capacity:20.2t;
Engine Model:BF6M1013 Shanghai;Condition:New;
Place of Origin:Jiangsu China;Warranty:1 YEAR;
Max. paving width:10.5m;Port:Shanghai;
Dimension(L*W*H):8535*3800*5580mm;Production Capacity:900t/h;
Color:yellow;After-sales Service Provided:Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Power:150/162/159kw;Weight:22t;
Brand Name:canmax;Keywords:crawler roader paver;
Theoretical productivity capacity:900t/h;Max. paving thickness:350,400/500;
Supply Ability:50 Unit/Units per Month;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Packaging Detail:Packing according to customer's requirements.;Paving Speed:0-3.6km/h;
Certification:ISO;Engine Power:150/159 162;



Road building machinery RP953 asphalt paver level sensor cheap price

Product Description

Driving left and right independent drive, microcomputer control, paving speed using constant-speed automatic control technology. The diesel-powered SC9DK220 diesel engine has a powerful power of 162kW. Adopting a three-in-one powerful composite radiator, the transmission and distribution adopt four sets of independent hydraulic system transmission, automatic material level control, ultrasonic sensor control technology for material distribution, and ultrasonic or material control technology for feeding materials to ensure the material trough The material level is stable. The height of the dividing device can be conveniently moved up and down to accommodate different paving thicknesses and reduce segregation. High wear-resistant alloy materials are used for the material-dividing blades, and highly wear-resistant steel plates are used for the material conveying floor and the screed bottom plate to effectively extend the service life of the machine. Central centralized lubrication system can automatically evenly lubricate bearings in high temperature parts.



Main Parameter



DescriptionUnitParameter value
Dimension 6610×2600×3950
Weightkg22000-30000
Driving speedkm/h0-3.0
Basic pave widthm2.5-10.5
Maximum pave widthm10.5
Maximum layer thicknessmm400
Maximum paving speedm/min18
Hopper capacitykg15000
Maximum laydown ratet/h900
Rate powerkw/rpm162/2000
