Package Preview: | ; | Applicable Pipe Thread: | 1/2'-3/4',1'-2'; |
Weight: | 18kg; | Application: | Galvanized Steel Pipe Threading; |
Single gross weight: | 68.0 KG; | Dimensions: | other; |
Package: | 1 set/plastic case/ctn; | Model Number: | ZT-B2-50F; |
Frequency: | 50/60Hz; | Voltage: | 220v /110v; |
Warranty: | 1 Year; | Brand Name: | ODETOOLS; |
Packaging Detail: | 1set in a engineer case, 1 case in a ctn; | Dies: | NPT Dies; |
COLOR: | Red; | Item: | Pipe Threading Tools; |
Selling Units: | Single item; | Feature: | Eco-Friendly; |
Certification: | CE; | No-Load Speed: | 28r/min; |
Pipe Material: | Carbon Steel; | Single package size: | 55X25.8X25 cm; |
Place of Origin: | Zhejiang China; |

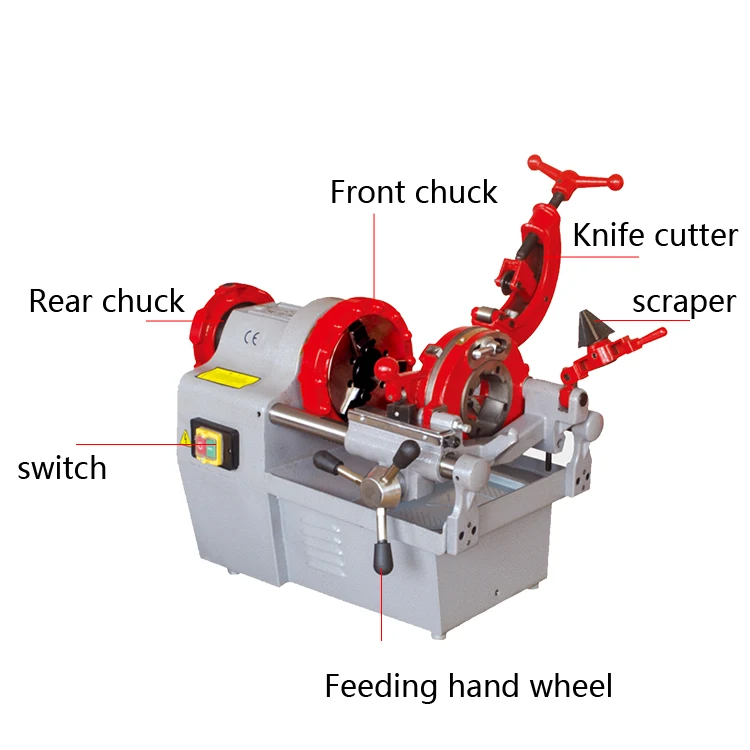

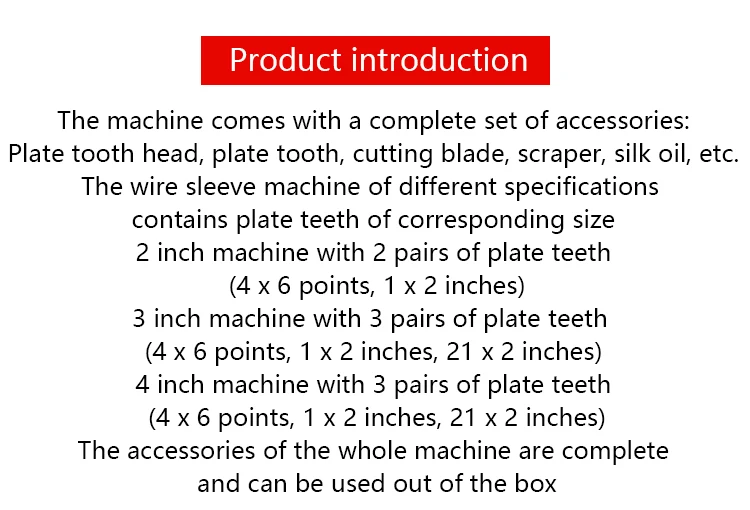

The machine comes with a complete set of accessories:

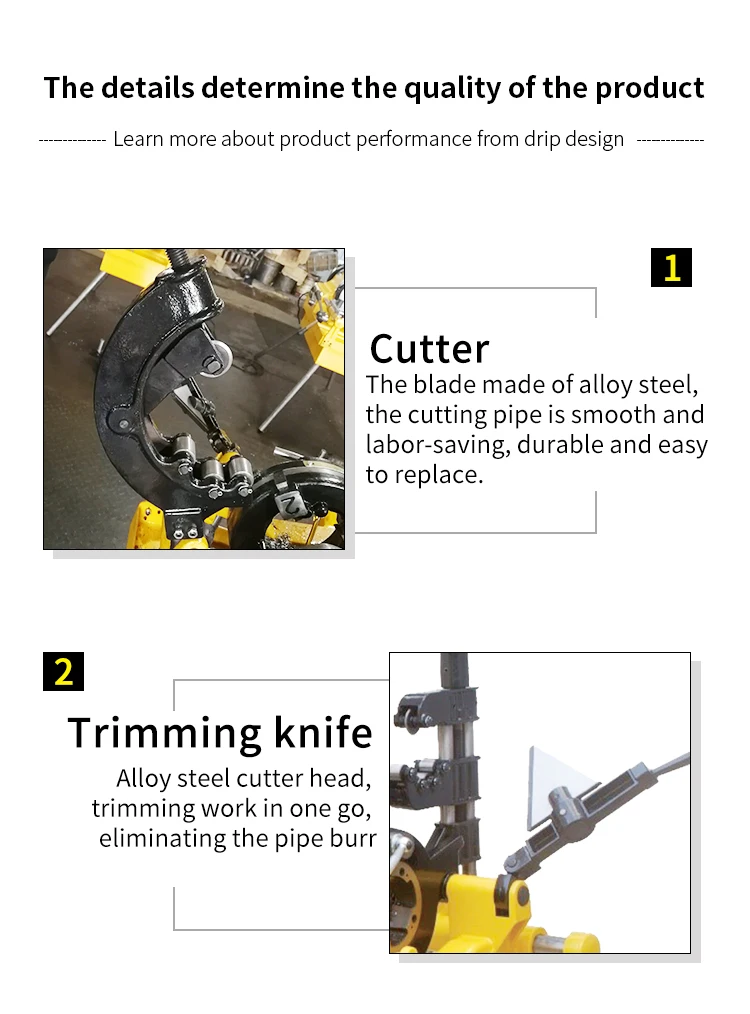

Plate tooth head, plate tooth, cutting blade, scraper, silk oil, etc.

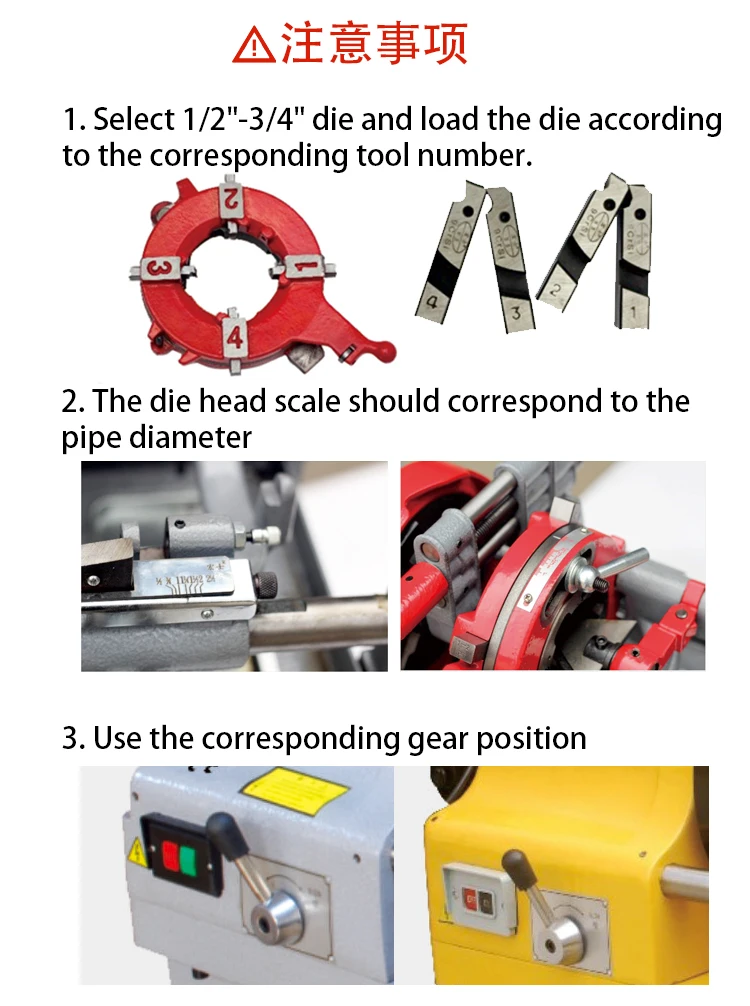

The wire sleeve machine of different specifications
contains plate teeth of corresponding size
2 inch machine with 2 pairs of plate teeth
(4 X 6 points, 1 x 2 inches)
3 inch machine with 3 pairs of plate teeth
(4x 6 points, 1 X 2 inches, 21 X 2 inches)
4 inch machine with 3 pairs of plate teeth
(4X6points,1X2inches,21x2inches)
The accessories of the whole machine are complete and can be used out of the box

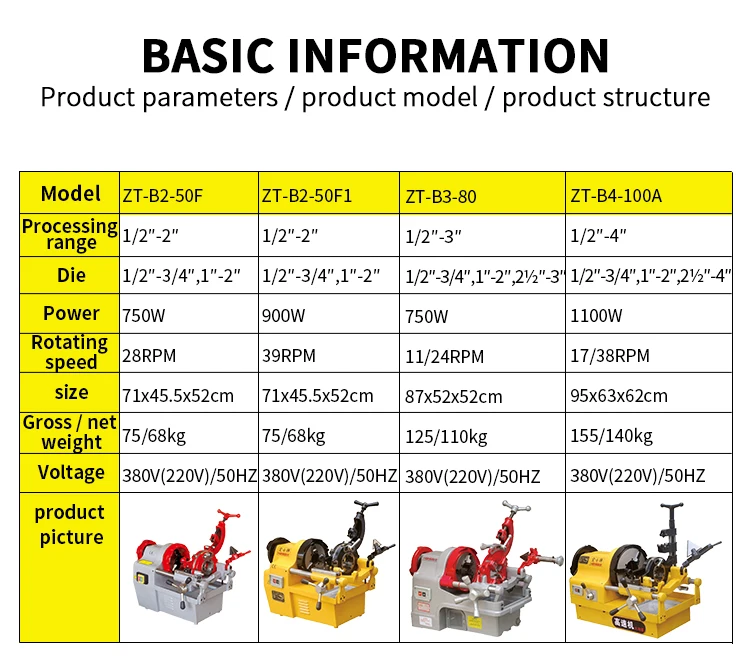

Model | ZT-B2-50F | ZT-B2-50F1 | ZT-B3-80 | ZT-B4-100A |
Processing range | 1/2''-2'' | 1/2''-2'' | 1/2''-3'' | 1/2''-4'' |
Die | 1/2''-3/4'', 1''-2'' | 1/2''-3/4'', 1''-2'' | 1/2''-3/4'', 1''-2'', 2 1/2''-3'' | 1/2''-3/4'', 1''-2'', 2 1/2''-4'' |
Power | 750w | 900w | 750W | 1100W |
Rotating speed | 28RPM | 39RPM | 11/24RPM | 17/38RPM |
Size | 71*45.5*52cm | 71*45.5*52cm | 87*52*52cm | 95*63*62cm |
Gross/net weight | 75/68kg | 75/68kg | 125/110kg | 155/140kg |
Voltage | 380(220)v/50Hz | 380(220)v/50Hz | 380(220)v/50Hz | 380(220)v/50Hz |
1 set in a engineer case, 1 case in a ctn
The company supplies all kinds of tools and intelligent equipments for fire rescue , engineering construction, and provides not only a variety of products which are more energy-saving and environmentally friendly but also creative design solutions. Besides, the company can offer matched product solutions in many fields.Such as the processing of steel bar , busbar and steel plate, high-speed rail, subway, mining, earthquake, car accident, fire and other field construction. In the end,the company always plays an important role in emergency support for gas stations, factory buildings, coal mines facilities, etc.
With the determination of hard working and the mission to respond to customers quickly,the company regards customer service as the center and quality as the basis, providing effective solutions in a timely manner, continuously creating value for customers for a long time, and providing product sales and technical services for domestic and foreign customers. The company has strong R & D strength and serves as a university R & D base to jointly develop industry-leading technologies.
Our vision: To build an employee entrepreneurship platform and become a world-class MRO one-stop procurement service provider
Our mission:Provide each customer with the best service and help every employee to achieve success.
Our slogan: Create value ,win the respect and build top brabd with the best service
Our spirit: pragmatism, integrity, innovation, unity, gratitude, fraternity, passion and collaboration.
1. Are you factory ?
Yes.Our factory in hangzhou. It is only one hour from Shanghai. welcome to visit the factory any time .
2. How long is your machine warranty ?
Warranty of Belton product is one year(Artificial damage and incorrect use is not included),
within warranty period ,we will offer free part and maintainvideo ,or ever can teach you
face-to-face .if machine have serious quality problem ,we support to back .
3. What is your shipping way ?
Express (DHL,Fedex,TNT),By air ,Or Sea. We will choose one shipping way to suit customers request.
