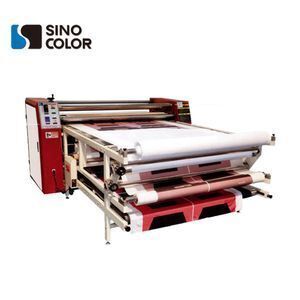

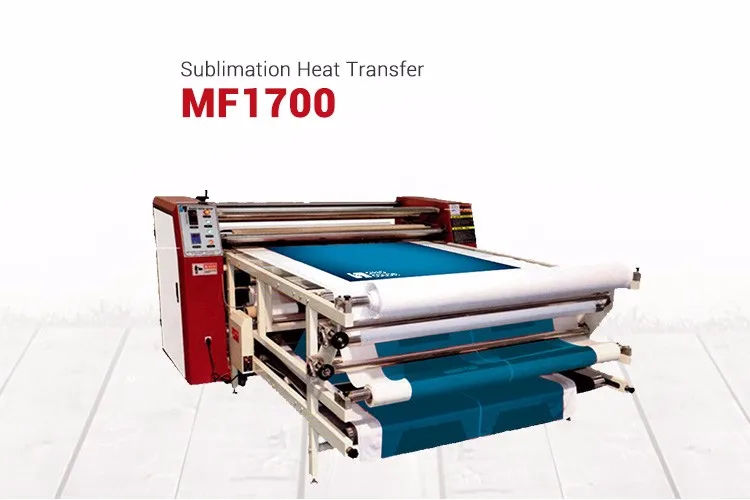

Large Format Sublimation Heat Press MF1700 Heat Transfer Machine

Supplier: Sinocolor Printing Equipment (shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Diana Cai
Price: $11000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	1 set in 1 wooden case;	Weight:	1380KG;
Video outgoing-inspection:	Provided;	Condition:	New;
Color & Page:	Multicolor;	Supply Ability:	300 Set/Sets per Month;
Packing Size:	2600 x 1300 x 1650mm;	Local Service Location:	Viet Nam,Mexico,Spain,Sri Lanka,Romania;
Voltage:	110V/220V;	Usage:	Other;
Brand Name:	SinoColor Print Tech;	After-sales Service Provided:	Engineers available to service machinery overseas,Online support,Video technical support;
Type:	Heat Transfer;	Core Components:	PLC;
Work Table Size:	1860 x 1920 x 1000mm;	Diameter of heating roller:	420mm;
Plate Type:	Heat Press;	Showroom Location:	None;
Port:	Shanghai;	Marketing Type:	Hot Product 2019;
Automatic Grade:	Semi-automatic;	Warranty:	1 Year;
Dimensions(LWH):	2470 x 980 x 1320mm;	Applicable Industries:	Garment Shops,Printing Shops,Advertising Company;
Place of Origin:	Shanghai China;	Payment Terms:	T/T,Western Union,MoneyGram;
Suitable Media:	Polyester fabric rolls, garments, flags etc;	After Warranty Service:	Video technical support,Online support;
Warranty of core components:	1 Year;	Key Selling Points:	high quality;
Certification:	CE Certificate SGS;	Machinery Test Report:	Provided;

Product Description

Sublimation Heat Transfer

Model No.	MF-1700	MF-2600	MF-3200
Suitable Media	Polyester fabric rolls, garments, flags, tent, blanket, curtain etc
Power Supply	3 phases, 220v/60hz,3 phases , 380v/50hZ
Power	18kw	30kw	36kw
Quantity of electric element	12pcs (1.5kw)	12pcs (2.5kw)	12pcs (3.0kw)
Diameter of heating roller	420mm(16.5″)
Width of Blanket	1730mm(68″)	2600mm(102″)	3300mm(130″)
Machine Size	2470 x 980 x 1320mm	3290 x 980 x 1320mm	4010 x 980 x 1320mm
Work Table Size	1860 x 1920 x 1000mm	2660 x 1920 x 1000mm	3360 x 1920 x 1000mm
Packing Size	2600 x 1300 x 1650mm	3600 x 1500 x 1650mm	4250 x 1500 x 1650mm
Net Weight	1380kg	1880kg	2180kg

Features

* Both thermal transferring and low temperature transferring are available
* Perfect result of transferring
* It uses duplex oil tank to get more even temperature output.

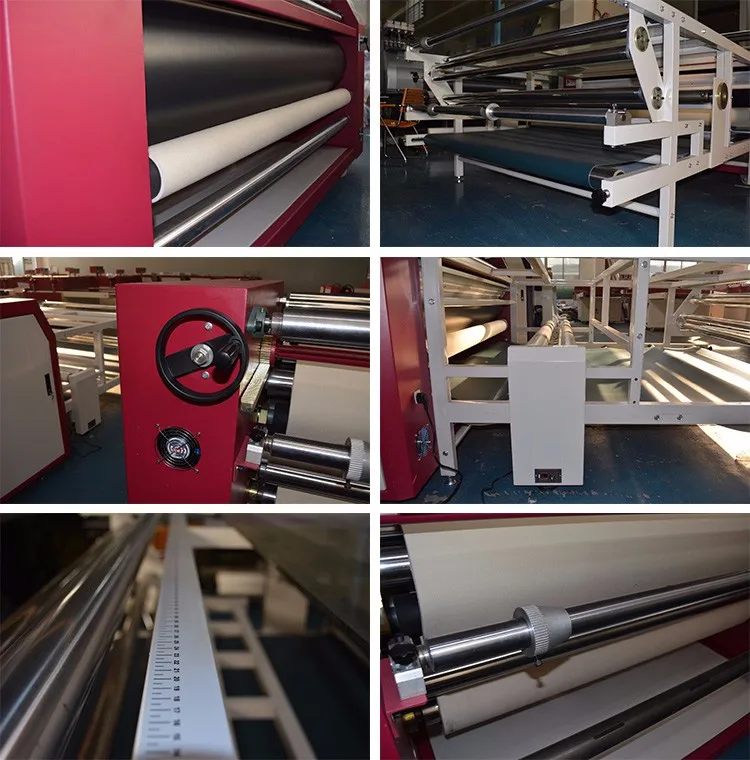

* Precise mechanical structure
* Adjustable air pressure control system improves transferring results of different kinds of materials

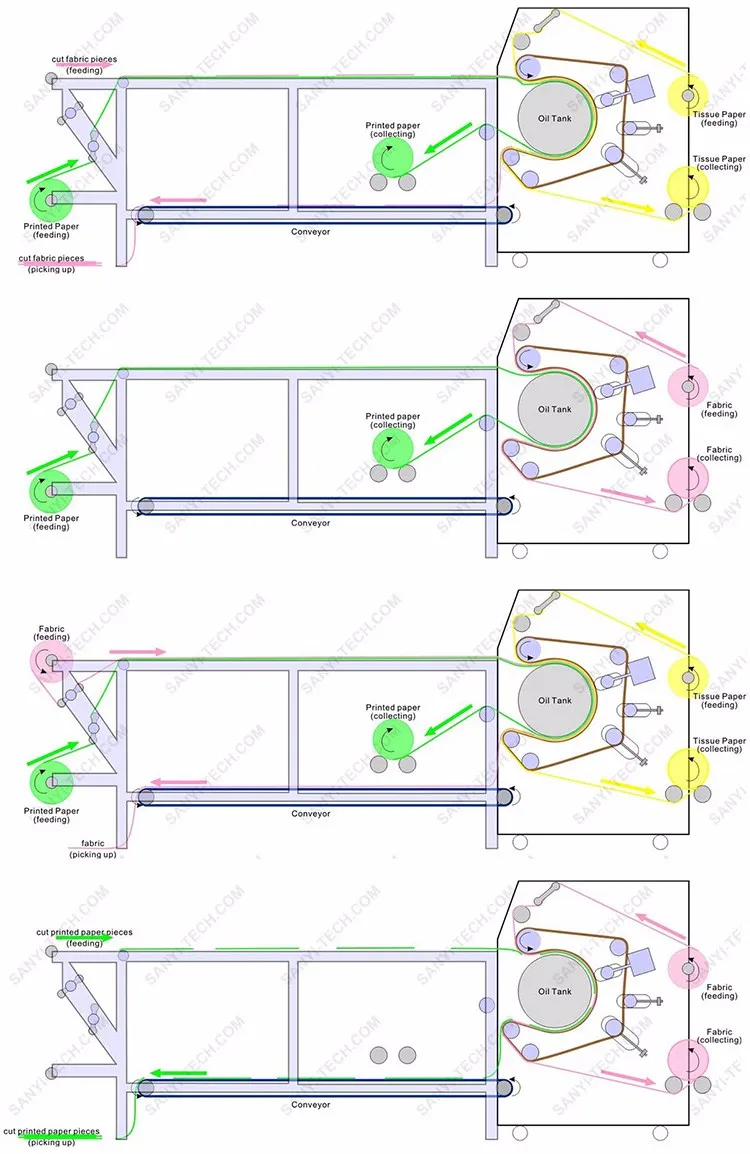

* It feeds and collects rolls and clothing pieces in parallel by roll- to-roll system without drifting the materials to left or right
* Blanket can be separated from oil tank easily
* Customized machine to work with different power supplies.

SinoColor MF series multi-functional oil thermal transfer machine is suitable for both thermal transferring on fabrics and low temperature transferring on cotton materials. With high quality oil heating system, MF machine is a perfect choice for fabric and clothing printing.
