Image sensor: | CMOS; | Single gross weight: | 2.0 KG; |
Place of Origin: | Guangdong China; | Function: | Waterproof,NIGHT VIEW,Parking Line; |
Power: | Max 2.5W; | color: | black; |
resolution: | 480*RGB*234; | Warranty: | 12 Months; |
Packaging Detail: | 10sets/carton N.W.: 9.5Kg G.W.: 9.5Kg; | camera waterproof: | IP67; |
Brand Name: | safe; | display: | 7" rear view mirror; |
Certification: | ce,FCC,RoHS; | View Angle: | 90°-120°; |
Voltage: | DC 12V; | Name: | wireless rear view system; |
sample: | available; | Single package size: | 23X12X8 cm; |
certificate: | CE,FCC; | Video Input: | 2 channels; |
Type: | Parking Sensor System,Reverse Camera,Monitor,Backup camera,Wireless Rear Camera; | Model Number: | PZ07A-W; |
Selling Units: | Single item; | suitable for: | universal car; |

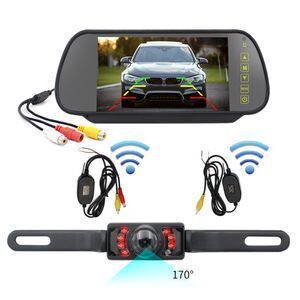

factory supply Popular! 7'' car blind spot rear view mirror with car camera

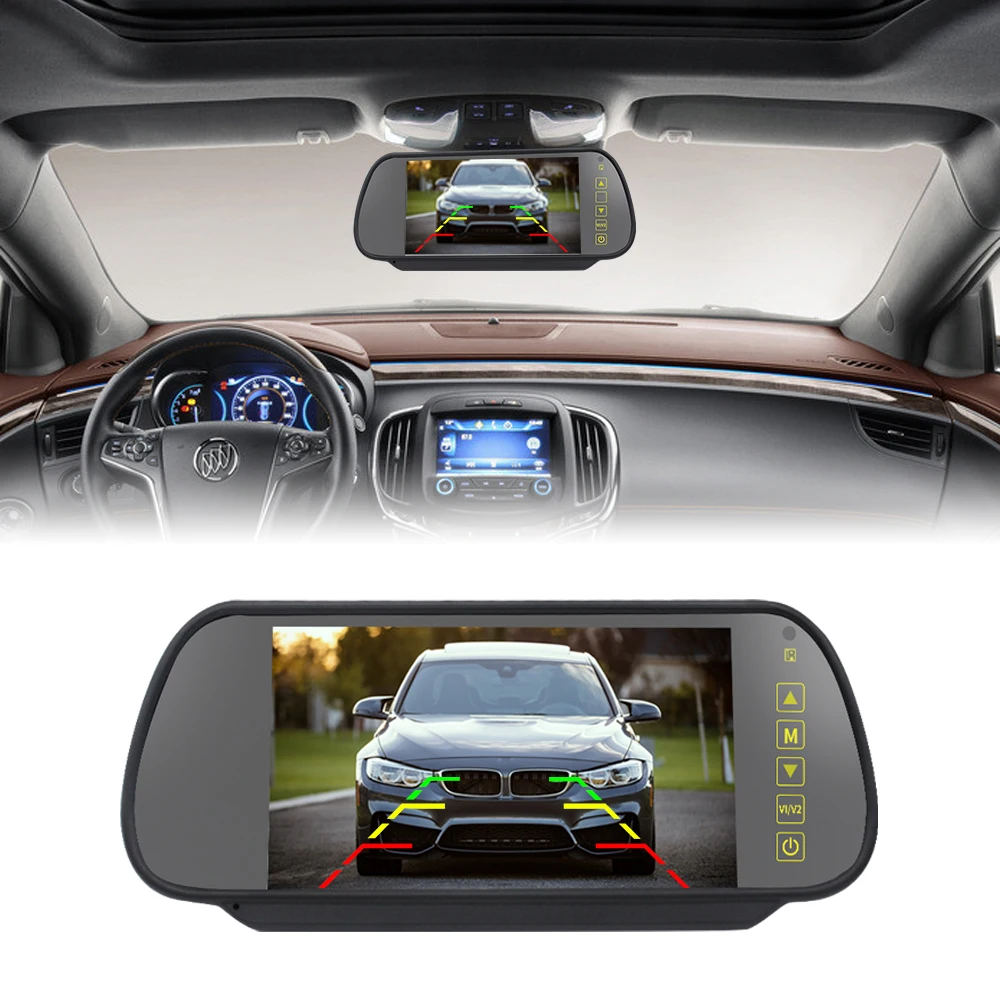

7'' Rear View Mirror LCD Monitor Photo:

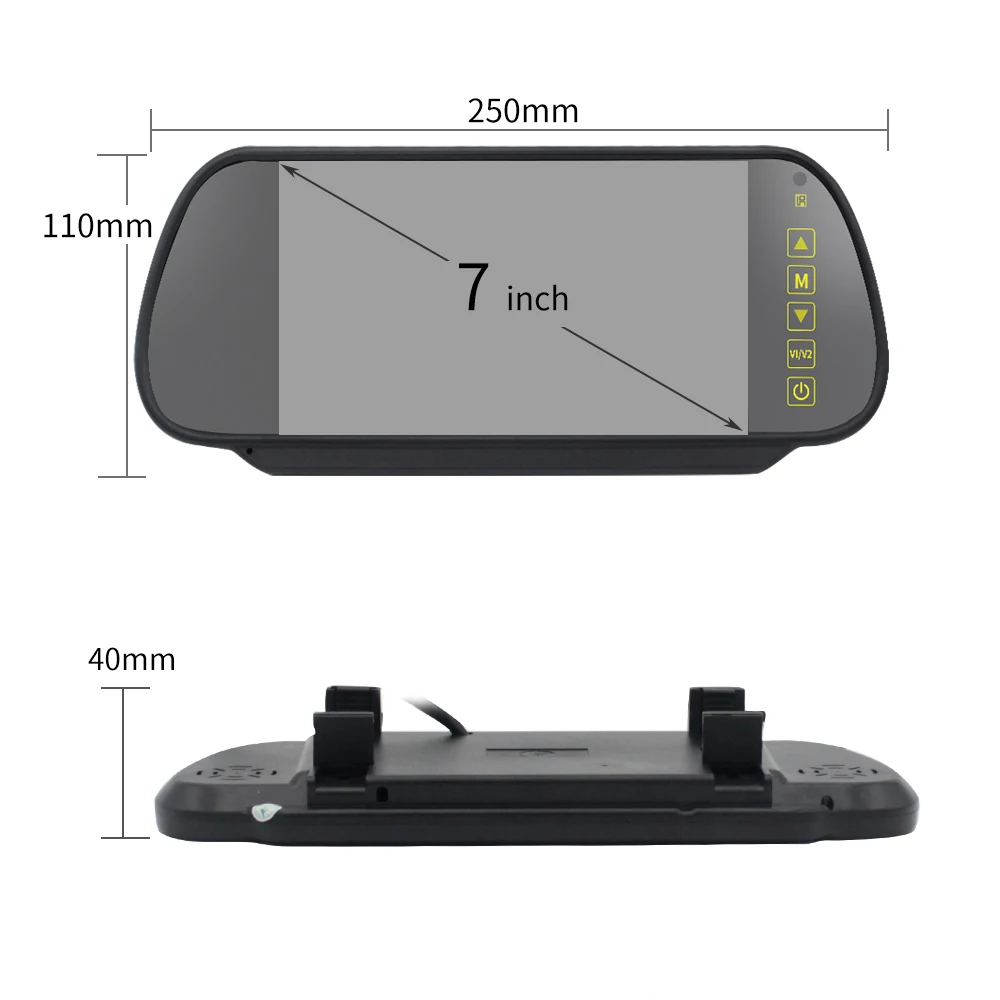

7'' Rear View Mirror Monitor Features:
-- 7 inch LCD Rearview Mirror Monitor
-- Screen size: 7 inch
-- Aspect ratio: 16:9/4:3
-- Resolution: 480RGBx234
-- Video system: NTSC/PAL compatible
-- Power supply: DC 12V~24V
-- Rated power: 7W
-- Supports car DVD, VCD, camera, and other video equipment
-- With 2 video input port AV2 connects to car rearview camera, AV1connects to DVD or VCD
-- When parking the car ,the rearview image appears onto the screen automatically
-- Operation mode: touch buttons and remote control operation
-- With the menu button,brightness/contrast/hue/ language is adjustable
-- No audio input or output
-- Operating Temperature: -10℃~+50℃
-- Storage temperature:-20℃~+60℃
-- Easy installation, without damaging any parts of the car, clip on theoriginal mirror
-- Special optical lens substitute the original rearview mirror.

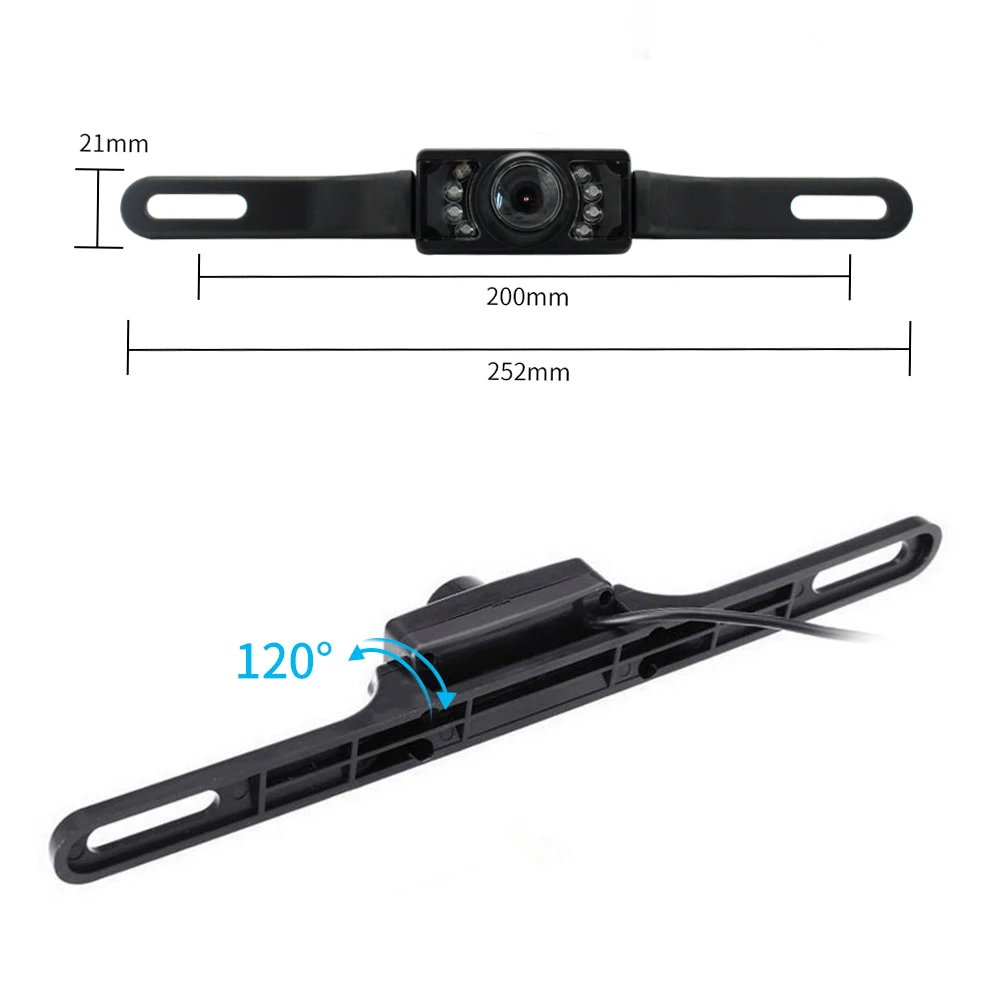

Car Backup Camera Detail:
-- Image sensor: CMOS 7070

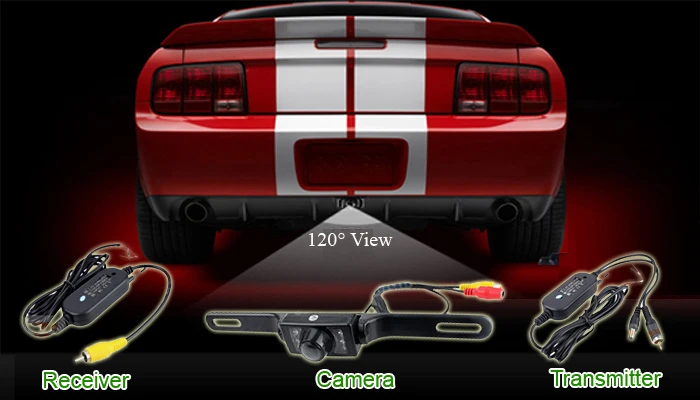

-- Lens angle: 120°
-- Effective pixels: 656*492 pixel
-- Resolution: 420TVL
-- TV system: NTSC/PAL optional
-- With a distance line markings
-- White balance: automatic
-- Waterproof grade: IP67
-- Power supply: DC 12V
-- Current consumption: 60mA
-- Sensing area: 4.08x 3.102mm
-- Minimum illumination:0.1-0.5Lux/ F=1.2 (0 Lux with IR on
-- Video output: RCA connector, 1.0Vp-p, 75ohm
-- Operating Temperature: -20℃ - 75℃,RH 95% MAX
-- Storage temperature:-40℃ - 85℃,RH 95% MAX
-- Color: black
-- Night visual range: 0-5m
-- Applicable to the various brands of vehicles: cars, mini-vans, etc.

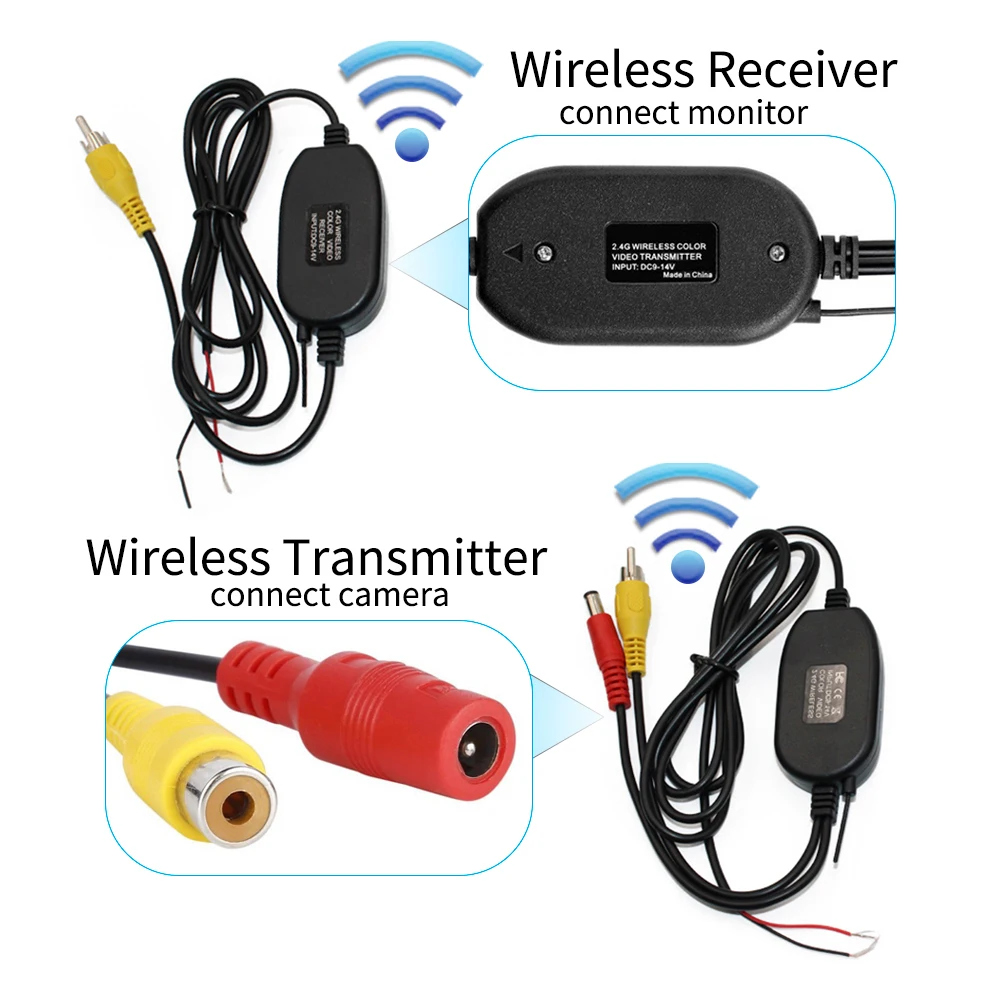

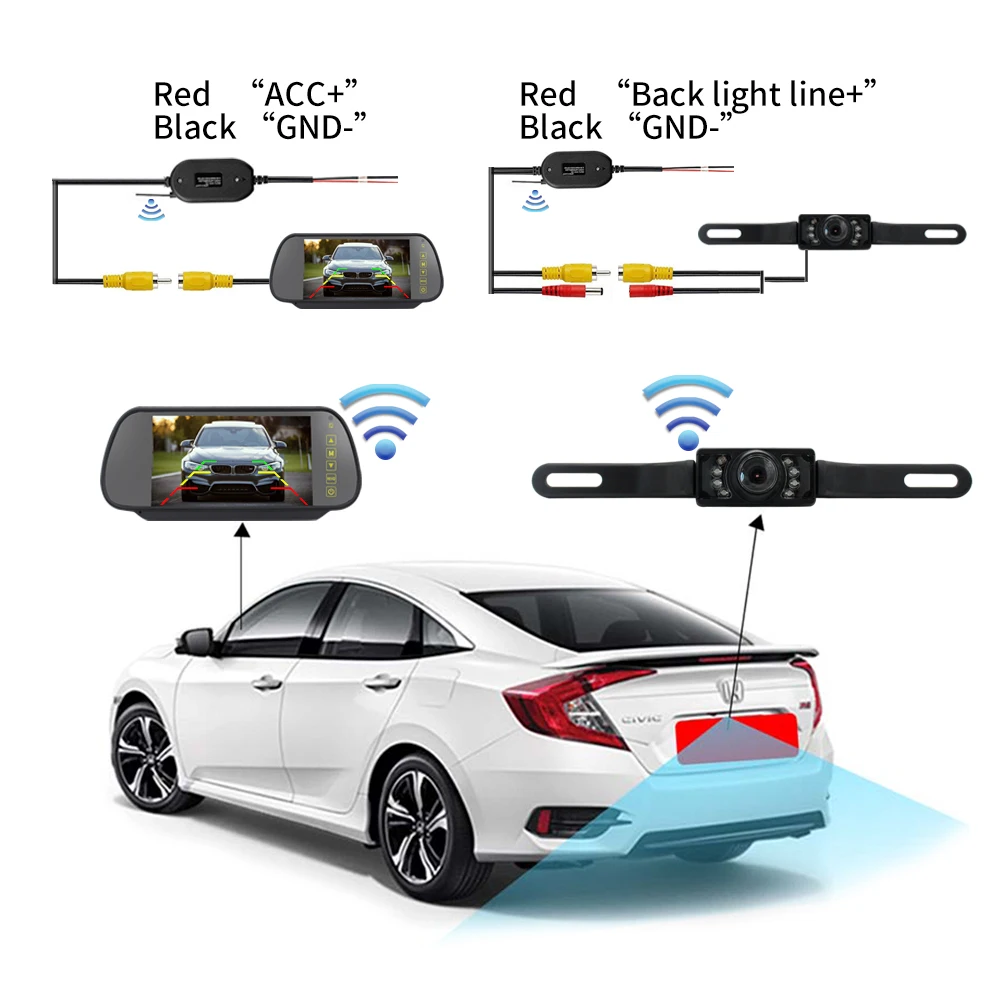

2.4G wireless technical specification:
Wilreless frenquency:2370MHZ
Voltage:DC=12V
Resolution:PAL/NTSC
Wireless transmit distance:15M
Working temperature:-20°C+70°C
Vedio ouput:PAL/NTSC
Receiver sensitive: -85Dbm
DC OUT:DC=5V 1.5A
Connector:RCA connector

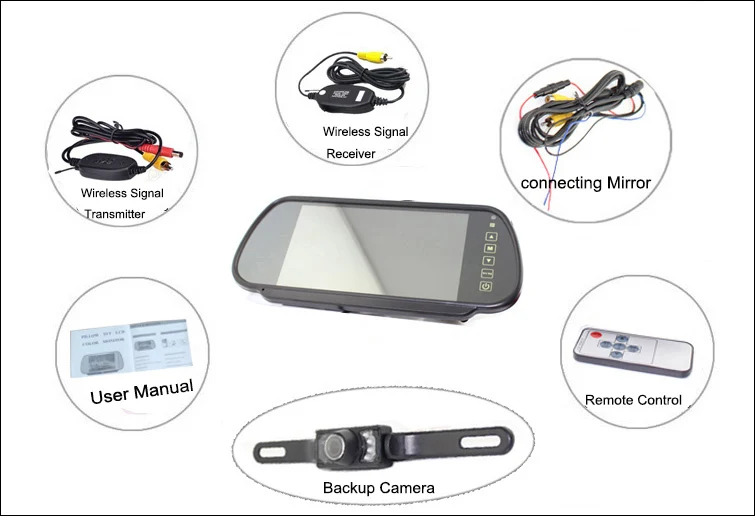

Package included:
1 x 7 inch LCD Rearview Mirror Monitor
1 x Remote control
1 x Video & power cable
1 x Car Rear View Camera
1 x Power cable
1 x wireless singal receiver
1 x wireless signal transmitter
