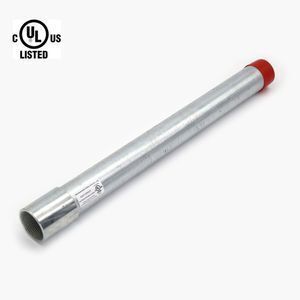

rigid 1 2 inch electrical conduit

Supplier: Weifang East Steel Pipe Co., Ltd.
Region: Shandong, China
Contact: Ms Janet Cui
Price: $0.20 /piece
Min. Order: 1 piece

Click here to contact

Product details

Material:	Steel;	Packaging Detail:	the conduits coverd with pvc paper then tied with steel straps;
Payment Terms:	L/C,T/T;	Place of Origin:	Shandong China;
Model Number:	EMT;	Supply Ability:	3000 Metric Ton/Metric Tons per Month;
Type:	Heat Shrinkable;	Brand Name:	east conduit;
Port:	qingdao,tianjin,shanghai.ningbo;	Package Preview:	;
Secondary Or Not:	Non-secondary;

Product Information
Product Name :	rigid 1 2 inch electrical conduit ;

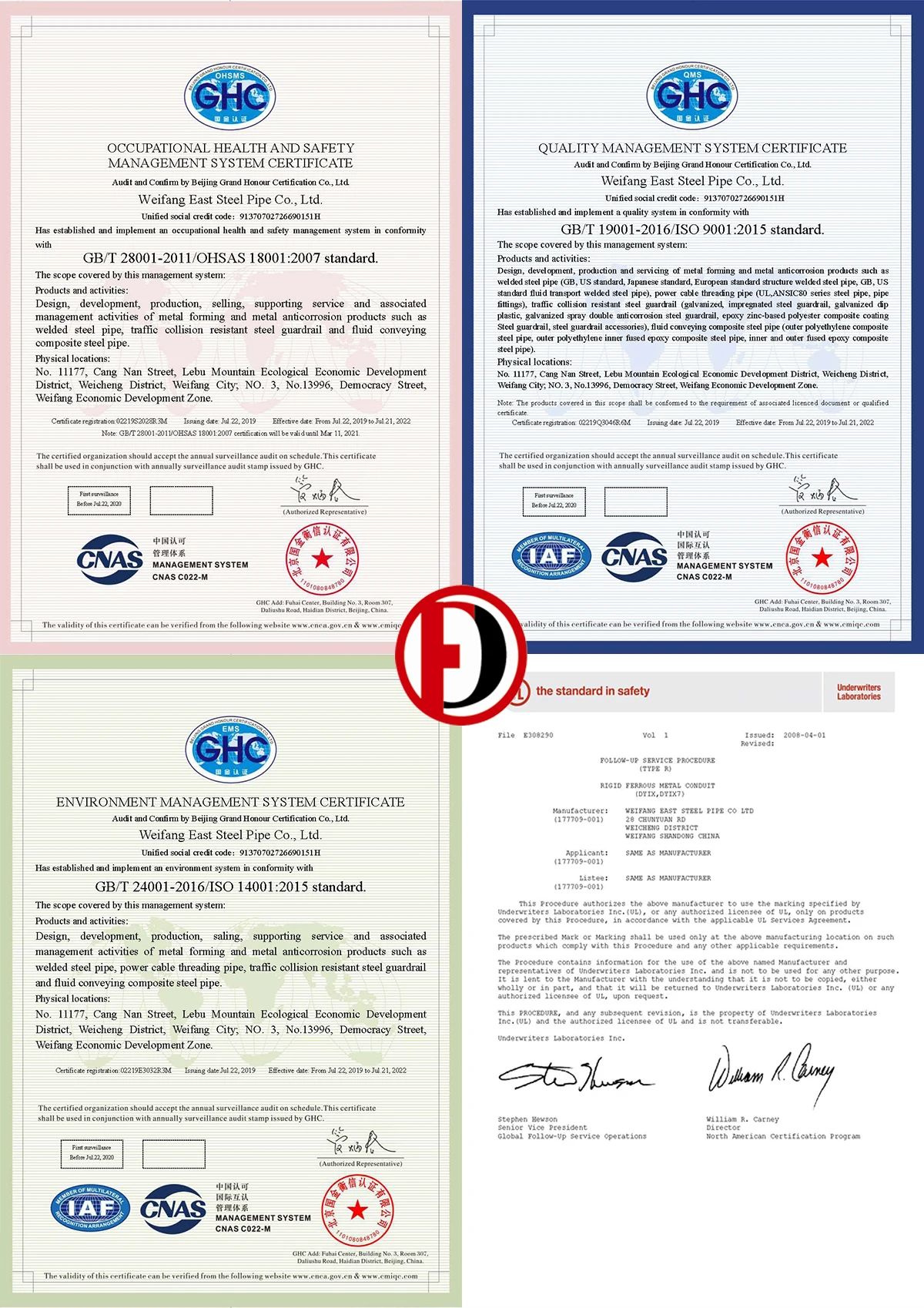

Standard:	UL6 & ANSI C80.1; File No.:E308290;
Tade Size :	from 1/2" to 6";
Both Ends:	threaded both ends with one coupling and plastic cap;
Length:	3050mm or according to customer's requirement;
Usage:	through the electrical wires with the purpose of protection for the electrical raceway system;
Surface Finished:	Hot dip galvanized(HDG);
Material :	carbon steel coil;
Package:	the conduits coverd with pvc paper then tied with steel straps;
Delivery Time:	20 to 30 days after we receive your advance payment or copy of L/C;
Payment Term:	L/C at sight or T/T;

Dimension and Weight Chart

+

Trade Size		Nominal Wt. per 100Ft(30.5M)		Nominal Outside Diameter		Nominal Wall Thickness
U.S.	Metric	Lbs	Kg	In.	mm	In.	mm
1/2"	16	82	37.2	0.84	21.3	0.104	2.6
3/4"	21	109	49.44	1.05	26.7	0.107	2.7
1"	27	161	73.03	1.315	33.4	0.126	3.2
1-1/4"	35	218	98.88	1.66	42.2	0.133	3.4
1-1/2"	41	263	119.3	1.9	48.3	0.138	3.5
2"	53	350	158.76	2.375	60.3	0.146	3.7
2-1/2"	63	559	253.56	2.875	73	0.193	4.9
3"	78	727	329.77	3.5	88.9	0.205	5.2
3-1/2"	91	880	399.17	4	101.6	0.215	5.5
4"	103	1030	467.21	4.5	114.3	0.225	5.7
5"	129	1400	635.04	5.563	141.3	0.245	6.2
6"	155	1840	834.62	6.625	168.3	0.266	6.8

Applicable tolerances:

Length: 10Ft (3.05m) ± ¼” (±6.35mm).

Outside Diameter: ½”-2'' ±0.015 ''(±0.38mm); 2½”-4'' ±0.025'' (±0.64mm); 5''-6'' ± 1%
