Huion Kamvas PRO 16 full laminated IPS display high configuration 8192 pressure tilt function graphic drawing design pen monitor

Supplier: Shenzhen Huion Animation Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Jeny Chan
Price: $328.22 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Port:	Shenzhen;	Contrast Ratio:	1000:1;
Widescreen:	yes;	Payment Terms:	L/C,T/T,PayPal;
Package Preview:	;	Express Keys:	6 Programmable Press Keys;
Interface Type:	USB Type-C;	Place of Origin:	China;
Supply Ability:	10000 Piece/Pieces per Month;	Reading Height:	10 mm;
Tilt:	±60°;	Response Time:	25 ms;
Pen Resolution:	5080 LPI (Lines Per Inch);	After-sales Service:	Call Center and on-line Technical Support;
Color:	Black;	Packaging Detail:	Color carton box;
Net Weight/ piece:	1.35 kg;	Brand Name:	Huion;
Panel Type:	IPS;	Certification:	FCC,ce,RoHS;
Brightness:	220cd/m2;	Warranty(Year):	1-Year;
Finger Touch:	Touch Bar;	Products Status:	Stock,New;
Display Ratio:	16:9;	Active Area:	344.16 x 193.59mm;
Report Rate:	266 RPS;	Technology:	Battery-Free Electromagnetic Resonance;
Series:	For Business;	Application:	Desktop;

Welcome to Huion

⇓ Click photo below to know other model

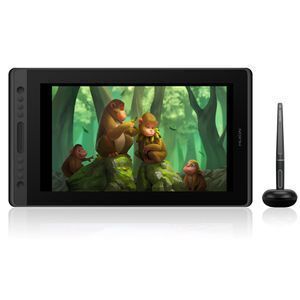

HUION KAMVAS Pro 16 Tilt Support Battery-Free Pen Graphic Drawing Tablet Display Monitor with Express Keys and Touch Bar

Product Description

Excellent Screen

Chemically etched anti-glare glass binds with IPS panel seamlessly thanks to full-lamination. When you draw on KAMVAS Pro 16, the parallax is close to none and the display effect is magnificent. 120% sRGB(=92%Adobe RGB=88%NTSC) color gamut shows 16.7 million colors vividly.

Comfortable Grip

Pen PW507 is a battery-free pen features 8192 pen pressure levels and tilt recognition. With the ergonomic design and the supple rubble grip, it is easy to hold, comfortable to use, and enjoyable for creating.

Premium Craft

Aluminum alloy back case, black front, thin borders, and it’slim, and yet it still got a 15.6 inch screen plus 6 customizable express keys and a touch bar. It is easy to bring around, and stunning to use.

Delicacy in details

Type-C port, no heat, donut-shape pen holder, 3-in-1 cable, anti–slip silicone strips, adjustable stand (optional),… We take care of it all for your convenience.

Compatibility

Support Windows, macOS, the mainstream drawing and designing software such as PS, SAI, AI and CDR.

Technology	Battery-free Electromagnetic Digitizer
Type	IPS Monitor
Screen Size	15.6inch (Diagonal)
Aspect Ratio	16:09
Display Area (H x V)	344.16 x 193.59mm
Pen Pressure	8192 Levels
Viewing Angle (Typical)	H : 178° V : 178°
Pixel Pitch (H x V)	0.24825 mm x 0.24825 mm
Native Resolution	1920x1080
Resolution	5080 LPI (Lines per Inch)
Reading Height	0.12mm 2048 PPI (Pixels per Inch)
Brightness	220cd/m2
Contrast Ratio (Typical)	1000:01:00
Number of Colors	16.7 M
Report Rate	266RPS (Revolutions per Second)
Response Time	25ms
Video Interface	VGA DP HDMI
Data Communication Interface	USB 1.1
Power Supply Type	External Adapter
Power Supply (Adapter)	Input 100-240 VAC, 50/60 Hz, Output 12VDC, 3A
Operation Power Consumption	<36W
Standby Power Consumption	< 1W
Pen Power Consumption	300uA (Max.)
Errors of Digital Pen Detecting	±3mm (Tilted ±50°from Vertical)
OS Support	Windows XP or later,mac OS X10.7.0 or later
OSD Language	English, Traditional Chinese and Simplified Chinese, etc.
Operation Temperature	5-+40°C (41-104°F)
Operation Humidity	10-80% (Non-condensing)
Dimensions/piece	437.8 x 251.2 x 11.5mm
Out Carton Dimensions	558mmx124mmx408mm
Net Weight/ piece	Net 1.2kg
Gross Weight/piece	2.5kg
Tilt	±60°

Details

IPS HD pen display

Wide viewing angle,perfect angle

8192 Levels of Pressure Sensitivity,With Tilt Function

Packaging & Shipping

Delivery

Huion offers door to door services by air or by sea just depend on your actual request. Such as DHL, UPS, TNT, FEDEX,EMS.

For delivery by air, it takes 3-6 working days to your office.

Product type	Huion KAMVAS PRO 16 Pen Tablet Monitor
Package	Color box with export standard
Delivery Detail	3-7 days for samples; 15-20 days for batch goods.
